Product Overview

Description

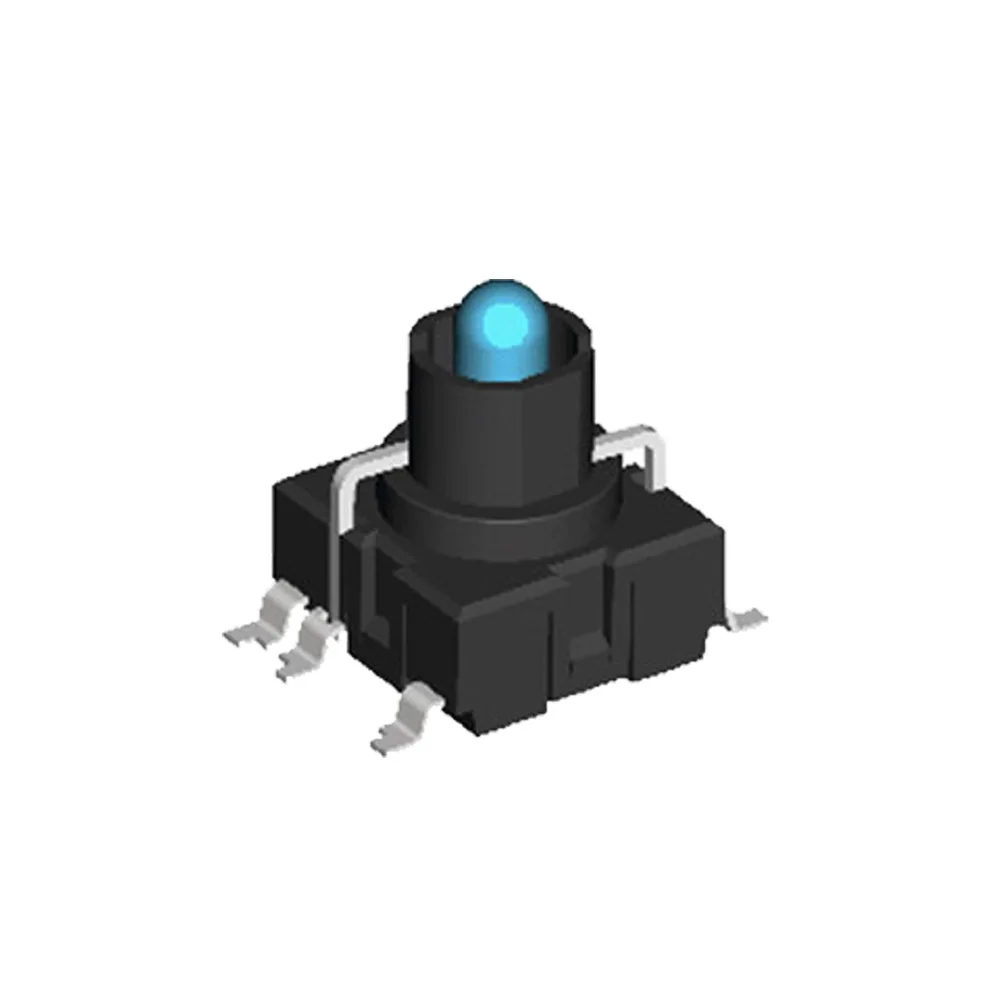

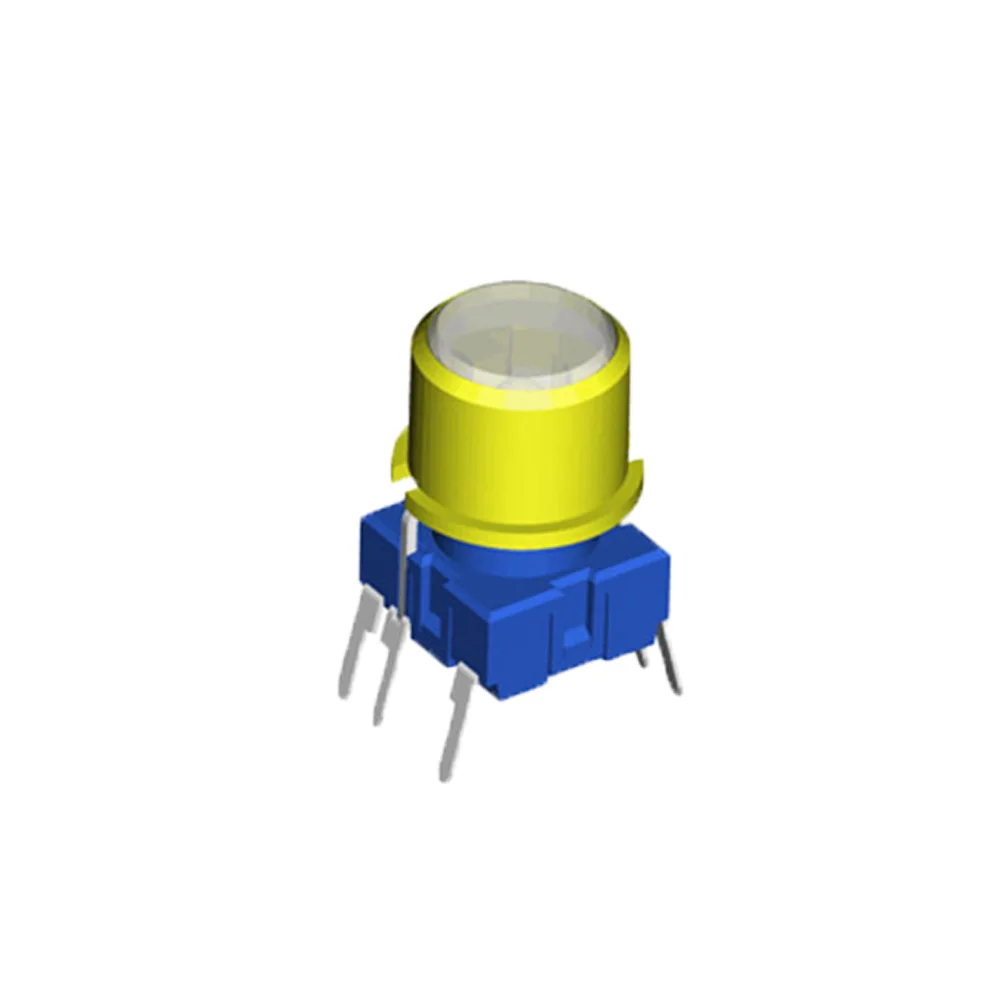

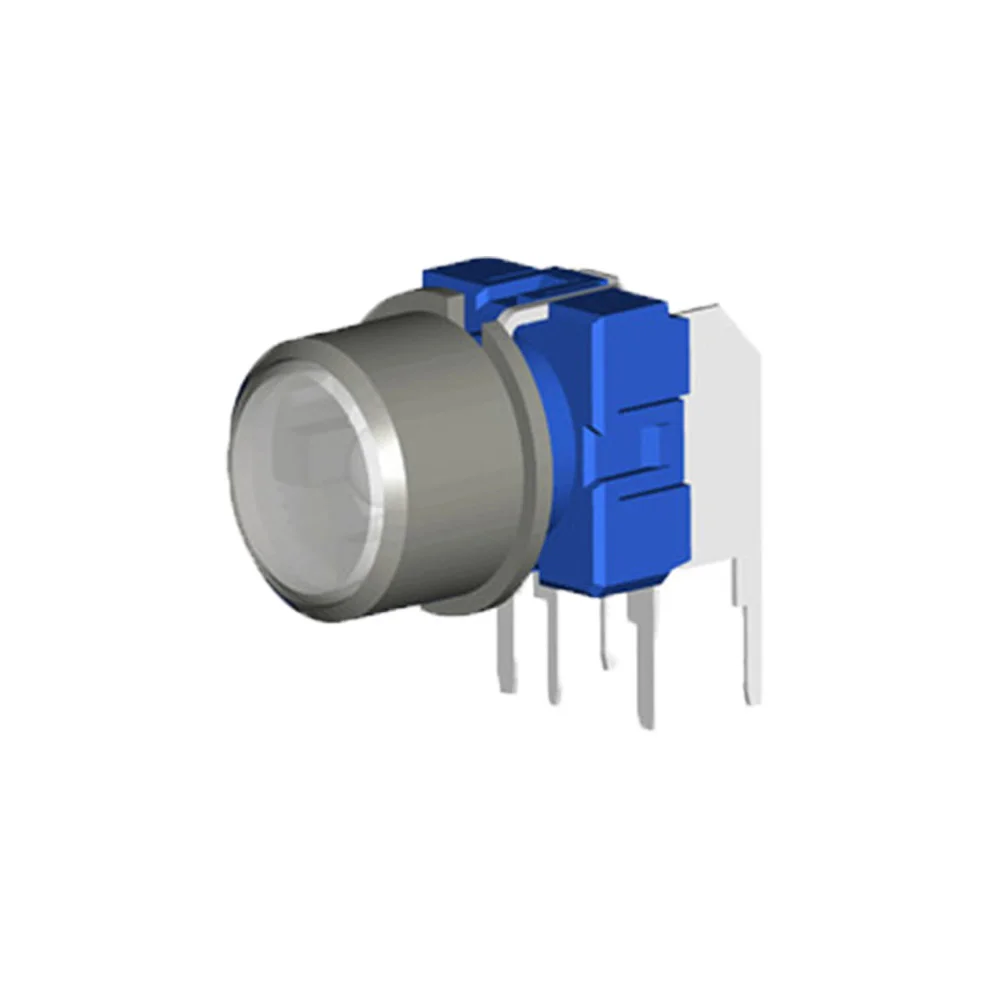

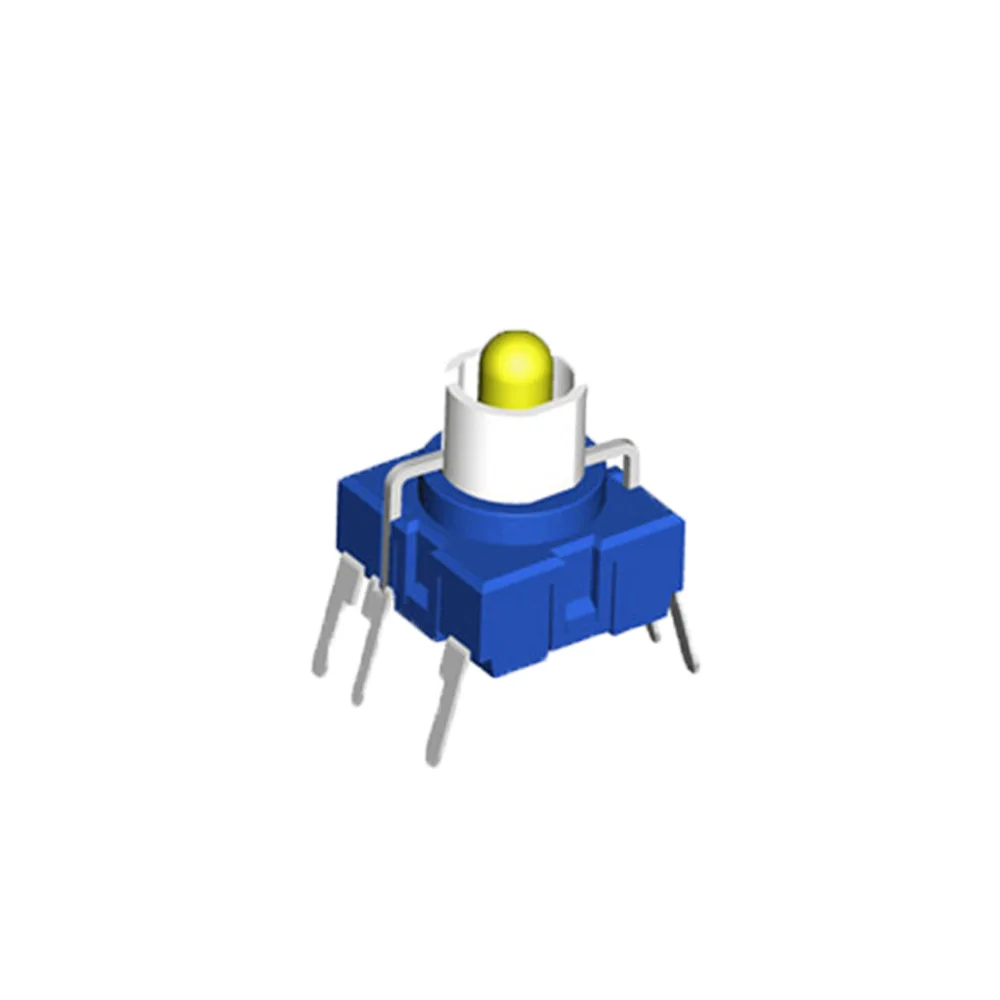

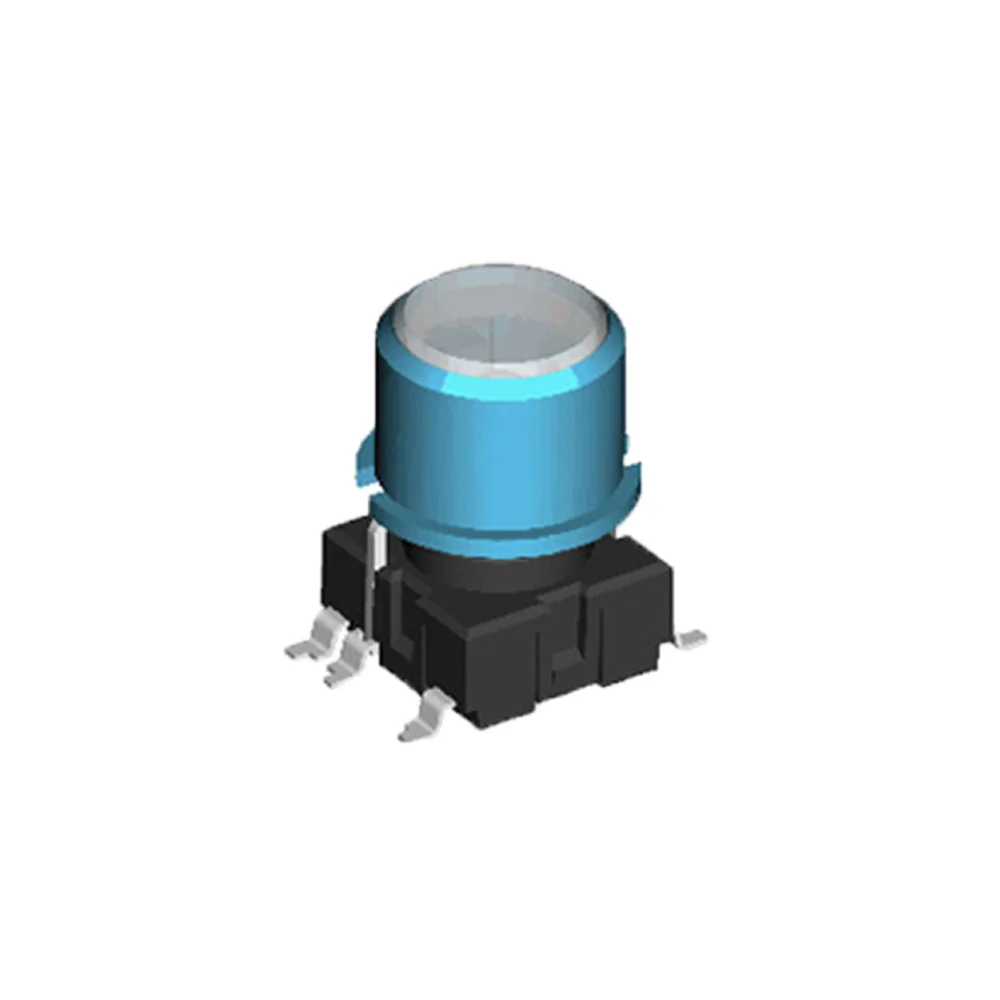

6FS LED IP67 Waterproof led push button switch with or without cap



1.MAGNETIC SWITCH PUSH BUTTON

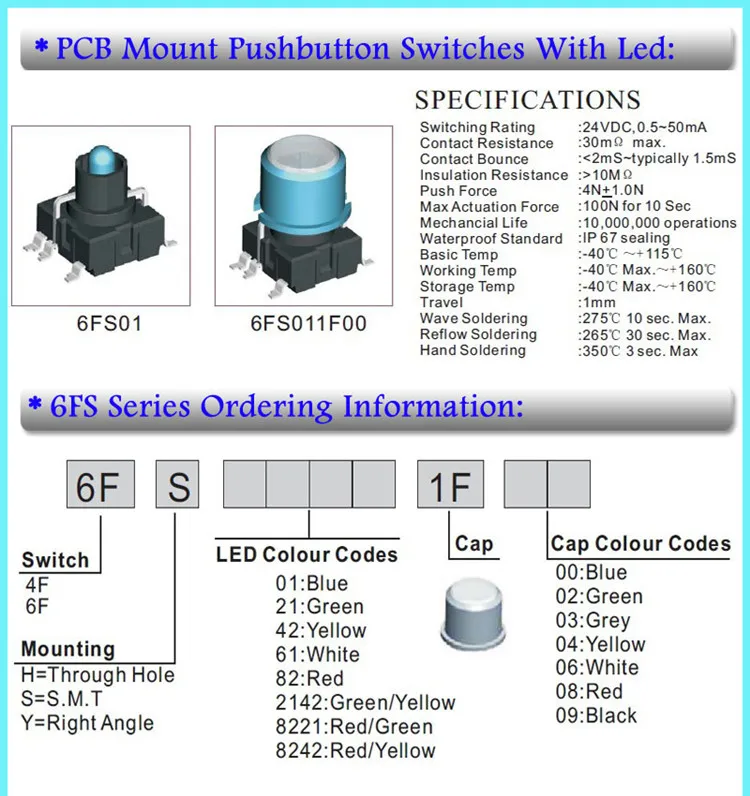

SPECIFICATIONS
1).Switching Rating:         24VDC,0.5-50mA
2).Contact Resistance:      30mΩ max.
3).Contact Bounce:          <2mS-typically 1.5mS
4).Insulation Resistance:   >100MΩ
5).Push Force:                 4N±1.0N
6).Max Actuation Force:    100N for 10 Sec.
7).Travel:                        1mm
8).Wave Soldering:           275°C 10 Sec.Max.
9).Reflowing Soldering:    260°C 30Sec.Max.
10).Hand Soldering:         350°C 3Sec.Max.



2.PUSH BUTTON SWITCH


TECHNICAL SPECIFICATIONS
1).Environmental Endurance IEC68-2-3
2).Temperature:     +40°C
3).Humidity:           93%RH
4).Duration:           21 Days
5).Temperature Cycling IEC 68-2-14
6).Temperature limit:                    Min -55°C-Max.+85°C
7).Number of cycles:                    200
8).Exposure times at each temp:   10 min
9).Recovery time:                        16hrs
10).Sealing IEC 529:                    Meet IP-67
11).Verbration Test:                     Meet IEC 68-2-6



3.PUSH BUTTON LIGHT SWITCH


PACKAGE
Inner Package:50pcs/tube



RoHS Compliant led waterproof push button light switch with high quality.







We manufacture and specializing in dip switches for many years , Such as Slide DIP Switch , Piano DIP Switch , Rotary DIP Switch …All products have passed ROHS Certificate .

If this product is not the exact item for your need , Please give your specifications to us then we can give you our best !

Thanks for your Time !



Free Samples will be sent to you !
