High quality mobile asphalt mixing plant price

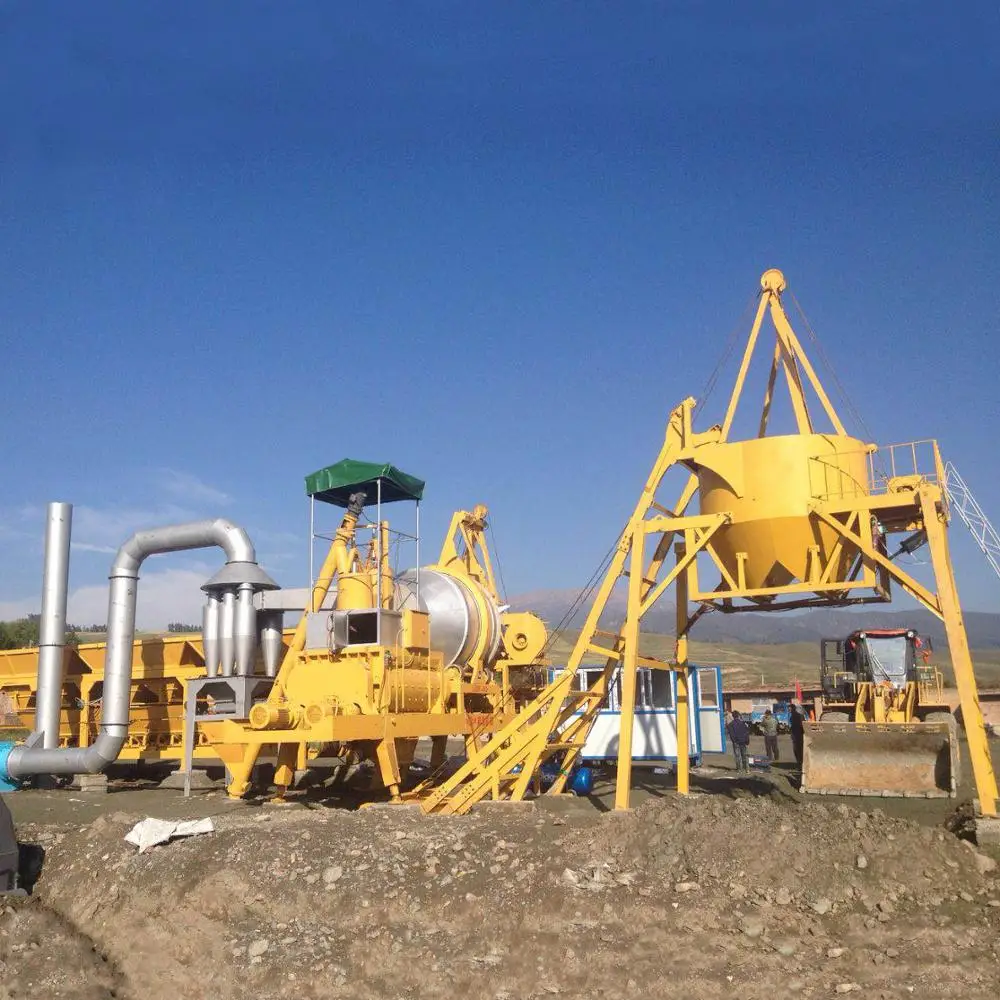

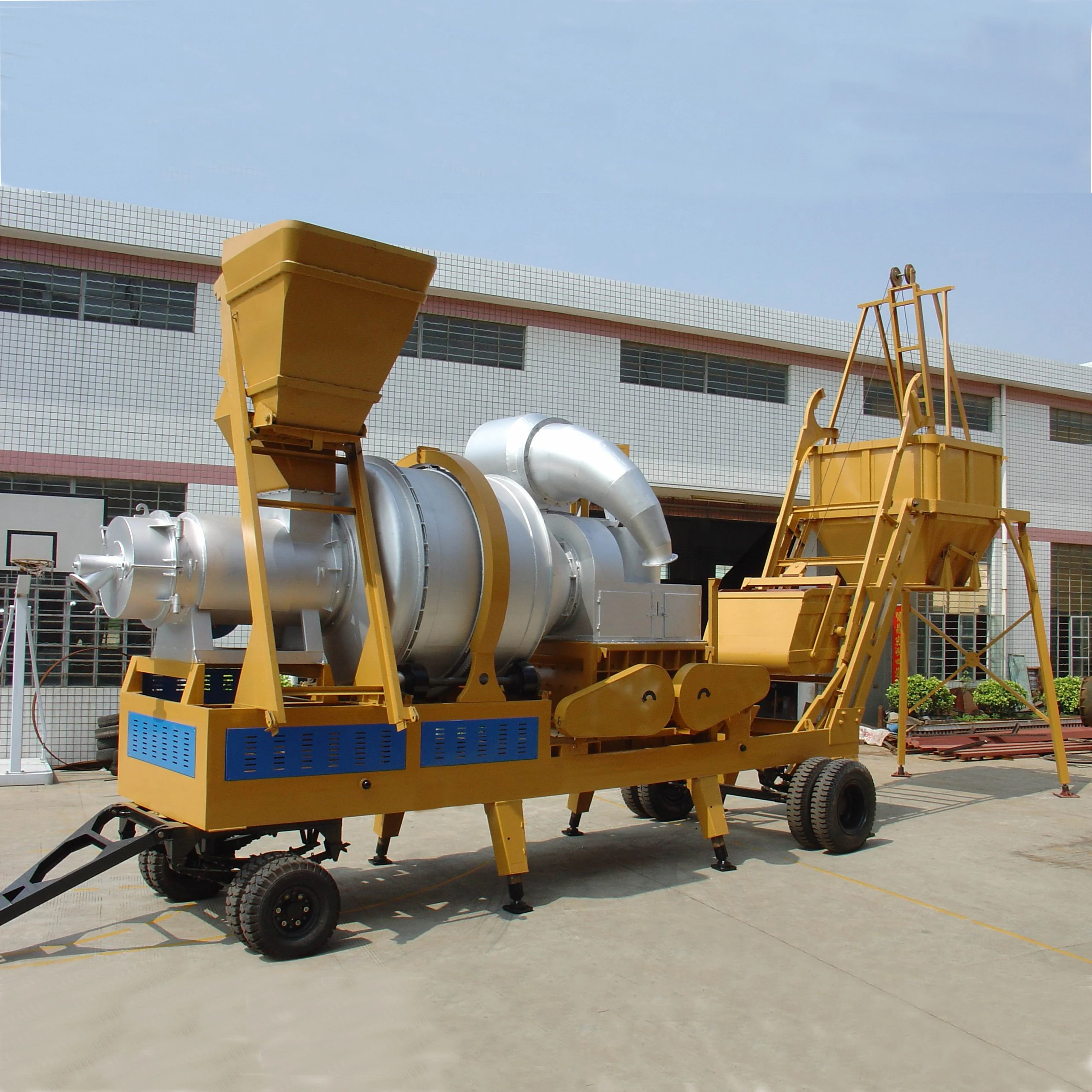

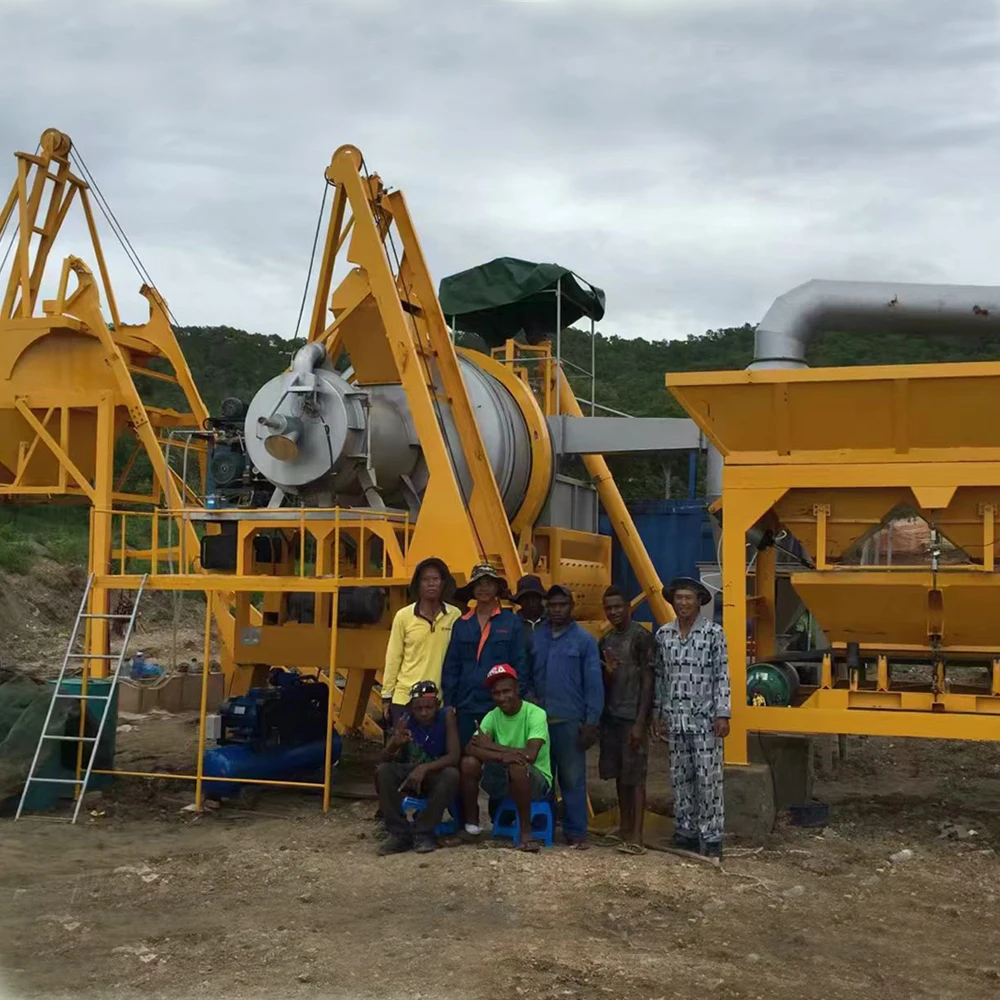

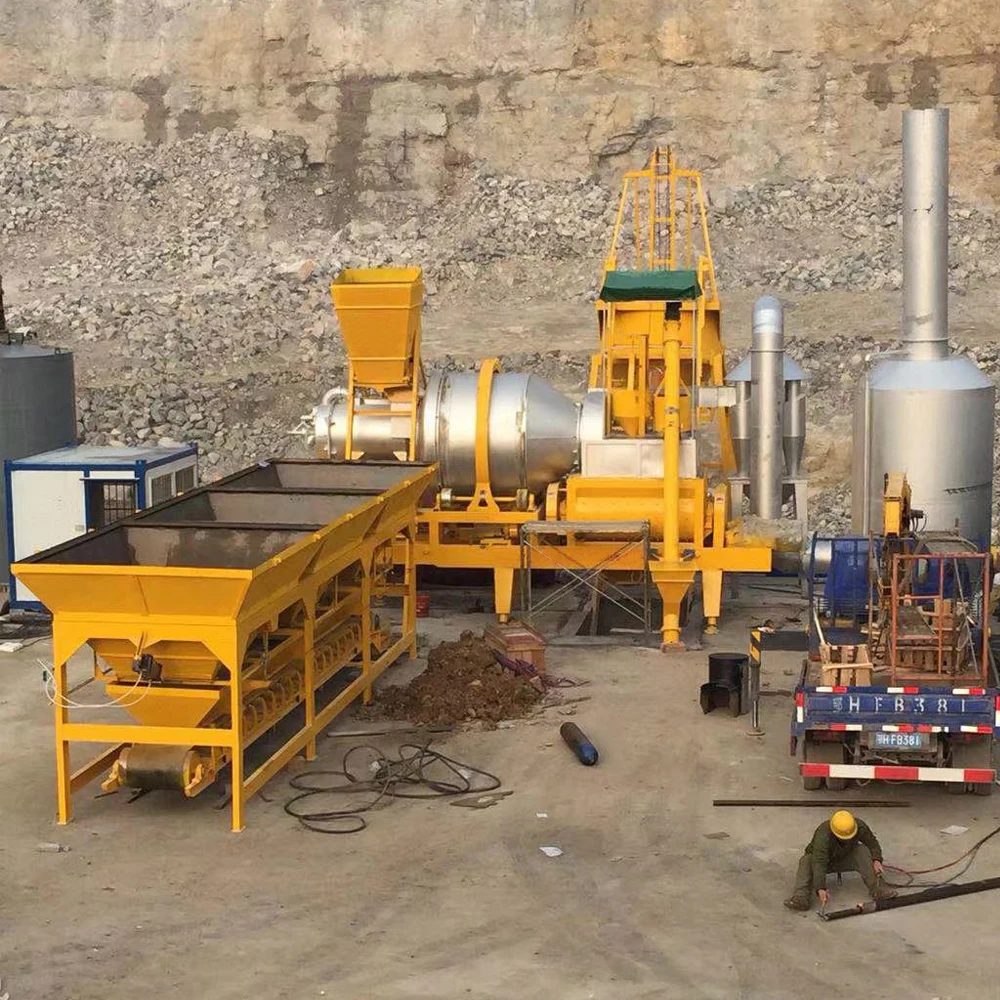

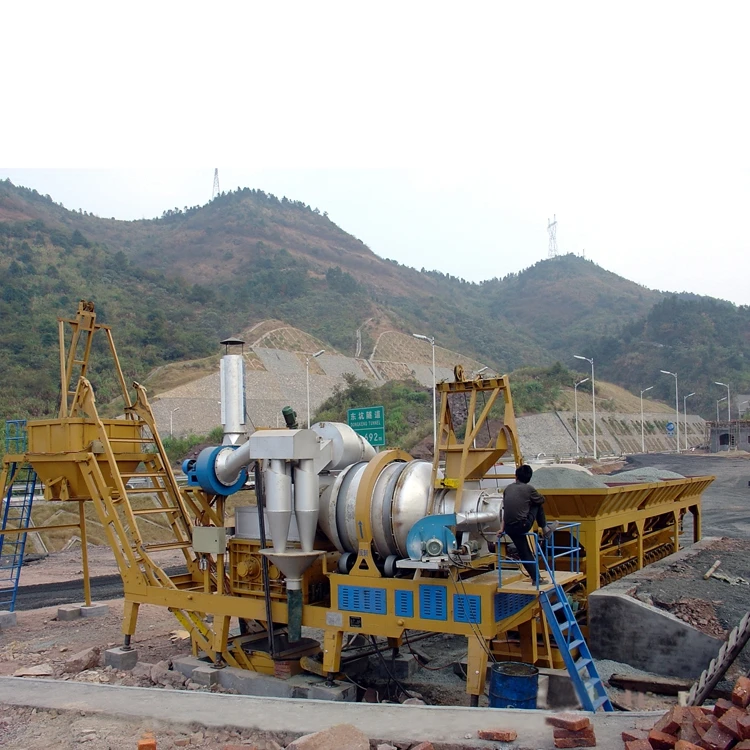

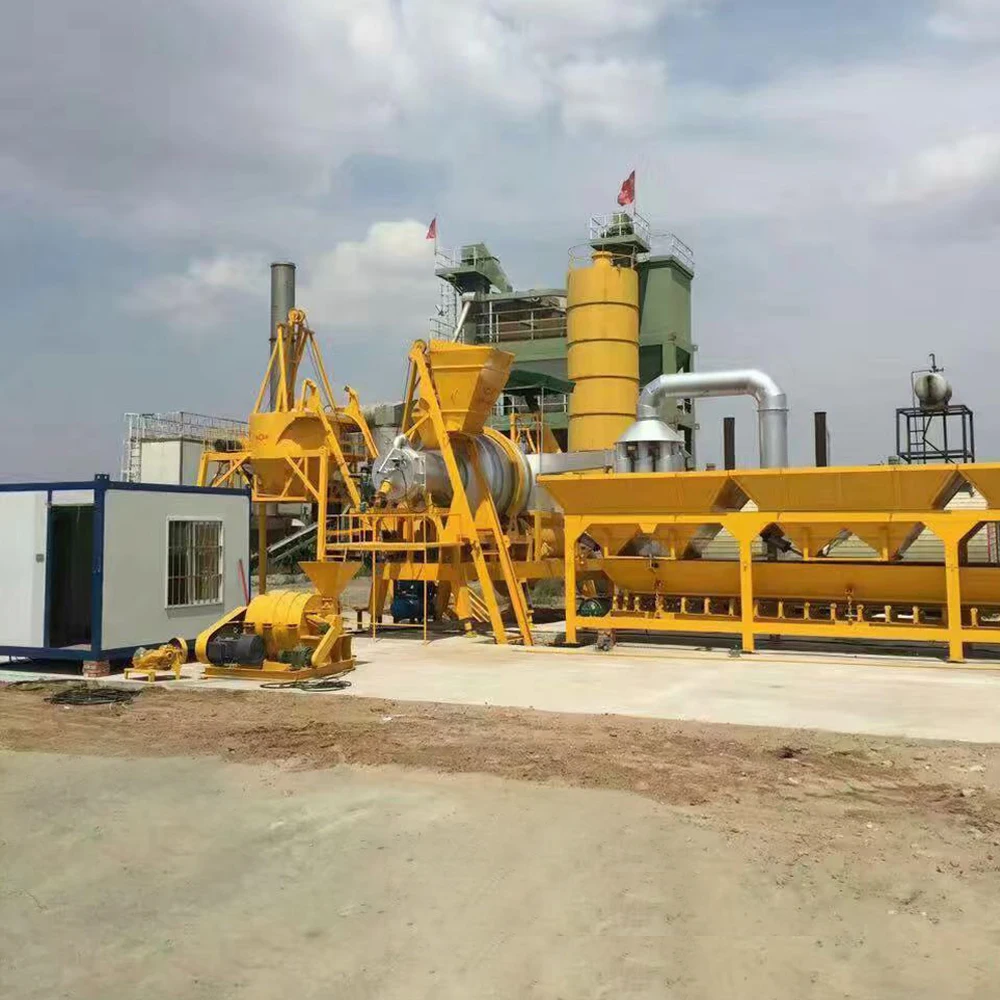

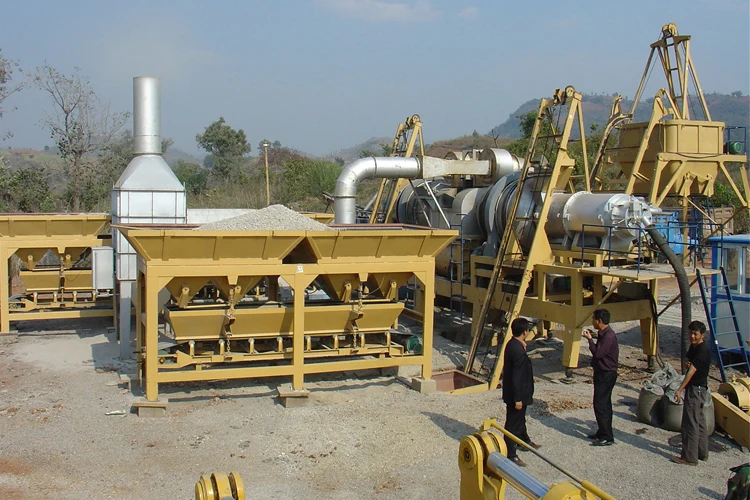

Product Display



I MYQL mobile force series asphalt mixing equipment is on the basis of many years of experience in the production of small mixer, especially most of similar products at the present time: standard production conditions, the high cost of fuel, exhaust temperature high enough, not whole mobile defects, such as new design after market feedback, specific the following technical characteristics:

1. Good mobility.The towed chassis integrates the mixing main engine and the finished product bin, and the cold batching station also adopts the towed form to realize the whole machine's full movement.

2. High combustion efficiency.Select the special burner of high quality and famous brand, optimize the design of combustion furnace, high combustion efficiency, low fuel consumption;

3. Strong reliability.The program control and electronic weighing are closely combined to give full play to the powerful function of PLC, so as to achieve good stability of the weighing system, small fluctuation of discharge temperature and high reliability.

4. Good dust removal effect.Volute dust removal and specially designed dust removal channel further reduce the exhaust temperature, matching with the optional bag dust remover, does not burn out the bag, dust emission can meet the requirements of environmental protection;

5. Double horizontal axis agitator redesigned by Italian technology, with large capacity, high mixing efficiency and long service life;

6. High production efficiency.The newly designed drying drum with data model technology gets rid of the bondage derived from the cement mixing drum, and the drying capacity is further improved to ensure the rated output.

model

MYQLD-10

MYQLD-15

MYQLD-20

MYQLD-30

MYQLD-40

productivity

10t/h

15t/h

20t/h

30t/h

40t/h

The feeding volume

0.35m³

0.6m³

0.68m³

1.1m³

1.2m³

Feed weight

0.5t

0.75t

1.0t

1.4t

1.7t

Form a complete set of power

41(57)kw

59(78)kw

66(89)kw

97(120)kw

114(145)kw

Overall dimensions

5.8x2.4x5m

11x2.4x5.8m

11.5x2.5x6.8m

15.3x3x7.6m

15.8x3x8.2m

The weight

10(11)t

13(15)t

15(17)t

17(20)t

18(22)t

Fuel consumption

diesel

6.5~7.5kg/t

Pulverized coal

13.5~15kg/t

Drying drum speed

17~18rmp/min

Agitator and speed

Double horizontal shaft (type 10 single horizontal shaft)    36rmp/min

Control mode and weighing measurement

Automatic/manual control, sensor electronic metering

The discharge temperature

Up to 180 ° c is adjustable

The cycle time

153~180s

Scope of application

Asphalt concrete



Note: 1.The value in the power brackets of the whole machine is coal-burning;

2.Additionally, the output of 60t/h and 80t/h asphalt mixing equipment is made up of two 30t/h and 40t/h

The drying assembly is combined with an agitator and the parameters are not specified.
