mini beer factory/non alcoholic 300L 500L 1000L 2000L beer equipment for the beer

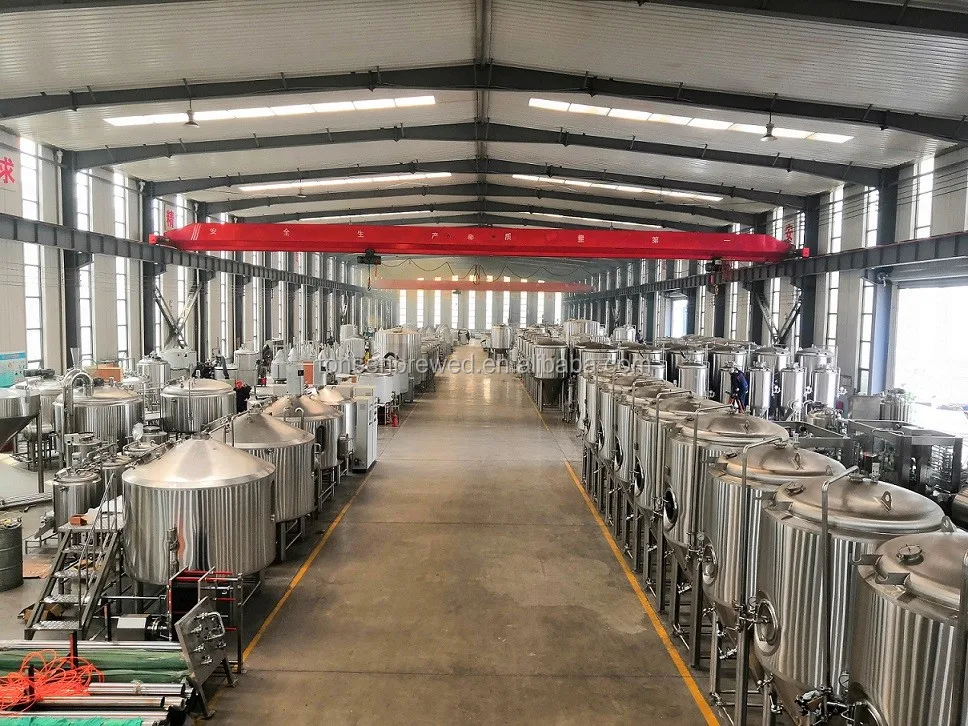

Jinan Tonsen Equipment Co., Ltd. is an international comprehensive enterprise specializing in R&D,production,technical support and services for beer equipment and wine equipment .
We provide complete beer brewing solutions that include: malt handling system, brew house system, beer fermenting/storage system, cooling system, cleaning system, control system, package line.
Tonsen brewing equipment has been exported to more than 30 countries, which include USA, Canada, Australia, Japan, UK, France, Germany, Denmark,Norway,Agentina,Russia etc.
Product Description

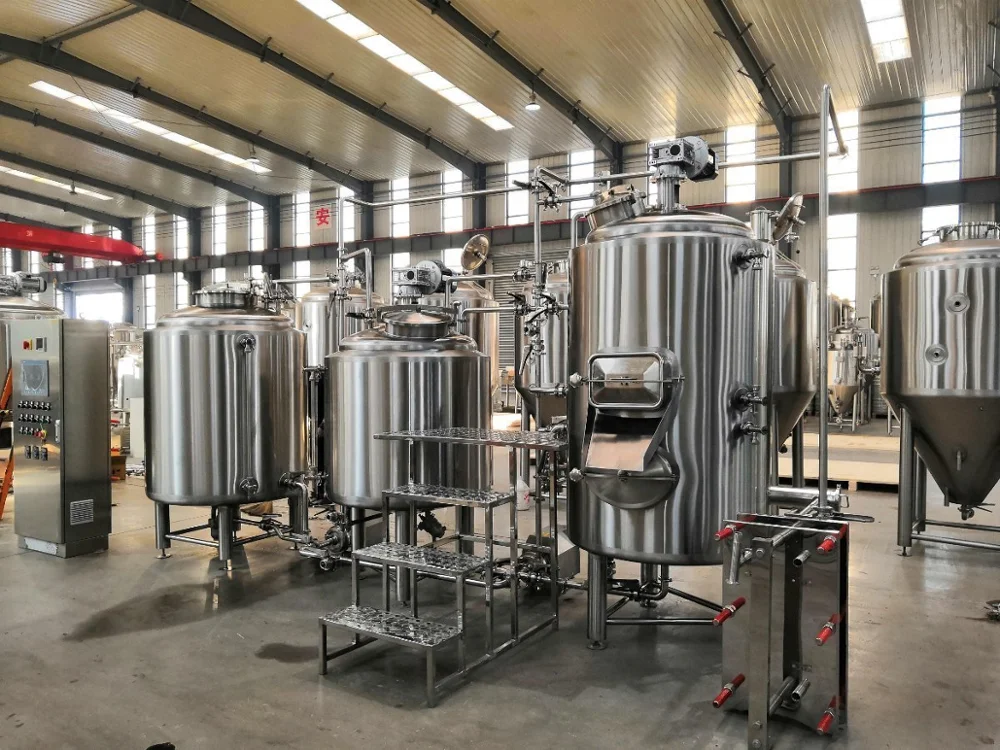

Tonsen Turnkey Brewery Euipment

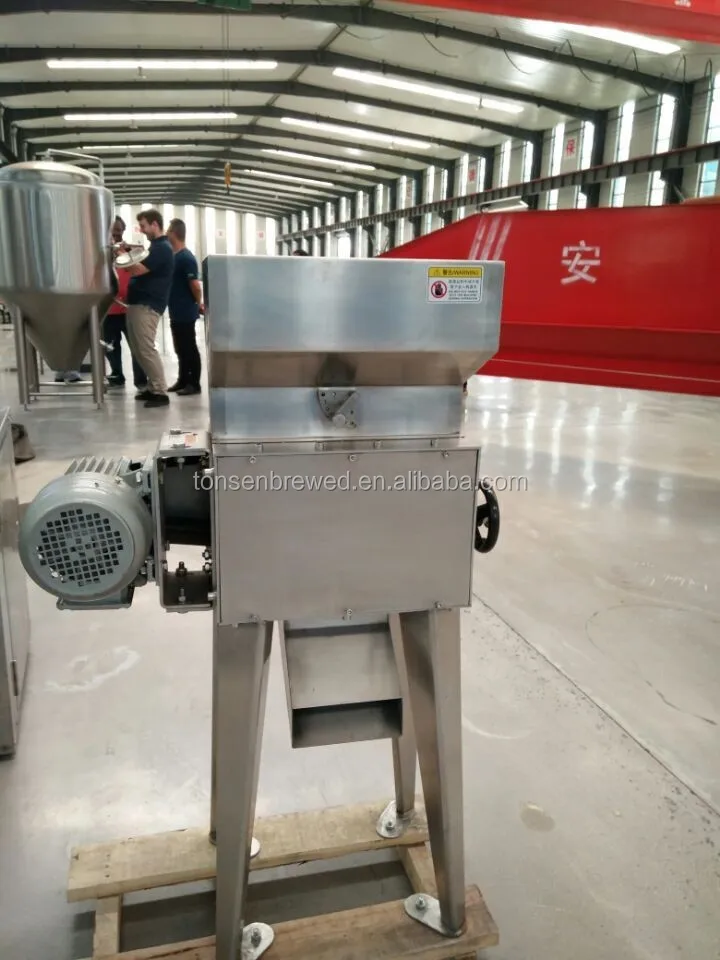

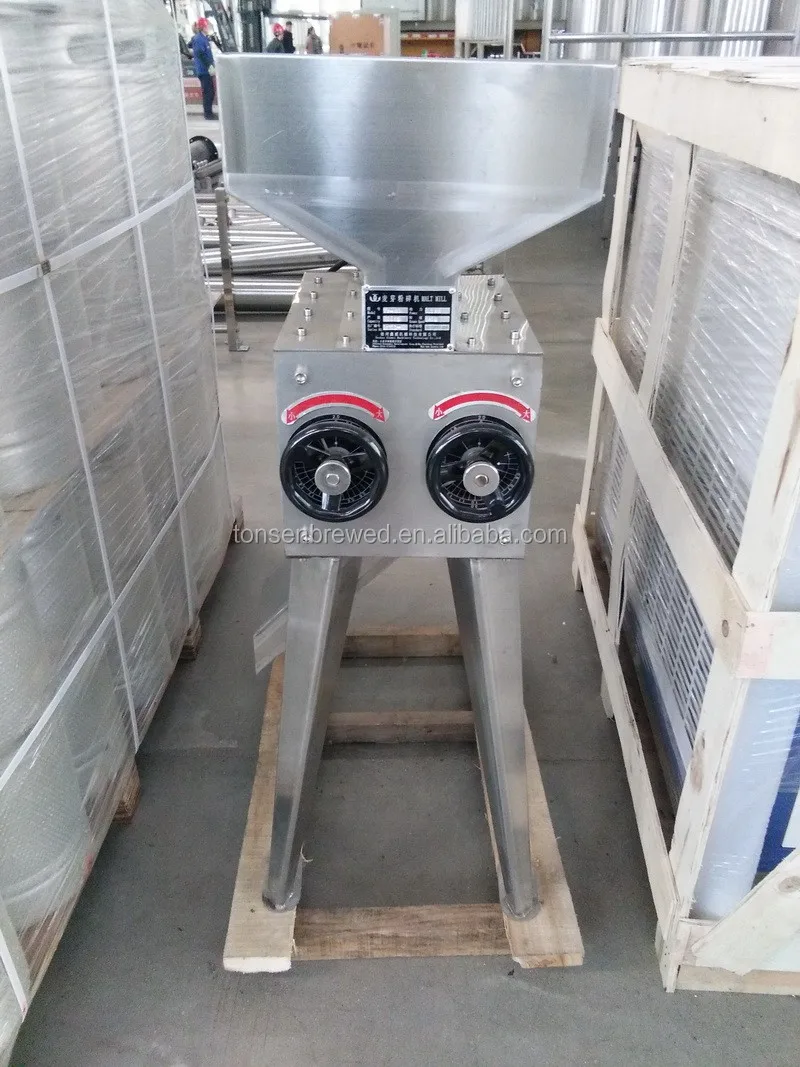

1----Milling system
Capacity: 100kg/h, 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.
Optional: Flexible Auger.Description: CE or UL listed Motor, Double roller, distance adjustable, stainelss steel 304 material.

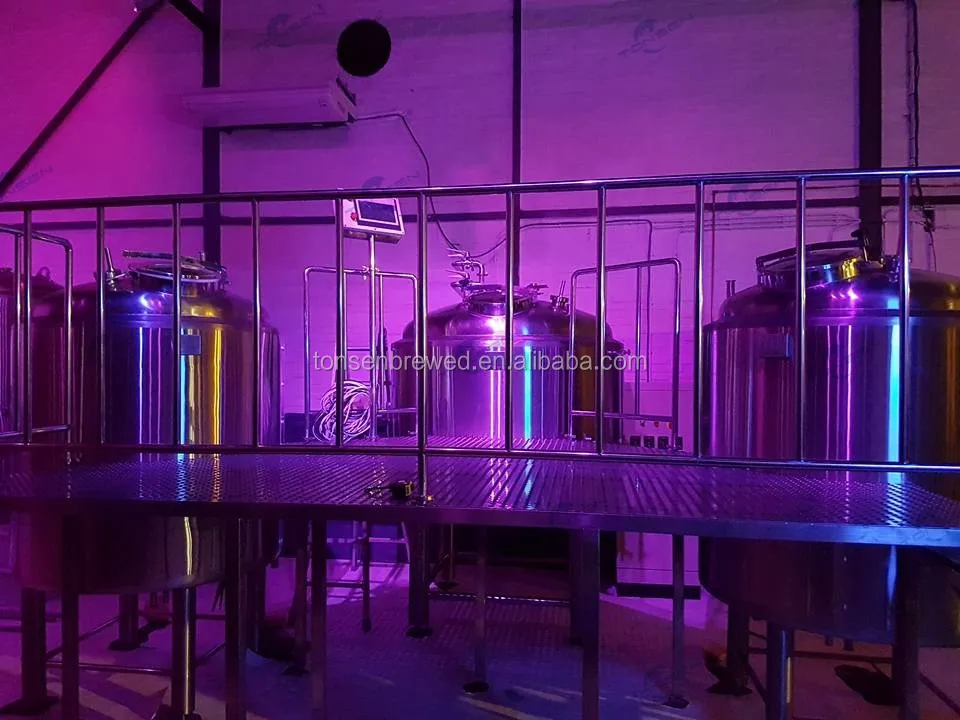

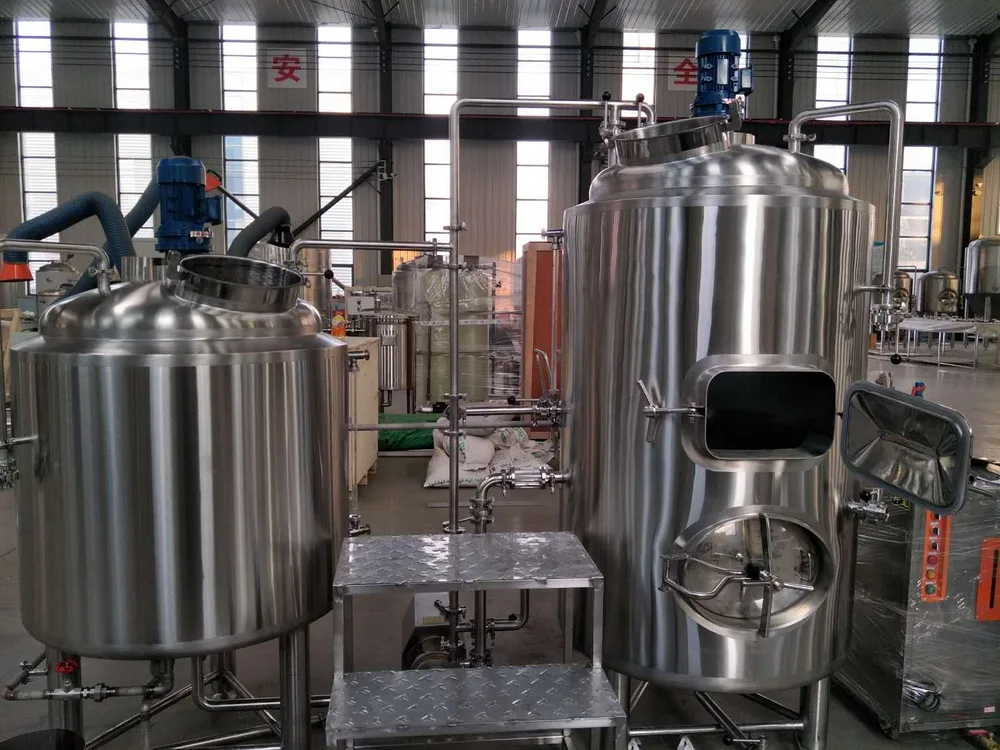

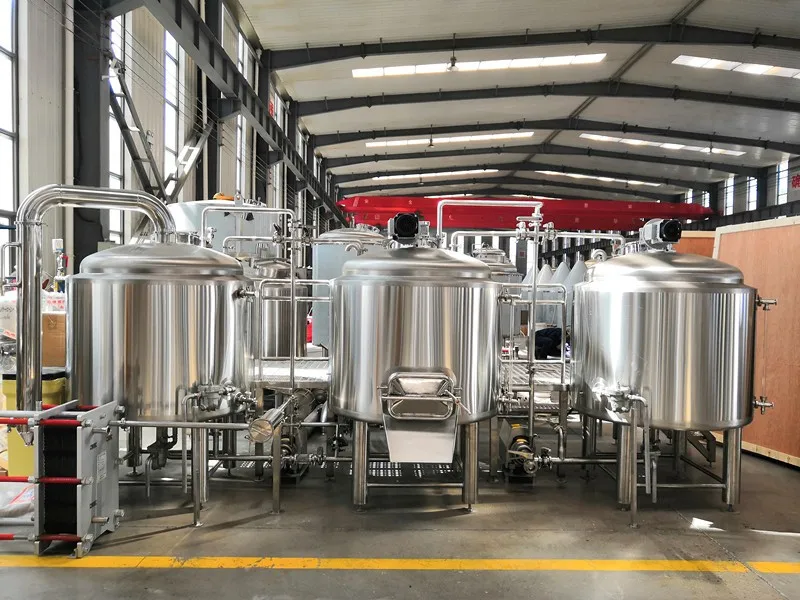

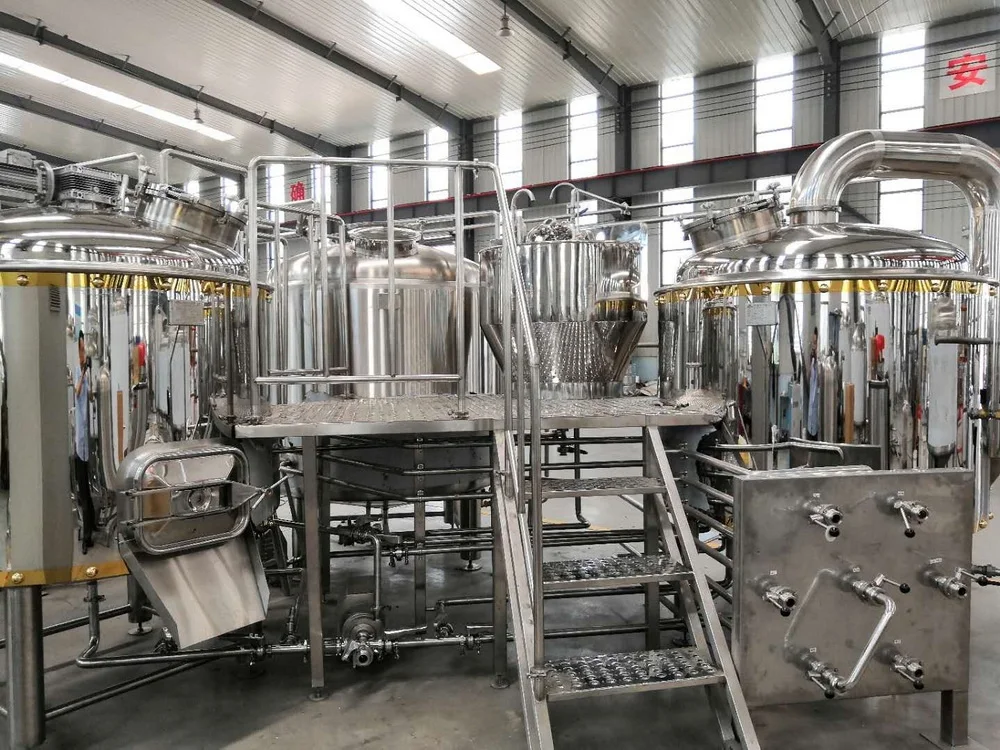

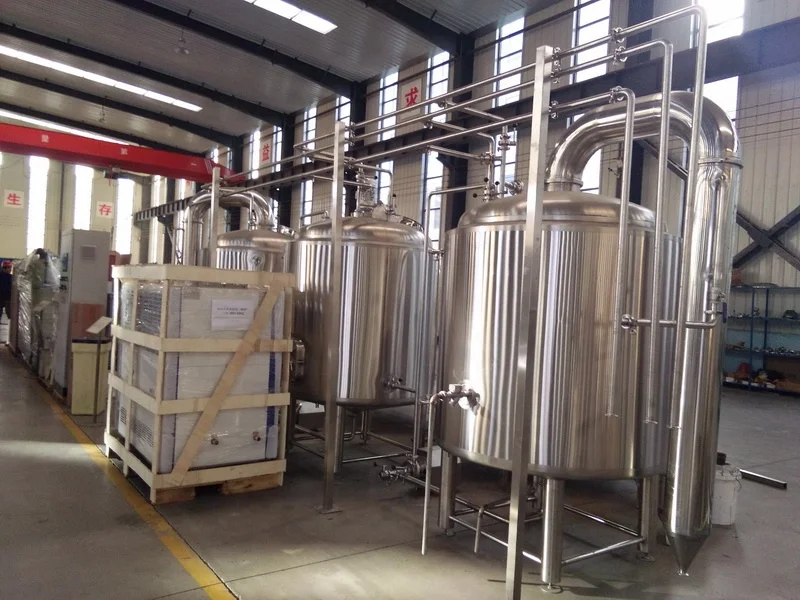

2----Brew House System
2-4 vessles or combined system.
-Capacity 100L-5000L, 1bbl-40bbl.
- Steam heated, electrical heated or natural gas
-Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.

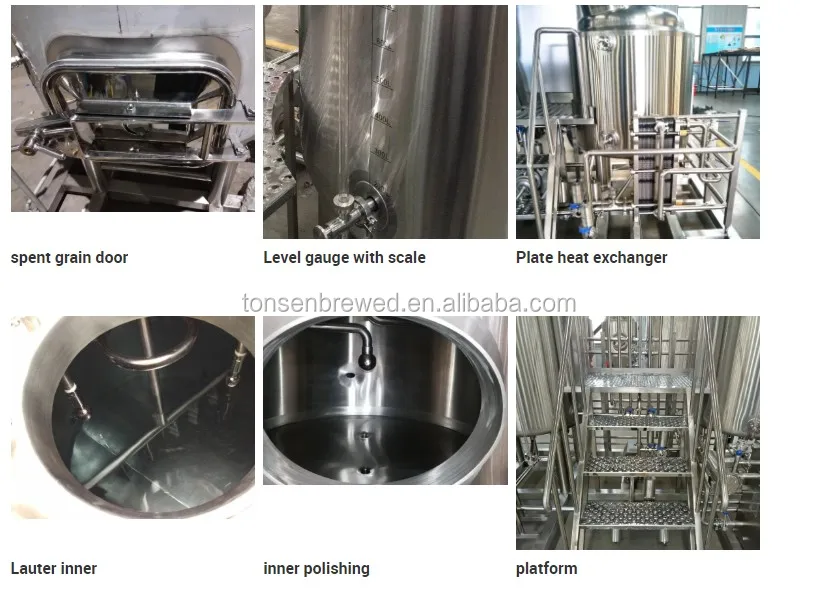

-Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.
-Boiling kettle with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
-Whirlpool with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
-Insulated HLT and CLT with the pipelines and pumps
-External grant, hops back, heat exchanger.Wort oxygenation system, working platform.
-All the necessary pipelines and pumps

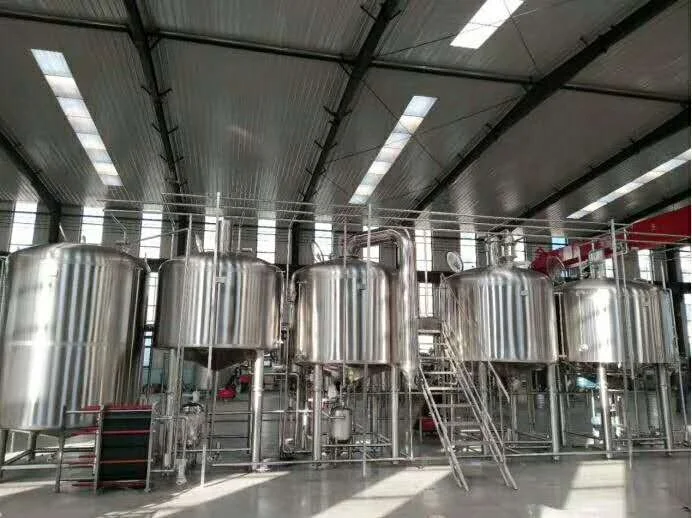

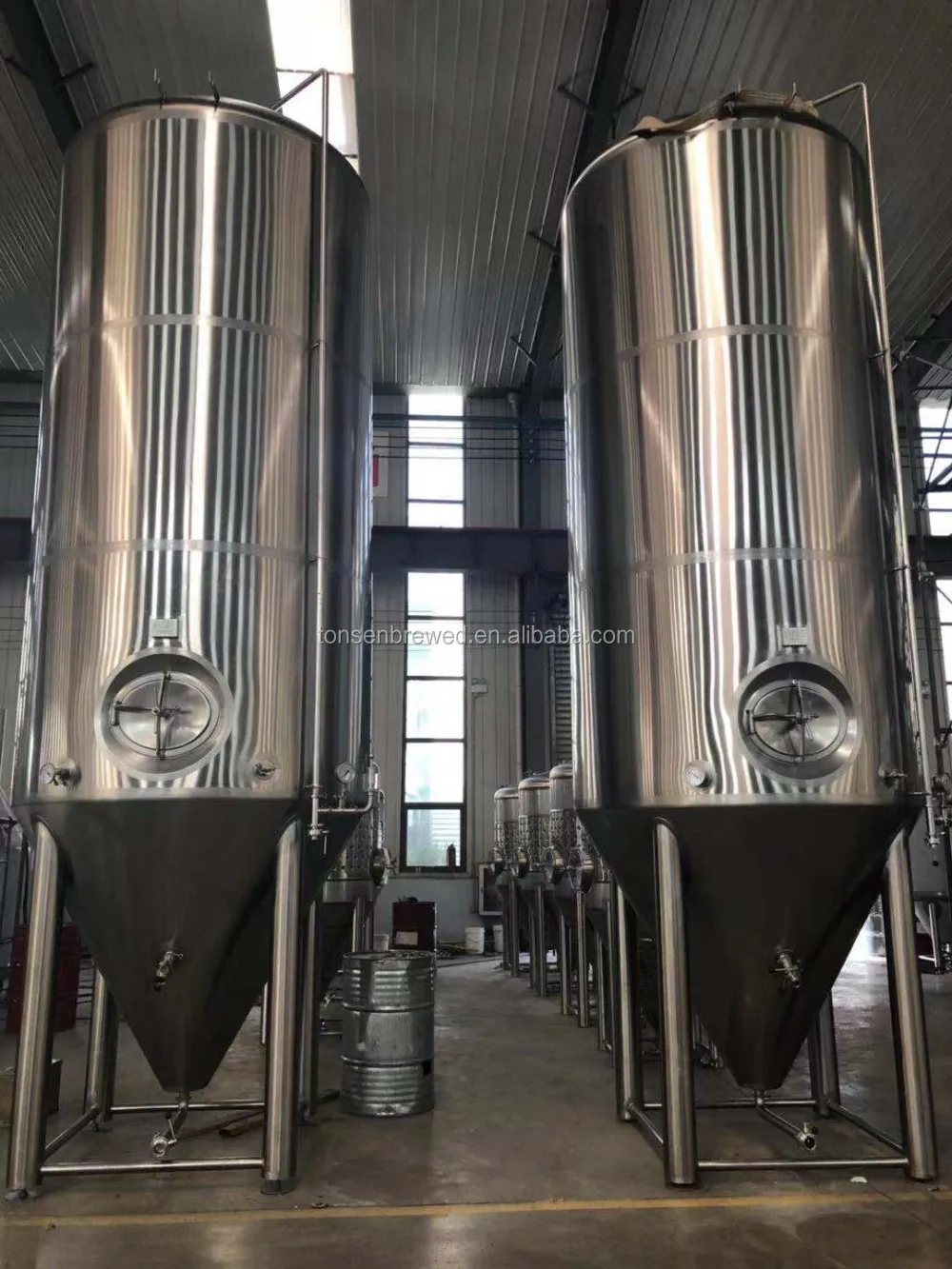

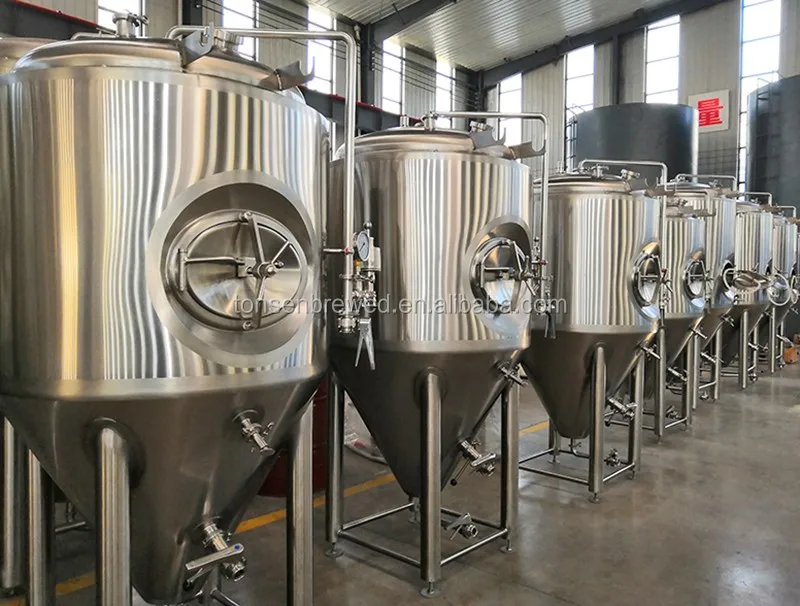

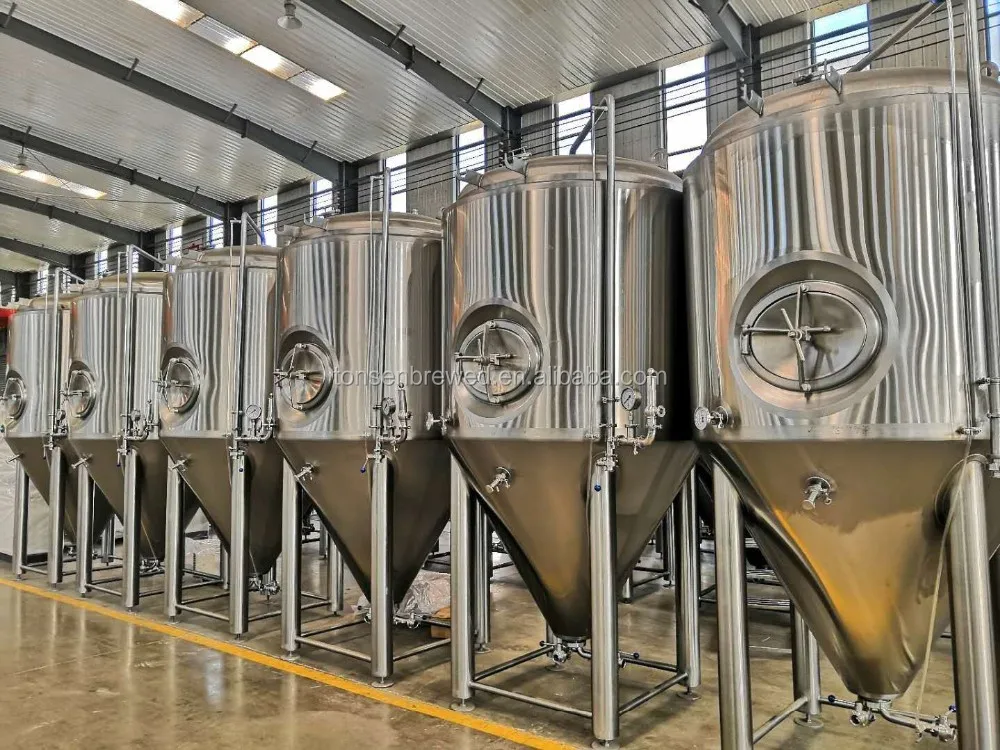

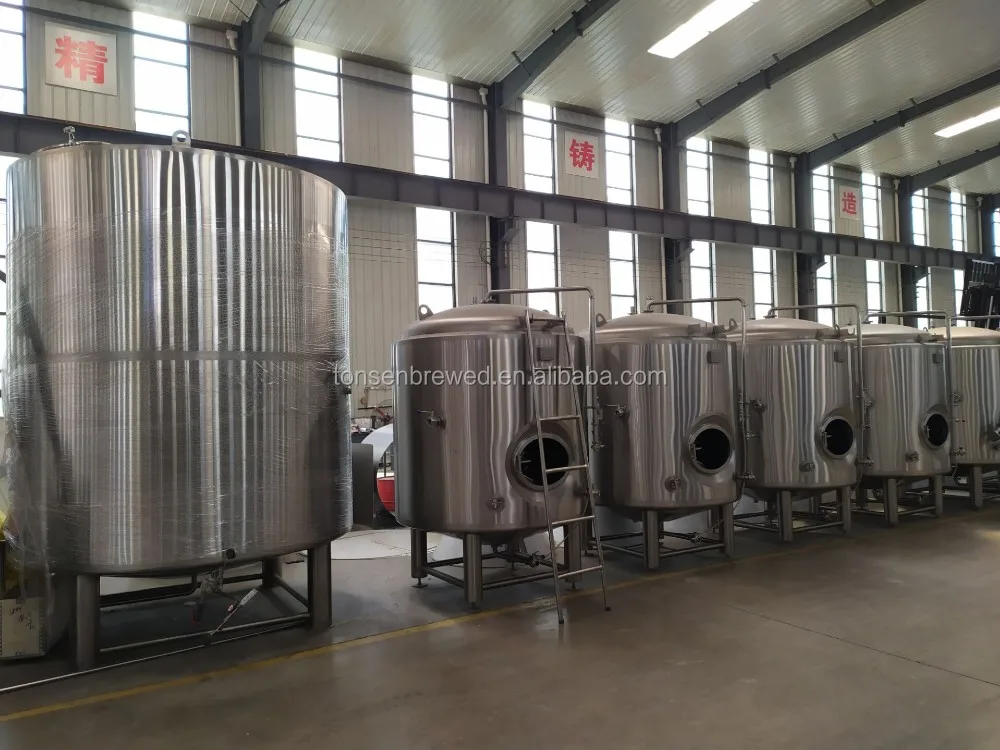

3----Fermenter&BBT System
-Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space
-Interior shell thickness 3-6mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Interior shell thickness 3-6mm, Exterior shell=2mm
-100% TIG welding with pure argon gas shield
-Interior finish: pickled and passivated, external polished, 80mm insulated
-Test pressure 3 bar, working pressure 1.5 bar
-Glycol zones (Both on side and concial/bottom)
-60°conical bottom for Fermener, Shadow less side man way
-Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
-Mechanical relief valve 3 bar on CIP arm with pressure gauge
-Adjustable tank leveling pads

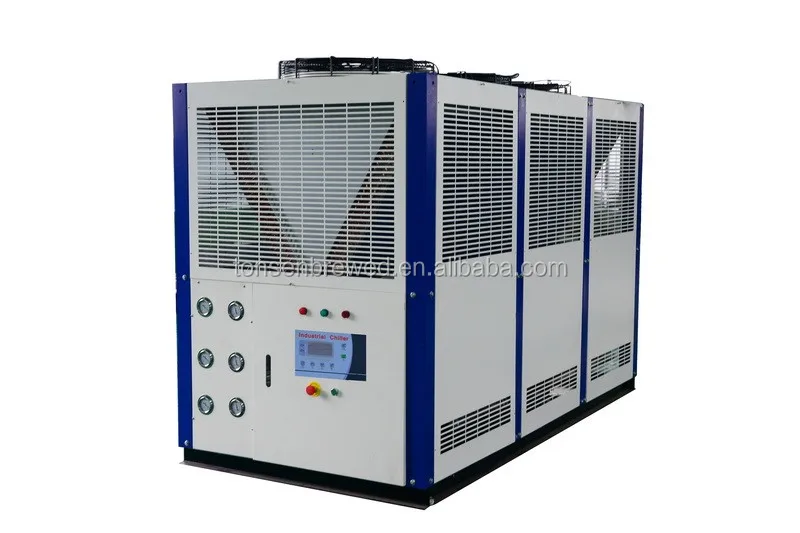

4.----Cooling System
Description: Air type chiller + Ice water tank or Glycol tank
Capacity: 3HP, 5HP, 7HP, 10HP, 15HP, 20HP, 30HP+ 500L-20000L tank
Brand: Copeland, SANYO

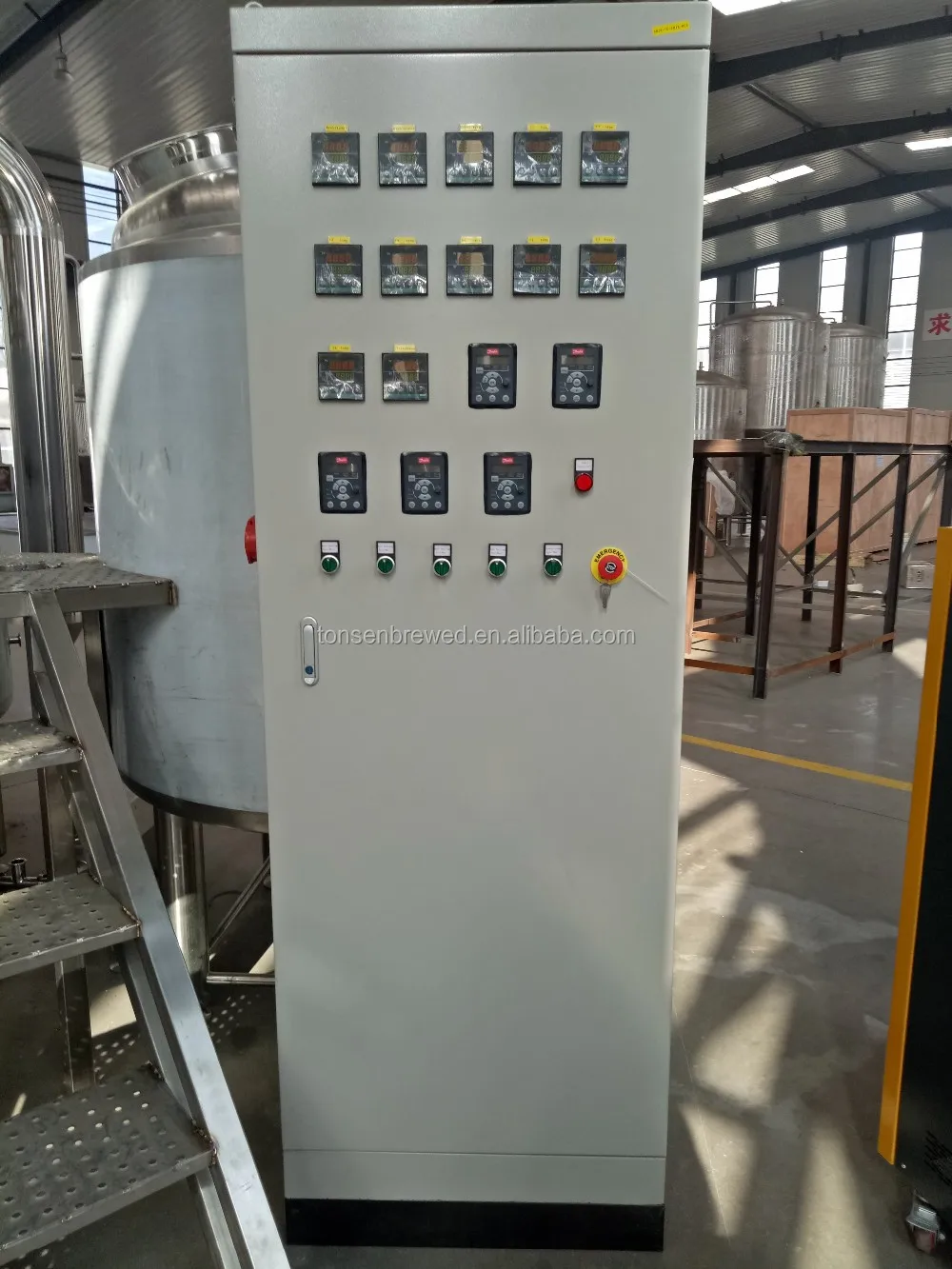

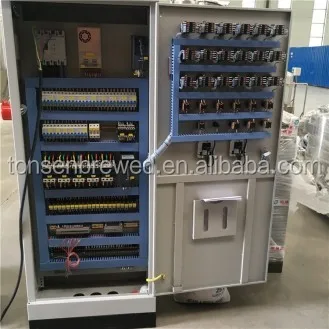

5----Control System
-PID or PLC system
-SIEMENS program S7-200, Siemens touch screen.
-Penumatic valves for optional

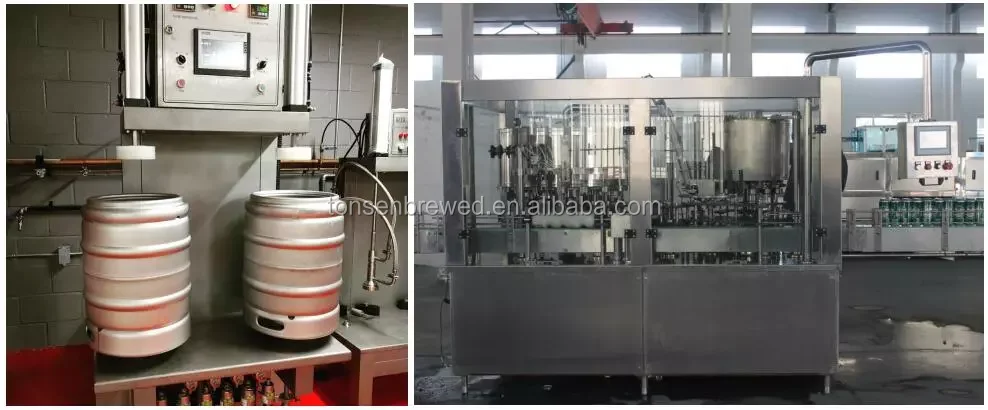

5----Canning line, Kegging line
-Double station Kegging line.
-Small capacity Canning line.

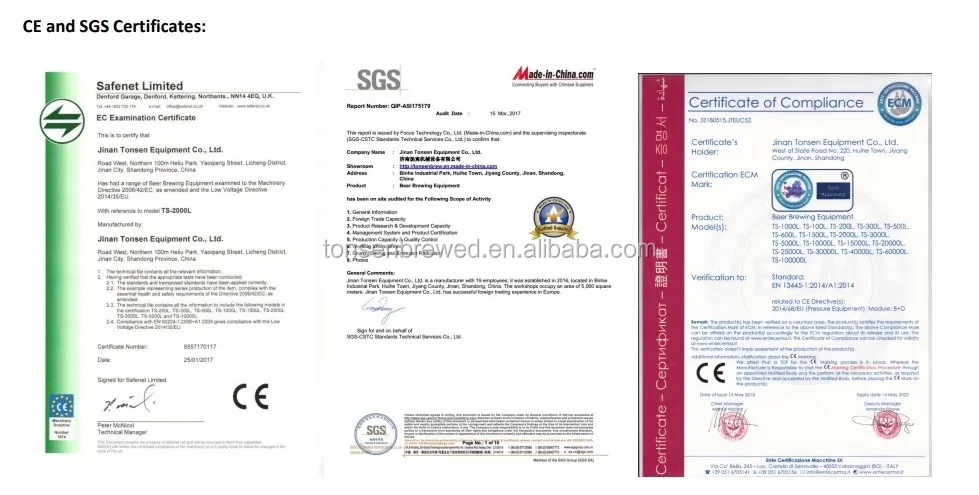

Certifications
CE certificate and SGS certificate
For our products, we have CE certificate and SGS certificate, also, we have many sample projects in many countries, can give you the contact ways if you want to check with them for the quality of our products.

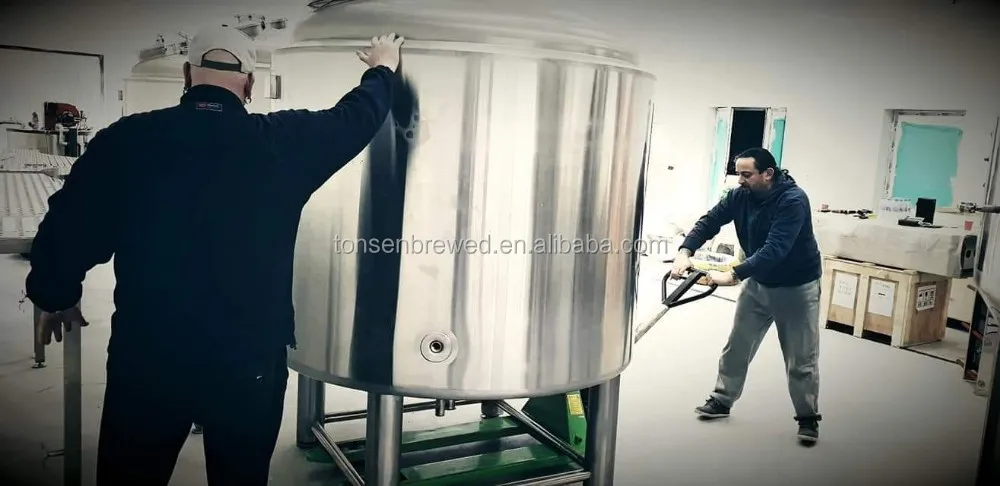

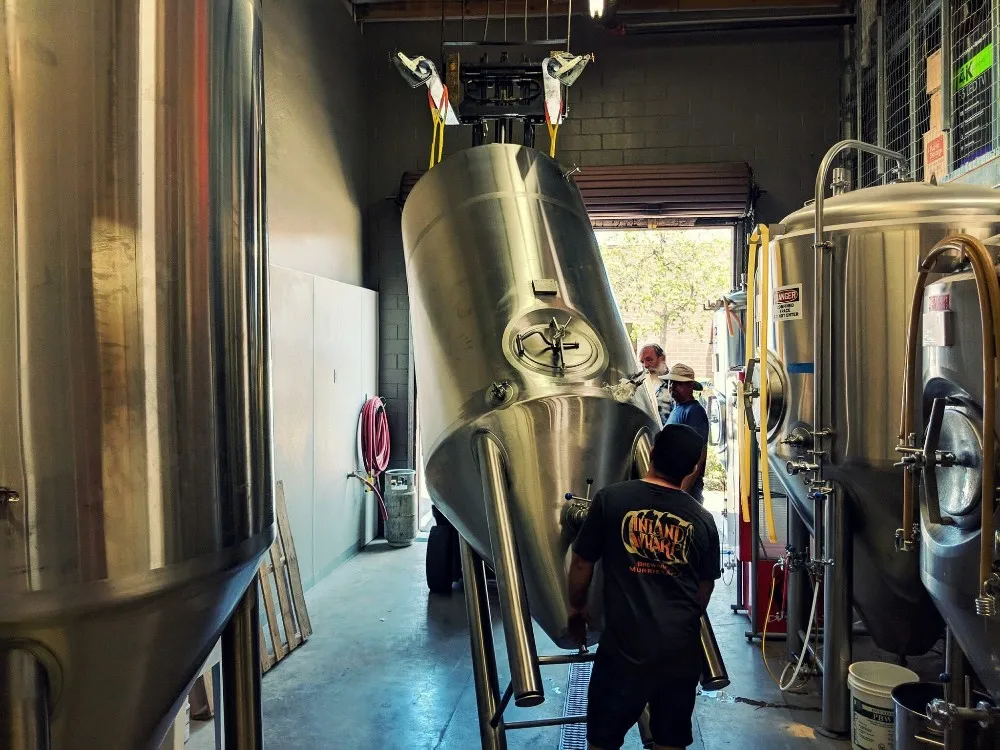

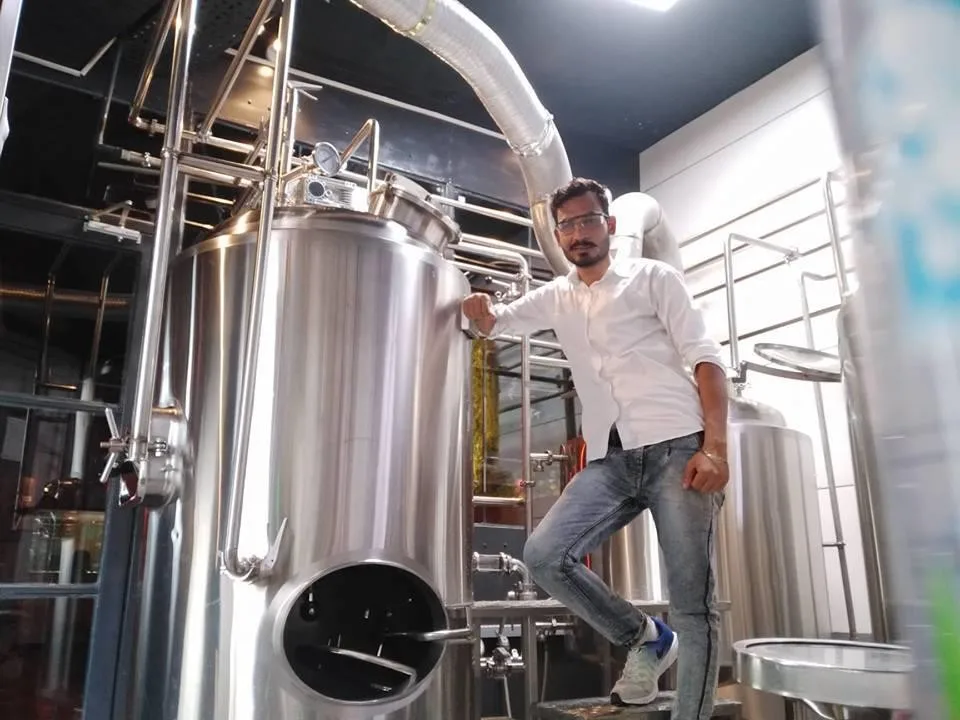

Reference&customer
Packing & Delivery
1) All tanks will be packed with soft protection material and mounted on steel frame
2) All accessories and spare parts will be packed with soft protection material and then put into iron box
3) After loaded into containers, all equipment will be fixed to the containers.

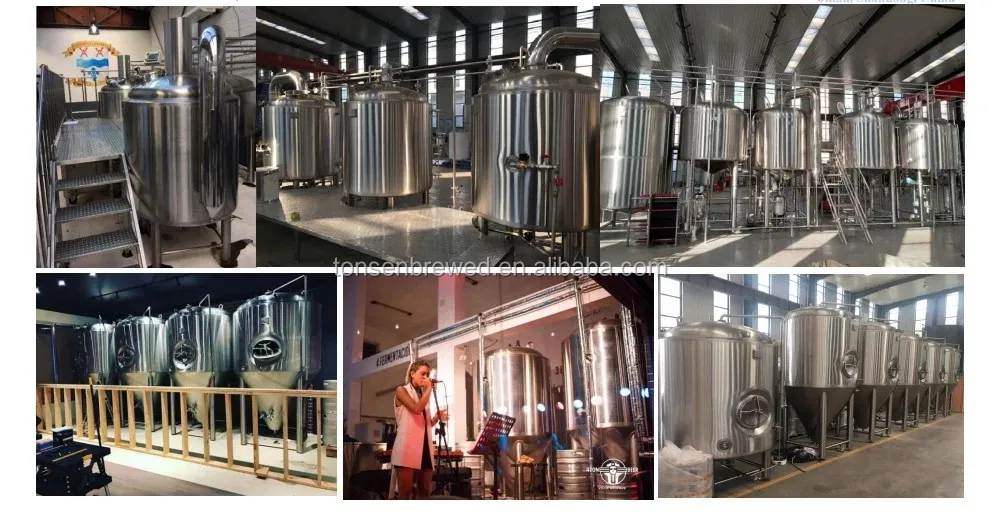

Project case
