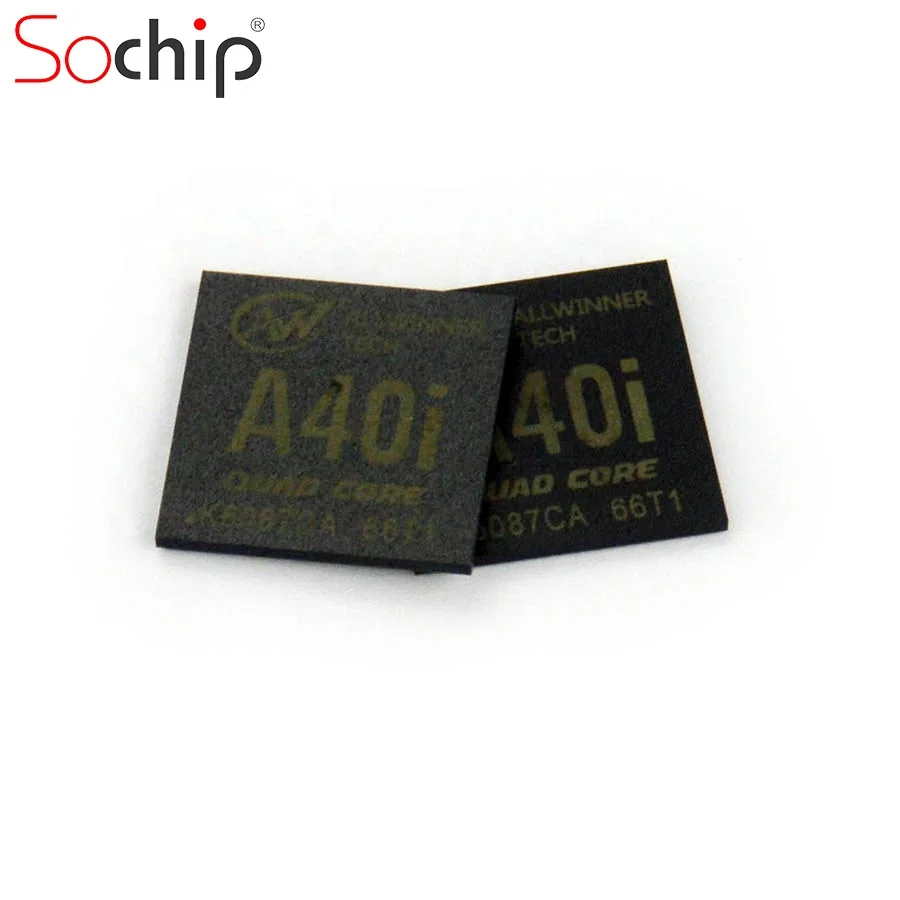

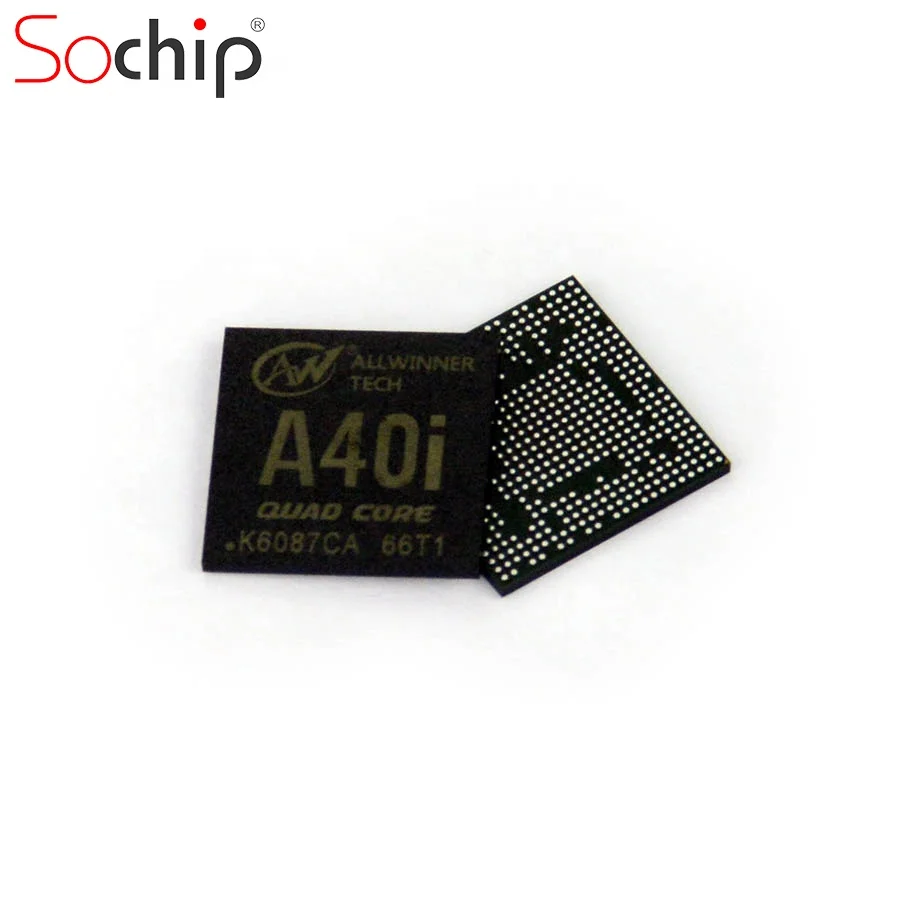

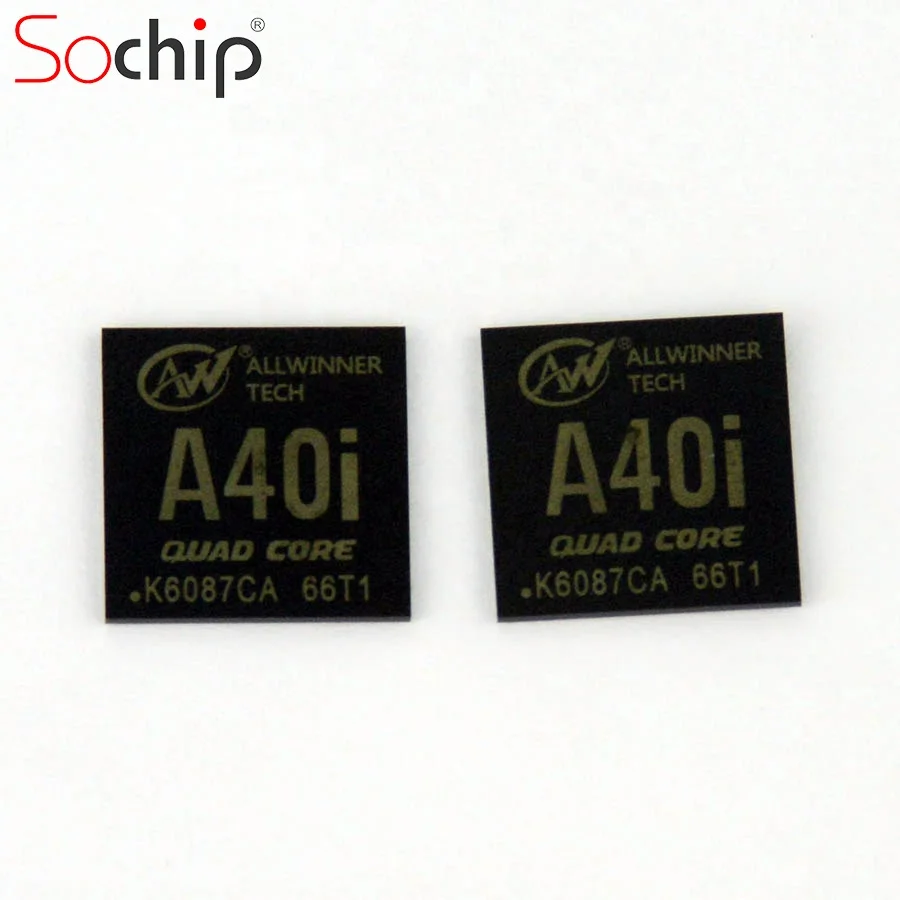

A40i quad core CPU Allwinner A40i chip

The A40i processor represents Allwinner's latest achievement in intelligent industrial control processors. The processor is ideal for applications that require 3D graphics, advanced video processing, rich user interfaces, lower power consumption and higher system integration.

The A40i processor has some very exciting features:

CPU: A40i is based on quad-core CortexTM-A7 CPU architecture, the most power efficient CPU core  ever developed. GPU: A40i adopts the extensively implemented and technically mature Mali400 MP2 to provide mobile users with superior experience in web browsing, video playback and games. Video Engine: Supports mainstream high-definition video decoding including H.264, H.263, MP G 1/2/4 xvid, Sorenson Spark, VP6, VP8, AVS/AVS+, WMV7, WMV8 by 1080p@60fps. In the aspect of video encoding, the A40i supports 1080p@45fps H.264 encoding ability.

Camera: Supports dual CMOS sensor parallel interfaces and 4-channel TVIN, which can easily finish multi-channel video recording.

Display: Content can be displayed on 4-lane MIPI DSI displays, or RGB panel, o LVDS panel.TV-out on HDMI V1.4 is also supported.

Audio: Integrated audio codec with 24bit/192kHz DAC playback and supports I2S/PCM interface for connecting to an external audio codec.I2S/PCM interface includes eight channels of TDM with sampling precision up to 32bit/192kHz. Memory: Supports external memory interfaces to NAND Flash, SD/eMMC, Nor Flash and SDRAM port. SDRAM port can be configured to support LPDDR 2, LPDDR3, DDR2, DDR3, DDR3L.

Peripherals: To reduce total system cost, A40i has a broad range of hardware peripherals to meet the flexible peripheral configuration requirements suc as UAR, RTP, SPI, CIR, USB2.0 OTG, TWI etc.

1, Major agent of Allwinner Full-series: could support you with the most competitive price.

2, Excellent R&D team: More than 10 years' rich experience, could provide the best technical support.

3, Preeminent sales team: Proficient in multiple languages and market rules.

4, Timely response: Your inquiry related to our products or price will be replied within 12 hours.

5, OEM&ODM: We can help you to design and put your good idea into products.

6, Lead time: we have Long-term stable inventory, could ship 3 to 5 days after got your payments.
