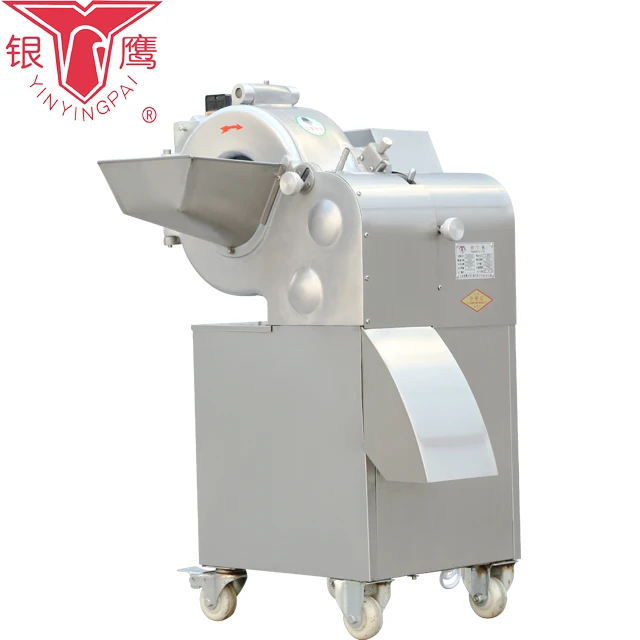

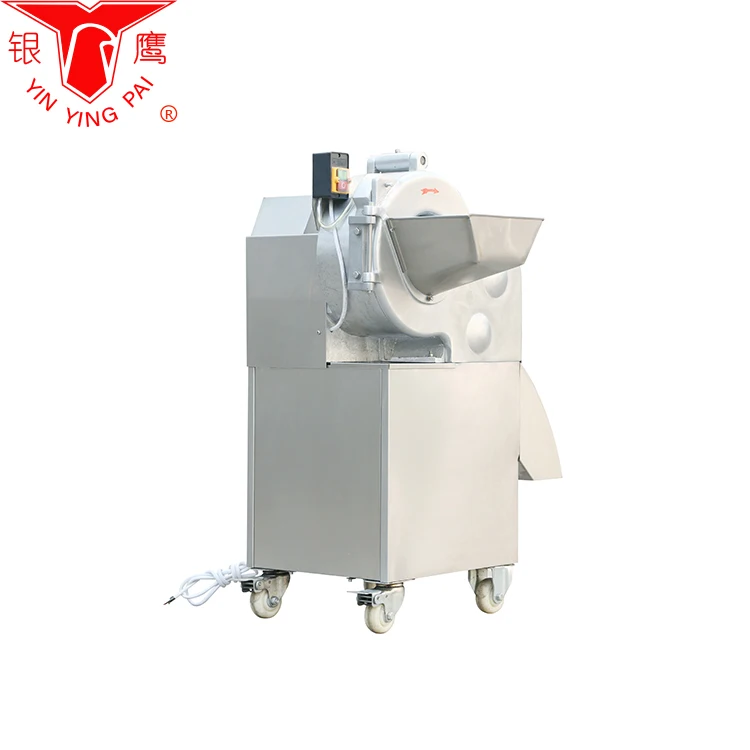

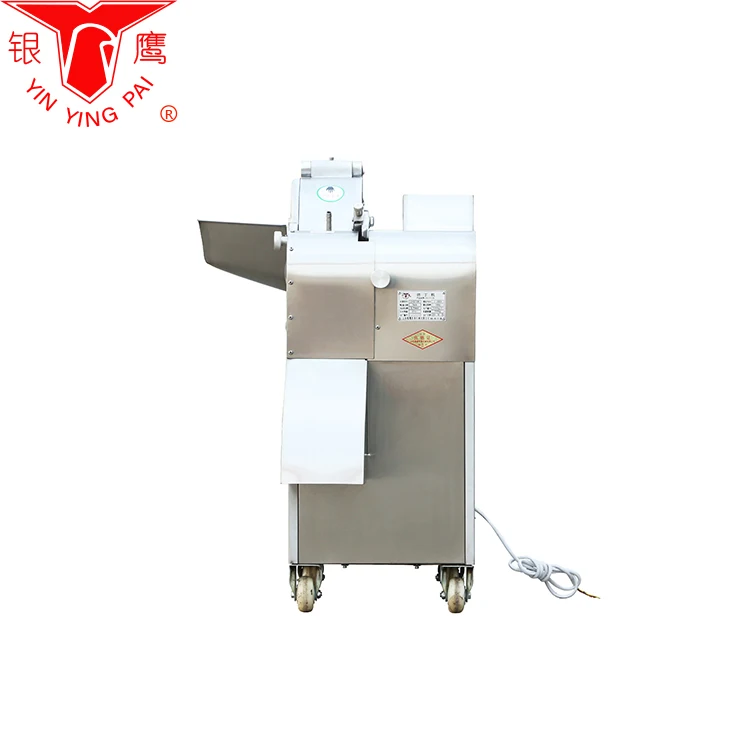

HD100 cuber is suitable for evaporate vegetables, frozen vegetable factories and pickle industry to process root and stem vegetables into shapes of cube or cuboid. This machine adopts compound cutter, and all forming processes are done in one step. The shape of vegetables that have been processed is regular, the profile of it is smooth, and the shaping rate is high. It is very popular in import and export company. This machine is advanced in designing, easy to operate, low energy consumption, and efficient. This machine is made of aluminium magnesium alloy and stainless steel, which is rotproof, aesthetic, and meets hygiene standards.
Name
Capacity
Power
Size
Weight
Size after Packing
Weight after Packing

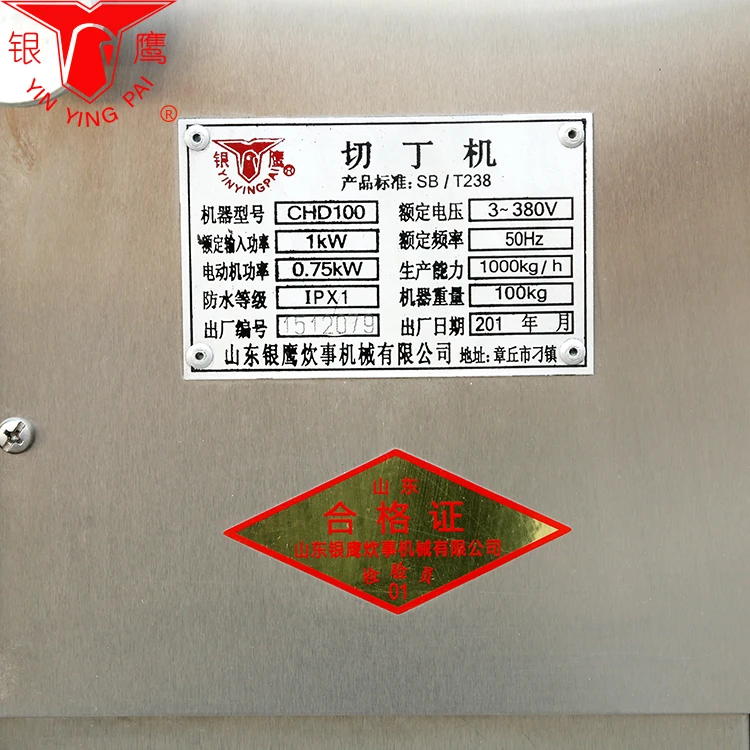

CHD-100
800~1000kg/h
0.75 kw 110V 60Hz, 220V 60Hz or Customized
560*600*1310mm
100kg
760*800*1510mm
120kg
Product details
Main structure:

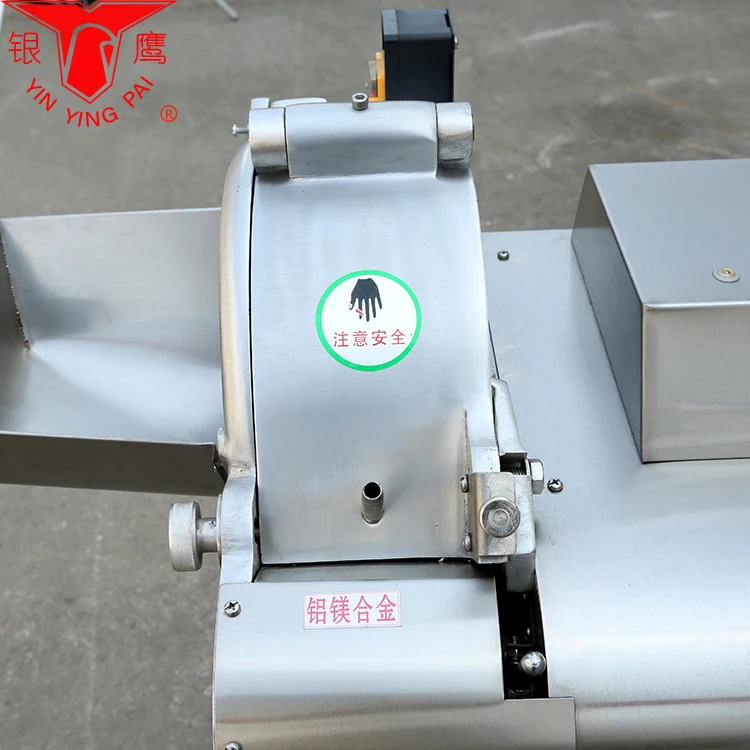

This machine is made up of pedestal, shell, drive plate, upright cutter, diffusion knife, cross cutter, transmission agent and electrical apparatus control system.
Working principle:
The machine's dial drives the object to rotate at high speed, uses centrifugal force of the object, cuts the object into slices with vertical knife, then cuts the object into strips with circular wire cutter, and feeds the cut material into the cross cutting edge, and cuts the cube or cuboid needed by the cross cutting knife. The machine base, shell, hopper and main parts are made of Al-Mg alloy and stainless steel to ensure long-term work without rust and harmfulness.
