BASIC INFO
1. Precision Grade: C7~C10
2.Model number:1002
3. Lead pitch:2mm
4.Diameter of ball screw:10mm
5.Thread direction:Right Thread
6.Specification & Style: Match TBI Motion (taiwan)
7.Available models: SFK SFU DFU SFE SFY SFS

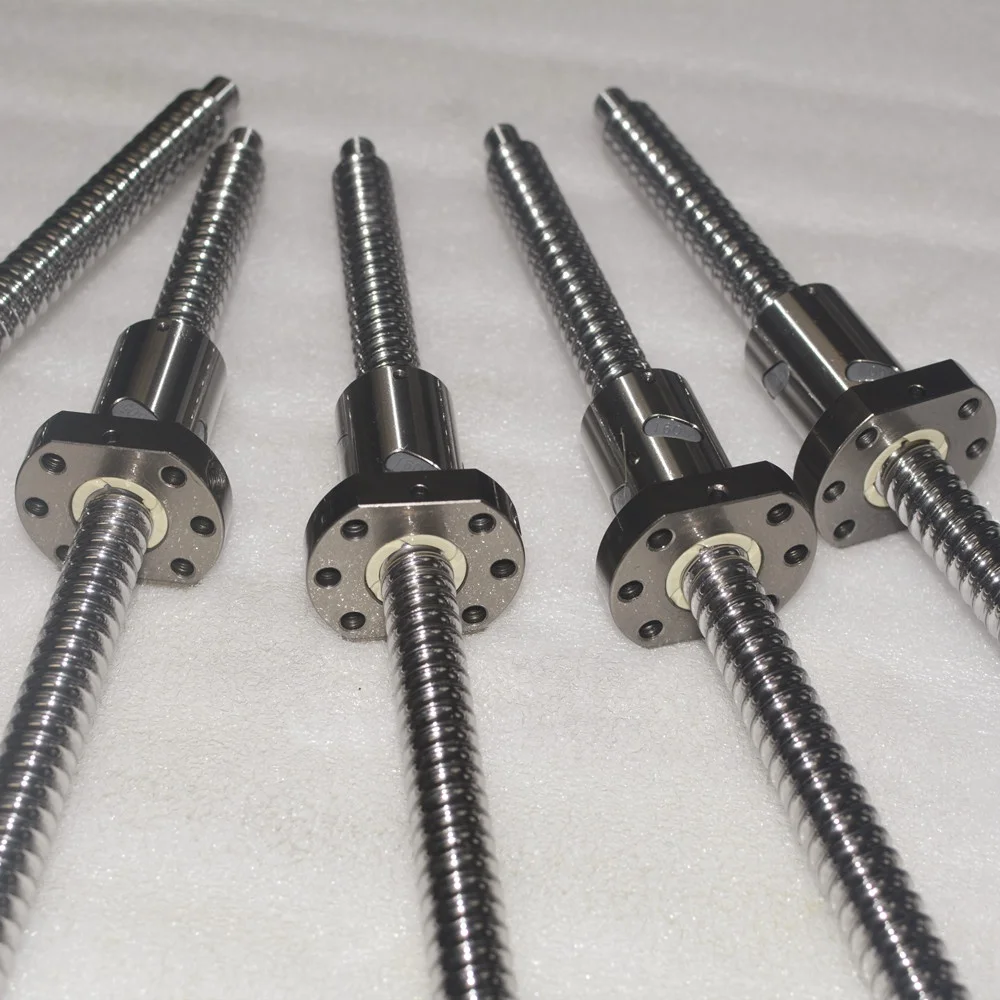

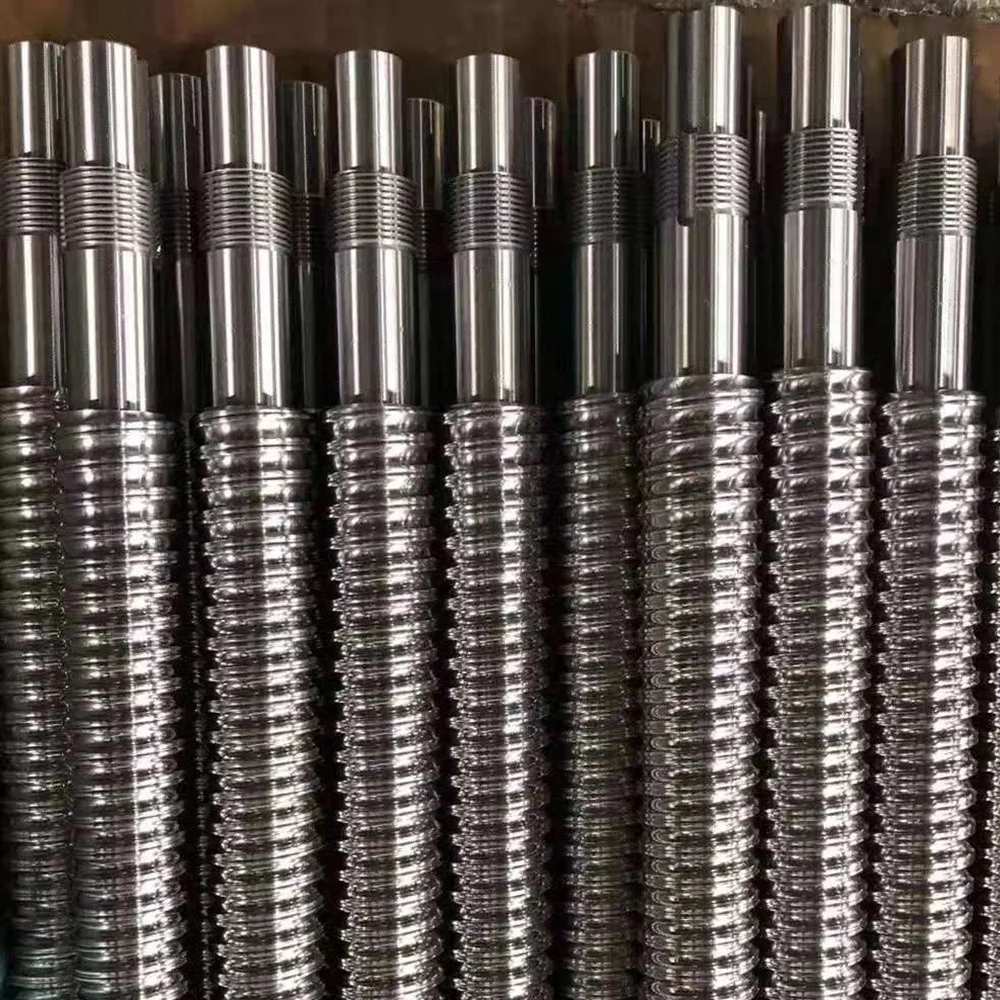

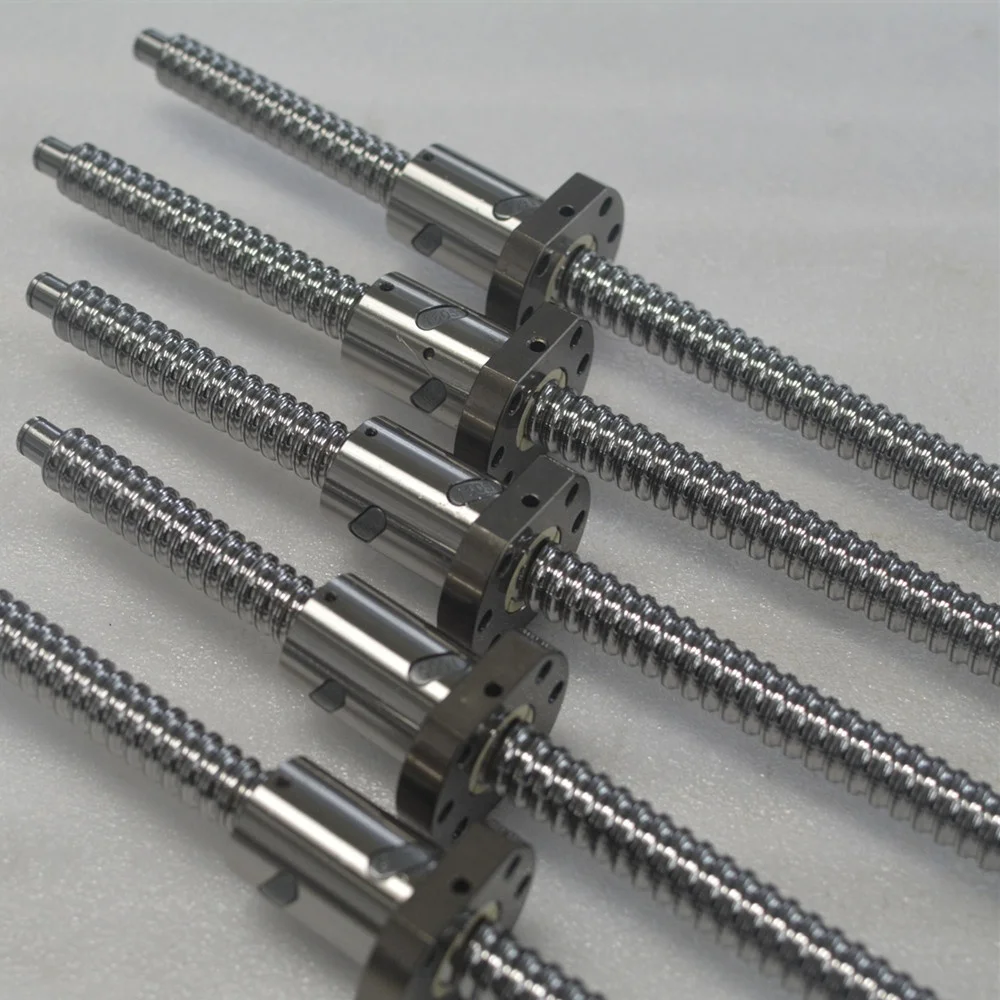

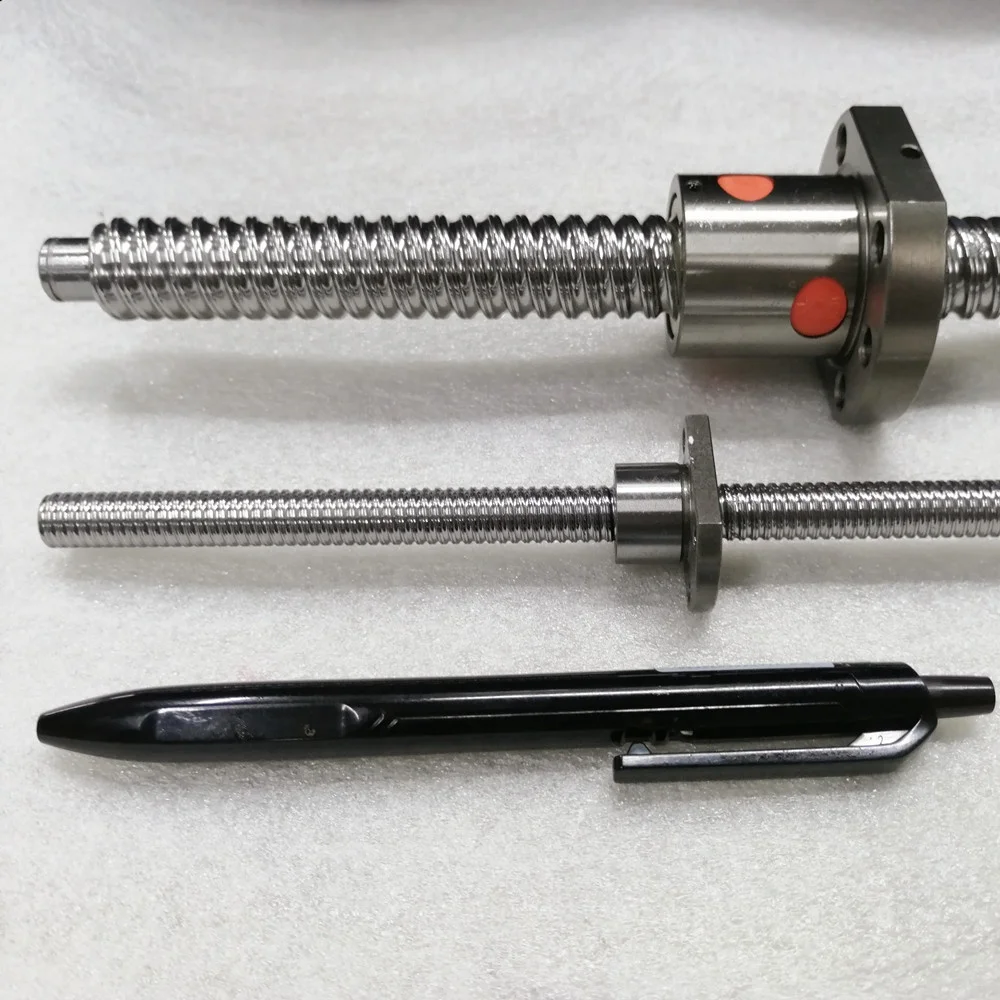

| Product Name | China Lishui Precision Micro Ball Screw |
| Material | Ball screw: S55C,ball nut:20crmo , Stell ball: SUJ2 |
| Advantage | High precision, good stability, low noise, preferential price,high reliability,smooth operation,high durability |
| MOQ | one piece |
| Hardness | HRC58-62 , Stell ball: HRC60 UP |
| Application | CNC machine , 3D printing machinery, chemical machinery, woodworking machinery, engraving machines, window machines,high speed machinery ,Semi-conductor Equipment,robot, railways, automation applicationand etc |
| Manufacturing Process | Rolled Thread |
| Delivery time | 5 working days for sample order, 7~15 days for bulk order |

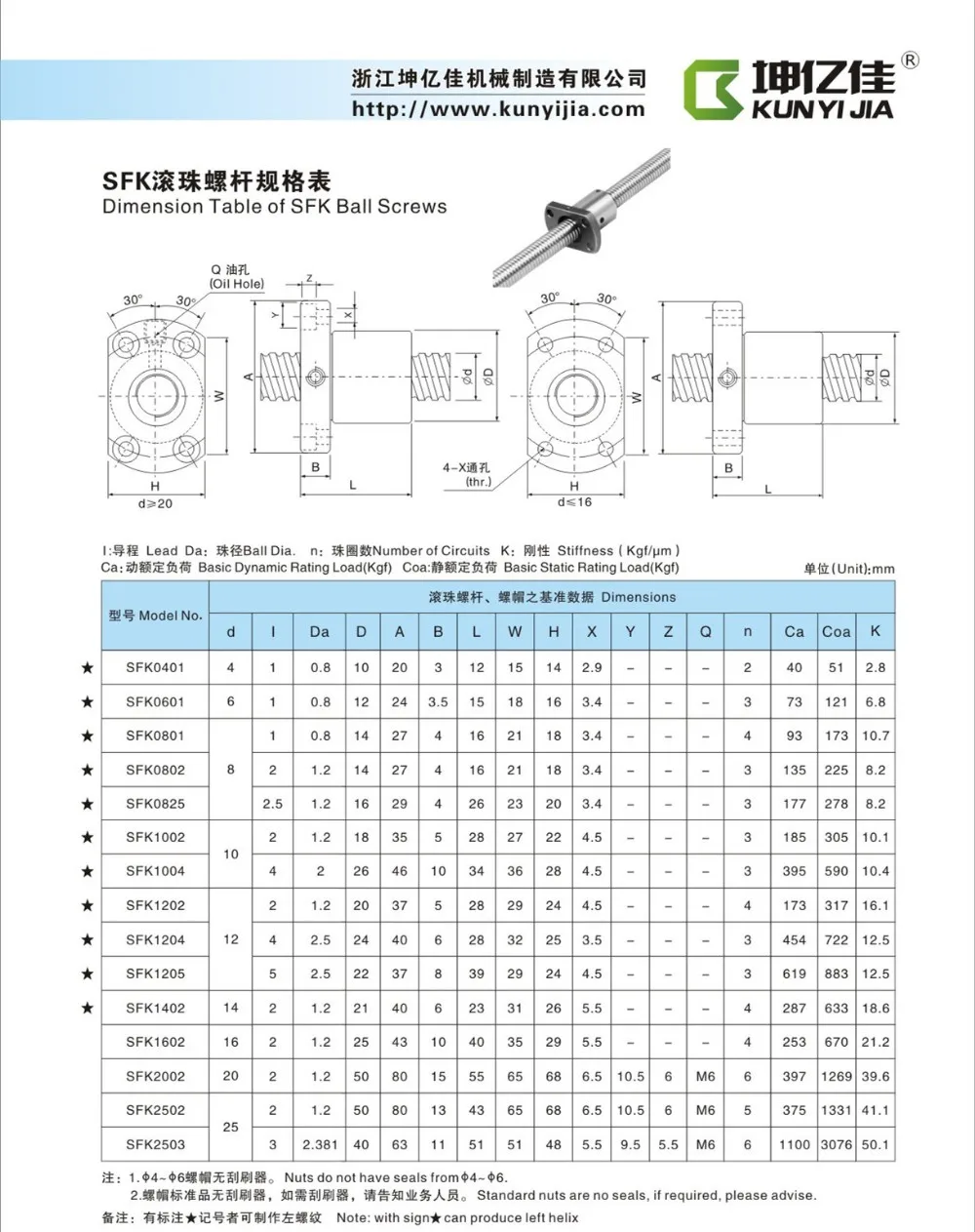

| Ball Srew Series | |||
| Diameter 8 mm | 0802 | ||
| Diameter 10mm | 1002 | ||
| Diameter 12mm | 1204 1205 1210 | ||
| Diameter 16mm | 1604 1605 1610 1616 | ||
| Diameter20mm | 2004 2005 2010 2020 | ||
| Diameter25mm | 2505 2510 2525 | ||
| Diameter32mm | 3205 3210 3220 3232 | ||
| Diameter40mm | 4005 4010 4020 4040 | ||
| Diameter50mm | 5005 5010 5020 | ||
| Diameter63mm | 6310 6320 | ||
| Diameter80mm | 8010 | ||













Production Machine


Production Machine
Production Machine


Ball nut warehouse
Working

Founded in 2010,Kunyijia Machinery Manufacturing Co.,Ltd is specialized in design,manufacturing and selling different type of bearings .These bearings are widely used area of machine tool,printing machinery,chemical machinery,woodworking-machine,instruments,robots,railway industry,etc.
The company is located at the National Economic and Development Zone in Lishui,Zhejiang. It owns a landscape of 18000 square meters. The company now has more than 80 employees,including 30 senior technical staff. The company has its own manager office, quality inspection department,research and development department, financial department, personnel administration department and sales department. Since its founding, the company focuses on building strong technical force, advanced equipment, and provide satisfactory services.
Our vision is to provide our customer high-quality product and service. We welcome those who are interested in our product to contact us.

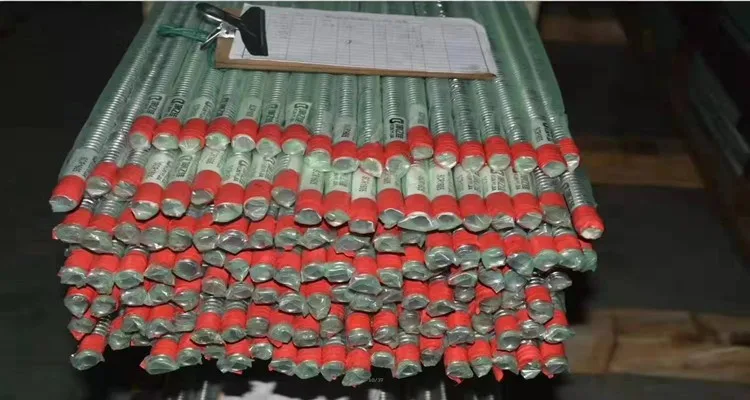

Packing Details : One pcs to one polybag, then to export carton & wooden box or as customers required for ball screw
Delivery Details : 5 working days for sample order, 7~15 working days for bulk order after received payment
We will treat every clients just like our friends,.
We will follow the tracts of quality, carry out the regulation of lifelong service after sell, ensure to supply in time our goods and be responsible for quality problems.
We promise to ship goods on time.
We will response when we get your message ASAP.

Contact Person: CoCo chen
Company: Kunyijia Machinery Manufacturing Co.,Ltd
Address: No. 90 Dayuan Road, Nanming shan Street,Economic Development Zone, Lishui City, Zhejiang Province,China
Tel: 0086-578-2559908
Fax:0086-578-2559907
Mob/WhatsApp/Wechat:0086-15925720875
QQ:236294349
A: We are factory with a land of 23000 square metes. Welcome to visit us.
A: We have large quantity in stock.Sample needs 3-5 days, mass production needs 1-2 weeks for bulk order after received payment.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: We usually accept TT.
Q: How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q: If you can not find the product on our website,how do you do?
A: Please contact us, we'll check and reply you ASAP.
