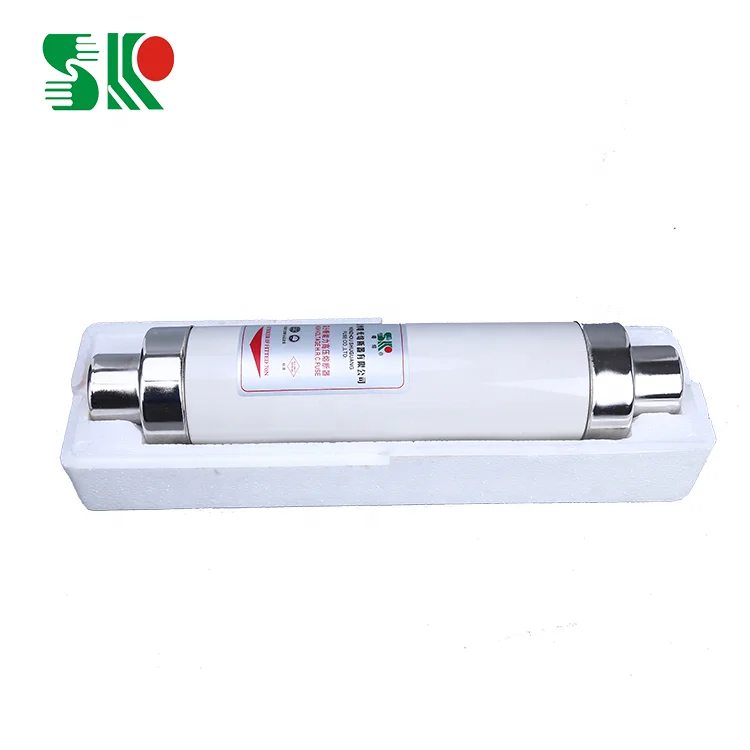

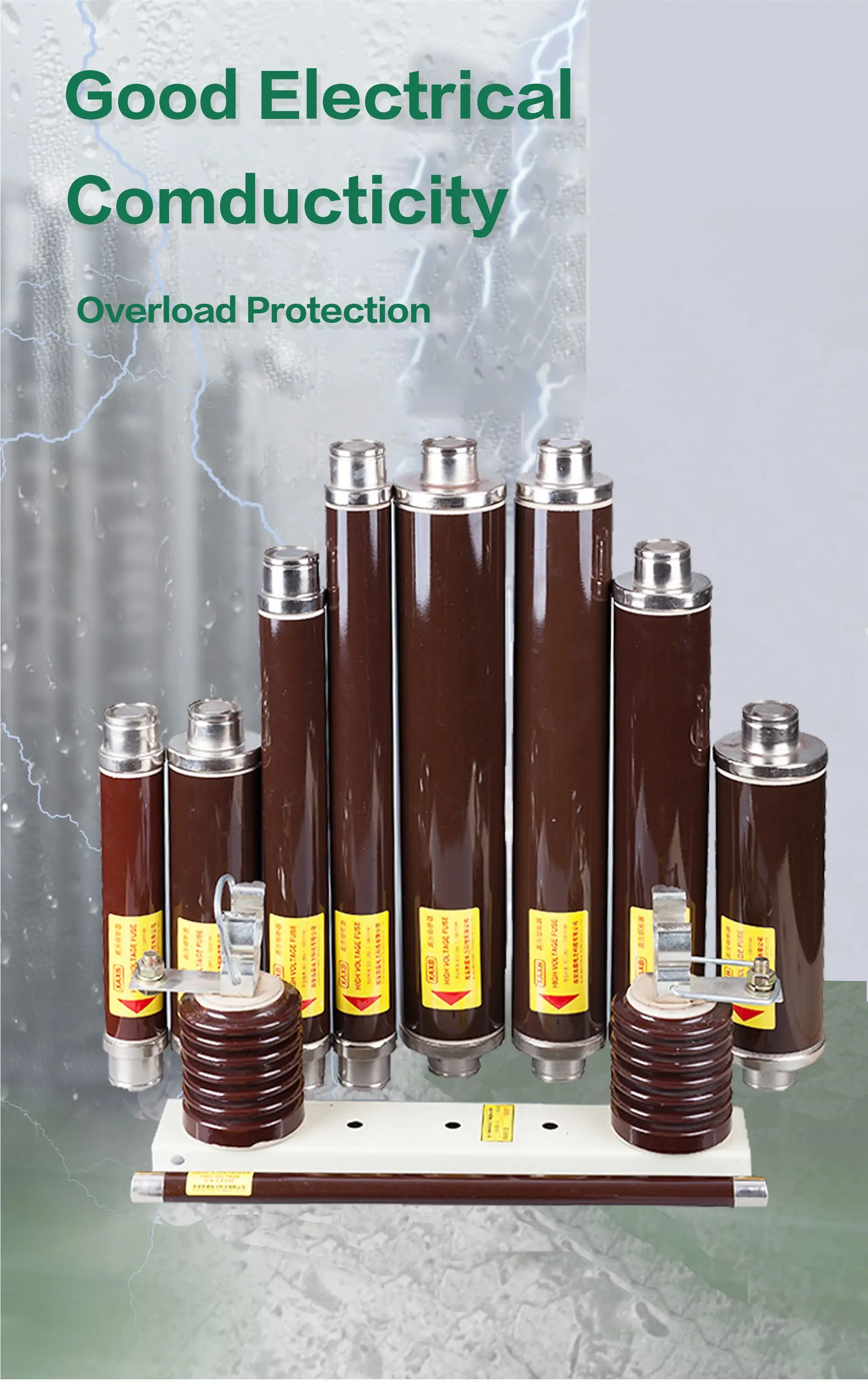

China Manufacturer 36kv 200a H.v. hrc Current limiting Fuses Type S For Transformer Protection
- Category: >>>
- Supplier: Wenzhou Shuguang Fuse Co. Ltd.
Share on (62226873994):
Product Overview
Description
Model | Rated voltage (kv) | Fuse rated current(A) | Melt rated current(A) |
XRNT-12 | 12 | 40 | 3.15, 6.3, 10, 16, 20, 25, 31.5, 40 |
XRNT-12 | 12 | 100 | 50, 63, 71, 80, 100, (125) |
XRNT-12 | 12 | 125 | 125, 160, 200, 250 |
XRNT-24 | 24 | 200 | 3.15, 6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 125, 160, 200 |
XRNT-40.5 | 40.5 | 125 | 3.15, 6.3, 10, 16, 20, 25, 31.5, 40, 50, 63, 80, 100, 125 |
model | rated voltage (kv) | rated current of fuselink (A) | Rated breaking current (KA) | Dimensions (mm) | weight |
XRNP1 | 3.6 | 0.5,1,2,3,15,6.3 | 50 | See figure 1 142 | 0.19 |
XRNP1 | 7.2 | 0.5,1,2,3.15 | 50 | see figure 1 142(195) | 0.19(0.22) |
XRNP1 | 12 | 0.5,1,2,3.15 | 40 | See figure 1 195 | 0.22 |
XRNP1 | 24 | 0.5,1,2,3.15 | 40 | See figure 1 355 | 0.43 |
XRNP1 | 40.5 | 0.5,1,2,3.15 | 31.5 | See figure 1 465 | 0.55 |
XRNP1 | 12 | 0.5,1,2,3.15 | 50 | See figure 1 | 1.12 |
The product can be used in system with AC50Hz and rated voltage of 10KV,used together with other protection facilities(such as loading switches).It can protect electric transformers and other electric facilities against overloading or circuit break.It is mainly used in American box type transformers as backup protection.
Rated Current(A) | Dimension(mm) | QUANTITY/ CARTON | ||||||||
A | B | C | D | E | ||||||
1-20 | 12.5±0.2 | 19.0±0.2 | NOTE1 | 2.0 | 8.0 | 500 | ||||
30-40 | 12.5±0.2 | 19.0±0.2 | 3.0 | 8.0 | ||||||
50-75 | 19.0±0.3 | (Not applicable) | 4.0 | 10.0 | 250 | |||||
100-120 | 19.0±0.3 | (Not applicable) | 5.0 | 10.0 | 250 | |||||
140-200 | 19.0±0.3 | (Not applicable) | 7.0 | 12.0 | 250 | |||||
