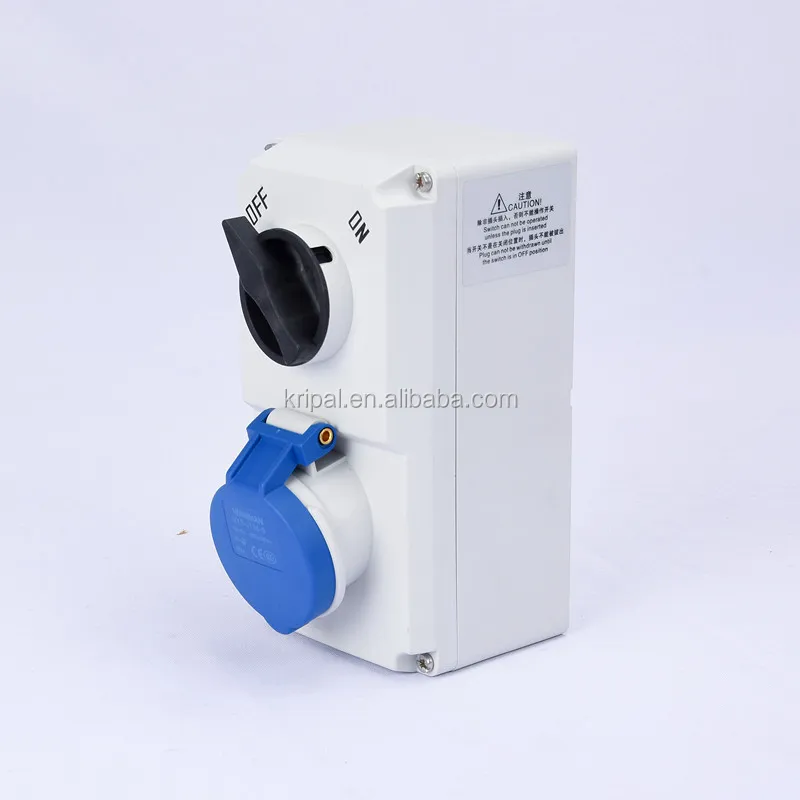

Outdoor IP44 16 Amp 230V interlock electrical switch socket
- Category: >>>
- Supplier: Zhejiang Kripal Electric Co. Ltd.
Share on (62227068703):
Product Overview
Description
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Poduct Description:
Industrial power cord with screw terminal block, integrated shell structure
1. Rated current: 16A;/32A/63A
2. No. Of poles: 3P/4P/5P
3. Voltage range: 220V-250V;
4. Power type: Single Phase
5. Protection degree: IP44; IP67
6. Material: NYLON PA6, PC, copper
7. Color: RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).
8. Advantages: Waterproof, dust-proof, impact resistance, anti-corrosion
9. Standards: EN/IEC60309-2, DIN VDE 0623
10. Warranty: Five years
11. Samples provided freely
12. Lead time: 20 days
13. Payment terms: T/T, L/C
1. Rated current: 16A;/32A/63A
2. No. Of poles: 3P/4P/5P
3. Voltage range: 220V-250V;
4. Power type: Single Phase
5. Protection degree: IP44; IP67
6. Material: NYLON PA6, PC, copper
7. Color: RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).
8. Advantages: Waterproof, dust-proof, impact resistance, anti-corrosion
9. Standards: EN/IEC60309-2, DIN VDE 0623
10. Warranty: Five years
11. Samples provided freely
12. Lead time: 20 days
13. Payment terms: T/T, L/C
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product Feature:
German industrial standard : DIN VDE 0623, European/ Intenarional standard:EN/IEC 60309-2
1.Safety, Environmental,Economic, Multi-function, Safe, Durable, Timesaving
2.Standard plug, Standard socket
3.Provide different series products for different environment
4.Resistance to severe weather and ageing
5.Good space stability and accuracy
6.Effectively prevent power outages and leakage
Pin and Sleeve Plug Industrial Power Socket IP44 IP67 Coupler Connector
CEE/IEC Industrial Coupler: screwed terminals, enclosure with thread lock and safety Slide
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Connections that stay safely together:
Safety is a top priority. This is as true for installation as it is for servicing. Holders prevent unintended withdrawal via snapping-in of the hinged lid into the retaining lug or slot as well as the tried and true bayonet system in protection class 1P67. Innovative cable screw connections with integrated strain relief, locking and kink protection, injected unteachable seals and closed easy-to-clean surfaces are further quality characteristics which define our products.
Outdoor IP44 16 Amp 230V interlock electrical switch socket
IP44 32A 400V 4P Interlock Switch Socket
| Protection | IP44/IP67 |
| Current | 16A, 32A, 63A, 125A, 250A, 420A |
| Pins | 2P+E, 3P+E, 3P+N+E |
| Voltage | 20-25V; 40-50V; 110V-130V; 220-250V; 380-415V; 247V-690V |
| PLUG & SOCKET | Low voltage plug socket <50V |
| Industrial plug, industrial socket | |
| Wall mounted socket, wall mounted plug | |
| Panel mounted socket, panel mounted plug | |
| Interlocked switched socket | |
| BOX | Industrial portable socket box |
| Industrial plastic socket box | |
| Power maintenance box (stainless) | |
| Power maintenance box (plastic) | |
| Industrial lighting box (plastic) | |
| Industrial lighting box (metal) | |
| Distribution box for exhibition box | |
| T. V / Film power distribution box | |
| Distribution box with power and compress air outlet | |
Accessories | Cap for 16A, 32A, 63A, 125A plug |
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product Information
Outdoor IP44 16 Amp 230V interlock electrical switch socket

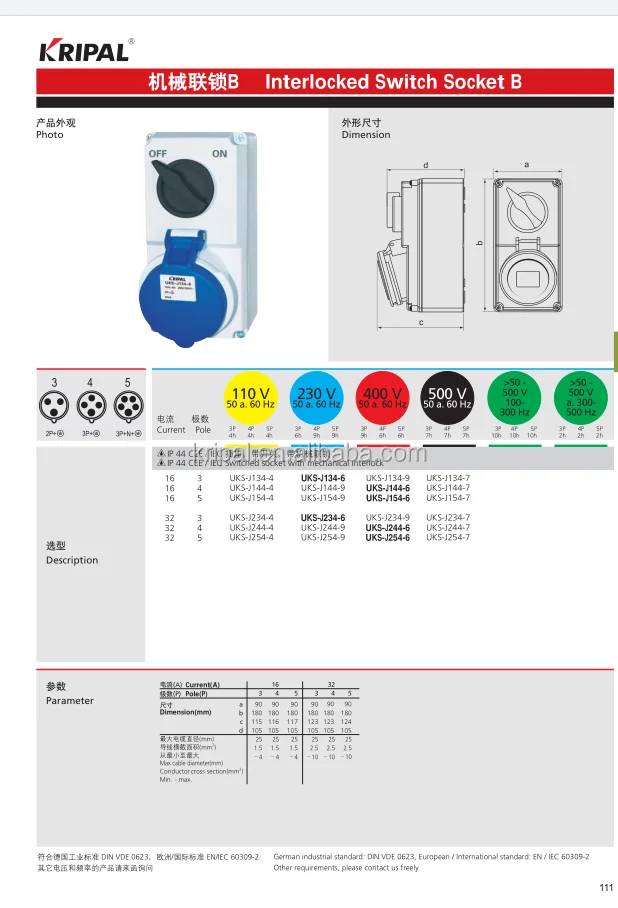

Product Picture :
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product Application :
1.Application in shipyard
2.Application in train station
3.Application in airport
4.Application in exhibition hall
5.Application in steel plant
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product Type:
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product Protection:
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Product testing :
Our products have undergone the tests under the extreme conditions such as the pesky cold and hot , dustproof, immersed in water abd so on , and they have got the certifications from relevant authorized organizations according to the international standards .
1.Humiture enactmeny
2.Pug -in/withdrawal force test
3.Dstproof test
4.Glow wire test
5.Waterproof test
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Certifications:
Outdoor IP44 16 Amp 230V interlock electrical switch socket
FAQ:
1. MOQ: USD 3,000.,if less than it, need collect the export charges USD50.
2. Payment: T/T 30% prepayment before production, the balance 70% against copy of BL.
3. Delivery port: General Ningbo or Shanghai, if you need other, also is ok.
4. Delivery time: General need 7-10 days after place the order ,but actually confirm by y our order quantity and specification.
5. Shipping Model: By sea, by air or by express, just according to you.
Outdoor IP44 16 Amp 230V interlock electrical switch socket
Our company:
Zhejiang Kripal Electric Co., Ltd founded in 1987 is specialized in circuit breaker ,AC contactor , industrial plug and socket, weather protected switchgear, and others. With the repaid development in last 20years. KRIPAL act as one of the biggest manfactures in eleectrical industry in China.
With a wide marketing network ,the products are exported to Europe ,Amercia, Afric , South Asia,Hongkong , Macaw,Taiwan and othe areas and enjoy high reputation in the international market .
Welcome to Kripal!
