Product Overview
Description
Product Description
The product has stable performance, anti-corrosion and can work continuously for a long time.
Overview

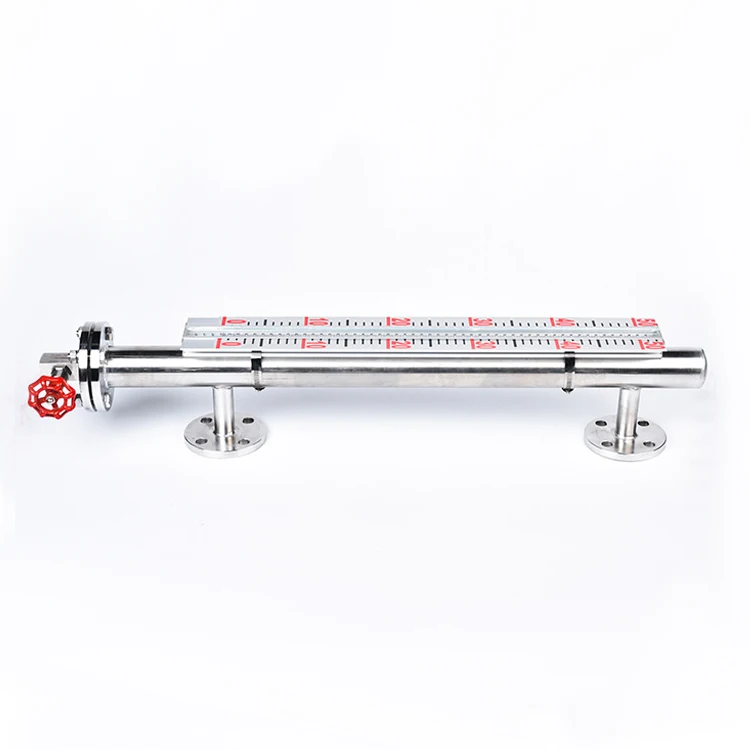

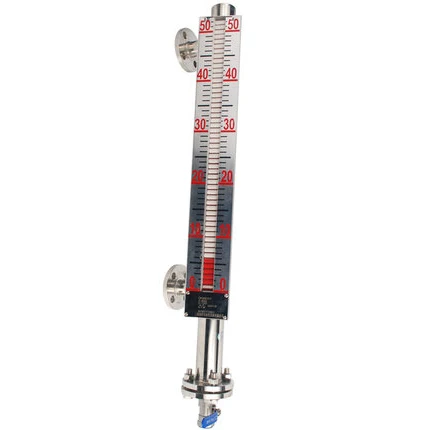

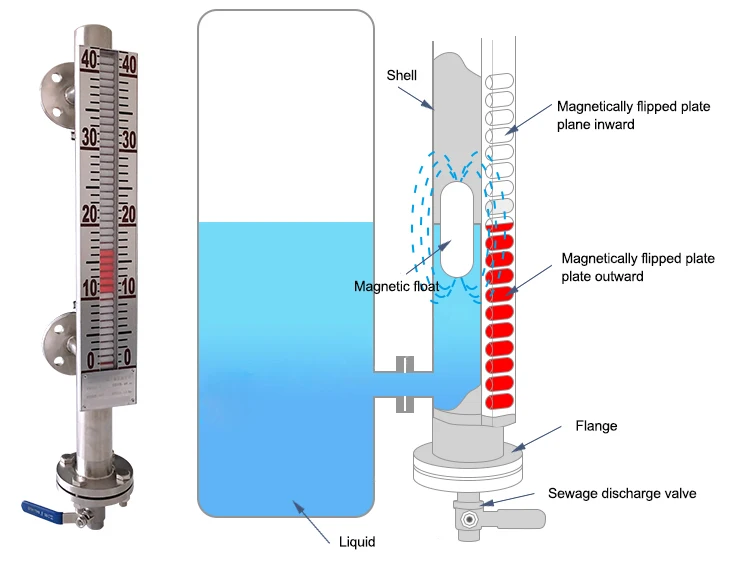

Standard Type Magnetic Level Indicator, is made of 316L stainless steel, and is particularly suitable for measuring most corrosive liquids. The floating tube is with diameter of 51mm, which made of high quality seamless stainless steel tube, and can effectively avoid common defects, such as leakage, low pressure, unsightly appearance, and short life, etc. Also, WSFB has introduced innovative production and test processes to improve its reliability and quality.
Features
(1) Indicator panel and magnetic flaps uses widened design,make visual distance and viewing angle increase greatly, the ruler and its figures are bolder and clearer.
(2)Level of Ingress Protection of IP65 and IP66/67 are available, exceeding national standard requirement of IP54;
(3)Accessory magnetic switches and remote transmitters have got double certifications of Explosion Proof and Intrinsically Safety.
(4)Made of 316L seamless stainless steel tube, it is suitable for most corrosive liquid.
Technical
Fluid | Density | 0.45~2g/cm3 |
Viscosity | ≤200cP | |
Measurement parameters | Measuring range | Single section: 200-5600mm |
Accuracy | ±5mm or ±10mm | |
Material specifications | Buoy | 316/316L ,51/57mm, The thickness depending on the process condition |
Float | 316/316L | |
Indicator panel | Optional aluminum flap or PA66 nylon flap, and optional cover plate of glass (standard) or acrylic. | |
Operating conditions | Process pressure | -1~10MPa |
Process temperature | -40℃~350℃ | |
Ambient temperature | -40℃~80℃ | |
Signal output | Switch | 220VAC 3A, SPDT |
Transmitter | 4~20mA | |
Process connection | Connection type | Flange, customization |
Materials | 316L | |
End fittings | Upper vent | Flat welding cap, also can be configured flange, cocks, 1 / 2" NPT ball |
Lower drain | 1 / 2" NPT ball, also can be configured flange and cocks | |
Additional devices | steam jacket | customization |
electric heating | customization | |
cryogenic insulation / heat insulation | Synthetic rubber, asbestos, polyolefin | |
Vacuum jacket | Anti-frost, can be used in the occasion that temperature less than -5 ℃ | |
Safety certification | Protection rating | IP65,IP66/67 |
Explosion-proof | Ex d IIC T6, Ex ia IIC T6 ( magnetic switch and transmitter) |
