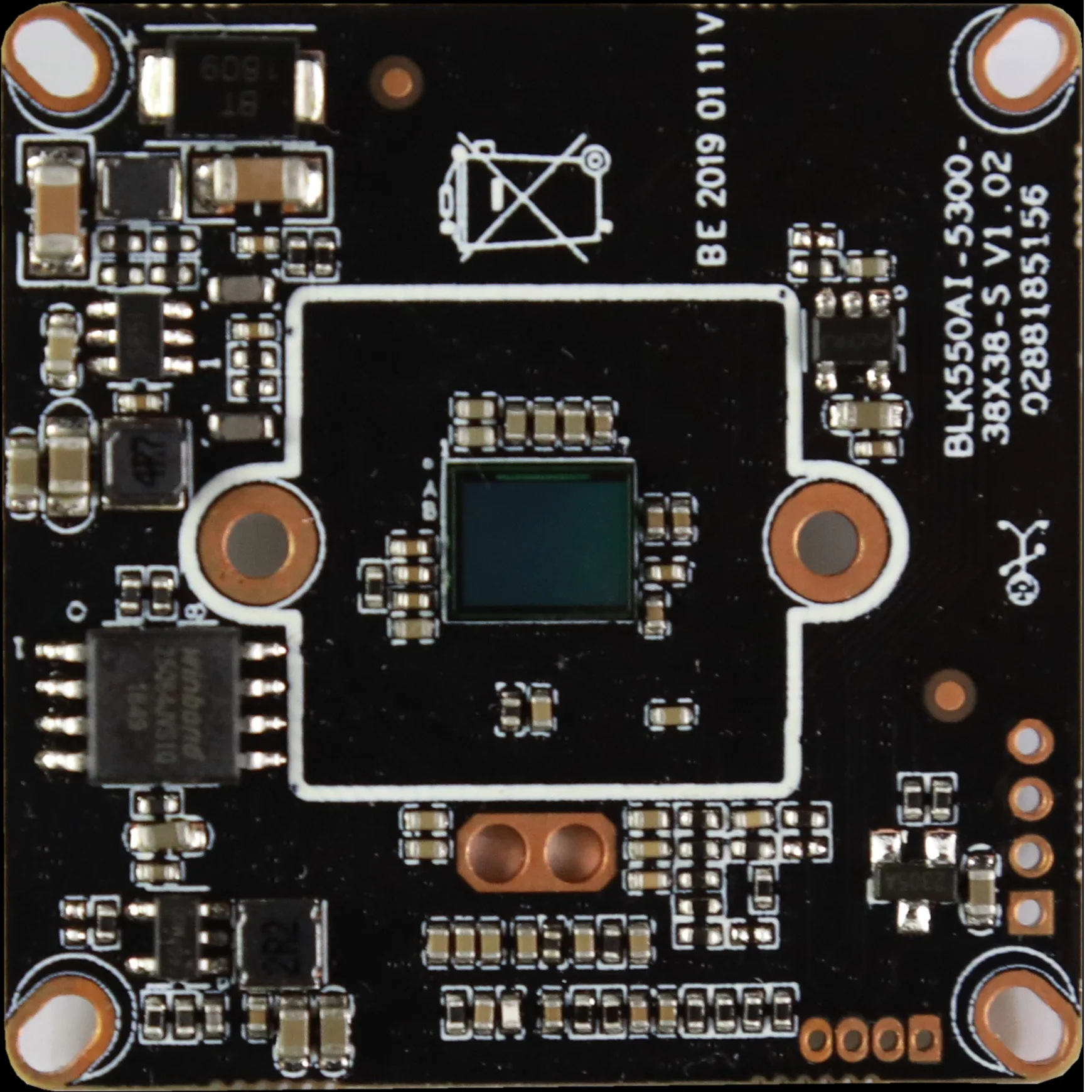

5mp H.265 Low illumination IP Camera Module

Share on (62227123244):


Price:$8.00 - $9.00

Quantity:


Product Overview

Description


Product Description

\tSupporting human detection and tripping line detection, and supports intelligent functions such as customized face detection, number statistics, etc.
\t5MP HD Low illumination resolution,clear and fine images;
\tSupport 2D/3D noise reduction,digital wide dynamic;
\tAdvanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;
\tProfessional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.
\tSupport ONVIF;access third party,Support various mobile monitoring(iPhone,Android);
\tProvide web,CMS,center platform management software MYEYE,provide SDK development
\tSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

\t
Model
\t
IVG-83X50PS-S
\t
System structure
\t
Embedded RTOS,dual-core 32bit DSP(XM550AI),pure hard compression ,watch dog
\t
Sensor
\t
5.0M 1/2.5" SC335E Low illumination CMOS sensor,color 0.01Lux @F1.2,black/white 0.001Lux @F1.2
\t
Video compression
\t
H.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
\t
Image output
\t
Main stream: 5MP 2592*1944@15fps;4MP 2560*1440@20fps; 2MP 1920*1080@25fps; sub-stream: 704*576@25fps;
\t
Shutter
\t
1/50(1/60)s to 1/10,000s
\t
Lens
\t
N/A
\t
Day and night
\t
Support IR-CUT
\t
Noise reduction
\t
Support 2D/3D
\t
Wide dynamic
\t
Support digital
\t
Auto iris
\t
N/A
\t
Audio compression
\t
G.711,support bidrectional talk,audio&video synchronization
\t
Audio interface
\t
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone;
\t
Network interface
\t
1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
\t
Extension interface
\t
Extensions: USB WIFI
\t
Signal interface
\t
One photo resistance interface, one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
\t
PTZ
\t
N/A
\t
Motor interface
\t
N/A
\t
Alarm I/O
\t
1/0(support alarm input and video link to background)
\t
WIFI interface
\t
N/A
\t
Reset interface
\t
N/A
\t
SD Card
\t
N/A
\t
Reliability
\t
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
\t
Intelligence analysis
\t
N/A
\t
Other function
\t
Support WEB,OSD, live video transmission, motion detect and IO alarm, front-end storage/playback/download, and center reminder and image linkage, support JPEG capture;united remote client monitoring software,MYEYE; perfect SDK;
\t
ONVIF
\t
Support
\t
Mobile monitoring
\t
Support multiple mobile monitoring(IOS, Android)
\t
Power
\t
DC12V/2A input, power consumption:≤3W
\t
Dimension
\t
38mm*38mm
\t
Other
\t
Support POE power supply, not support any custom
