Product Overview
Description
Product Description
The product has stable performance, anti-corrosion and can work continuously for a long time.
Overview
Plastic Type Magnetic Level Indicator is a commonly used anti-corrosion level meter. With the same measured range, its weight is only about 1/5 of the Standard Type, which greatly facilitates the installation. Also, WSFB has introduced innovative production and test processes to improve its reliability and quality. Flap-11C is particularly suitable for chemical water treatment at power station, sewage treatment, printing and dyeing industry, as well as other acidic medium, which are not miscible with PVC/PP.

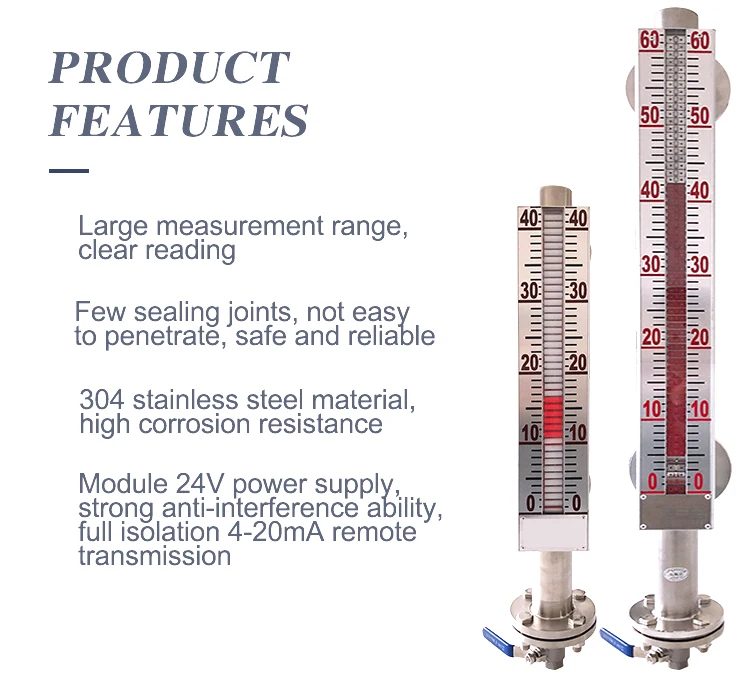

Features
Lightweight, the weight is about only 1/5 of stainless steel product, and easy installation.
Be made of strong anti-corrosive materials, such as PP/PVC.
Indicator panel and magnetic flaps uses widened design,make visual distance and viewing angle increase greatly, the ruler and its figures are bolder and clearer.
Level of Ingress Protection of IP65 and IP66/67 are available, exceeding national standard requirement of IP54;
Accessory magnetic switches and remote transmitters have got double certifications of Explosion-proof and Intrinsic Safe.
Technical
Fluid | Density | 0.45~2g/cm3 |
Viscosity | ≤200cP | |
Measurement parameters | Measuring range | Single section: 200-4000 mm |
Accuracy | ±5mm or±10mm | |
Material specifications | Measuring tube | PP , 50, wall thickness 4.2mm |
Float | NBR, PP | |
Indicator panel | Optional aluminum flap or PA66 nylon flap, and optional cover plate of glass (standard) or acrylic. | |
Operating conditions | Process pressure | -0.1 MPa~0.6Mpa |
Process temperature | PP: -20℃~80℃ | |
Ambient temperature | -40℃~50℃ | |
Signal output | Switch | 220VAC 3A, SPDT |
Transmitter | 4~20mA | |
Process connection | Connection type | Flange, customization |
Materials | PP | |
End fittings | Upper vent | Flat welding seal end |
Lower drain | Lower end with drain valve by default | |
Safety certification | Protection rating | IP65,IP66/67 |
Explosion-proof | Ex d IIC T6, Ex ia IIC T6 (magnetic switch and transmitter) |
Application
Used to measure the level of regeneration tank, refrigerant tank, hydrochloric acid tank, alkali tank of membrane nitrateremoval equipment at caustic soda plant.
Used to measure the level of waste water tank at sewage treatment plant.
Applied in raw materials tank at dyeing plant.
