Product Overview

Description

aw Crusher

1.        Purpose of the machine

This crusher is characterized with its simple structure and reliable work and convenient maintenance, used to crush primarily and intermediately all ores or rocks with a compressive strength under 320Mpa in large, medium-size mine, stone quarry and building material department.

2.        Operating principle

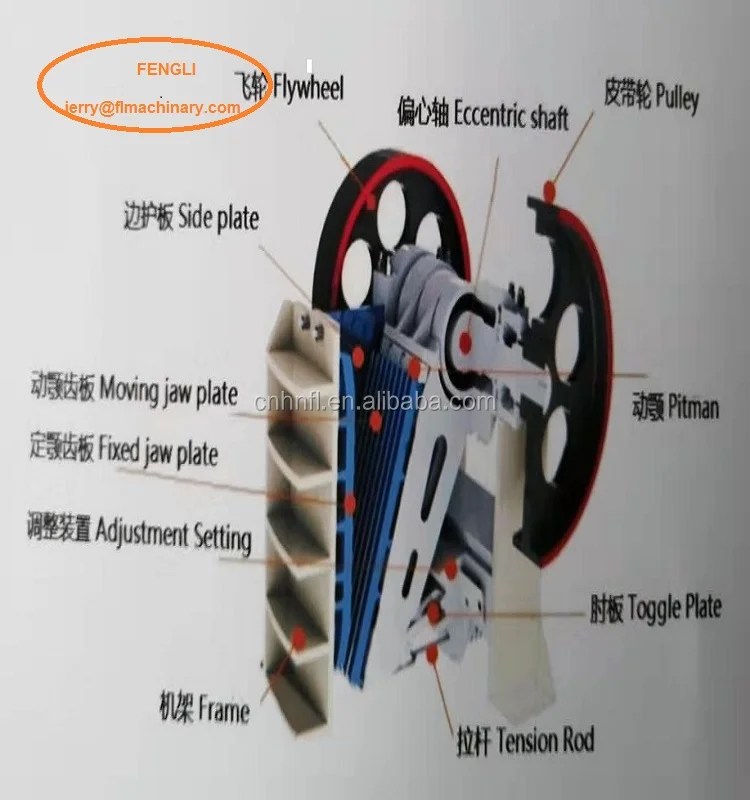

The motor drives eccentric shaft via a delta belt fixed in a grooved pulley, which can make movable jaw move repeatedly so as to crush materials in crushing cavity.



3.        Applicable material: Cobble,  Granite,  Basalt,  Iron ore,  Limestone,

Quartz stone,  Coal gangue,  Construction wast etc.

4.        Manufactured goods granularity:10-30mm, 50-100mm, 100-200mm,

200-350mm.

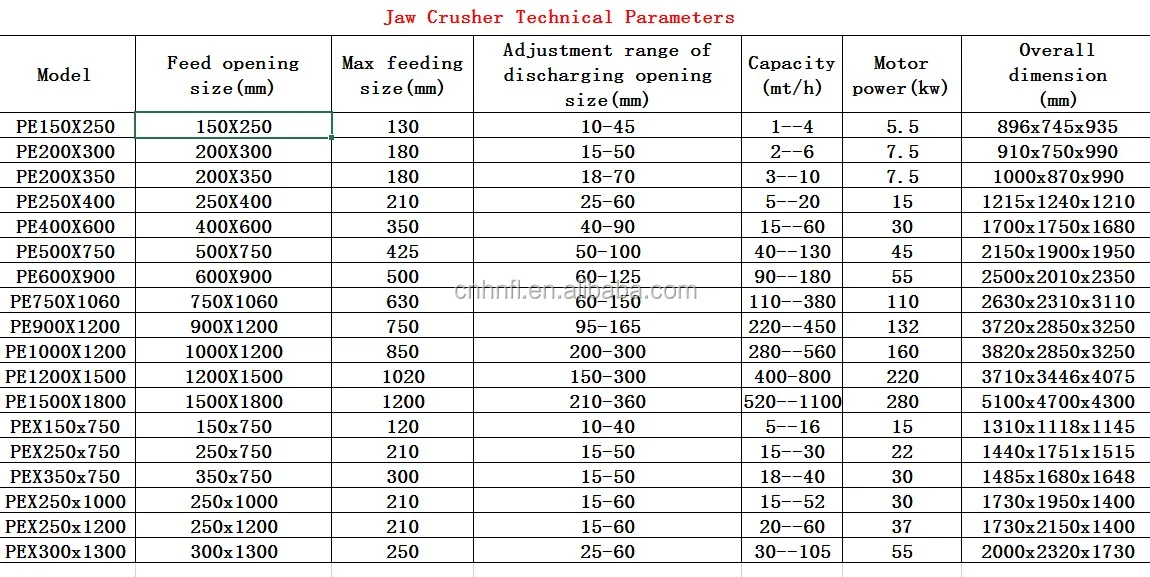

5.        Techincal Parameters:
