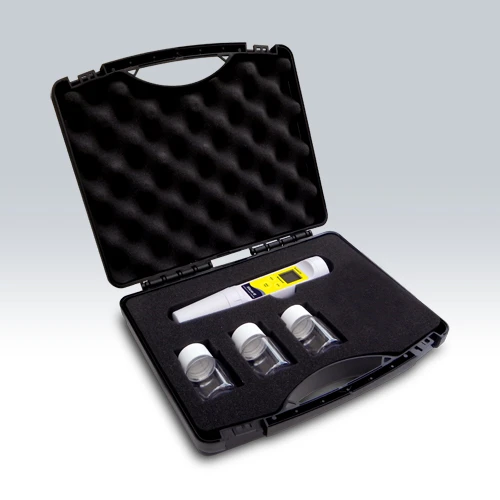

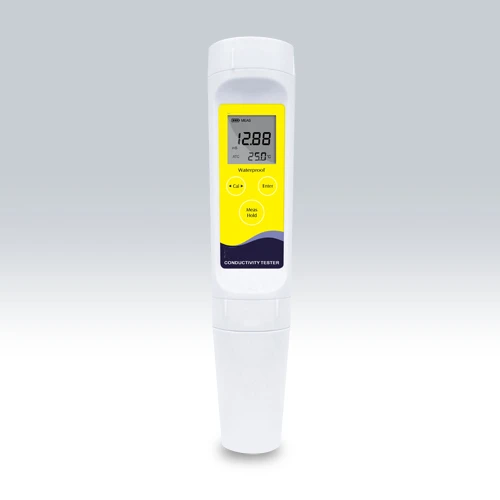

Pentype Water Quality Meter Conductivity/TDS/Salinity Tester EC meter with temperature display
- Category: >>>
- Supplier: Shanghai Lianhua Industrial Co. Ltd.
Share on (62227510133):
Product Overview
Description
Product Description
Multirange waterproof pocket conductivity meter, 1 to 3 points calibration, setup menu contains the 5 optional parameters. Accuracy: 1% F.S.
Features
• Multiparameter pocket conductivity meter is equipped with a dual display LCD.
• Platinum conductivity cell provides the fast and reliable measurement results.
• 1 to 3 points push-button calibration, automatically recognizes the calibration solutions.
• Automatic Temperature Compensation provides accurate reading over the entire range.
• Auto-Hold feature senses and locks the measurement endpoint.
• Battery indicator shows the remaining battery capacity.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the 6 parameters, including the number of calibration points,
temperature unit, TDS conversion factor, etc.
• Reset feature automatically resumes all settings back to factory default options.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.
Applications:
• Swimming pools and aquariums
• Aquaculture and hydroponics
• Beverage industry and other industrial applications
Specifications
Conductivity | ||
Range | 0~20.00, 200.0, 2000µS/cm, 20.00mS/cm | |
Accuracy | ±1% F.S | |
Resolution | 0.01, 0.1, 1 | |
Calibration Points | 1 to 3 points | |
Calibration Solutions | 84µS/cm, 1413µS/cm, 12.88mS/cm | |
TDS | ||
Range | 0~10.00, 100.0, 1000ppm, 10.00ppt (Max. 20ppt) | |
Accuracy | ±1% F.S | |
Resolution | 0.01, 0.1, 1 | |
TDS Factor | 0.1~1.0 (Default 0.5) | |
Salinity | ||
Range | 0.00~10.00ppt | |
Accuracy | ±1% F.S | |
Resolution | 0.01ppt | |
Temperature | ||
Range | 0~60°C, 32~140°F | |
Accuracy | ±1°C | |
Resolution | 0.1°C, 0.1°F | |
Calibration Points | 1 point | |
Calibration Range | Measured value ±10°C | |
General | ||
Temperature Compensation | 0~60°C, 32~140°F, Automatic | |
Temperature Coefficient | 2%/°C | |
Compensation Mode | Linear | |
Cell Constant | K=1, platinum conductivity cell | |
Reference Temperature | 25°C | |
Data Hold | Manual or Auto-Endpoint | |
Power Off | Manual or Automatic (8 minutes after last key pressed) | |
Reset Function | Yes | |
Sensor Type | ECSCAN-C1-10K | |
Display | LCD | |
Power | 2×1.5V AAA batteries | |
Battery Life | Approximately 200 hours | |
Dimensions | 185(L)×40(Dia.)mm | |
Weight | 100g |
Optional Accessories
| Items | Description |
| ECSCAN-C1-10K Sensor | Platinum Conductivity Electrode |
| Conductivity Standard Solutions | 480mL/bottle |
Packaging
Order Code | Carton Dimensions (L×W×H) | Weight |
ECscan40 | 280×230×80mm | 1.5kg |
