Автоматическая Тяжелая Шестигранная габионная сетчатая машина
- Category: >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (62227529593):
Product Overview
Description
Machine Introduction

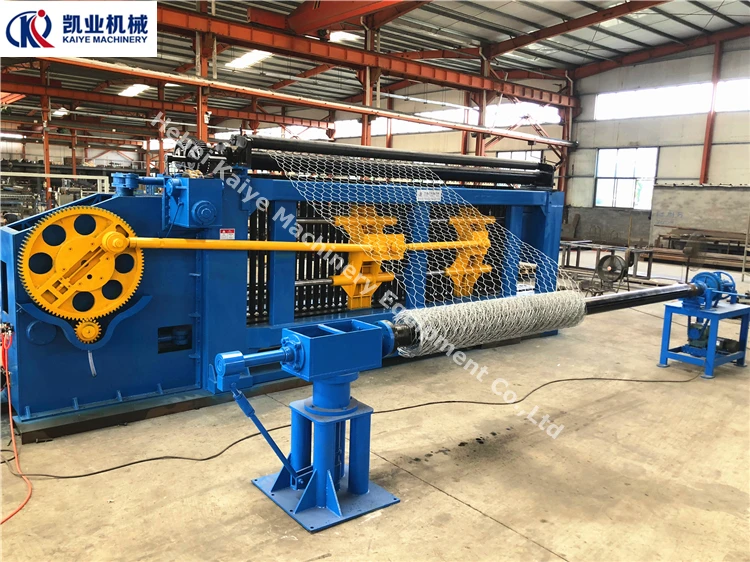

Heavy hexagonal gabion mesh machine.
Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.
Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galvanized coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length can be 50-55 mm.
Our machine has several models for different sizes of meshes and the maximum netting width is up to 5500 mm. We can accept any special orders from clients.
Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galvanized coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length can be 50-55 mm.
Our machine has several models for different sizes of meshes and the maximum netting width is up to 5500 mm. We can accept any special orders from clients.
Machine Specification
Model | Mesh size | Width | Wire diameter | Spindle speed | Twist | Motor | Theoretic output |
(mm) | (mm) | (mm) | (r/min) | (r) | (kw) | (m/h) | |
KY33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
KY33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
KY33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
KY33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
KY43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
KY43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
KY43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
KY43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
KY43-60-3ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 5 | 22 | 165 |
KY43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
KY43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
KY43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Machine Features
Name: Gabion mesh twist system.
The gabion mesh twist system has been corrected accurately to ensure the neatness and beauty of mesh standards.
Name: Gabion mesh winding machine
The machine can automatically adjust the speed to make the mesh roll even tightness.
Name：Double balance guide block.
Engineers specially designed double balance guide block for machinery, which makes the machine run more smoothly and stronger.

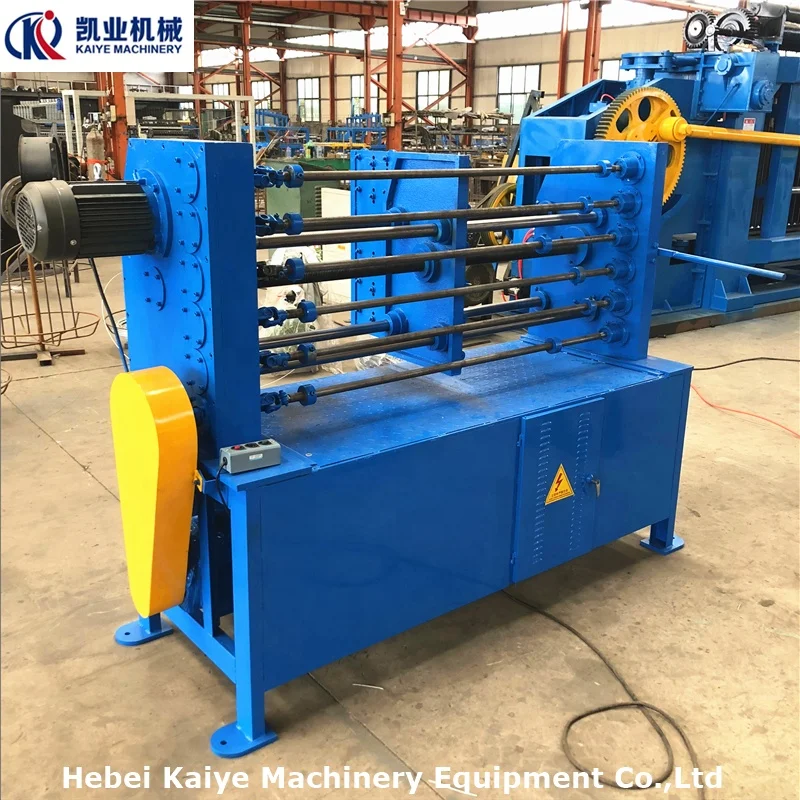

Name: Spring making machine.
Spring machine uses six shaft , can produce six springs at the same time, and the mechanical speed can be adjusted.It is more convenient to use one or two handles for machinery.
Name：Small air compressor.
Machinery has been equipped with air compressor, convenient for customers
Name: Installation tools.
We have given away installation tools to save customer time.
Packaging&Shipping
Packaging(Main machine) | ||
Size | 7200mm (Length) 1400mm (Width) 2300mm (Height) | |
Weight | 15000 KG | |
Packaging Details | The main machine will be loaded in the container and fixed with wire rope. | |
Packaging(Accessory machine) | ||
size | Spring making machine (1960*600*1450 mm) Wire tension machine (5000*680*710 mm) Mesh winding machine (5200*800*950 mm) | |
Weight | 3500 KG | |
Packaging Details | The auxiliary machinery is packed with plastic film, and the mechanical parts are packed in wooden cases. | |
Sales Service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Free airport and train station pick-up service.
* Sample testing support.
* View our Factory.
* Free airport and train station pick-up service.
After-Sales Service.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Company Information
Factory History.
Hebei Kaiye Machinery Equipment Co., Ltd. was established in 2002. We are mainly engaged in the R & D, design, production and sales of CNC steel wire processing equipment, providing overall solutions for CNC steel wire processing. Products are widely used in railway, highway, bridge, tunnel, real estate, animal husbandry and other large-scale infrastructure construction, steel
processing and distribution center and other fields.
processing and distribution center and other fields.
Factory workshop.
Our company has 8 modern standard workshops, 6 processing centers and 2 testing laboratories.
Our main products: wire mesh welding machine, 3D EPS panel machine, reinforcement mesh welding machine, Gabion mesh machine, hexagonal wire mesh machine,wire drawing machine, expanded metal machine,chain link fence machine, barbed wire machine, CNC stirrup rebar bending machine and galvanized wire production line.
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology
is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Market and Customers
The company's machinery and equipment sell well in China, and are exported tonearly 100 countries and regions such as Romania,Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Egypt, Algeria, South Africa, Kenya, Morocco, Senegal, Vietnam, Thailand, India, Pakistan, Philippines, Indonesia, Australia, Mexico, Colombia, Argentina, Bolivia, Brazil, etc.
After more than ten years of development, the company has grown into one of the leading enterprises in the industry. We adhere to the tenet of "customer first, technology leading". In the future, the company will comprehensively promote industrial development and upgrading, and build the world's leading wire rod processing equipment.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin etc, your customs clearance will be no problem.
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin etc, your customs clearance will be no problem.
If you are interested in our machine, please contact us now.
