Зарядное устройство для литий ионных аккумуляторов, 12 В, 24 В, 42 в
- Category: >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (62227560036):
Product Overview
Description
Product Description
Specification:
* Input: AC 100-240V 50-60Hz 1.0A
* Output: DC 42V
* Charging current: 2A
* Weight: 500g
* Output: DC 42V
* Charging current: 2A
* Weight: 500g
BRIEF :
EPL100-42 is a smart battery charger with 4 stage stages by microcessor controlled,automatic charging protects your battery
without overcharge which are used for LI ION LITHIUM IRON LIPO Batteries Pack
Perfect for charging Li-ion/lithium ion/polymer batteries Fully automatic 4 stages charging process by MCU controlled Solid state
4Leds indicator for battery charging and One Led indicator for Power on Short circuit/OVP/OCP/Overload/Polarity reversed
without overcharge which are used for LI ION LITHIUM IRON LIPO Batteries Pack
Perfect for charging Li-ion/lithium ion/polymer batteries Fully automatic 4 stages charging process by MCU controlled Solid state
4Leds indicator for battery charging and One Led indicator for Power on Short circuit/OVP/OCP/Overload/Polarity reversed
FEATURE :

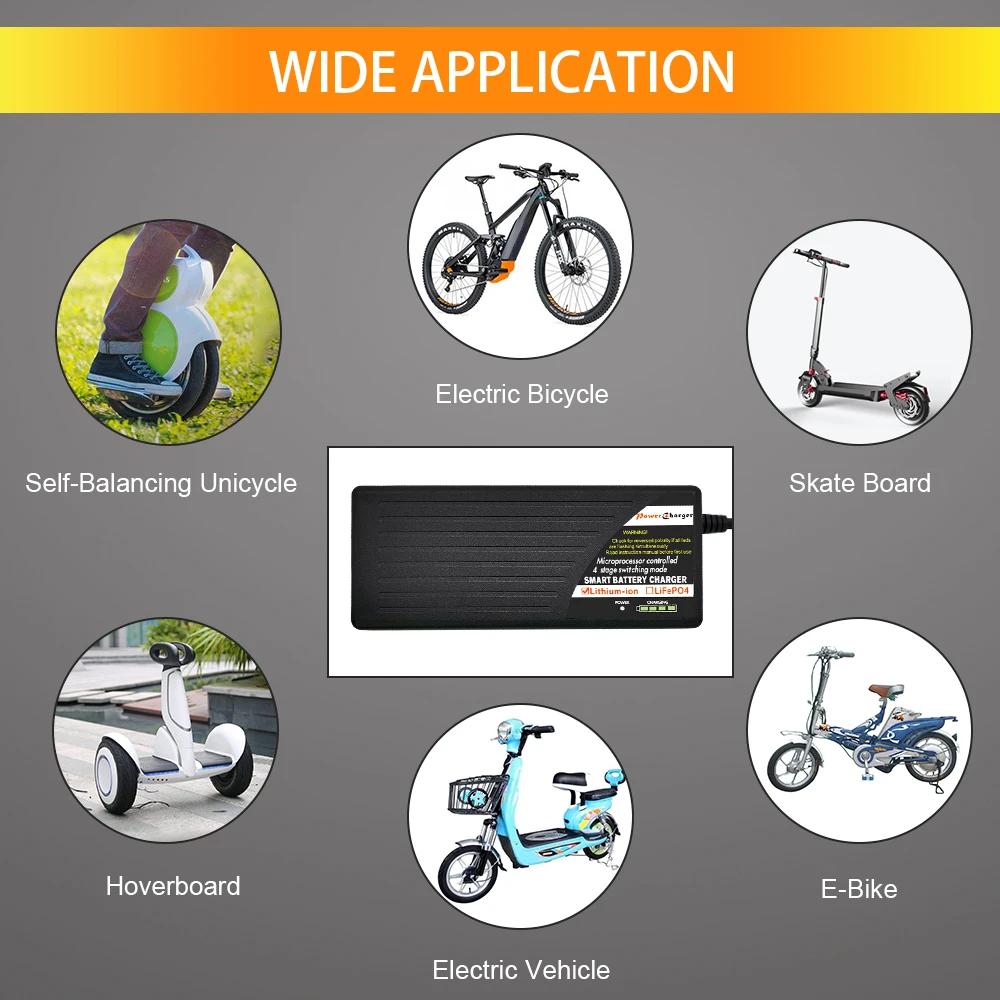

* Best charger for charging all bicycle dynamo,e-bike,car,electronic scooter,electronic
tool.
* 100V-240V AC input for worldwide power support.
* Fully auto charging process by MCU controller,
* Constant charging current for faster charging, save you much more time
* Stabilized output;low rippple,optimized for battery pack`s cycle life
* automatically charging ending with voltage detection

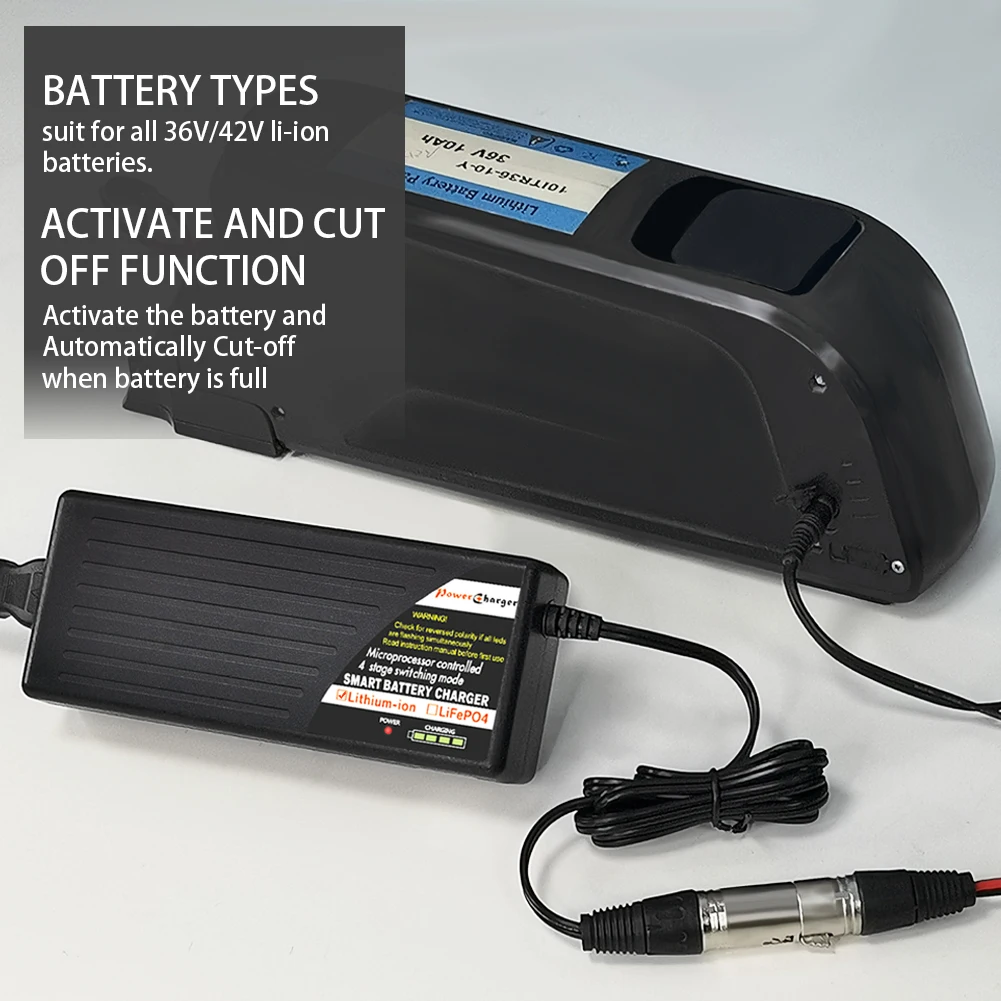

* It can charge any 36V/42V lithium-ion/polymer battery with capacity 6-20Ah.
* Fully auto charging process by MCU controller,
* Constant charging current for faster charging, save you much more time
* Stabilized output;low rippple,optimized for battery pack`s cycle life
* automatically charging ending with voltage detection
* It can charge any 36V/42V lithium-ion/polymer battery with capacity 6-20Ah.

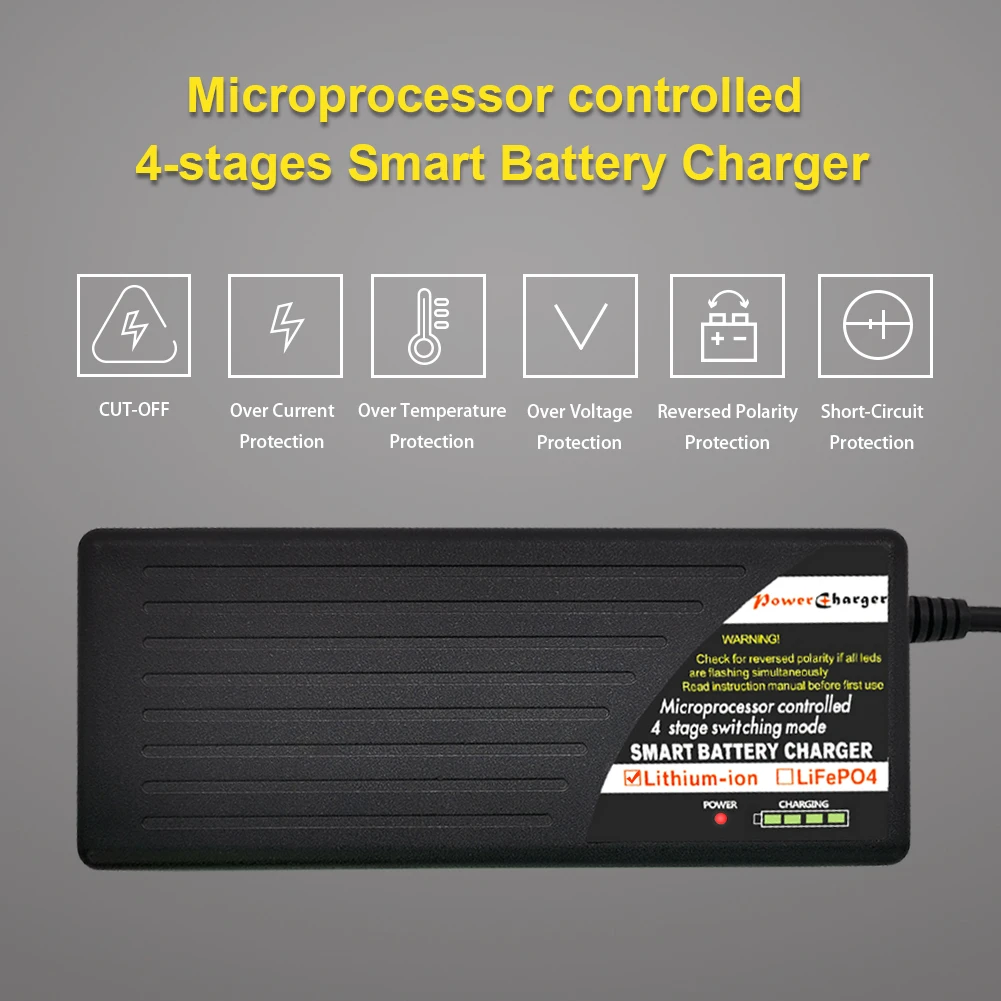

Safety protections:
* Over Voltage protection
* Short Circuit protection
* Polarity error protection
* Over power protection
* Polarity error protection
* Over power protection

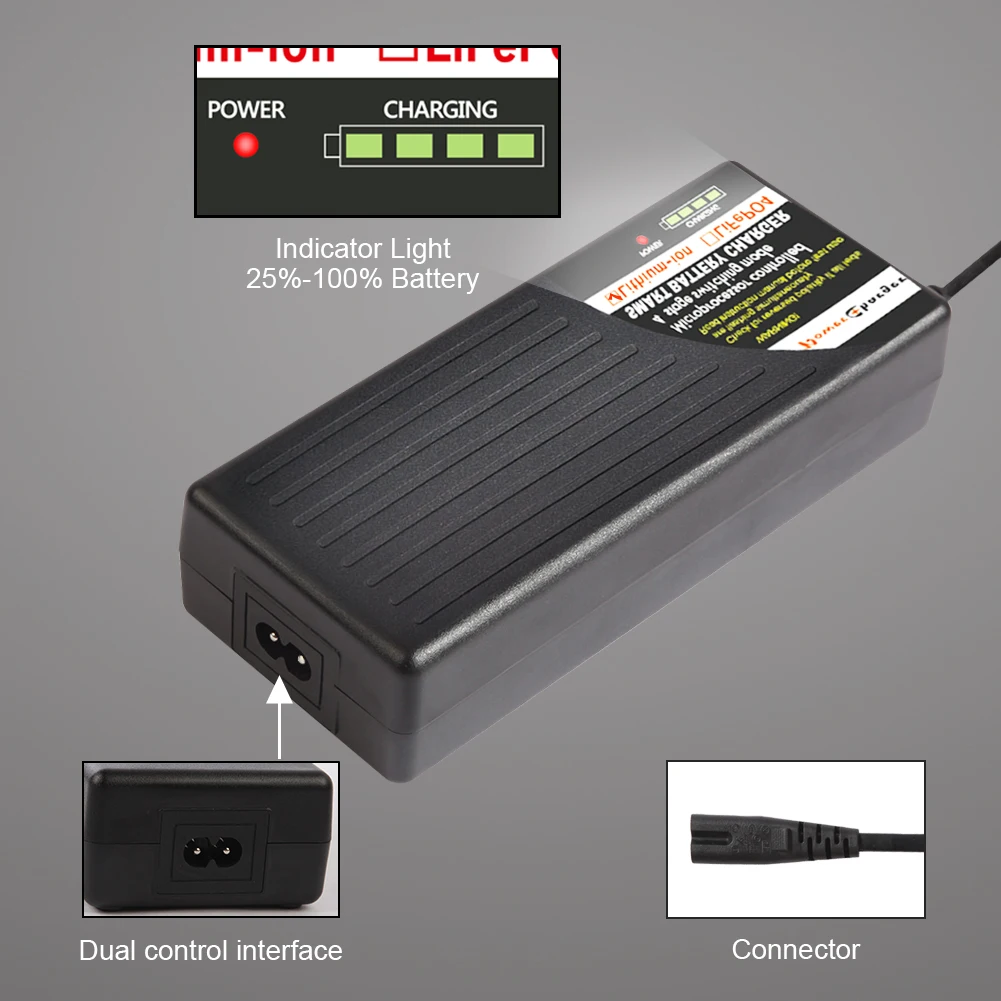

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
* Red LED:Power on 4Green
* LED:25%~100% battery capacity Green LED
* Red LED:Power on 4Green
* LED:25%~100% battery capacity Green LED
4-STAGE CHARGING PROCESS
Stage 1:Pre-charge battery through small current,Charger enters the stage if it detects
battery deep discharged,it is helpful for battery cycle life (LEDs:1 ON,2-4 OFF)
Stage 2: Bulk charge using charger highest rated current for the type of battery in use
until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant Voltage,the output voltage is limited to 4.2V/Cells while current
declines follow as the battery charges to its full capacity without overheating
(LEDs:1-3 ON,4 Blinking)
Stage 4: Cut-off,At this stage,the battery is fully charged and the charger will cut-off
output automatic.(LEDs:1-4 ON)
battery deep discharged,it is helpful for battery cycle life (LEDs:1 ON,2-4 OFF)
Stage 2: Bulk charge using charger highest rated current for the type of battery in use
until it reaches 80% capacity. (LEDs:1-4 Blinking Sequentially)
Stage 3:Constant Voltage,the output voltage is limited to 4.2V/Cells while current
declines follow as the battery charges to its full capacity without overheating
(LEDs:1-3 ON,4 Blinking)
Stage 4: Cut-off,At this stage,the battery is fully charged and the charger will cut-off
output automatic.(LEDs:1-4 ON)
HOW TO USE:
1.Connect the AC cord to the socket, The “power” LED (red) will light on solid.
2.Connect positive charger clip (red) to positive battery terminal, the black clip to
negative, the “25%~100%” LEDs will light in sequence, If the battery polity is reversed or output is shorted, all LEDs will flashing simultaneously, DISCONNECT&CHECK
3.Depend on the charged capacity, 25%~100% LEDs will lights up solid,When all are
ON,the battery is fully charged,you can disconnect the battery to use or keep it
connected to charge in float mode.if battery stays at stage 2 after 24 hours of
charging,then the battery is defective.
1.Connect the AC cord to the socket, The “power” LED (red) will light on solid.
2.Connect positive charger clip (red) to positive battery terminal, the black clip to
negative, the “25%~100%” LEDs will light in sequence, If the battery polity is reversed or output is shorted, all LEDs will flashing simultaneously, DISCONNECT&CHECK
3.Depend on the charged capacity, 25%~100% LEDs will lights up solid,When all are
ON,the battery is fully charged,you can disconnect the battery to use or keep it
connected to charge in float mode.if battery stays at stage 2 after 24 hours of
charging,then the battery is defective.
Warning:
* Charge 36V 10cells lithium-ion/polymer rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked
* Charge 36V 10cells lithium-ion/polymer rechargeable battery only.
* Don't expose the product to rain or humidity to prevent from electric shock.
* It is normal if the product gets slightly hot when using.
* Keep the product out of children's reach.
* Don't remove the cover to prevent from being electric shocked
Product Specification
Part Number | EPL100-42 |
Input | 100-240VAC@50/60Hz 0.5rms |
Output | 42V 2A |
Cut-Off current | 200mA |
Charging mode | Fully automatic 4 stages |
Suitable battery type | 37V Lithium ion batteries |
Safety | EN60950-1 EN60335 EMC: EN55022 |
Approved | CB CE FCC SAA C-TICK RoHS |
