JK8100A 8045 автоматического шаблона узор швейная машина
- Category: Sewing Machines >>>
- Supplier: Hangzhou Meetlin Imp.& Exp. Co. Ltd.
Share on (62227572645):
Product Overview
Description
Products Description

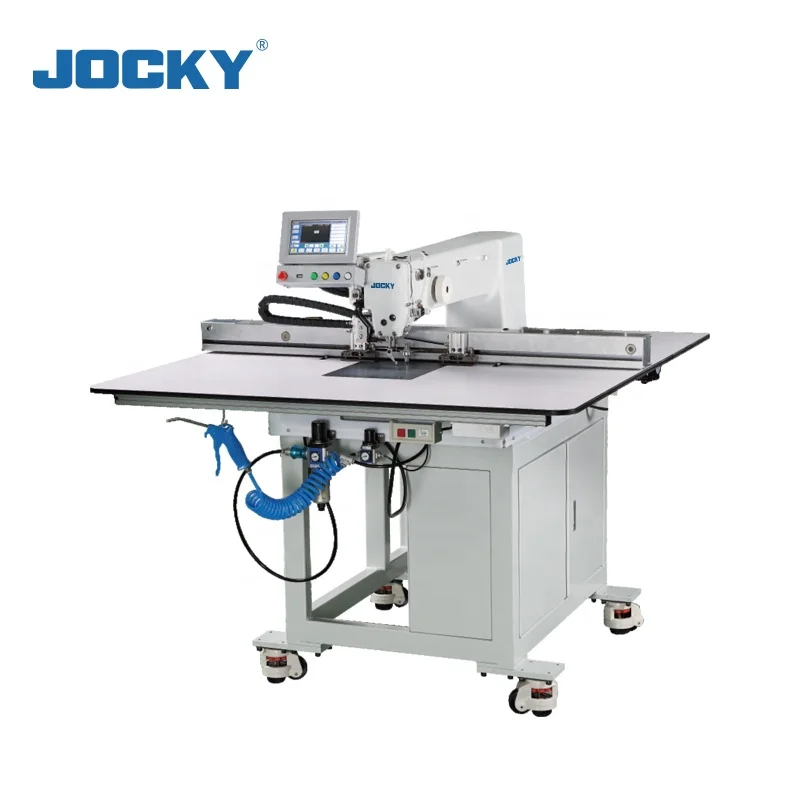

JK8100A-8045 Automatic pattern template sewing machine (800x450 mm)
1. The structure of taper clamping is adopted to ensure the free clearance of the clamping plate, convenient operation, and to reduce the pressure stability of the air source.
2. The simple template design greatly reduces the cost of template production.
3. Adopts oil-free lubrication technology of the machine head, and the hook adopts oil line lubrication technology.
4. Solving the problem of high speed operation of the machine, completely eliminates the pollution of liquid lubricant to the fabric.
2. The simple template design greatly reduces the cost of template production.
3. Adopts oil-free lubrication technology of the machine head, and the hook adopts oil line lubrication technology.
4. Solving the problem of high speed operation of the machine, completely eliminates the pollution of liquid lubricant to the fabric.

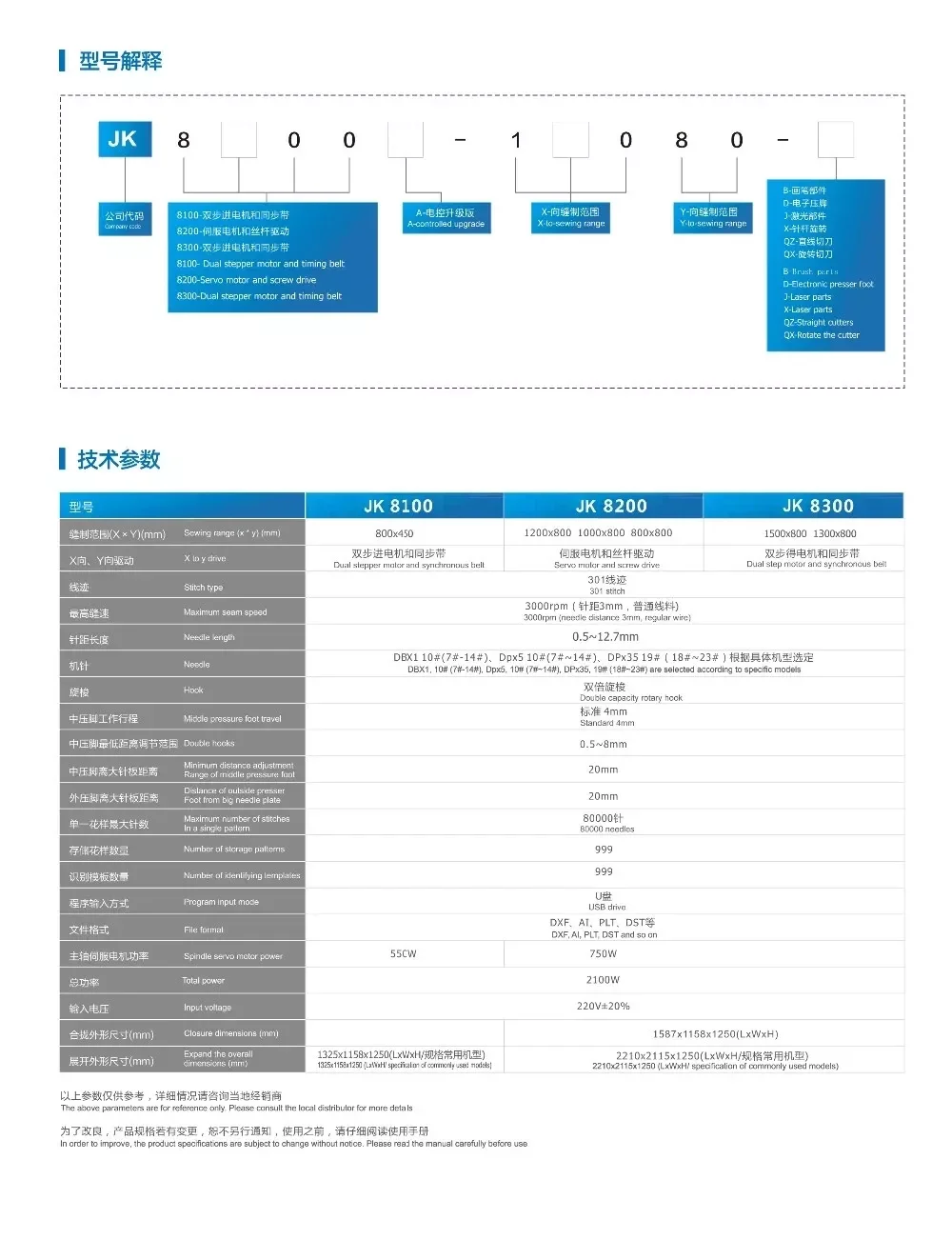

Specification
Model | JK8100A-8045 |
Cutter | Install single blade or double blade |
Cutting mode | Single blade in the center,ut big and small edge. Double blade in the center,.cut width is adjustment. |
Power supply | Single phase 220VAC， 50- 60Hz, 1.8Kw |
Air pressure | 0.5- 0.6mpa(5 6kgt/cm2) |
Needle | DBx1,10#、11#、12# |
Sewing precision | ±0.02mm |
Sewing needle pitch | 1.00-5.00mm |
Sewing speed | 300-3600rpa |
Sewing width | 1.00-60.00mm |
Sewing length | 1.00-360.00 |
Sewing time | 3-8/piece(Depends on the size of workpiece) |
Production efficiency | 2000- 2800pieces/10hours |
Dimension | 1600 (L)x 880(W)x 1410(H) |
Net weight | 260kgs |
Accessories | B: Brush parts D: Electronic presser foot J: Laser cutter X:Needle bar rotate QX: Rotate the cutter |
