5,1 дюймовый 720*1520 гибкий AMoled дисплей с платой контроллера
- Category: OLED\/E-Paper Module >>>
- Supplier: Shenzhen Duobond Display Technology Co. Ltd.
Share on (62227723237):
Product Overview
Description
Product Description

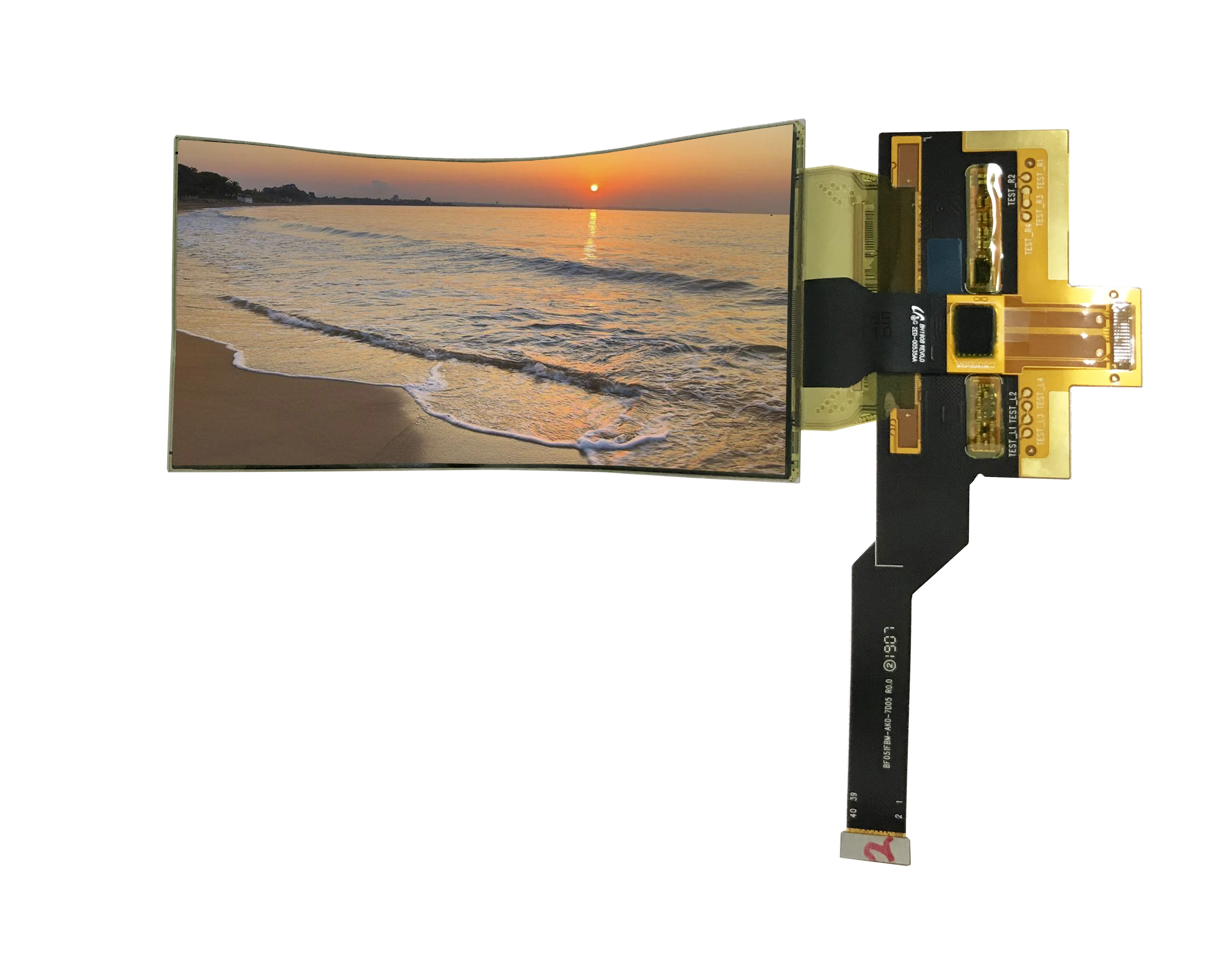

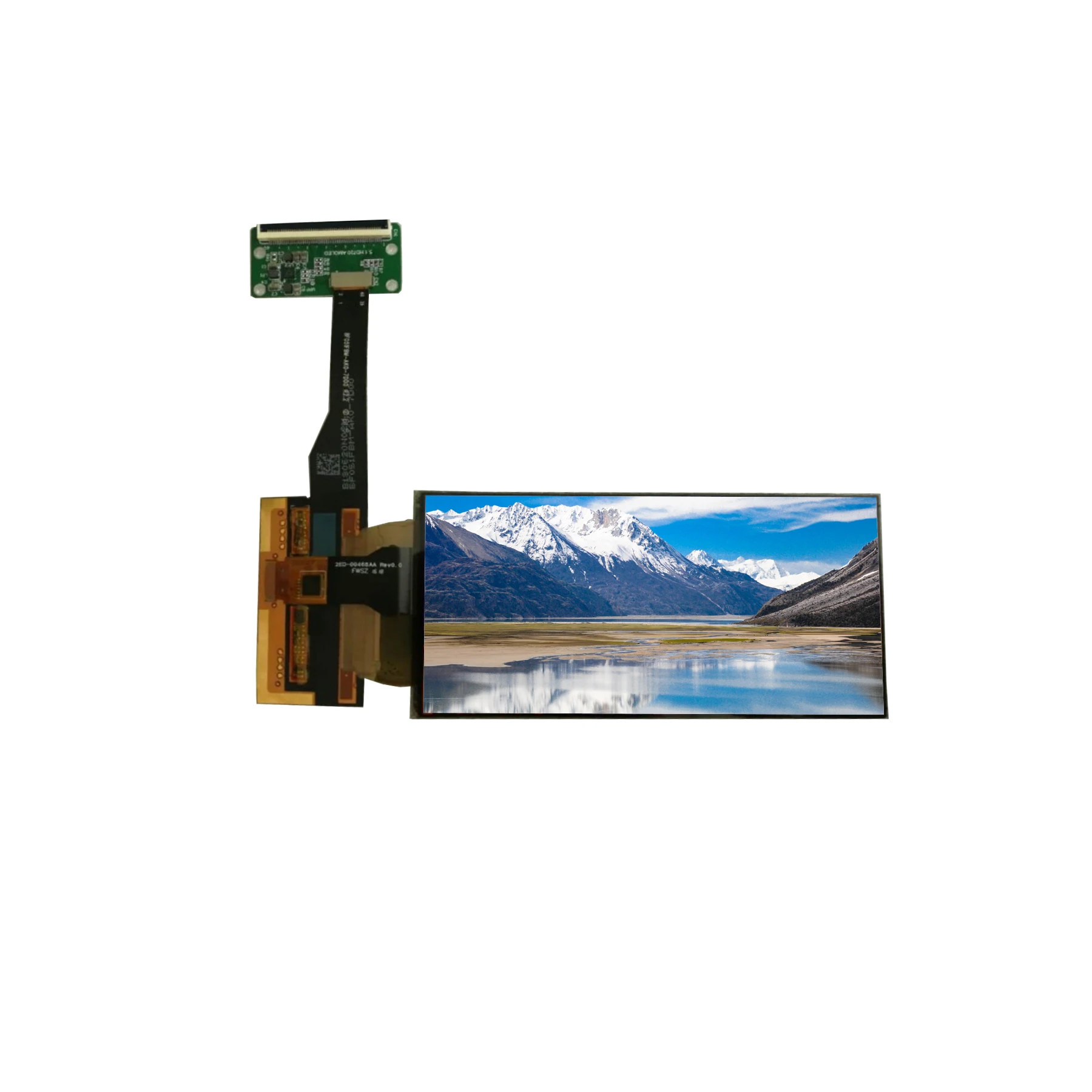

5.1 inch 720*1520 flexible oled diaplsy screen with touch panel
5.1" HD 720x1520(If you want an OLED with a touch screen, please contact sales)
5.1” HD is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 5.1inch diagonally measured active area with HD resolutions (720horizontal by 1520vertical pixel arrays). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

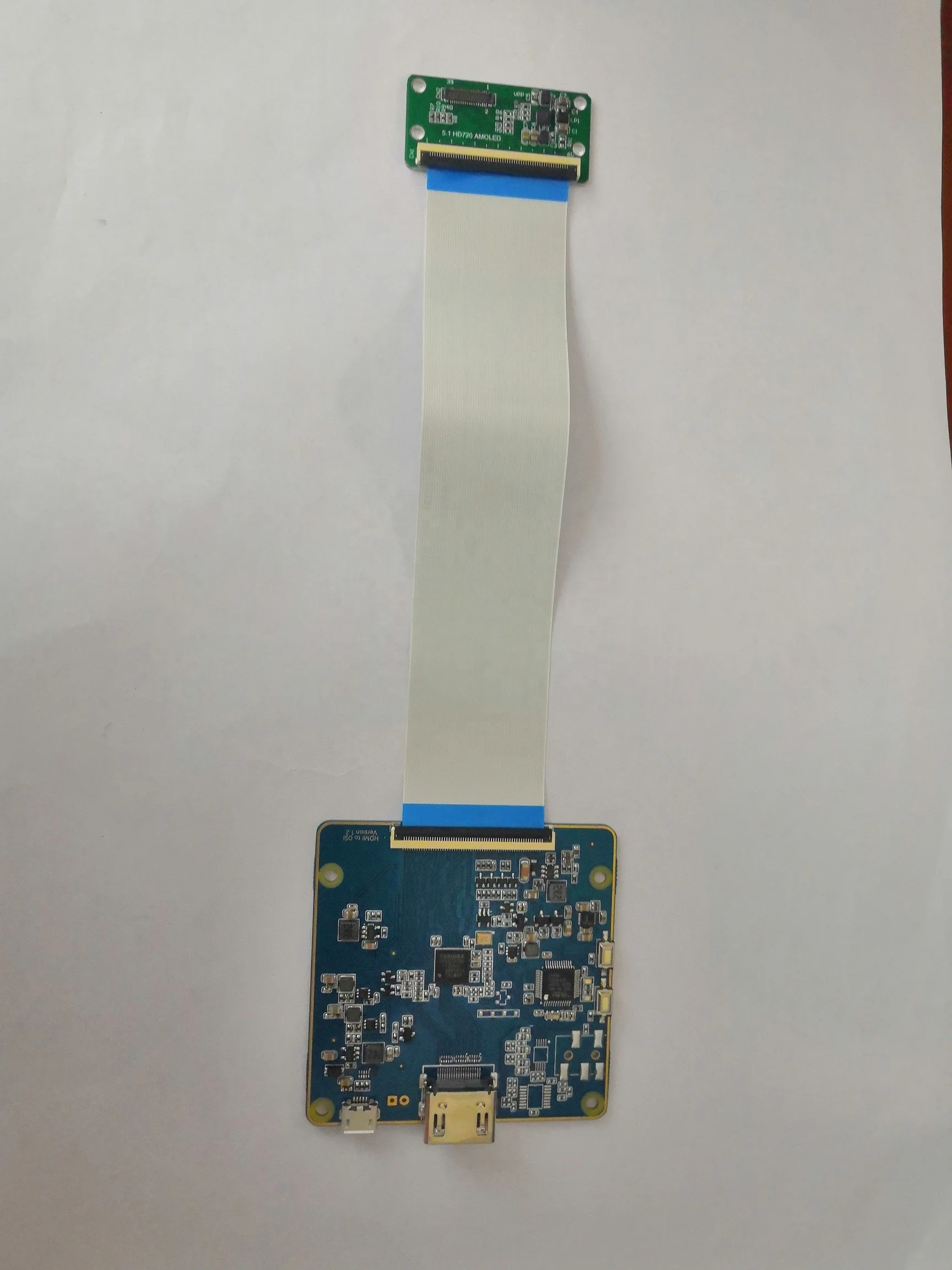

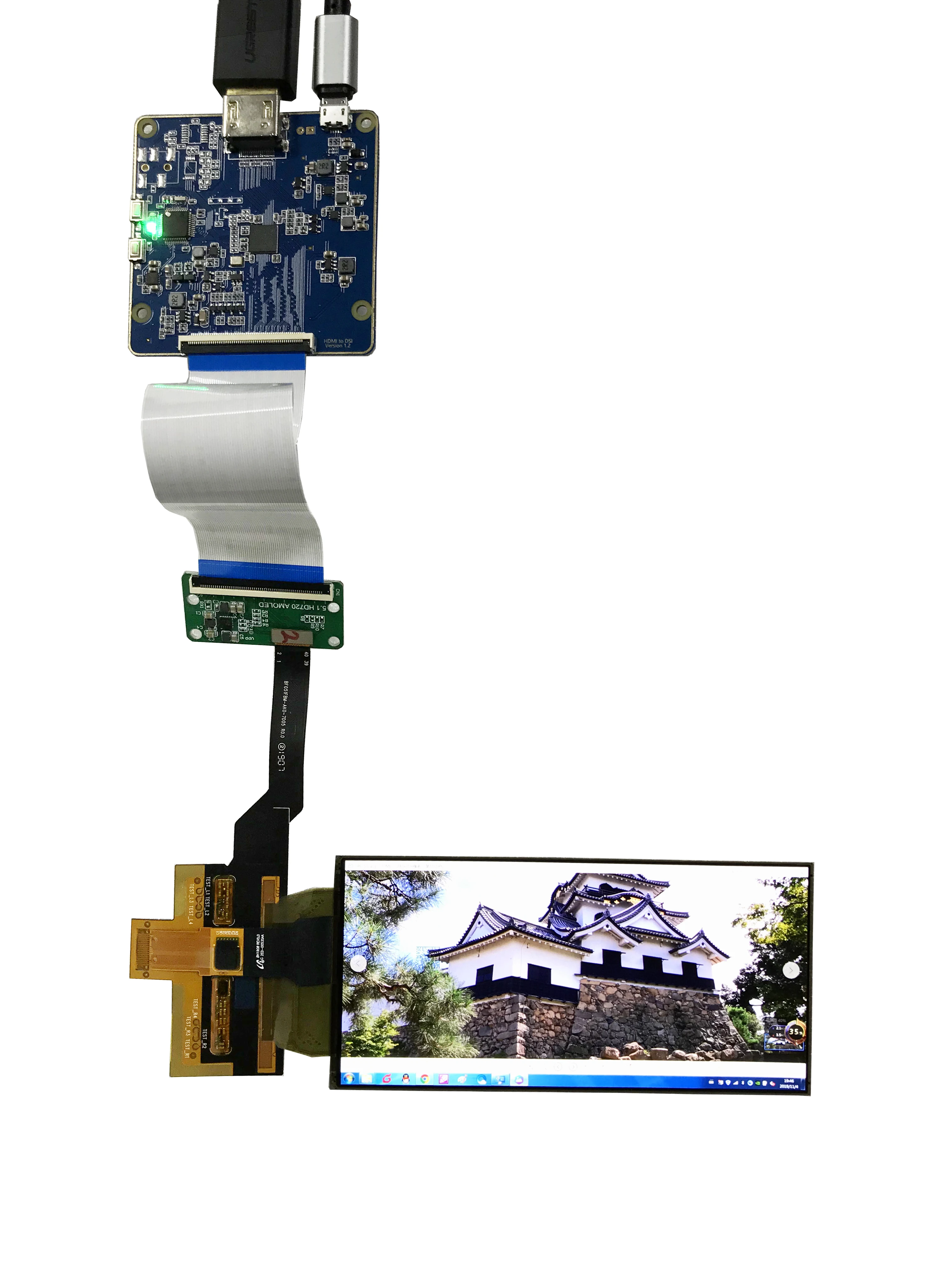

We have this AMOLED Panel and HDMI board in stock.Can ship them within 3 days after payment.
Panel Specification
Item | Specifications | Unit | Remark |
Panel outline | 57.604×120.564×0.13 | mm | |
Number of dots | 720×1520 | 19:9 | |
Active area | 55.404×116.964 | mm | |
Diagonal Inch | 5.1inch | inch | |
Pixel pitch | 76.95×76.95 | um | |
Pixel Arrangement | Real RGB |
Mechanical Specification
Item | Specifications | Unit | Remark |
MDL outline | 70.78×151.31 | mm | |
View area | 55.99×117.56 | mm | |
Weight | 25.12 | g | |
Total Thickness | 1.377 | mm |
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
Our Company
Product Line
1.Wide Operating Temperature : - 30 ~+85 ℃
2.High Brightness :500~1500 nit
3.High resolution:3840*2160 4k LCD
4.Standard Product
5.Driver Kits
OEM and ODM
Certifications
ISO9001
ISO14001
TS16949
FAQ
Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
5.1 inch 720*1520 Flexible Bendable AMOLED Display with 3D Cover Glass
Q: What about the delivery time?
A: The LCD products need 5-6 weeks to be made after receive deposit.
Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.
Q: What's your payment method?
A: We usually accept the payment methods include T/T, Western Union and Trade Assurance. 50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
