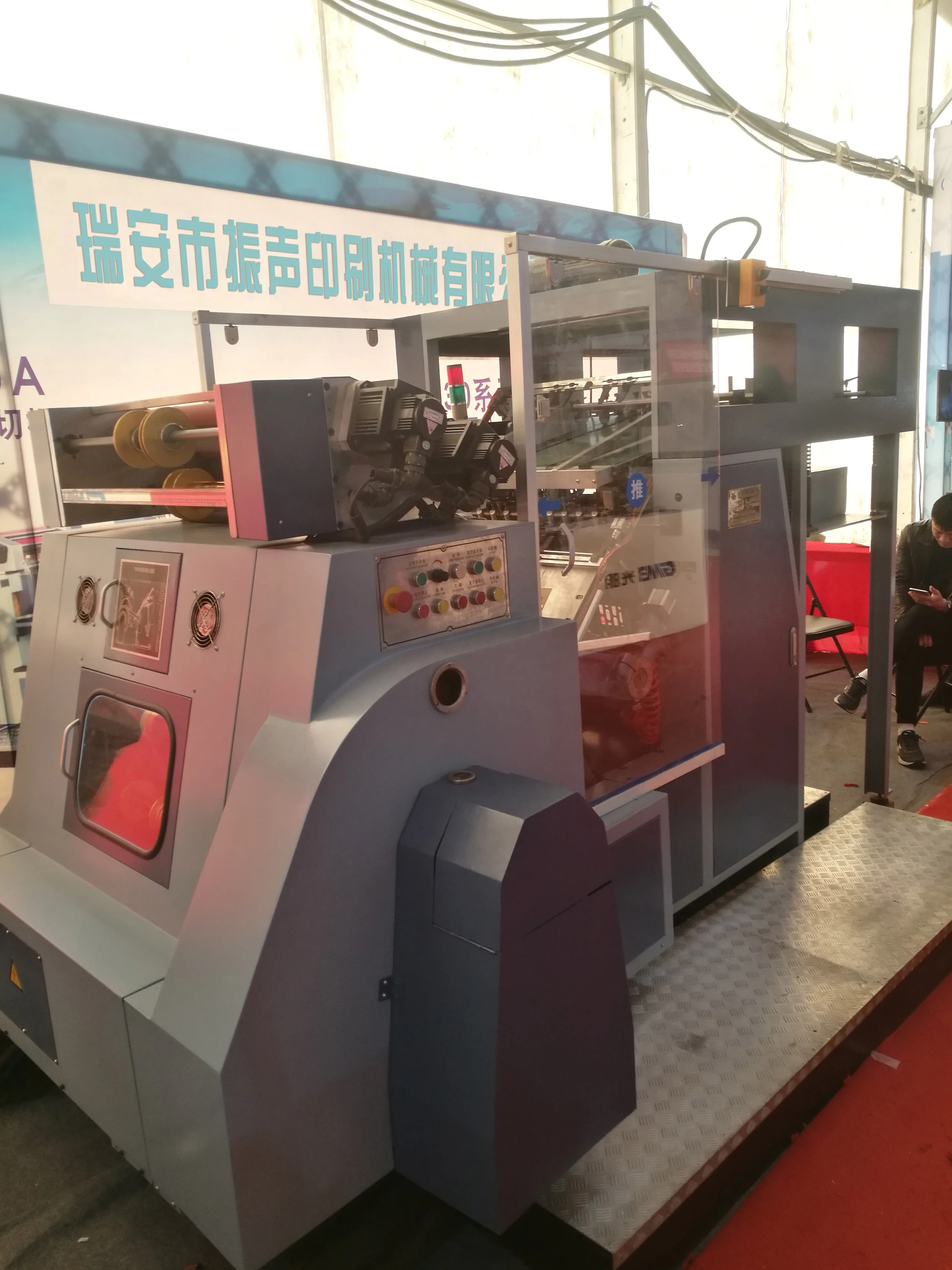

Automatic Hot Foil Stamping Die Cutting Machine ZS 750
- Category: Printing Machine >>>
- Supplier: Wenzhou Zensen Machinery Co. Ltd.
Share on (62227766986):
Product Overview
Description
Product Description
Automatic hot foil stamping machine ZS750 is especially suitable for the customers who have short term job but various kinds, Since it has quicker change-over system and smarter design.
During so many years sales, automatic hot foil stamping machine ZS750 is still one of our best seller due to its smart design and many customers who have low budget are very interested in it.
Description:
Automatic hot foil stamping machine is Easy to change from job to job or from foil stamping to die cutting, Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economic
Automatic hot foil stamping machine is Easy to change from job to job or from foil stamping to die cutting, Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economic
Specification | ||
Model | ZS-750 | |
Max. Paper size (mm) | 650×460 | |
Min. Paper size (mm) | 240×150 | |
Max. inside chase size (mm) | 710×460 | |
Max. working size (mm) | 650×420 | |
Proceed material(gsm) | 80-500 | |
Max. working speed (sheets/min) | 2000 | |
Groups of foil axis | 2 | |
Adjustable temperature (℃) | 10-200 | |
Zones individually heated | 6 | |
Feeding pile height(mm) | 460 | |
Delivery pile height(mm) | 1260mm | |
Total power (kw) | 15 | |
Motor power (kw) | 2.2kw 6pole | |
Gross weight (kg) | 3500 | |
Dimensions(L× W× H) (mm) | 3500×1700×1800 | |
Detailed Images

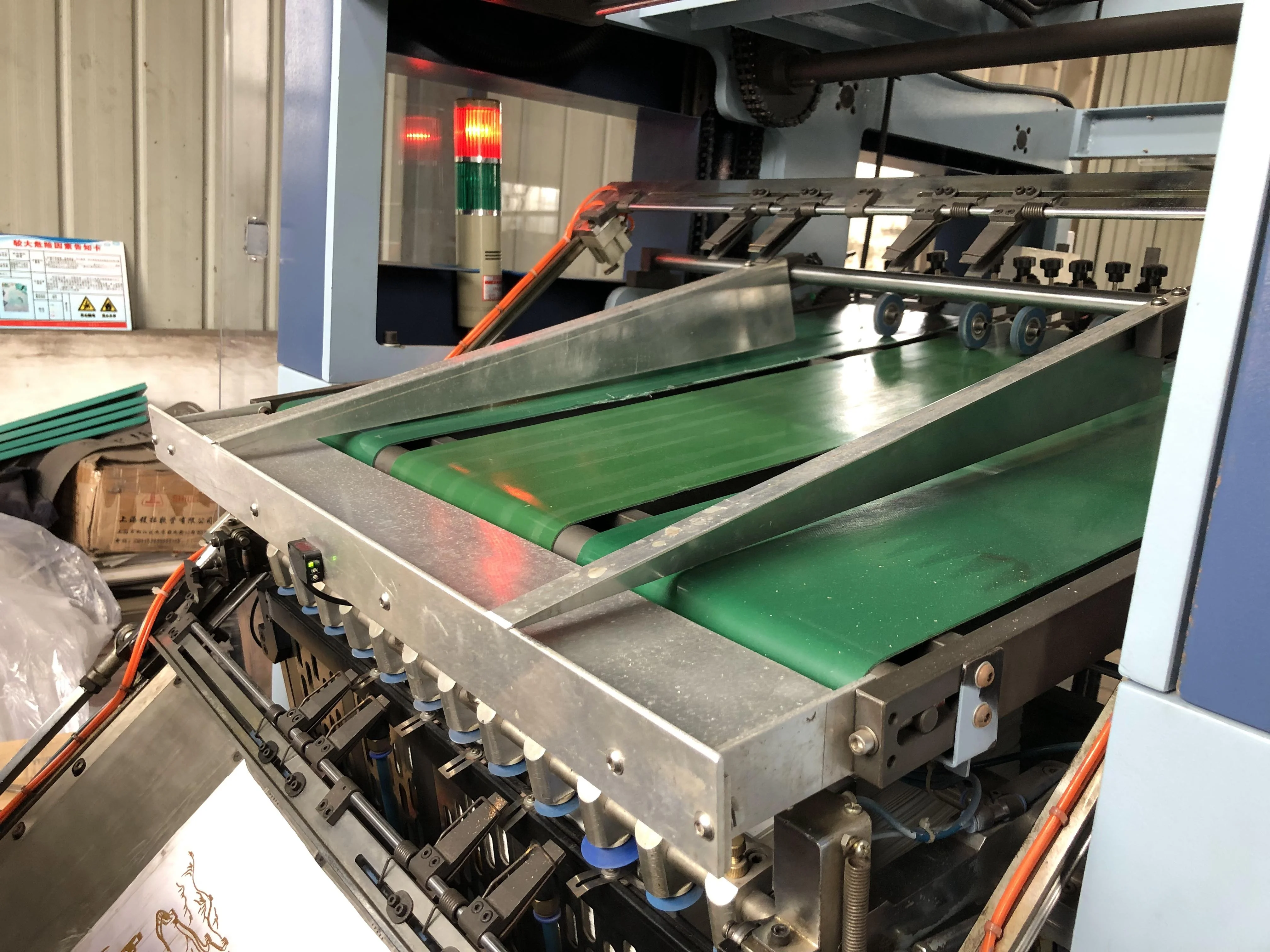

Feeding/delivery unit
Automatic feeder rolls back quickly to give easy access for make ready and locks up in seconds
One feeding bar for suitable paper in feed
One delivery hand with 6 delivery fingers
Automatic elevated feeding pile
Open but safety delivery pile make it possible to remove the product manually without stop the machine

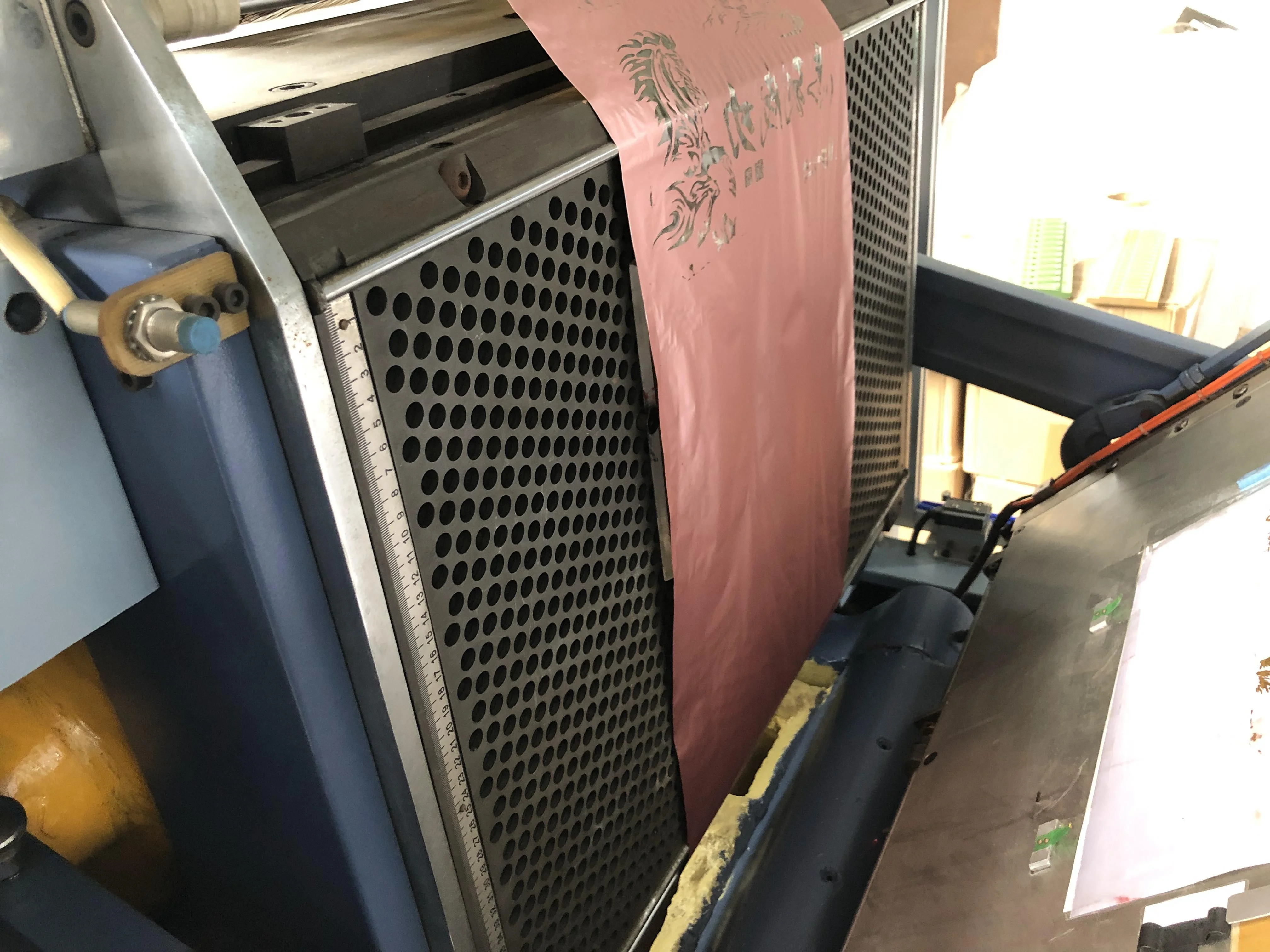

Main machine
Delivers accurate, adjustable impression for foil stamping, embossing and die cutting

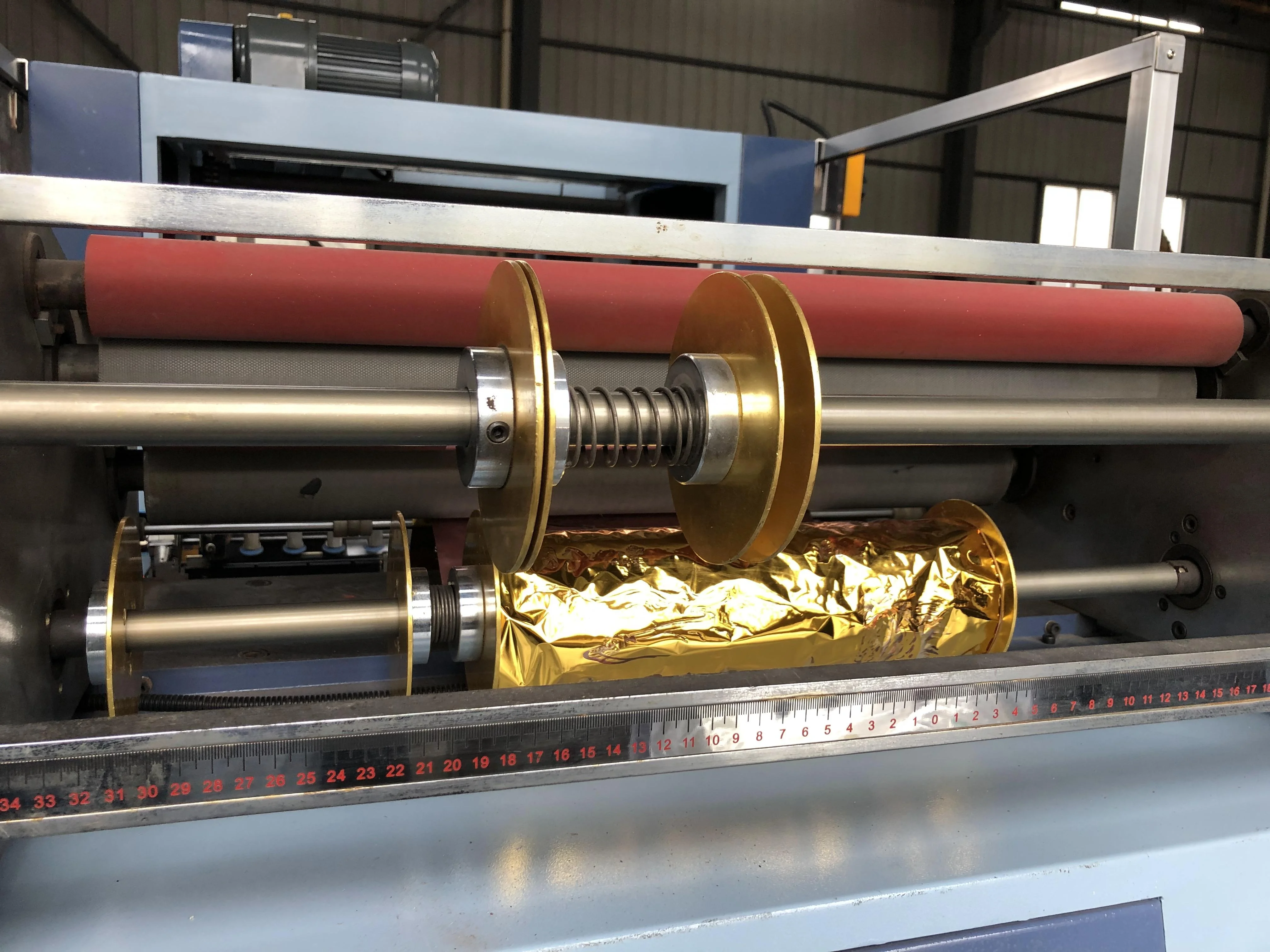

Two horizontal, cross pull foil feeds are fully programmable to provide maximum versatility and excellent foil economy.
Air blast system helps to separate foil from stock on critical jobs
Micrometer adjustment on side guide and front guide
Adjustable dwell on impression
Honeycomb base is convenient for loading
Missed sheet detector
4 heating zones with digital control
Control system with touch screen HMI, PLC and servo system.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Testing support in our factory
* Inspect machine in our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery

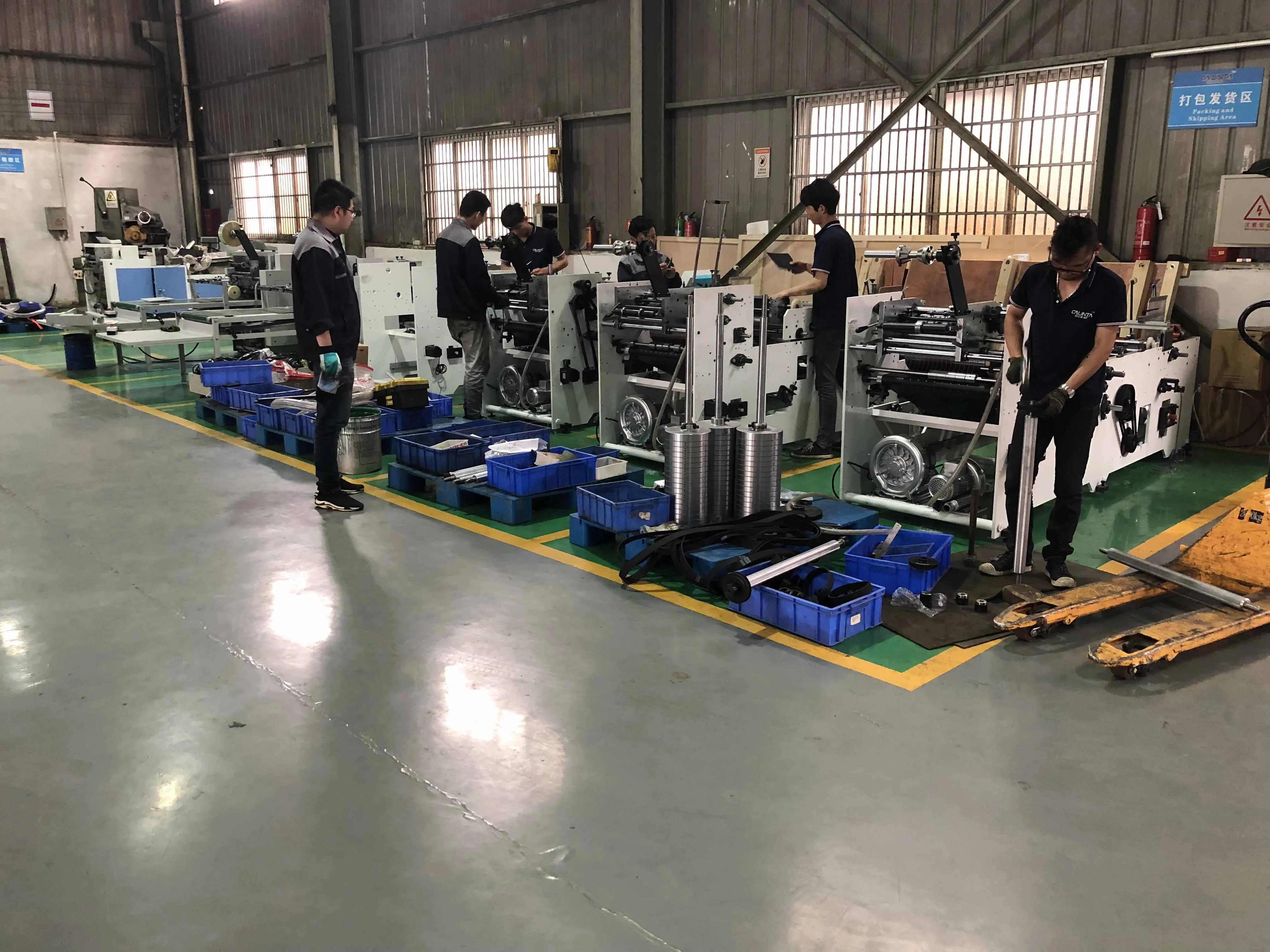

Our Company
Wenzhou ZensenMachinery Co., Ltd. as a professional printing and packaging machines manufacturer,was established in 2003. More than 15 years of experience in Post-press die cutting &hot foil stamping, and Flexo & Roto Printing machinery industry.
Our main productsinclude:
Automatic FoilStamping and Die Cutting Machine, Automatic Web-Fed Hot Foil Stamping Machine, PLC Control Foil Stamping&Die Cutting Machine ,Flatbed Press Creasing&Die CuttingMachine; Adhesive label production line,(AdhesiveLabel Flexo Printing Machine,Label Die Cutting Machine,Label slitting Machine; Rotogravure Printing Machine ,Coating and laminating machine, Slitting Machine.
Zensen consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department. We have more than 90 employees, including 30 senior engineers in the R&D center. Over the past 15 years, Zensen hasbeen committed to the R&D of high and new technologies and manufacturing of products, constantly introducing the most advanced foreign technologies, andcombining with the rich experience and leading manufacturing techniques ofdomestic senior engineers to build and launch a new generation ofhigh-efficient pre and post-printing equipment.
Zensen is a very goodquality supplier in Chinese Printing and Package machinery industry.Especially, Automatic Foil Stamping And Die Cutting Machine, Automatic Web-Fed Hot Foil Stamping machine Are very popular over the world.
Through our continuous research and developing advanced skills, Zensen has firmly established itself as a dependable supplier of China. No matter whether you arelooking for a single machine or a whole production line, you can get outstanding machines. As every Zensen machine is quality proved, superior indesign and produced as per the highest quality standards. Before leaving ourfactory, it is tested and retested for performance,productivity and durability. Because of good quality and service, we have won agood reputation among domestic and international customers.
Now, we have successively passed the ISO9001 system certification, CE certification and other professional quality certifications.Our products sell well in America, Spain, Asia (such as India, Thailand, Vietnam, Indonesia,Malaysia, Sri Lanka), the Middle East, Europe (Russia,Bulgaria, Croatia, Rumania, Spain, Italy), Africa (Nigeria, Guinea, Congo) and South America.
We hope to establish good and long-term business cooperation with customers from all overthe world. If you have any inquiries about our machines, please feel free tocontact us.We sincerely welcome Clients from China and abroad to join hands with Zensen and march towards successful together!
