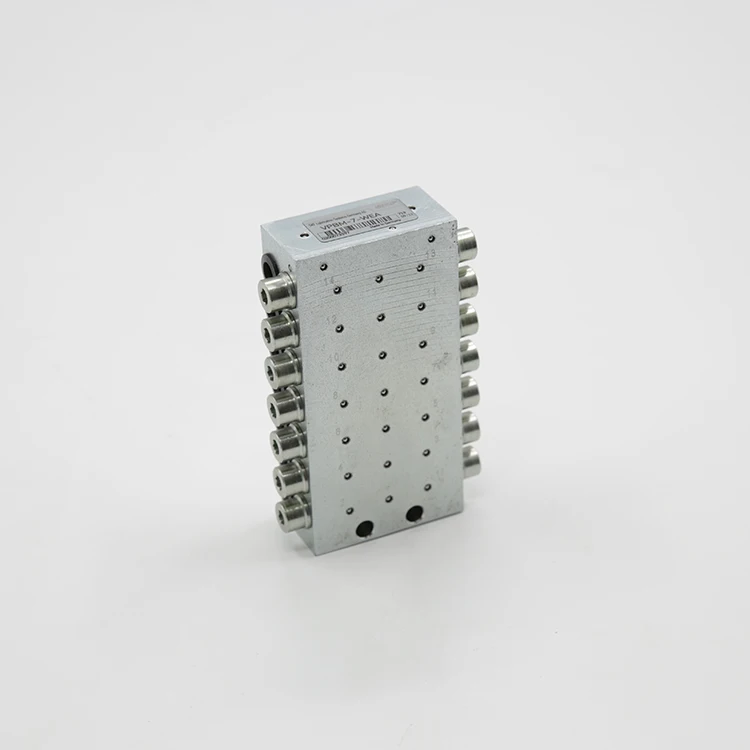

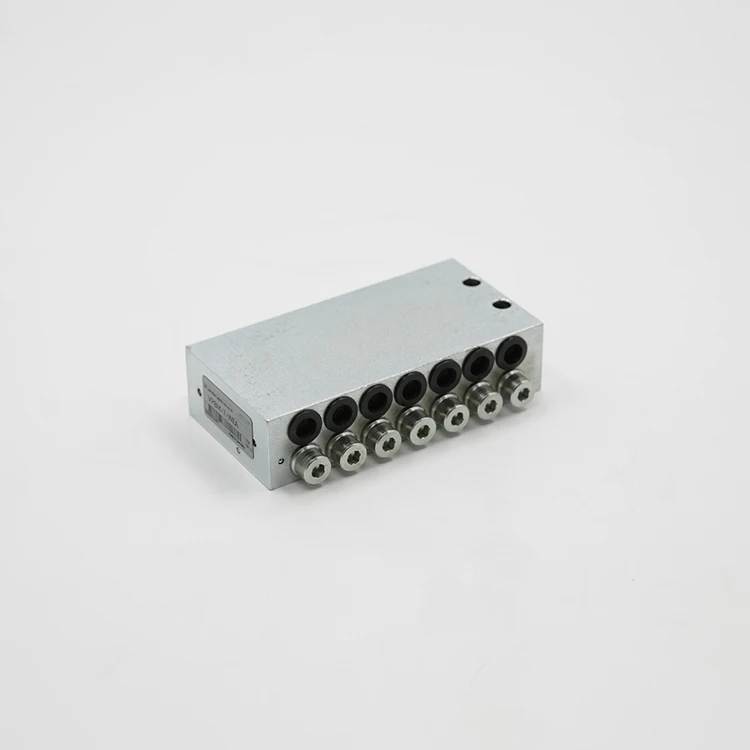

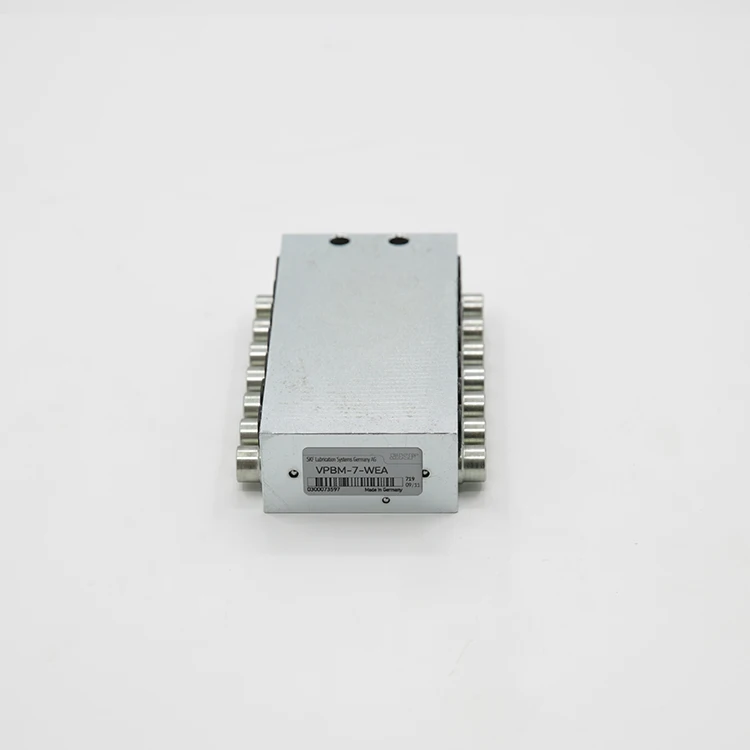

LINCOLN VOGEL SKF Oil Distributor Grease Separator Block Feeder For Concrete Pump Truck VPBM 7 WEA

Product Overview

Description



Technical data
Style	hydraulically controlled
Mounting position	discretionary
Screw connection	I/O VPBM = M10x1 VPBG = G1/8"
Umgebungstemperaturbereich	-25 bis +110 °C
Quantity of outlets	3 to 20
Material
Inlet plate/end plate	Steel, tinned/nitrile Hydraulic
Operating pressure max.	Oil 200 bar, grease 300 bar
Volume per outlet and cycle	0,20 cm3
Lubricant	Mineral oils, greases based on mineral oil,environmentally friendly and synthetic oils and grease
Operating viscosity	> 12 mm2/s
Worked penetration	≥ 265 x 0.1 mm (up to NLGI grade 2)













Shanghai getan Lubrication Tech. Co., Ltd, established in2008,We are located in Shanghai Jinshan District Industrial Zone with convenient transportation access and beautiful environment.
Our company is SKF group's authorized distributor in the field of industrial lubrication, integrating the trade of imported lubrication parts, lubrication system design, technical support and after-sales service. Professional to provide customers with a variety of SKF Lincoln lubrication system and accessories and technical application services. We can also provide customized service and automated lubrication system.

Lubrication system consists of lubrication tools, grease gun, nozzle, such as waste oil collection device, various viscosity of lubricating oil, grease pump, precision plunger pump, gear pump, vane pump, muilt-linegear pump, high pressure pump, etc., large circulation lubrication system, oil mist lubrication system , and various kinds of measuring distributor, flow meter, pressure sensor, liquid level control sensors and different specifications of the various types of joint fittings, can satisfy the lubrication requirements of almost all machinery and equipment and conveyor lubricant flow.

Products are widely used in automobile chassis, engineering machinery, cement equipment, rail vehicles, chain transport, machine cutting, media filtration, cooling equipment, printing machinery, shield equipment, port machinery, metallurgical machinery, lifting machinery, papermaking machinery, glass machinery, food machinery and other industrial equipment.

Our diverse products, rich experience, intimate service, good product quality can meet your precise requirements, for you to save costs, improve efficiency, create a safer and healthier working environment, achieve sustainable development.
