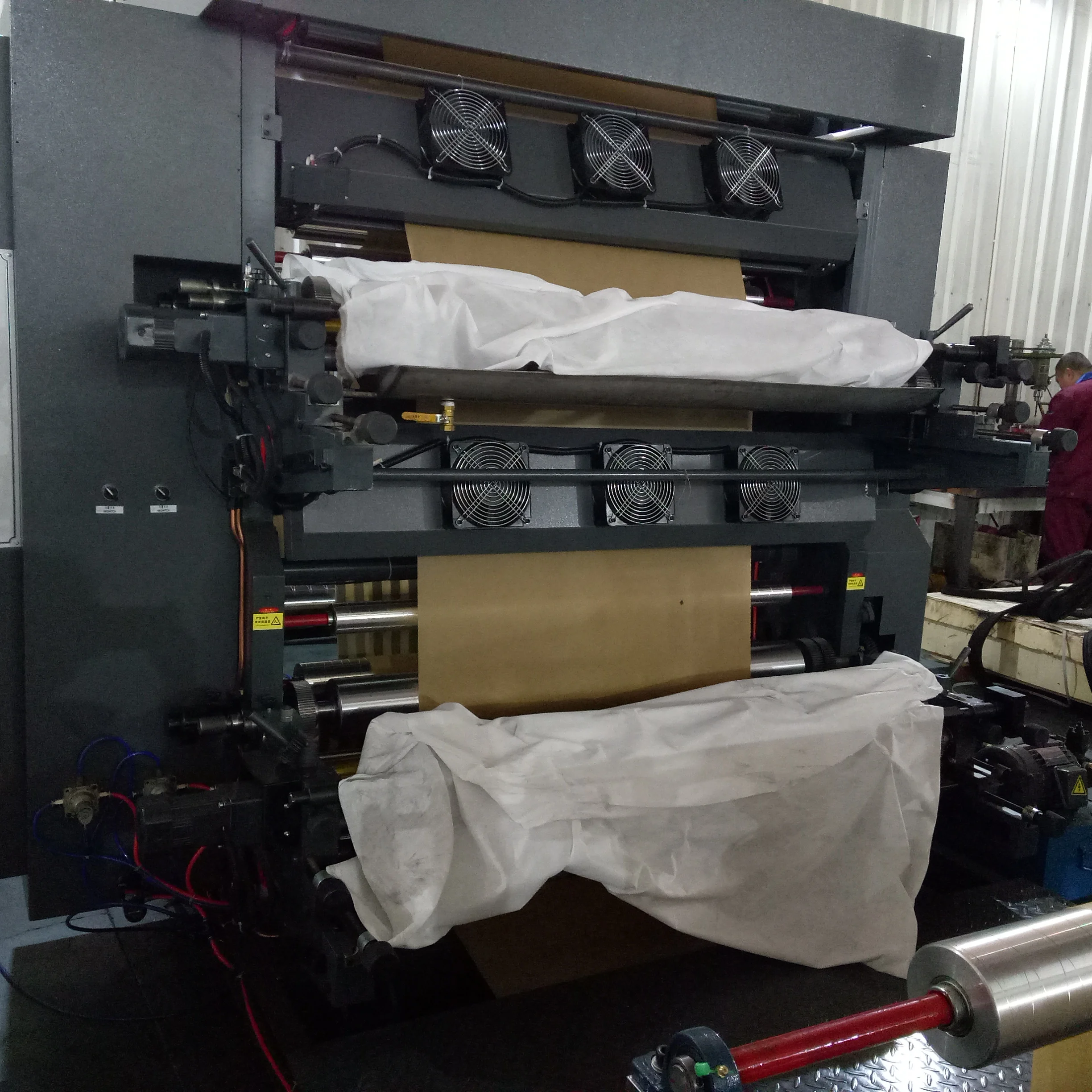

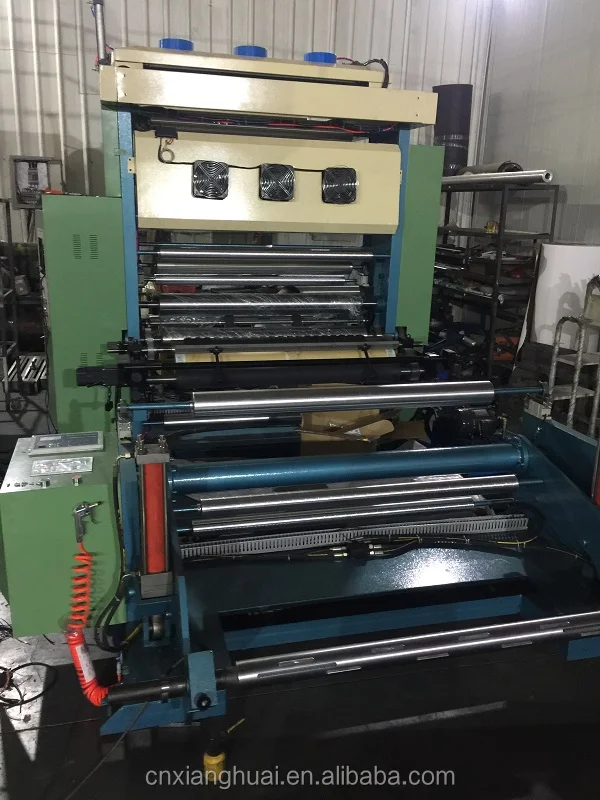

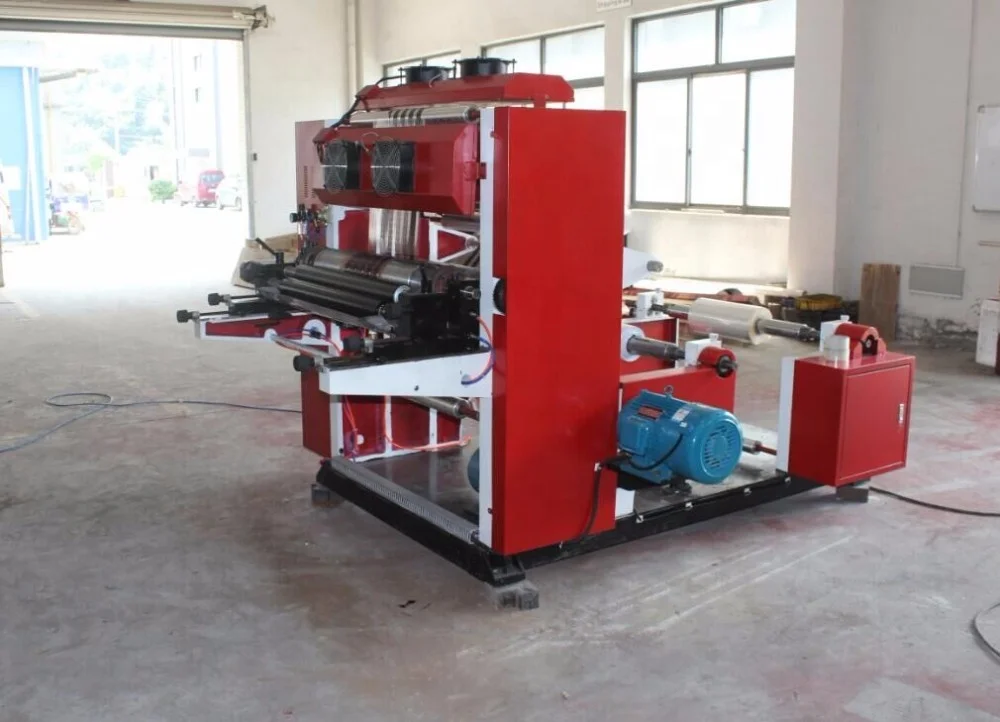

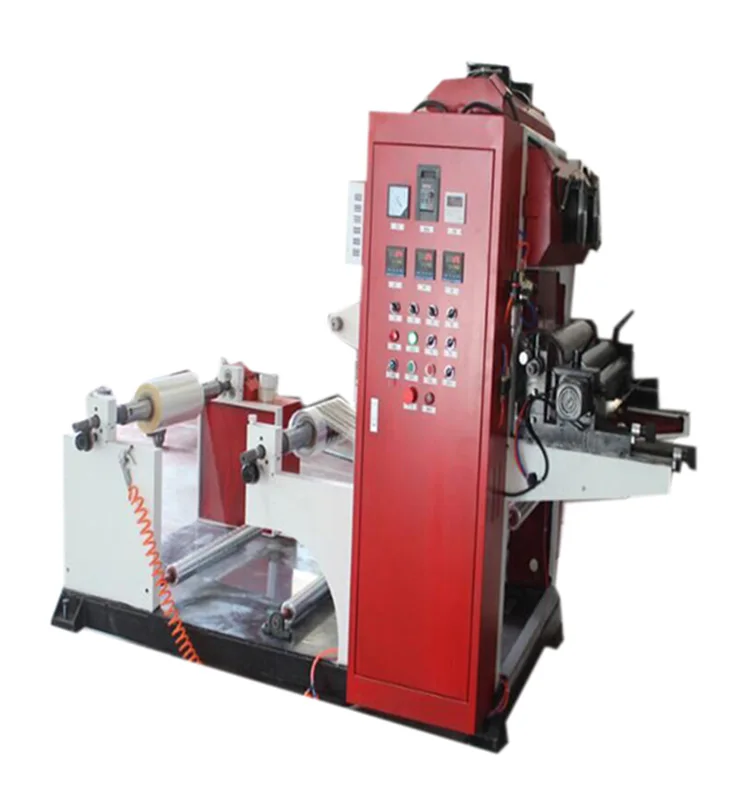

China Supplier Single 1 Color Small Flexo Printing Machine

Product Overview

Description



 Single 1 Color Small Flexo Printing Machine For Sale

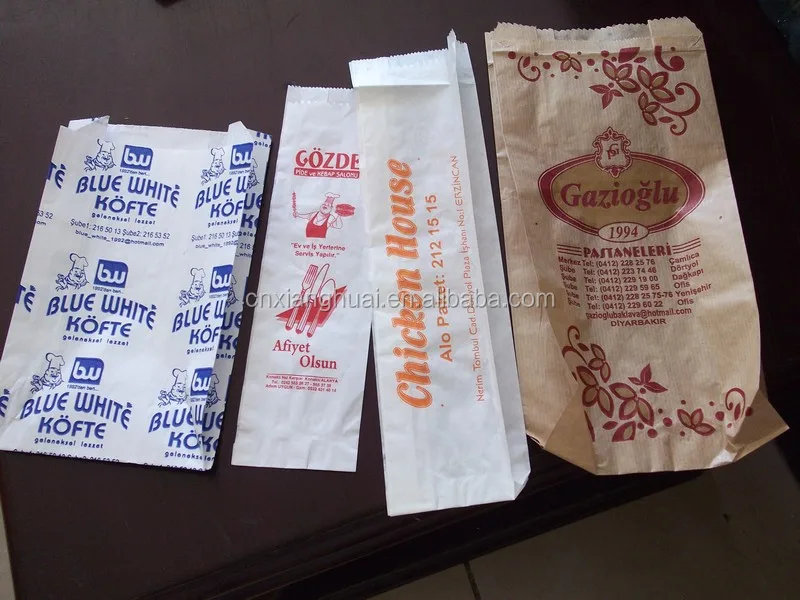

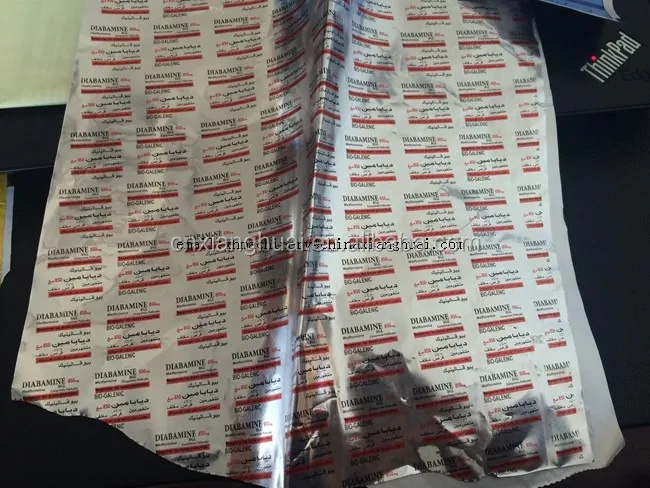

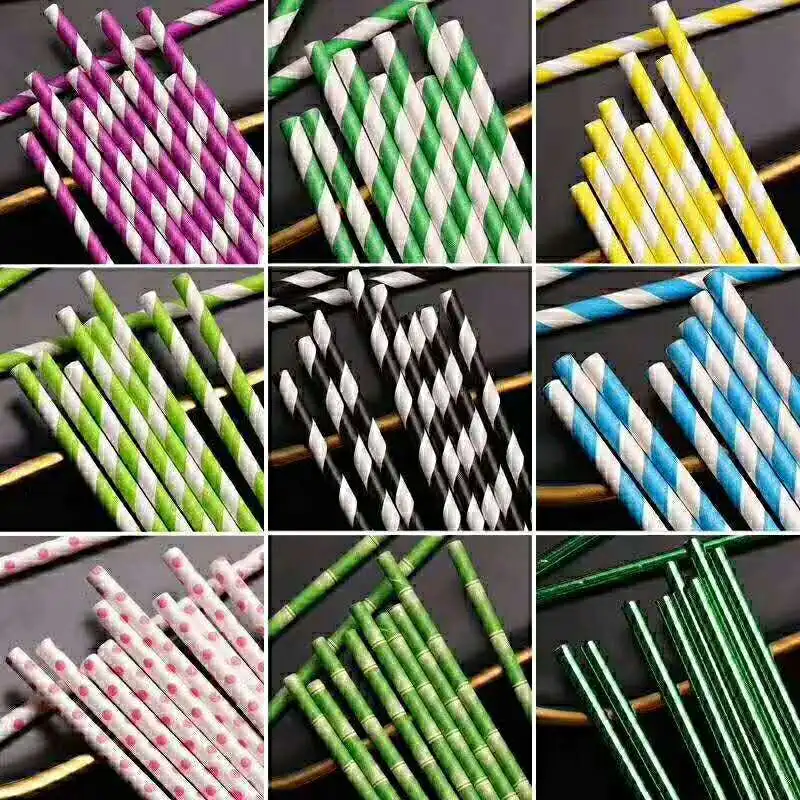

Print Samples:







I.Technical Parameter:

1) Ink Roller :Metal anilox roller

2) Ink :Adopt the automatic circle system ,running ink by single small motor

3) Timing :Adopt frequency speed control, small fluctuations running.

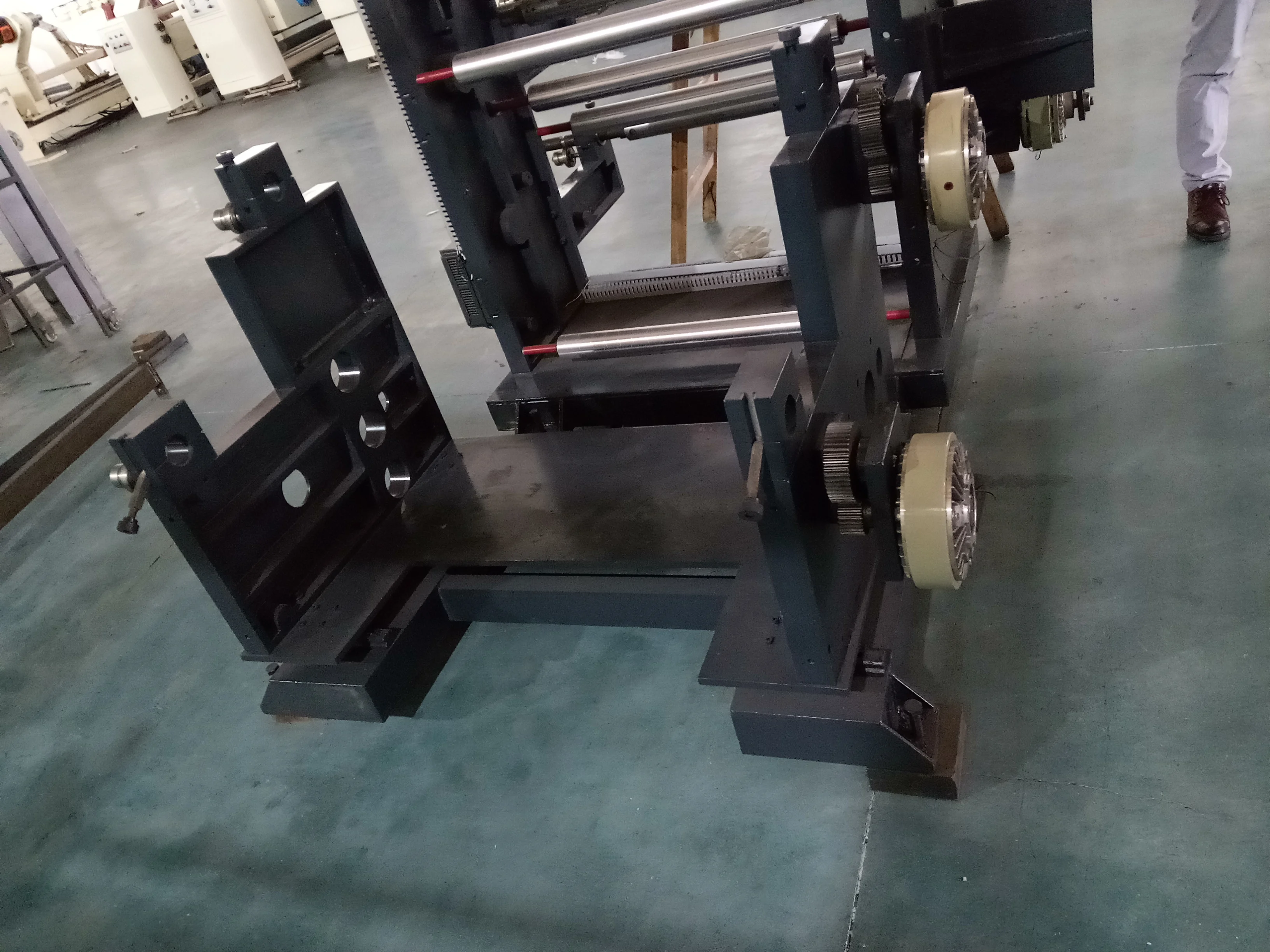

4) Unwinding and winding ways :Adopt magnetic powder tension control

5) Ink way :Ink input through the squeezing of Rubber roller and anilox roll

6) Up and down plate :Adopt the pneumatic pressure rising and down the printing

   plate automatically

7) Smooth roller :Adopt the special steel processing ,and through the special

  technique treatment , and plating thickness of 8 silk protective layer of hard chromium, beat the following in the 0.03mm

8) Traction Rollers :Adopt Japanese production of small semi-enclosed bearings,

   with static balance and dynamic balance treatment, hard oxidation

   treatment, small resistance, small beating.

9) Drying device: Two sets with ventilation hair heating devices, which use a central heating temperature control system and the control group

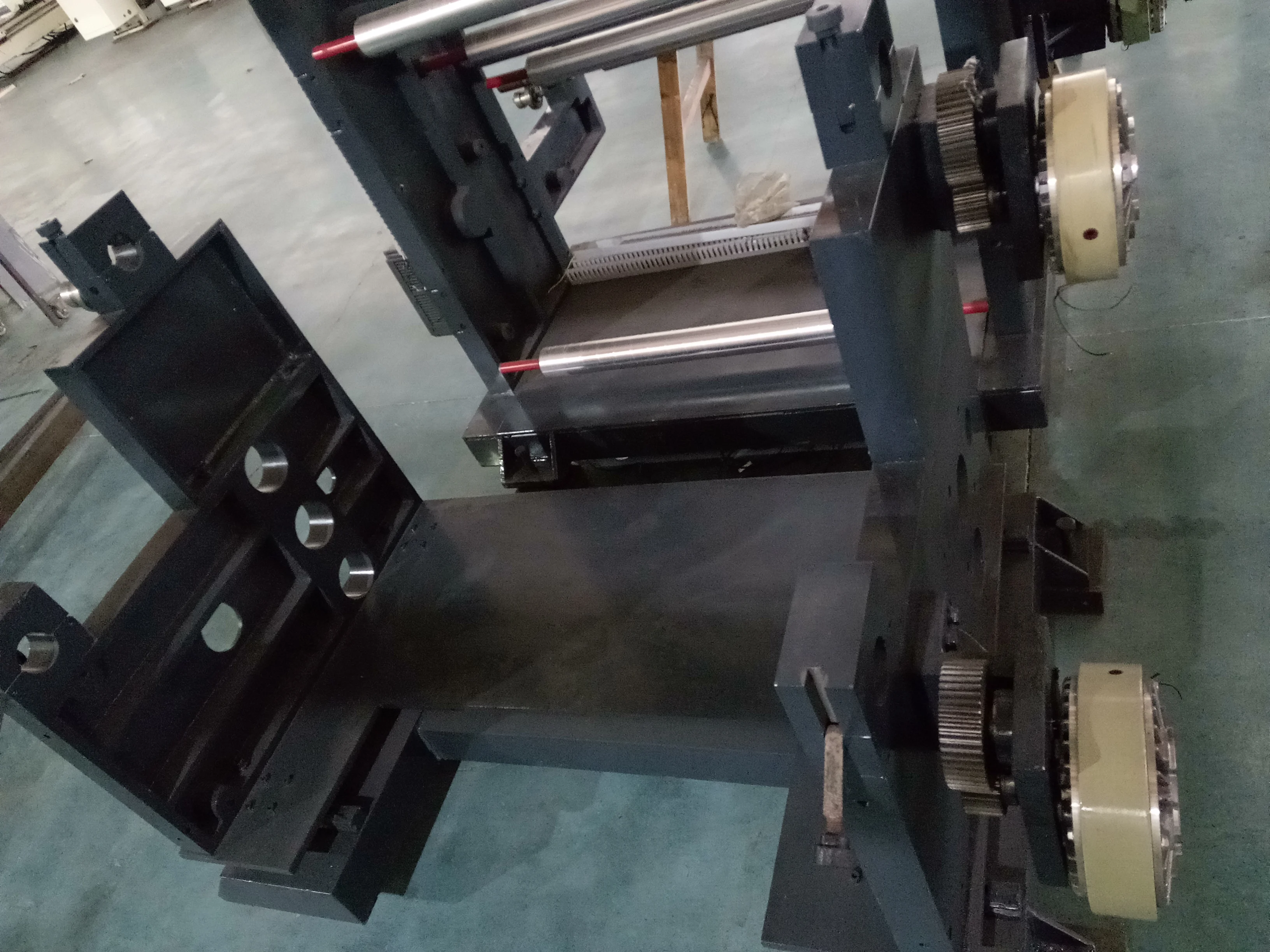

10) Body: Thick wall ,  thick base, making the machine more stable.

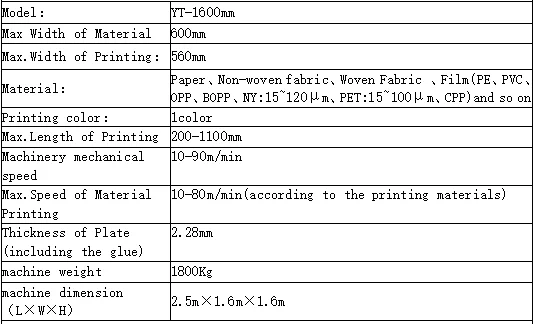

Main Technical Parameters
