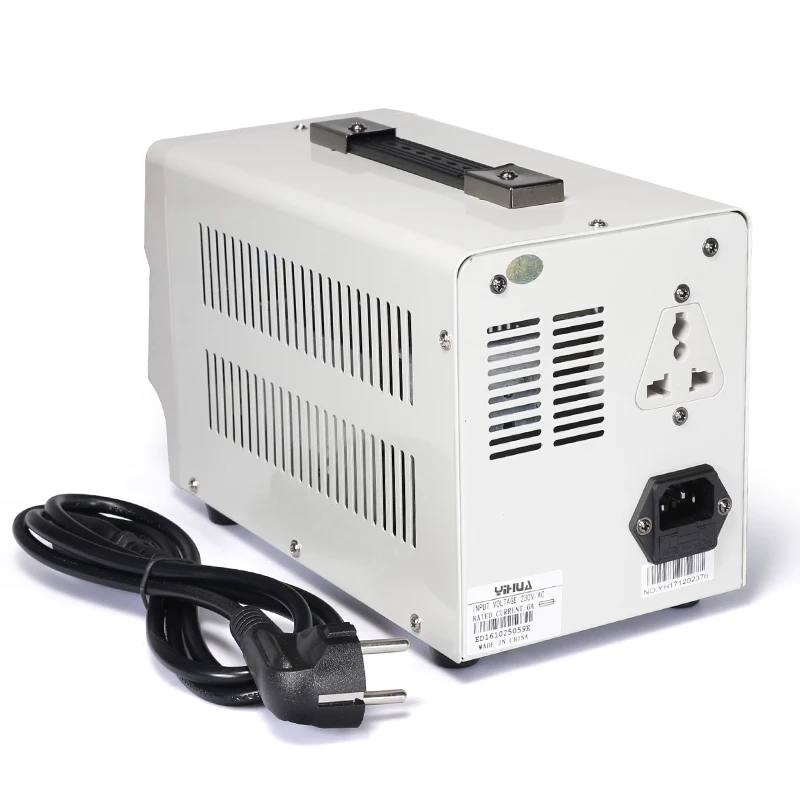

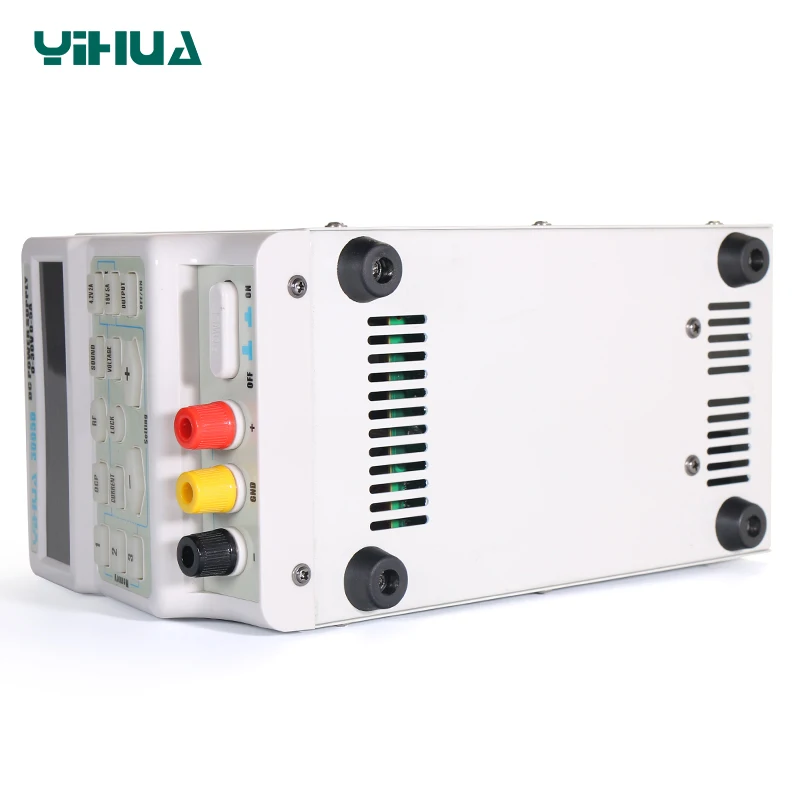

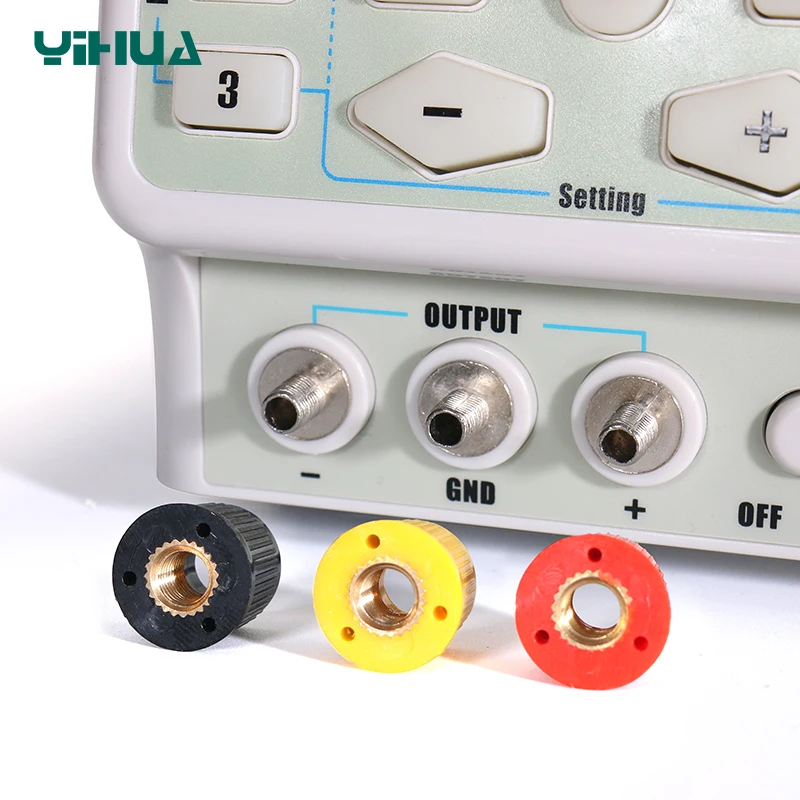

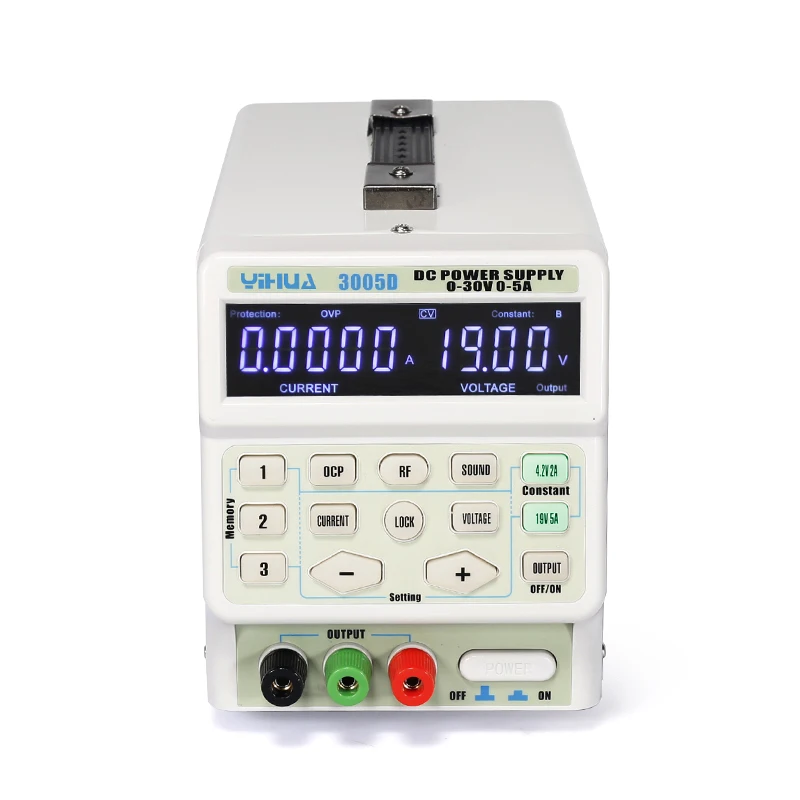

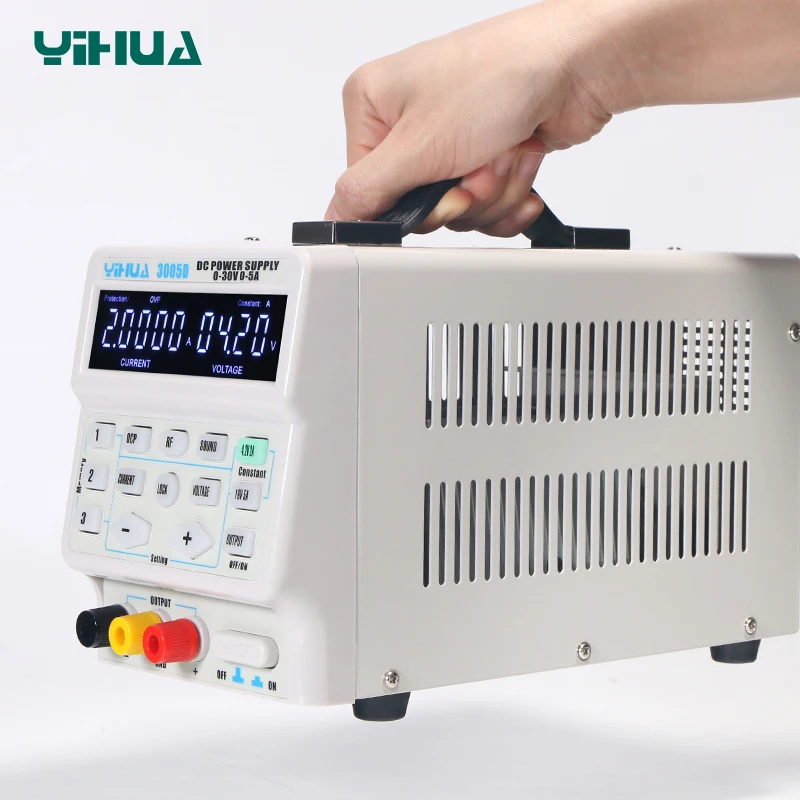

YIHUA 3005D CE Lab Equipment 30V 5A DC Power Supply Precision Variable Adjustable Power Supply

Product Overview

Description



YIHUA 3005D CE Lab Equipment 30V 5A DC Power Supply Precision Variable Adjustable



Feature:

1.YIHUA3005D 30V 5A is the second generation of digital program-controlled switching power supply,it used the latest  technology and crafts,the weight is very light ,it is 50% lighter  than the traditional DC power supply ,it good for transportation and save the shipping fee,it also effectively avoid too heavy damage the product occur during transport.

2.This digital program-controlled stabilized switching power supply is designed for use in laboratories, schools, production lines, and electronic repair.

3. It has a small size and is lightweight, which is very easy to transport and carry.

4. It has high efficiency, high load capacity, and low noise and is superior to linear power supplies.

5.It has high voltage stability, small ripple factor, excellent short circuit protection, and over-current protection.

6.It digitally adjusts current and voltage, which is more advanced, more stable,and has longer life than traditional potentiometer adjusters.

7.It has an output electronic switch, which can easily break the output load.

8.It has a function set lock that can effectively prevent change of output parameters or change caused by misuse, which makes the product more secure and reliable.

9.It has a cell phone radio-frequency detection function, which is of a 4.2V 2A/19V 5A fixed output function.

Parameters can be displayed by pressing the key, which is fast and convenient. It is an essential tool for cell

phone and laptop repair.

10.It has three storage memories that can store three sets of frequently used parameters for easy retrieval.

11.It has an output state memory function. When the memory switch is turned on,it can retain the output status

before the power switch is turned off. For example, when the power is in the output state, turn off the power

switch, and when the power switch is turned on the next time the power supply will directly output the voltage.

When the memory switch is turned off, it will not retain the output state when the power switch is turned off.

Every time the power switch is turned on, the output key must be pressed to output voltage.



Parameters



Mode	3005D
Output Power	195W
Power Supply Voltage	220V ±10% 50Hz or 110V ±10% 60Hz
Adjust Range	0~30.00V     0~5.0000A
Operation Conditions	Temperature 0~40°C    Relative humidity<80%
Overall Dimensions	L268×W125×H155mm±5mm
Weight	2.3kg
Output Voltage accuracy	±0.02V
Voltage Coefficient	<300PPM/C
Ripple noise voltage	<1%Vrms
OCP Current Value	0-5A,Accuracy:±0.01A
Signal test frequency range	30~1800MHz including cell phone signal test
Signal Strength	>10dBM
