Керамическая панель для облицовки стен OEM Терракотовая
- Category: >>>
- Supplier: Jiangsu Paneltek Ceramic Co. Ltd.
Share on (62228299259):
Product Overview
Description
Product Picture
Paneltek

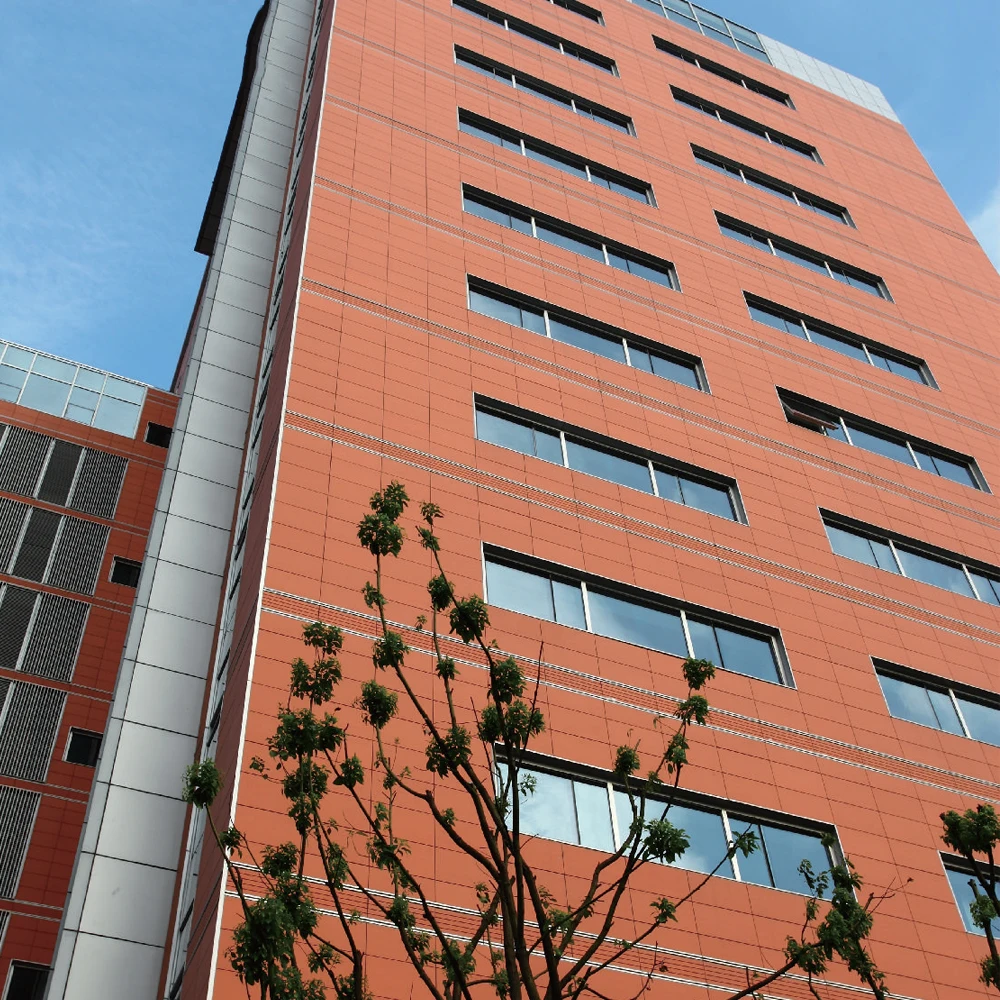

external cladding curtain wall terracotta facade panel
| Product Name | Terracotta Panel |  |
| Length | 300-1500mm | |

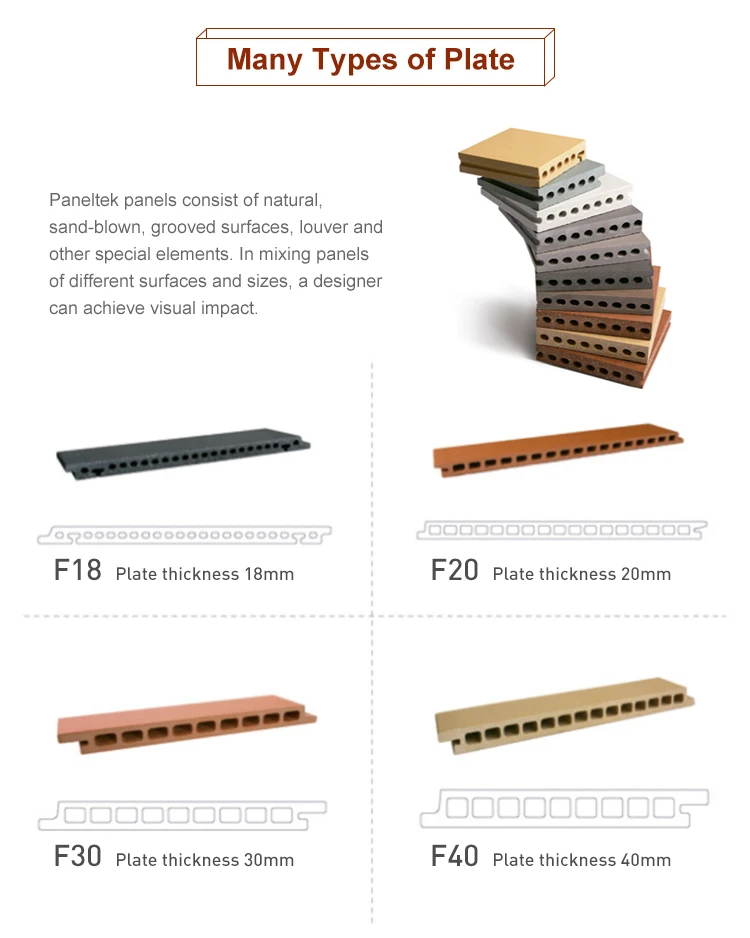

| Thickness | 18mm 20mm 30mm 40mm 80mm | |
| Width | 206-1010mm | |
| Color | White/Red/Gray/Yellow/Blue/Green... | |

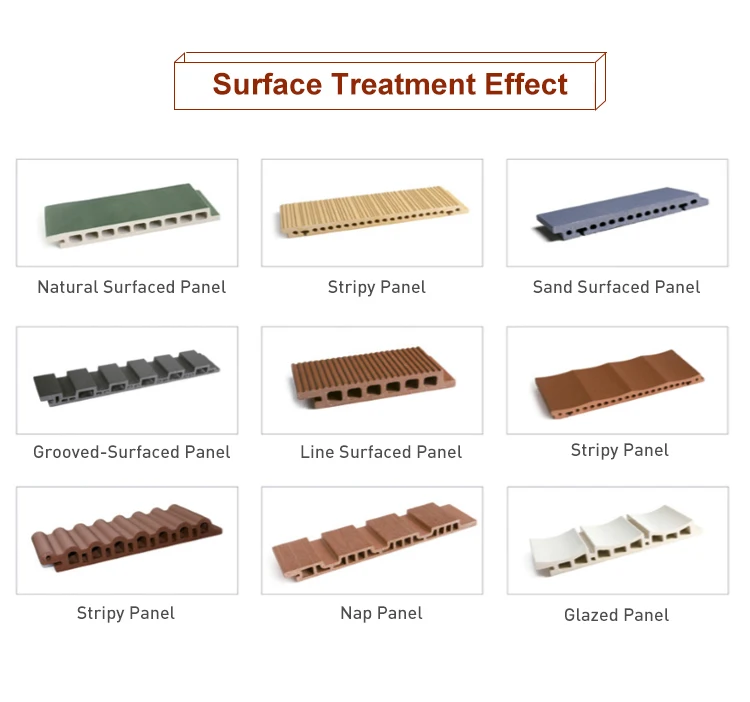

| Surface | Custom Surface | |
| Application | Curtain Wall, Decoration Wall Panel | |
| OEM&ODM | Yes |
Product Details
Performance Indicators | Technical Performance of Terracotta Products | GB | EN14411 | ||
306*F18 WHITE Terracotta Panels | 306*F18 GRAY Terracotta Panels | 310*F30 YELLOW Terracotta Panels | |||
| Water Absorption | 1.1% | 1.4% | 2.34% | (I)3%-6% (II)6%-10% | (I)3%-6% (II)6%-10% |
| Dry Weight | 31kg/m2 | 31kg/m2 | 41kg/m2 | / | / |
| Frost Resistance | No damage after 100 | No damage after 100 | No damage after 100 cycles | Testedvalue of the report | Tested value of the report |
| Damage Strength | 4966N | 4779N | 8722N | ≥750N | ≥750N |
| Rupture Modulus | Avg: 97MPa Min: 86MPa | Avg: 59.36MPa Min: ≥50MPa | Avg: 92.43MPa Min: 80MPa | Avg: ≥9MPa Single Value:≥ 8MPa | Avg: ≥9MPa Single Value:≥ 8MPa |
| Poisson's Ratio | 0.16 | 0.16 | 0.16 | / | / |
Modulus of Elasticity | 44GPa | 34GPa | 34GPa | / | / |
| Fire Resistance | Level A1 | Level A1 | Level A1 | / | / |
| Resistance to Acid&Alkali | Level ULA | Level ULA | Level ULA | Tested value of the report | Tested value of the report |
| Radioactivity | Class-A decorative material | Class-A decorative material | Class-A decorative material | / | / |
| Earthquake Resistance | Over 10 degrees | Over 10 degrees | Over 10 degrees | / | / |
| Test under Simulated Wind Load | No breakage under 11kPa | No breakage under 119kPa | No breakage under 11kPa | / | / |
| Sound Insulation | Noise reduction by over 9dB | Noise reduction by over 9dB | Noise reduction by over 9dB | / | / |
| Heat Conductivity | 0.31w/m.k | 0.31w/m.k | 0.41w/m.k | / | / |
| Thermal Shock Resistance | No cracks | No cracks | No cracks | Tested value of the report | Tested value of the report |
| Fouling Resistance | Level 2 | Level 2 | Level 2 | Level 2 at least | Level 2 at least |
| Impact Resistance | 0.78 | 0.78 | 0.78 | Tested value of the report | Tested value of the report |
| Linear Coefficient of Thermal Expansion | 5.2×10-6 °C -1 | 5.2×10-6 °C -1 | 5.2×10-6 °C -1 | Tested value of the report | Tested value of the report |
Packaging & Shipping
Related Product
Company Information
FAQ
| Q1: Is terracotta panel easy to install? |
| A1: Terracotta panel is extruded into precise profile which is ready to be installed. Neither notching nor other fabrication is need on job site. |
| Q2: How about heat insulation and sound resistance? |
| A2: Owing to the cavities inside the panels and that improves ghe performance of heat insulation and sound resistance. |
| Q3: Will the color of terracotta panel fade? |
| A3: No, the color of terracotta panel is made by different color clays. Terracotta panel's color is the same inside and outside. So we can guarantee that it will not fade. |
| Q4: How can I visit your company? |
| A4: You can fly to China, and we will pick you up to our company. Welcome to visit us! |
| Q5: What about the after-sales service? |
| A5: Through emails, pictures, or guest samples to confirm the real cause of the problem. If there is really a product problem, we will redo with no charge. |
| Q6: What kind of product can you provide? |
| A6: We can provide One-stop solution of facade material from design to supply, which including terracotta panel, special panel, terracotta louver, Roof Tile and bricks. |
