Commercial Cube Ice Machine,some customer also called Square Ice Machine or Block Ice Machine or Lozenge Ice Machine or Rhombus Ice Machine or Nugget Ice machine,Diamond Ice Machine,can be named Gourmet Ice machine if connecting with a good water filter;For using purpose,can named Hotel Ice Machine,laboratory Ice Machine,Supermarket Ice Machine,Home Ice Maker,Portable Ice Maker,Commercial hospital Ice machine,etc.Different country different people have a different a named habit.
2) Main Features
1, This type ice-producing machine adopts the latest international fashionable ice making method-with the newest design ideas, this ice-producing machine has large capacity, high efficiency and save energy.
2, Stainless steel streamlined outer cover with luxury outward appearance, which can resist corrosions and endure bumping and can be used for a long period of time, the main body and ice storage box split design, suitable for all kind of environments usin.
3, Automatic control:The ice-producing machine adopts COMS integral circuit and can automatically finish water supply, producing ice, ice taken off, ice storage, protection of trouble with great safety and convenience.
4, Economical power:The ice-producing machine uses world well-known compressor, reliability with good performance, 1/3 power consumption of similar products.
5, Advanced design:The ice-producing machine adopts the advanced ice-producing Technique from Europe with perfect design and excellent performance.
3)Technical Data of Commercial Cube Ice Maker
Model
Daily
Ice Bin
Input
Cooling
Net Size (mm)
N./G.
Production
Storage
Power
System
Packing size( mm)
Weight
ZBL-20
20kg
5 kg
350W
Fan cooling
379*420*675
30/32 kg
Water Spray
430*470*750
ZBL-25
25kg
5 kg
350W
Fan cooling
379*420*675
30/32 kg
Water Spray
430*470*750
ZBL-40
40kg
10 kg
440W
Fan cooling
507*585*750
42/45 kg
Water Spray
560*630*965
ZBL-50
50kg
18 kg
490W
Fan cooling
507*585*900
46/52 kg
Water Spray
560*630*1030
ZBL-80
80kg
25 kg
665W
Fan cooling
677*585*900
58/65 kg
Water Spray
730*630*1030
ZBL-100
100kg
25 kg
1100W
Fan cooling
680*610*1020
60/68 kg
Water Spray
730*630*1130
Model
Daily
Ice Bin Storage
Input Power
Cooling
Top unit Size(mm)
N./G. Weight
Ice Bin size(mm)
Production
System
Packing Top Unit(mm)
Packing Ice Bin(mm)
ZBL-150
150kg
120kg
1400W
Fan cooling
560*585*635
118/132kg
560*800*970
Water Spray
625*650*675
625*855*1000
ZBL-180
180kg
120kg
1400W
Fan cooling
764*606*559
128/142kg
764*780*840
Water Spray
825*650*675
810*860*950
ZBL-225
225kg
120kg
1600W
Fan cooling
764*606*559
148/168kg
764*780*840
Water Spray
840*680*670
810*860*950
ZBL-310
310kg
120kg
2000W
Fan cooling
764*606*730
160/180kg
764*780*840
Water Spray
840*680*840
810*860*950
Model
Daily
Ice Bin
Input
Cooling
Top unit Size(mm)
N./G. Weight
Ice Bin size(mm)
Production
Storage
Power
System
Packing Top Unit(mm)
Packing Ice Bin(mm)
ZBL-450
450kg
120kg
2300
Fan cooling
764*606*730
170/190kg
764*780*840
Water Spray
840*680*840
810*860*950
ZBL-650
650kg
240kg
4000
Water
Cooling
1220*635*678
230/260kg
1220*850*1080
1285*700*710
1285*910*1160
ZBL-860
860kg
240kg
4500
Water Cooling
1220*635*738
260/290kg
1220*850*1080
1285*700*770
1285*910*1160
Remark
1,Ice Size:ZBL-20 to ZBL-80 32*32*24mm ZBL-120 to ZBL-860 22*22*22mm 2,Voltage: ZBL-20 to ZBL-650 220V 50 or 60Hz 110v60hz ZBL-860 380V 50 or 60Hz

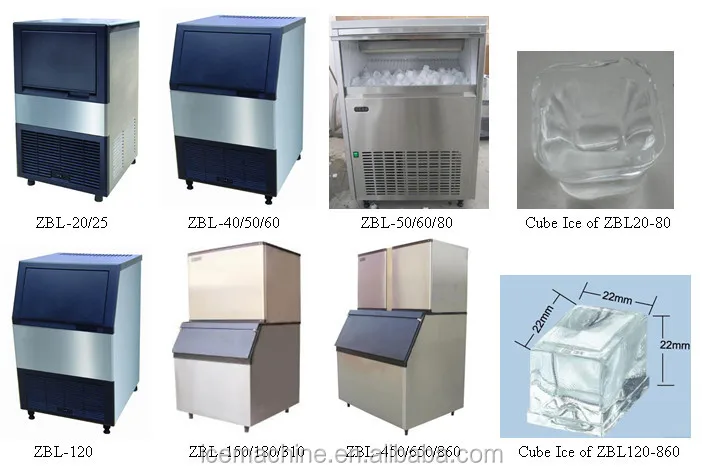

4) Details of models
5) Manufacturing Plant
6) CE Approved
7) Packing and Shipping
8) More Hot-sale Machines
from 20kg to 120kg per day bullet ice maker.please kindly click the picture for more details.

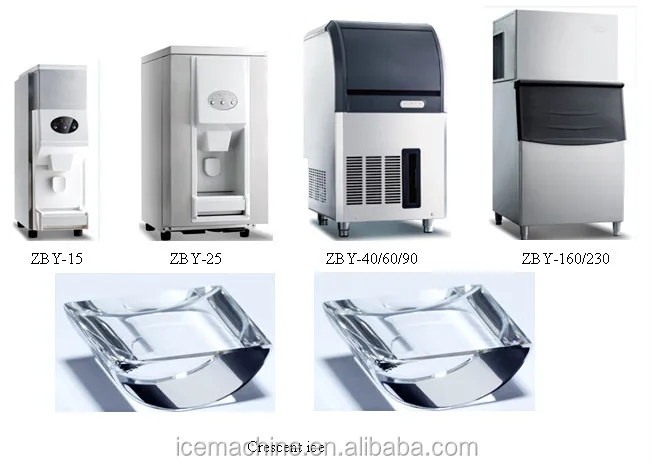

15 kg to 230 kg per day crescent ice maker,also call moon ice maker.
snowflake ice maker/big flake ice machine. please kindly click the picture for more details.
Quality Control
So as to adjust the machine to be a best working conditions,our testing time for flake ice machine is two weeks at least,for cube ice machine is one week at least,also every ordering we will first produce one batch of some sample each models's ice makers,keep testing all the time until the last dayfor loading container.
Our Services
All the ice making machine,ice cream maker,Usually we ship 1% easy broken spare parts for free of charge,ice machine compressor is 3 year guarantee and other parts 1 year guarantee.If our machine have quality problem in your country because of our real mistake,our company accept the replacement any time,our company pay for all the extra cost loss caused to your company.
