2% Lanthanaum Tungsten Electrode For Tig Welder And tig welding machine
- Category: >>>
- Supplier: Zibo Huaxiang Tungsten Molybdenum Products Co. Ltd.
Share on (62228356967):
Product Overview
Description
Product Description

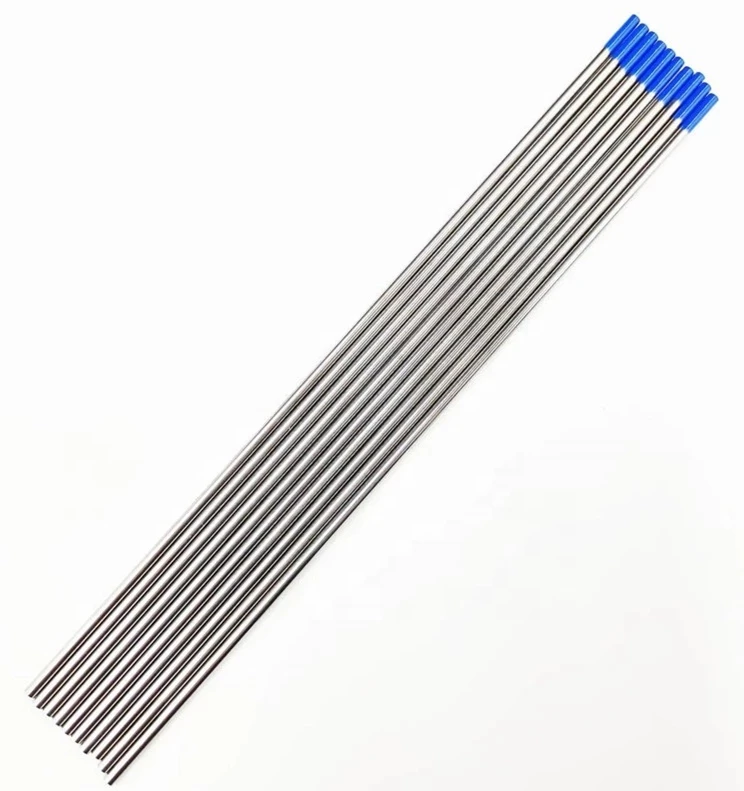

Lanthanum Tungsten Welding Electrode WL20
Tungsten Welding Electrode WL20 is a non-radiative material with good welding performance. Tungsten Rod WL20's electric conductivity is most closed to that of 2% Thoriated Tungsten welding electrode. Welders can easily replace Thoriated Tungsten Electrodes with Tungsten Welding electrode WL20 without any changes of welding program. Tungsten Welding Electrode WL20 is used primarily for DC welding but will also show good results for AC welding.
Tungsten Welding Electrode WL20 became very popular in the circle of welding in the world, soon after it was developed because of its good welding performance. Another advantage of Tungsten Electrode WL20 is being able to bear high current and have the lowest burn-loss rate.
2) color mark: WL20 (blue)
3) other impurity: _0.20%
4) diameter: 1.0 - 12.0mm
5) length: 50.00, 75.00, 150.00, 175.00mm
6) quality of surface: Ground finish, polish finish
Technical Data
Trade mark | Added impurity | Impurity quantity % | Other impurity | Electric discharged power |
Color sign |
WL10 | La203 | 0.8~1.2 | <0.2% | 2.6~2.7 | black |
WL15 | La203 | 1.3~1.7 | <0.2% | 2.8~3.0 | gold |
WL20 | La203 | 1.8~2.2 | <0.2% | 2.8~3.2 | Sky blue |
Company Information
Huaxiang Tungsten Molybdenurm Products Co., LTD. was established in 2007, has been specializing in developing and manufacturing Electrode, Zirconium- Tungsten Electrode, Yttrimu-Tungsten Electrode, Pure Tungsten Electrode, combined Tungsten Electrode etc and Thorium-Tungsten wires for more than 11 years.
With extensive experience in manufacturing industry, We gradually grow into the best provider of welding consumables,
labour protection products and other welding related products for steel fabrication, shipyard and so on.
Huaxiang offers rapid and accurate quotation, high quality products, timely delivery, and excellent after-sales service.Our aim is to achieve reciprocity and mutual benefit with customers.
FAQ
Q: Are you trading company or manufacturer?
A: We are a factory and exporter for tungsten electrode.
Q: Can I get some samples before the order?
A: Yes, we could offer few samples to you for free if you could afford the freight cost.
Q: What's your MOQ?
A: We are a manufacturer that we have our own factory, we could produce any quantity of product as your request. But as you know, the more the quantity of your order is, the lower the price will be.
Q: How is the quality control?
A: Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.
Q: Is OEM and ODM service available?
A: Yes, the packing of product could be attached with your logo or customized by new design.
Q: How long is the lead time?
A: Generally, the lead time is as follows. The specific lead time depends on the quantity you need and the stock.
Quantity | Lead Time |
1-1000pcs | ≤ 3 days |
1000-10000pcs | ≤ 5 days |
10000-30000pcs | ≤ 7 days |
30000-50000pcs | ≤ 14 days |
50000-100000pcs | ≤ 21 days |
≥ 100000pcs | To be negotiated |
Q: What is your payment terms?
- A: The first payment of 30% deposit, the end of the 70% should be paid by the customer upon seeing the copy of B/L.
- Pay first 100% T/T.
- The first payment of 30% deposit, the end of the 70% will be paid after the customer receive the picture of the complete goods of you order.
