DIN 536 standard A150 Crane rail

Product Overview

Description

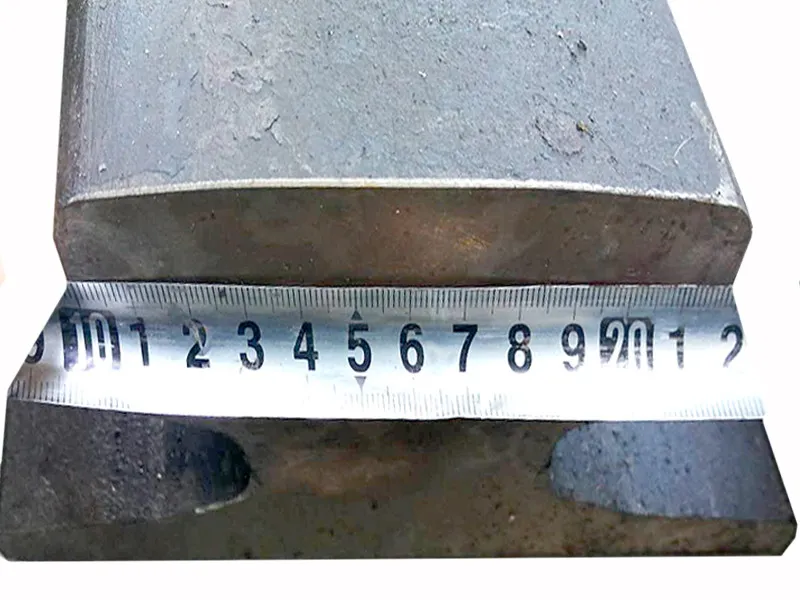

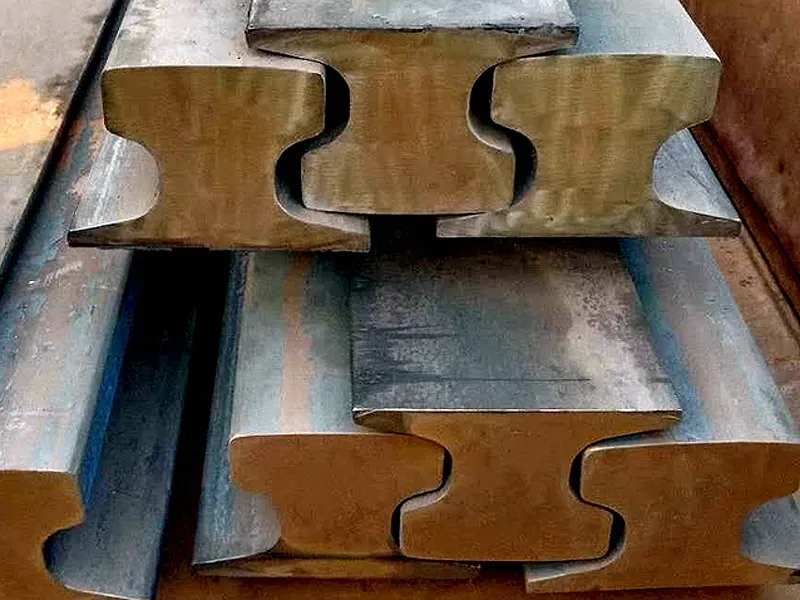

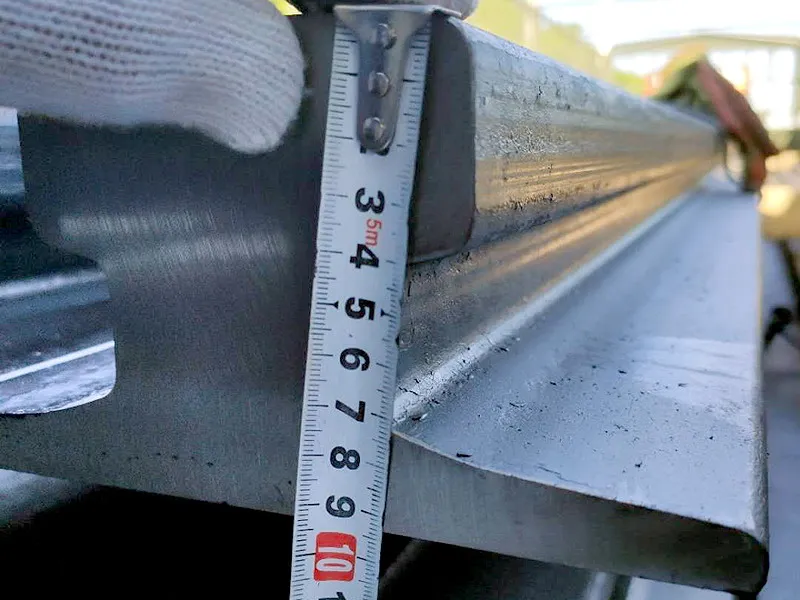

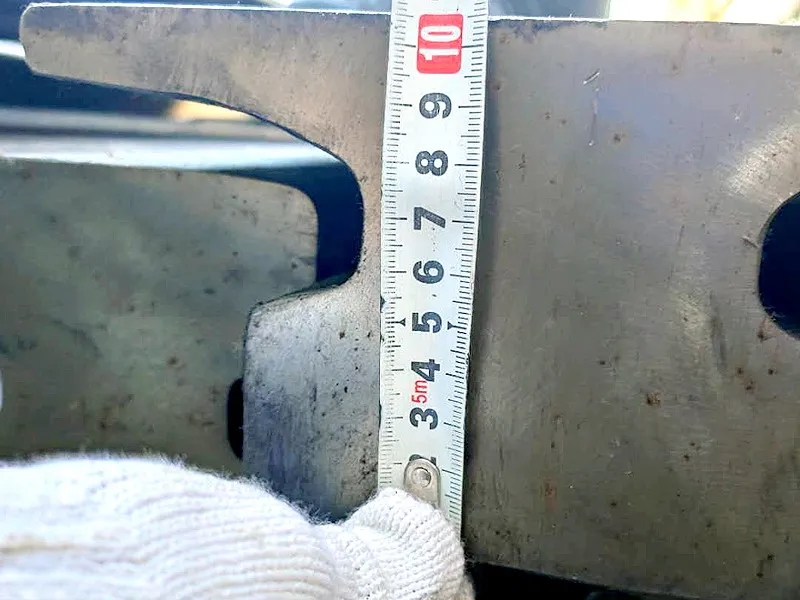

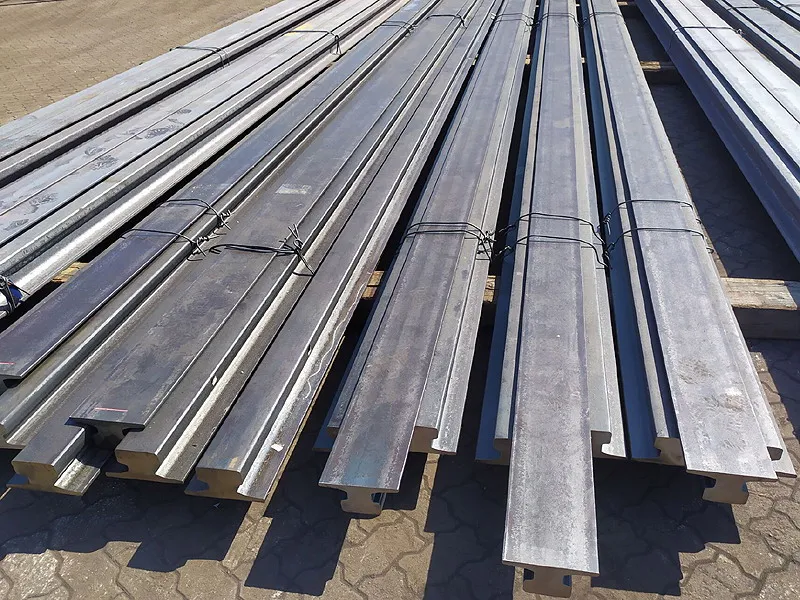

A150 Crane steel rail



HS Code          Description
7302100000   A150 Crane rail, Material 900A, Length 12 meters, Unit weight 150.3 kg/m
8547909000   Rubber pad, 7*220*12000mm
8608009000   Double weld rail clamp, Distance 0.5/0.6m







Rail Type	Rail Height	Flange Width	Head Width at Top	Head Width at Base	Head Height	Web Thickness	Flange Thickness at Edge	Flange Thickness at Center	Weight (per meter)
	RH	FW	HT	HB	HH	WT	FE	FM	kg
A150 rail	150	220	150	150	50	80	14	31.5	150.3
A65 rail	75	175	65	65	34	38	10	20	43.5
A75 rail	75	200	75	75	39.5	45	11	22	56.6
A100 rail	100	200	100	100	45.5	60	12	23	75.2
A120 rail	105	220	120	120	55.5	72	12	30	101.3



Weldable rail clamp and rubber pad:
