100Pcs 1/8" M3 U. S. Type Extra Heavy Duty Wire Rope Thimbles
Product Description

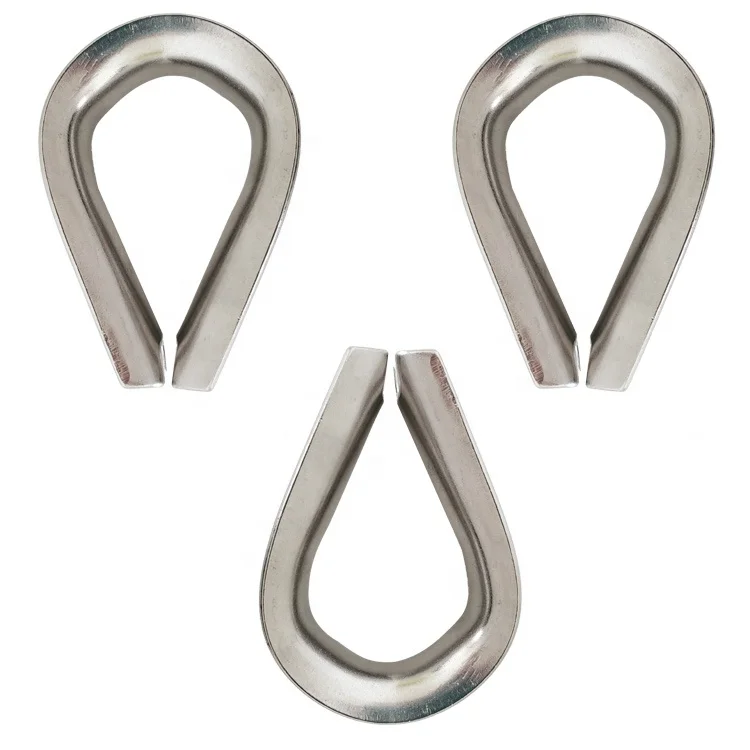

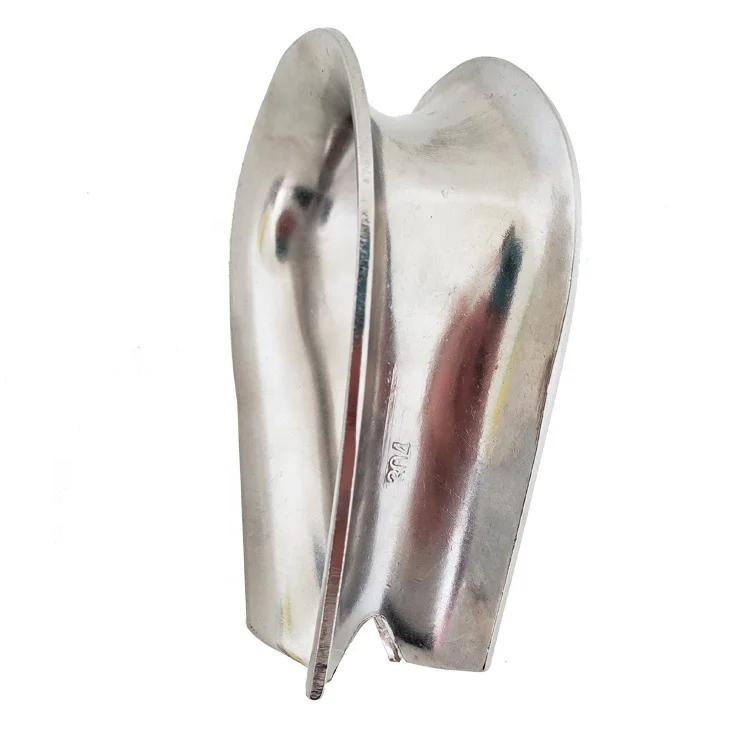

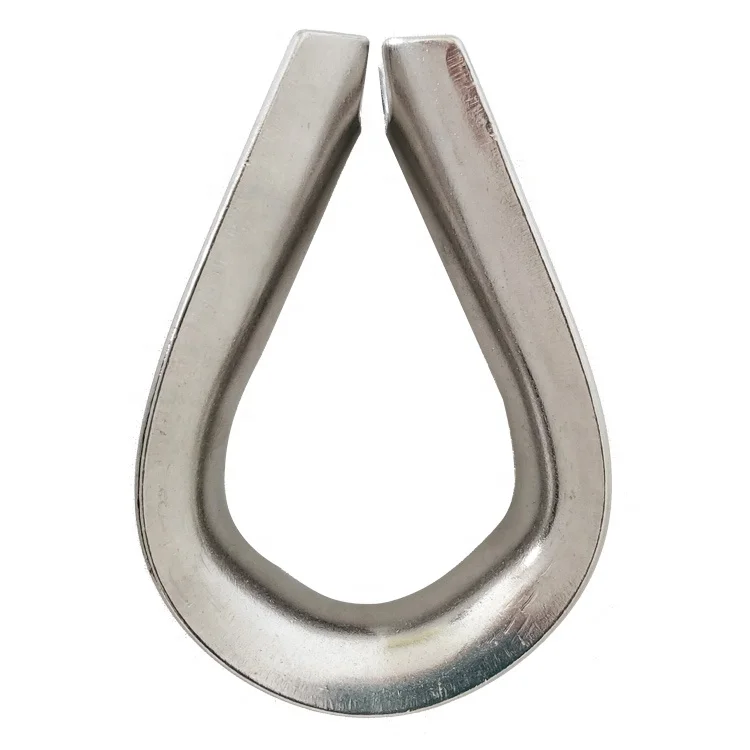

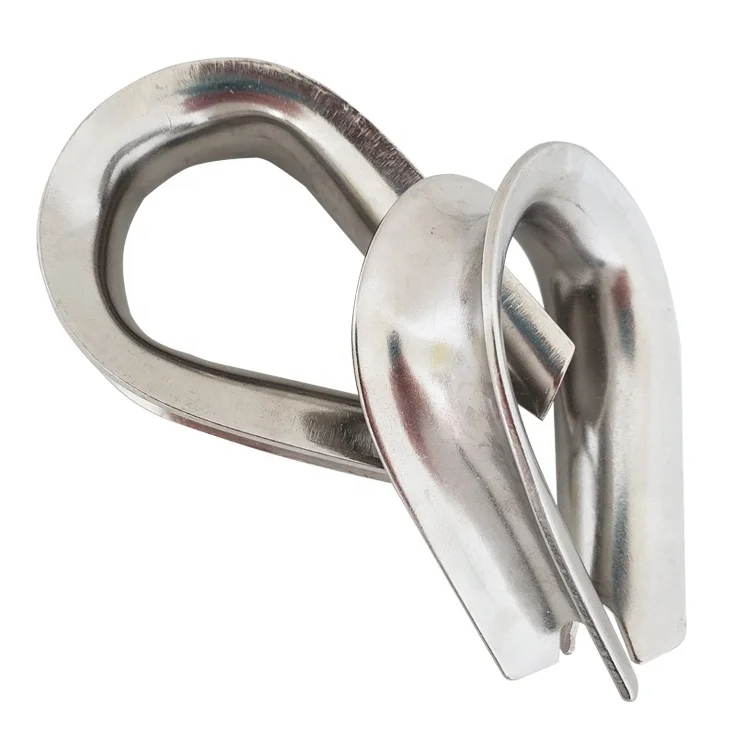

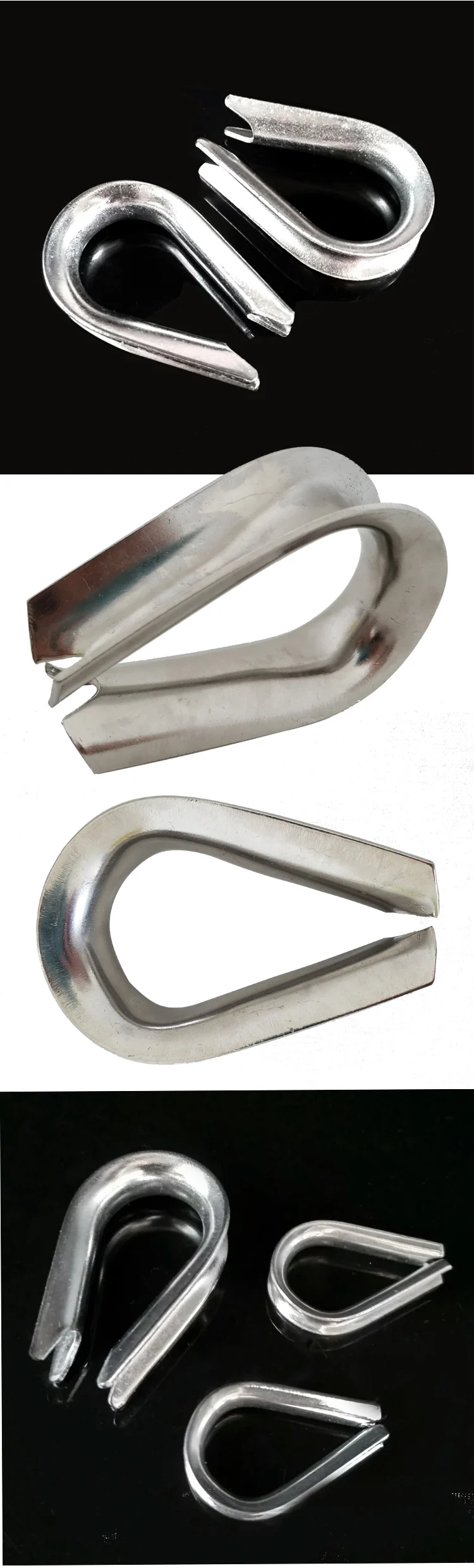

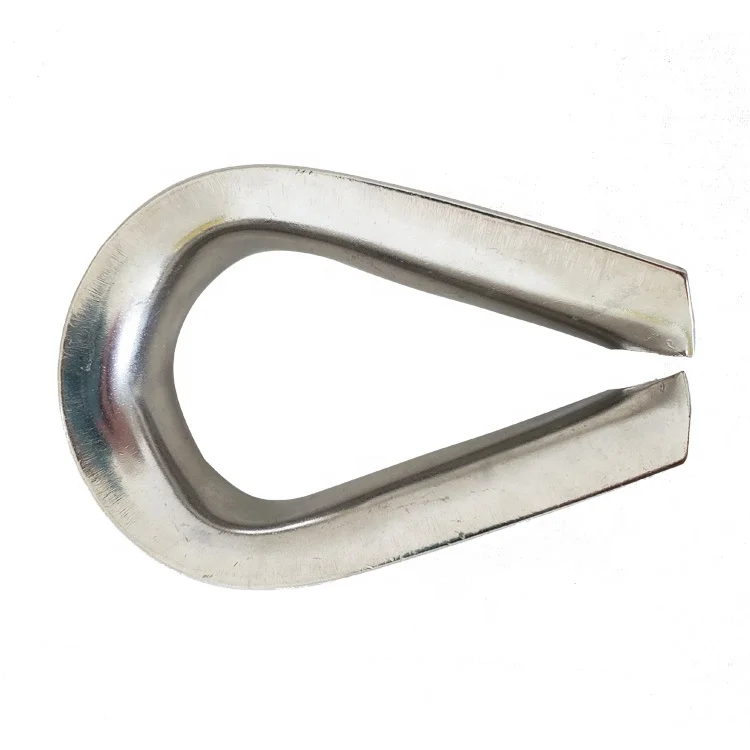

M3 304 Stainless steel Wire Rope Thimble
Specifications:
- Color: silver
- Material: stainless steel 304
- Size: Fit for wire rope diamete1/8"
Package includes:
100 * M3 Stainless Steel Thimble
Feature:
Ideal for marine and industrial rigging and wire rope applications , Lifting and connecting, Wire rope fittings, Marine hardware fittings.
Designed to prevent crushing or overstressing wire rope at the terminal end which is used to protect the eye of a wire rope or sling.
Help to keep cable from flatting around the eye causing the cable to weaken.

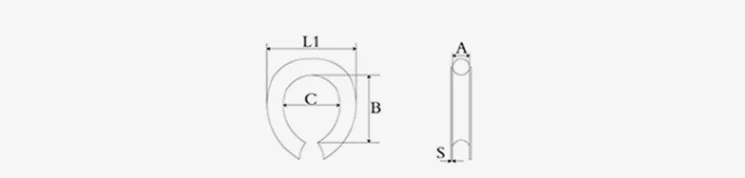

Model | A | B | C | H | S | N.W. (KG)(100pcs) |
mm | mm | mm | mm | mm | ||
M2 | 3.60 | 14.38 | 7.10 | 12.00 | 0.84 | 0.13 |
M3 | 4.62 | 17.70 | 10.70 | 15.00 | 0.72 | 0.23 |
M4 | 5.28 | 21.00 | 11.44 | 17.20 | 0.84 | 0.29 |
M5 | 6.20 | 24.80 | 13.00 | 20.00 | 0.92 | 0.49 |
M6 | 6.62 | 30.20 | 16.00 | 23.00 | 1.00 | 0.60 |
M8 | 10.00 | 38.20 | 20.76 | 30.10 | 1.50 | 1.78 |
M10 | 11.80 | 42.24 | 23.78 | 42.00 | 1.42 | 2.36 |
M12 | 14.60 | 47.54 | 26.70 | 40.04 | 1.34 | 3.07 |
M14 | 15.84 | 52.02 | 33.10 | 50.08 | 1.80 | 6.13 |
M16 | 18.10 | 57.00 | 40.20 | 63.80 | 1.72 | 7.98 |
M18 | 19.80 | 67.16 | 44.42 | 66.34 | 2.34 | 12.56 |
M20 | 22.26 | 75.10 | 44.72 | 65.10 | 2.40 | 14.98 |
M22 | 24.44 | 79.90 | 44.14 | 65.76 | 2.46 | 16.70 |
M24 | 26.38 | 80.24 | 47.70 | 72.80 | 2.60 | 20.93 |
M26 | 27.80 | 79.00 | 53.00 | 80.00 | 2.50 | 27.95 |
