Stone crusher machine impact/small stone crusher used in quarry, mining, highway

Product Overview

Description

 Stone crusher machine impact/small stone crusher used in quarry, mining, highway



Impact crusher widely used Secondary Crushing crusher, for mineral processing, chemical, cement, construction, refractories, ceramics, glass and other industrial sectors in the broken and broken bits for a variety of medium hardness materials. Their product’s size can be adjusted, broken standard variety. The family of devices can dealing with the material with the side length 500mm, not more than 350Mpa anti-pressure strength, is an ideal aggregate processing equipment in the senior road surface and hydropower building.

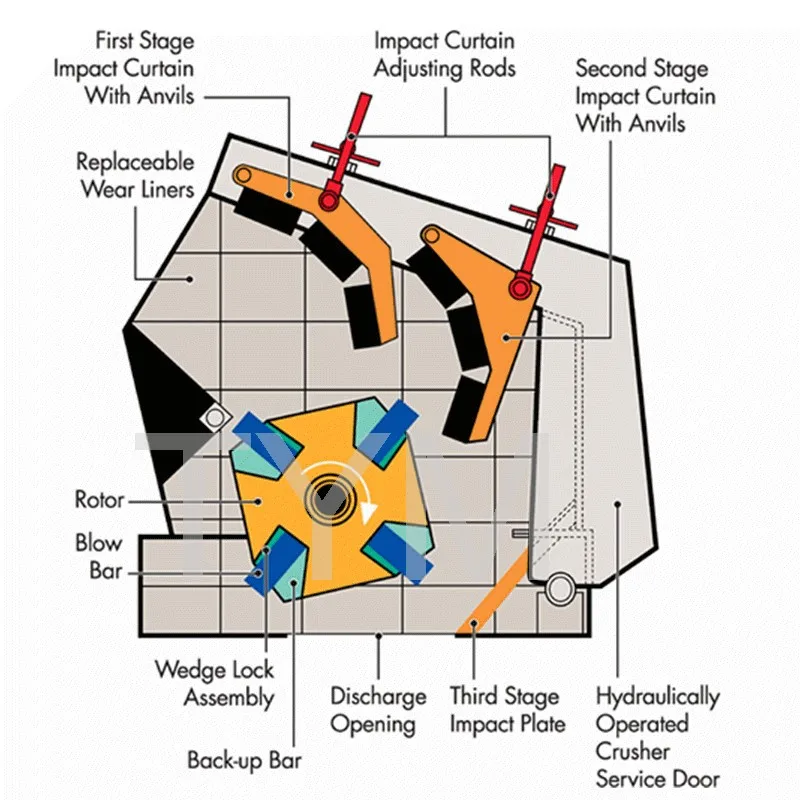

Henan good quality working principle of impact crusher with new technology crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The costruction waste crusher machine employs self-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.







1. Counter-plate and plate hammer clearance can be adjusted easily and effectively control discharge particle size, particle shape well;

2. Unique counter tooth plate, high-chrome plate hammer, impact resistance, abrasion resistance,large of impact;

3. Keyless connection, maintenance convenient, economical and reliable;

4. Comprehensive of Broken-function, high productivity,small of mechanical abrasion, high of the overall efficiency;

5. A reasonable board hammer structure, with advantages of faster loading and unloading, multi-transposition, etc., can greatly shorten the time for changing the board hammer.







 Technical Parameter of Henan good quality working principle of impact crusher with new technology



Model	Rotor size ( mm×mm )	Size of Feeder Opening(mm)	Max.Feeding Size (mm)	Crushing Capacity (t/h)	Motor Power (KW)	Weight (t)	Overall Dimension(mm)
PF-1007	Φ1000×700	400×730	300	40-60	37-55	9.45	2400*1560*2660
PF-1010	Φ1000×1050	400×1080	350	60-90	55-75	12.6	2440*2250*2630
PF-1210	Φ1250×1050	400×1080	350	80-130	110-132	14.12	2700*2340*2900
PF-1214	Φ1250×1400	400×1430	350	120-180	132-160	18.58	2700*2690*2890
PF-1315	Φ1320×1500	860×1520	450	180-230	180-260	20.2	3100*3280*2670



To meet your requirements more exactly and effeciently,kindly please provide the following information when you are sending us the inquiry:

1>What is raw material are you going to crush ?

2>What is the size of the raw material,and the size of the finnal products ?

3>What is the capacity do you want  to reach?





Packaging Details:

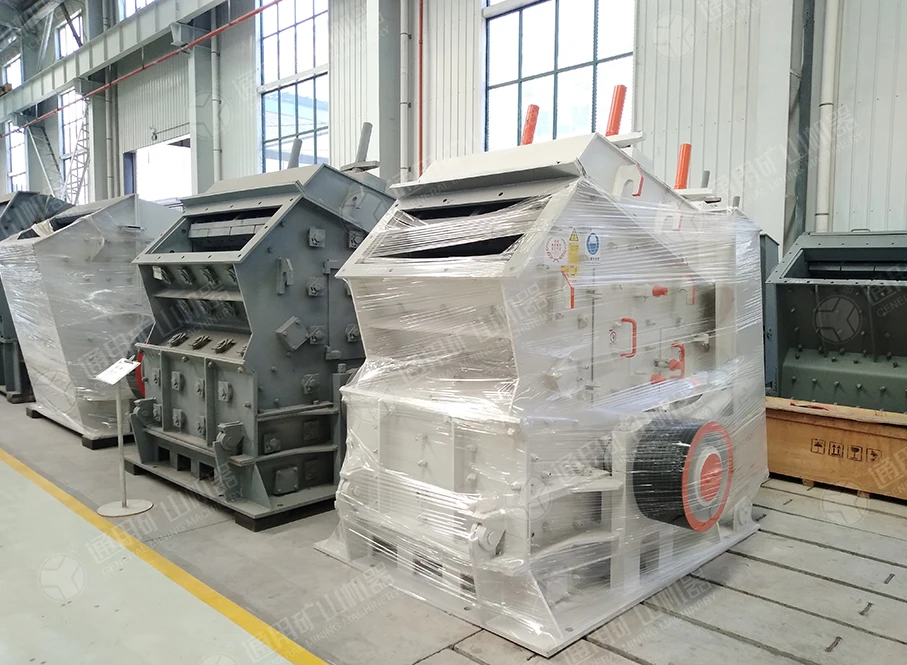

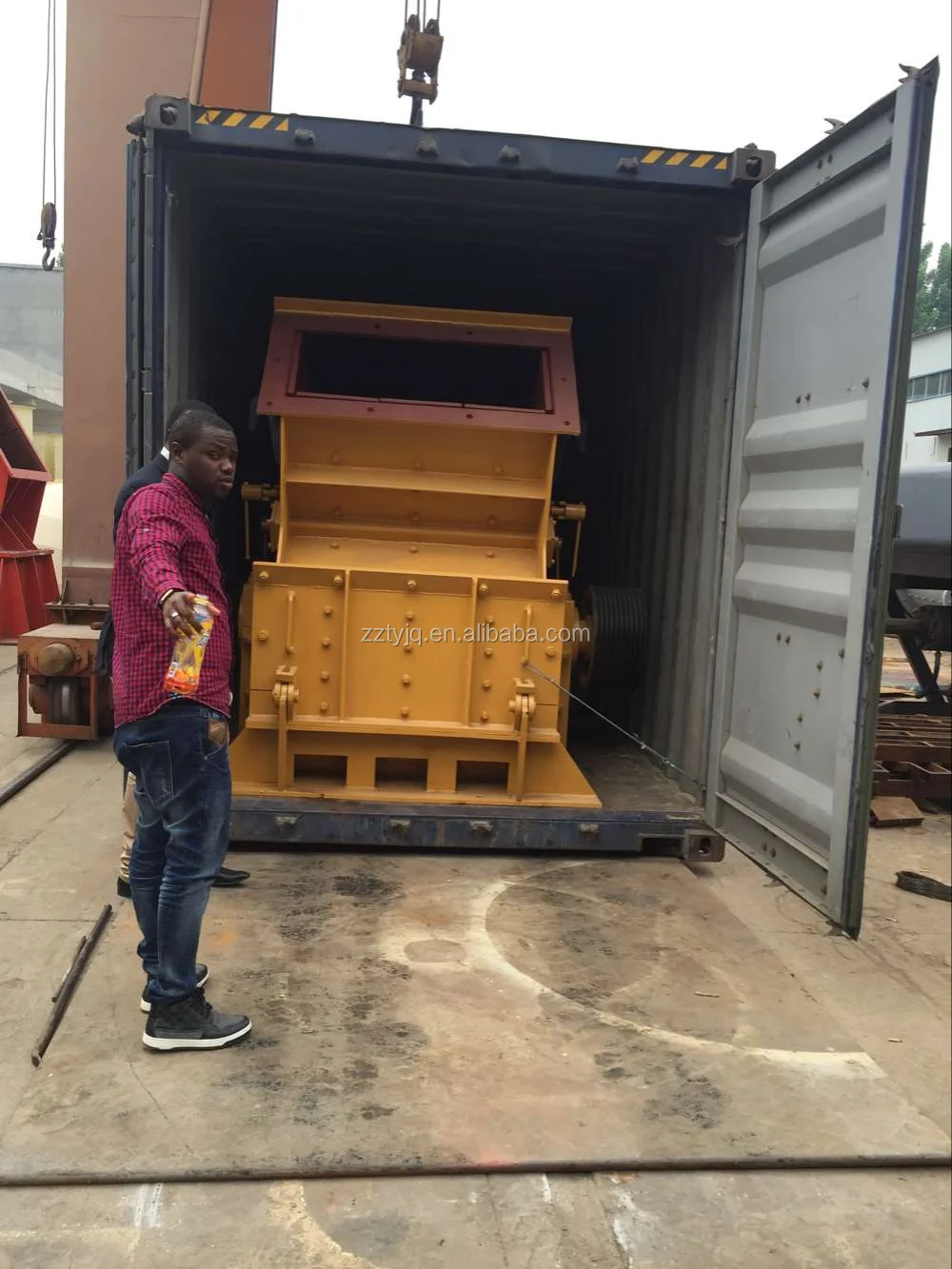

We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases (size: L *).  If the container is too tight, we will use the PE film according to the customer's special requirements.

Delivery time:

We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
