Product Overview

Description

2019 All-In-One Web Controller Wholesaler



All-In-One EPCS Web Guiding Control System Introduction

The Newly developed all-in-one web guide controller is applied to accurate correct the narrow wide range of materials. Especially for label printing, packaging and non-woven industries.

All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.



All-In-One EPCS Web Guiding Control System Features

1. Brushless DC servo motor driving, maintenance free;

2. Accuracy ball screw bar and accuracy positioning;

3. With large guiding travel;

4. Roller length and width can be custom made;

5. Roller surface treatment can be anodized, rubber and cork leather;

6. Manual or air fixture of the cutting station is optional.



All-In-One EPCS Web Guiding Control System Technical Data

Voltage	AC220V /80W
Roller diameter	80mm / custom made
Roller length	650mm / custom made
Roller width	430mm / custom make
Max. speed	40mm/s
Environment temperature	-10~60°C, below RH90%



All-In-One EPCS Web Guiding Control System Installation Size



All-In-One EPCS Web Guiding Control System Technical Data





All-In-One EPCS Web Guiding Control System Applications

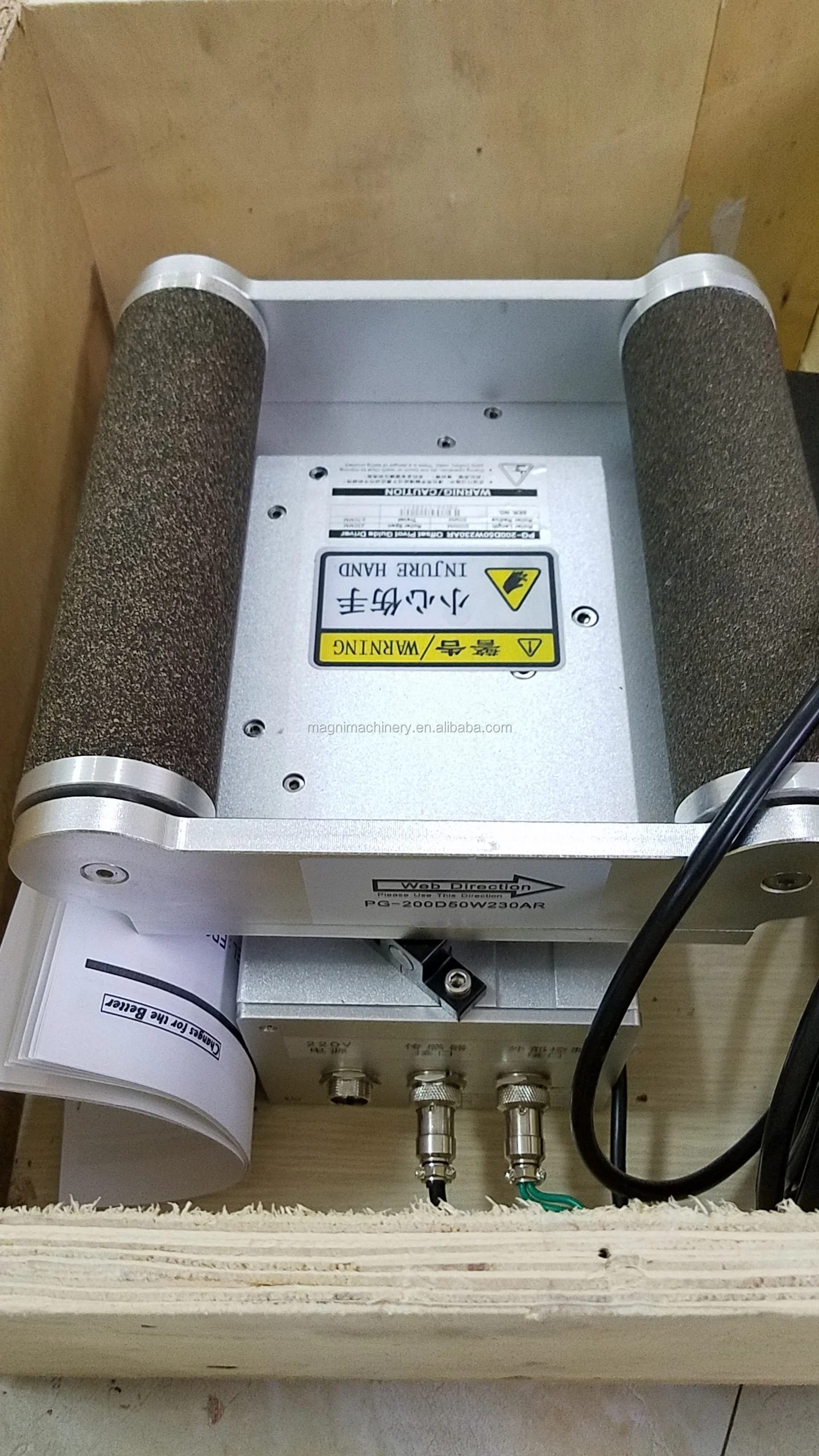

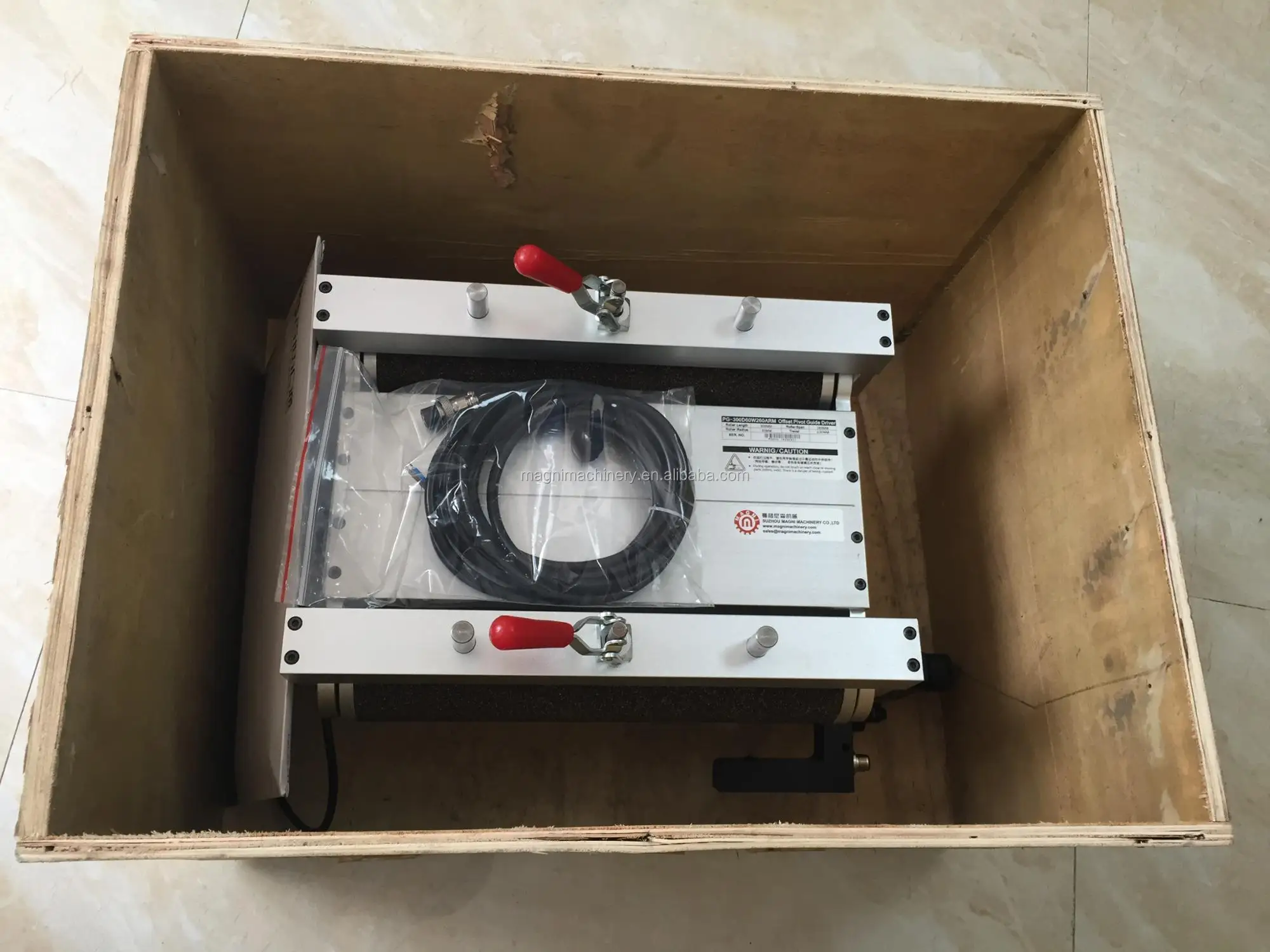

Shipping and Packaging of All-In-One EPCS Web Guiding Control System
