7.5kw electric slope support drilling machine road perforator manufacturer mine explosion proof rock drill slope support rig

Product Overview

Description

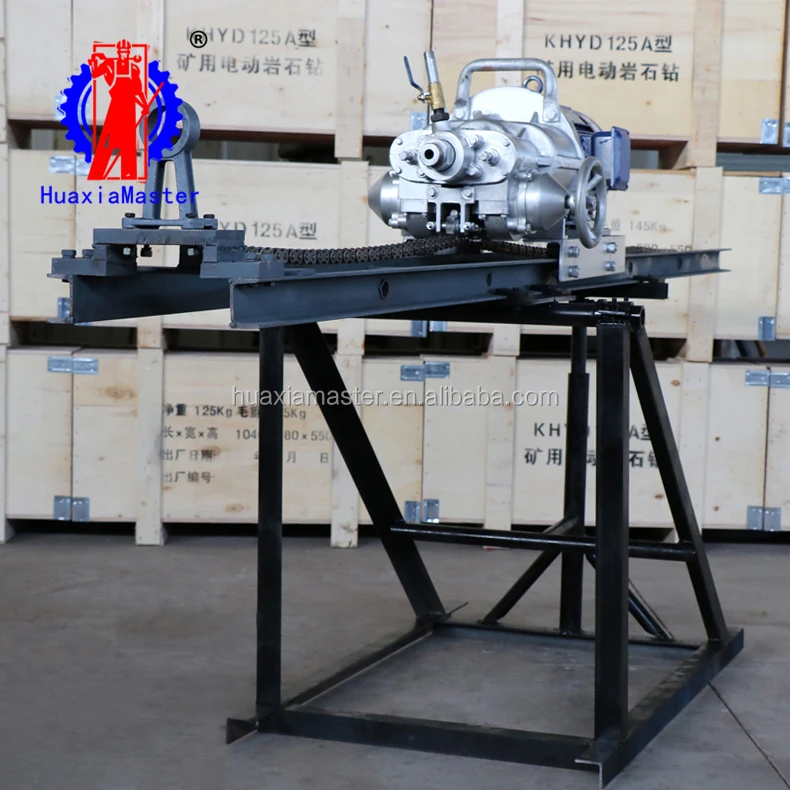

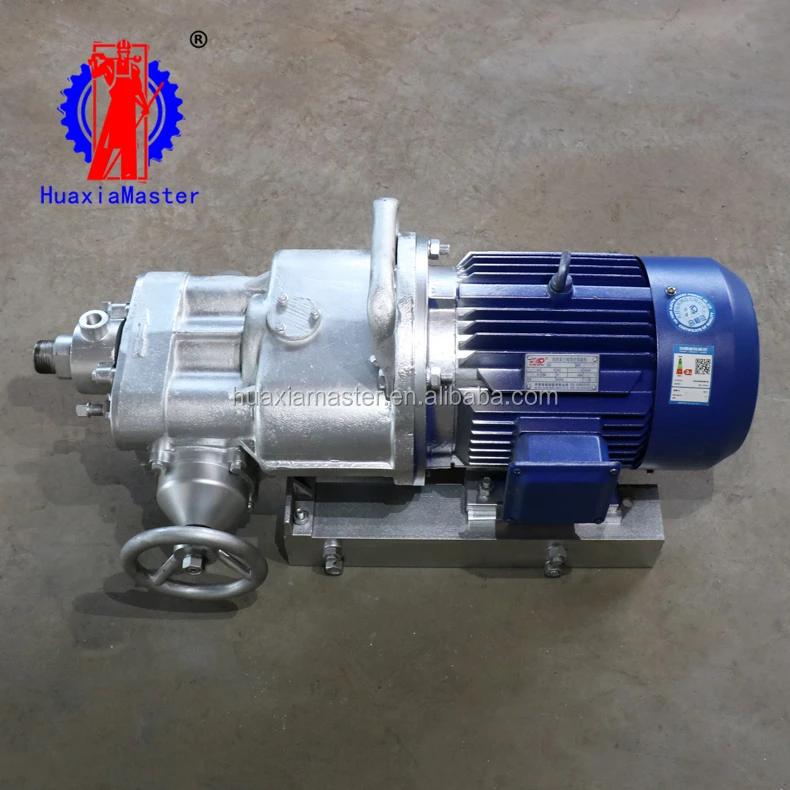

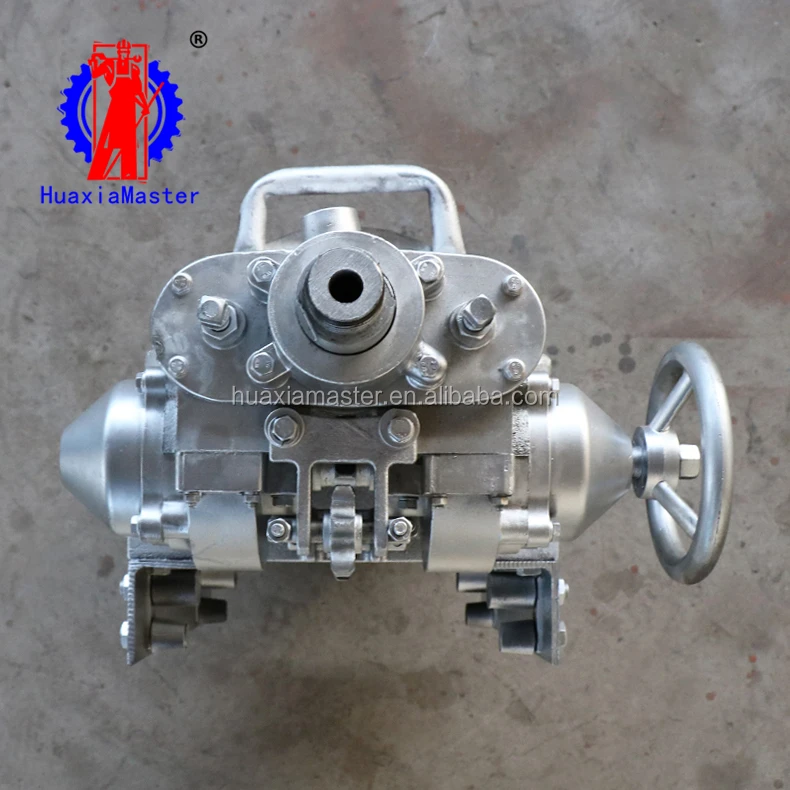

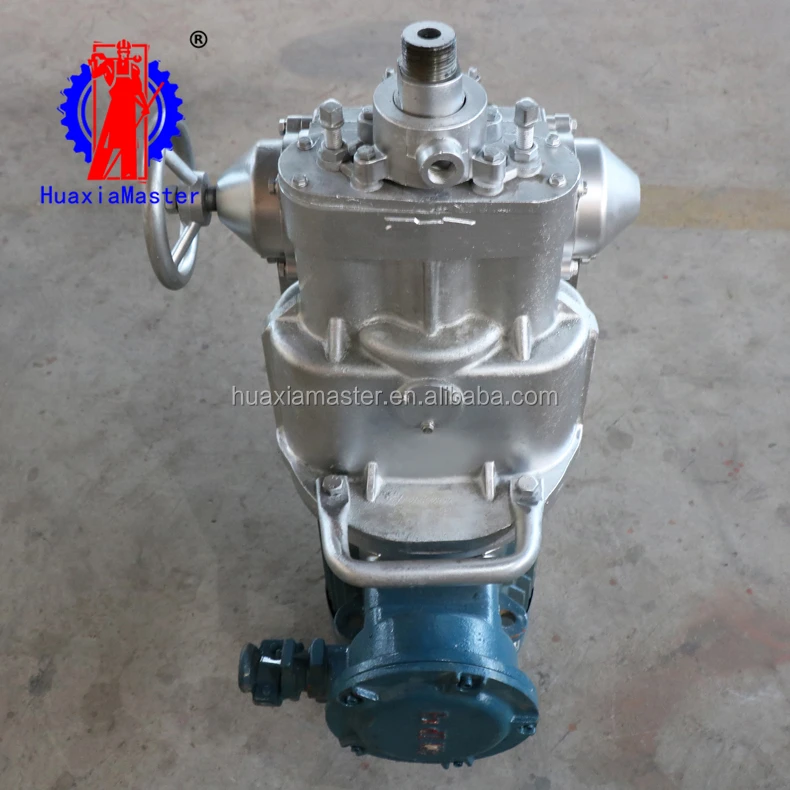

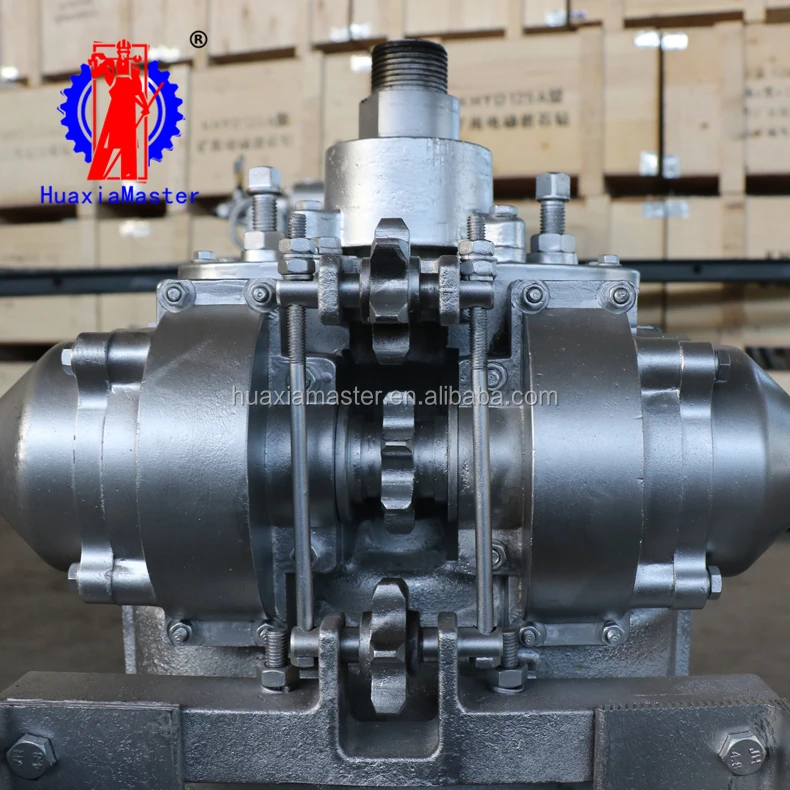

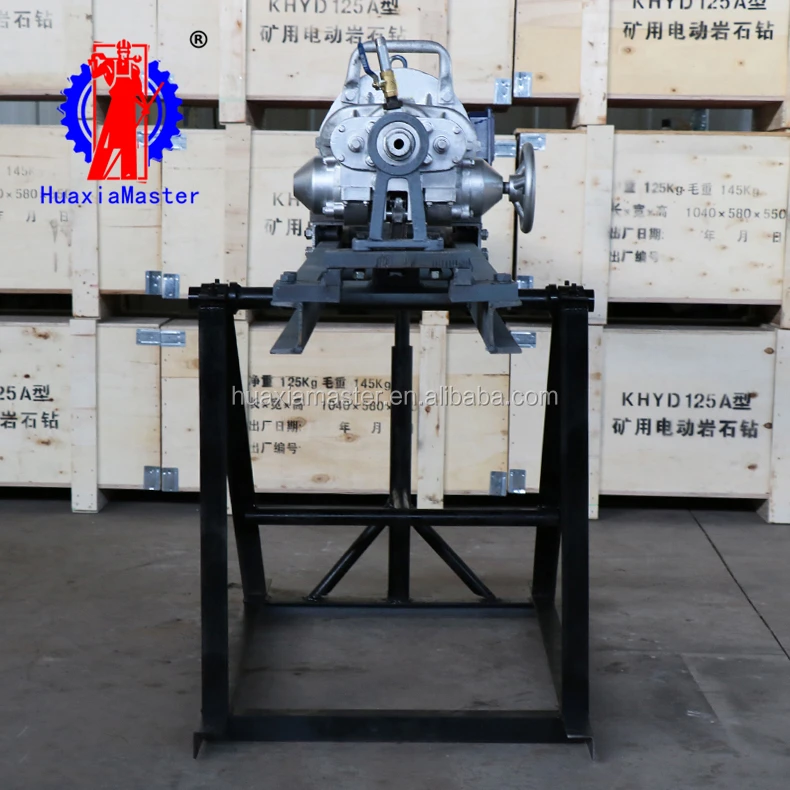

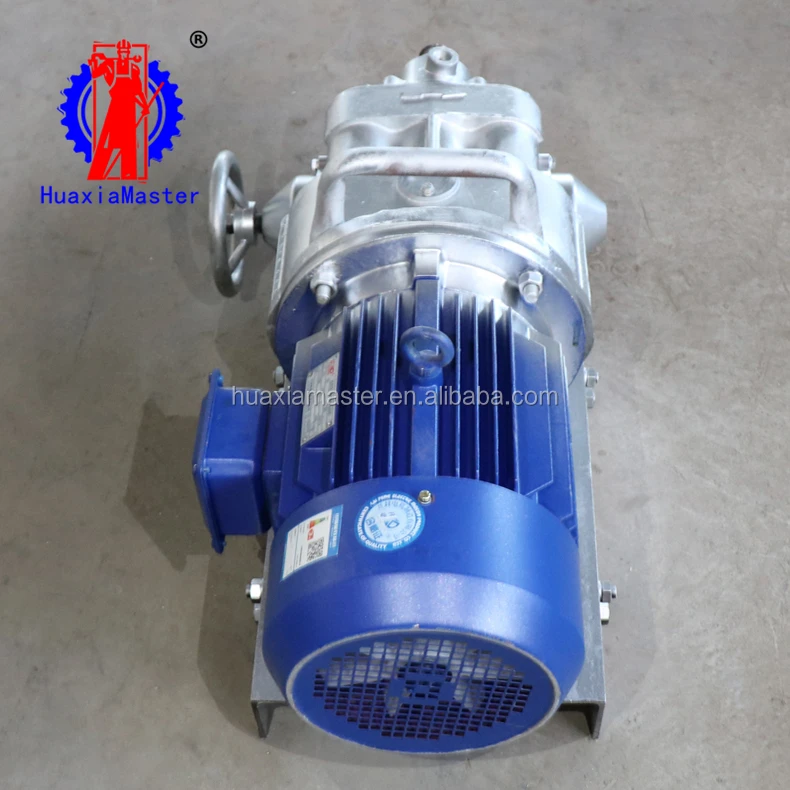

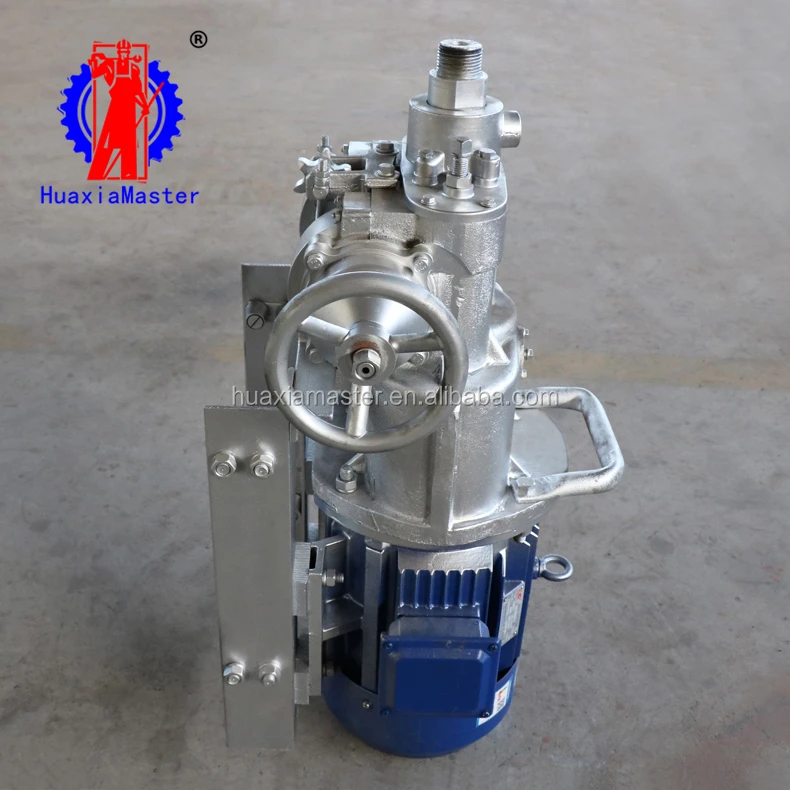

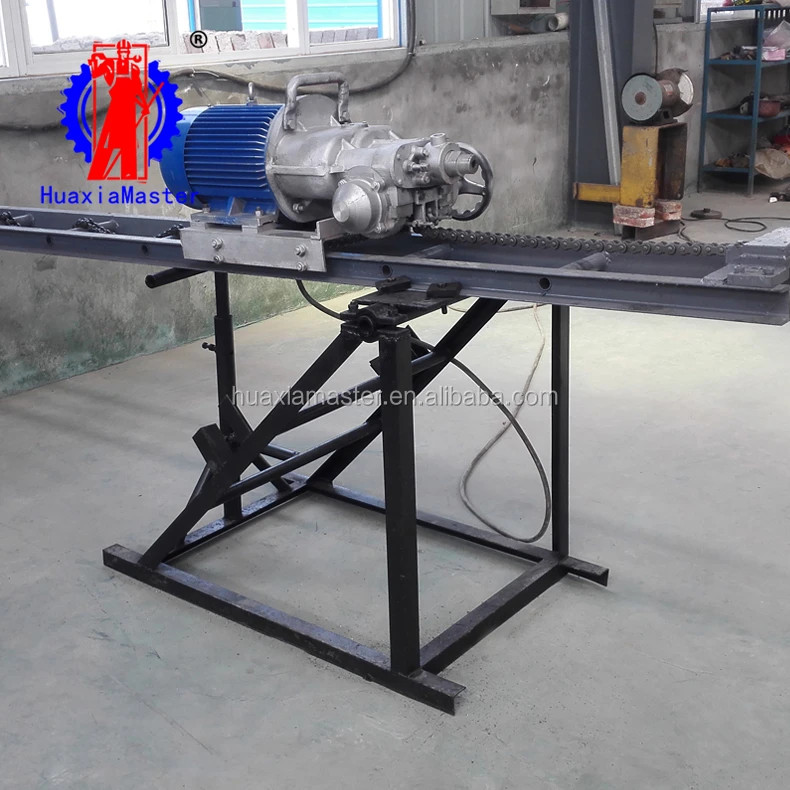

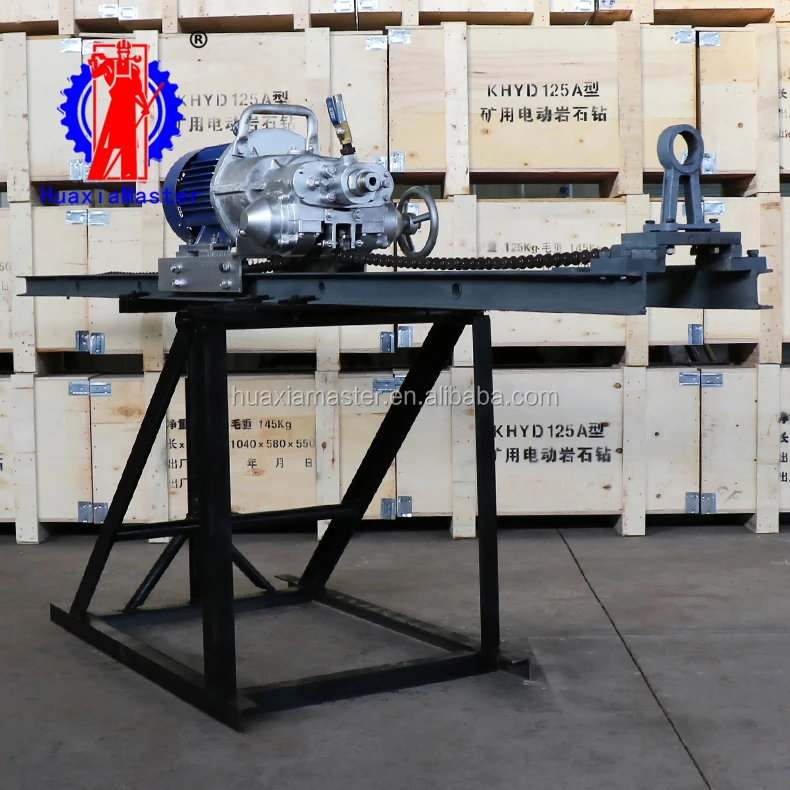

KHYD125 electric rock drilling rig

1. Brief introductions of KHYD125 electric rock drilling rig

· electric rock drilling rig can be fitted with drilling rigs, and can be drilled horizontally or inclined upward or upward.

· In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.

· In drilling operations, we only need to operate the hand wheel, and we can advance and return quickly.

2. Specifications of KHYD125 electric rock drilling rig

Model	Unit	KHYD125
Rated output power of electric motor	kw	7.5
Rated voltage of electric motor	v	380/660
Rated frequency of electric motor	hz	50
Rated current of electric motor	a	15.4
Motor rotating speed	r/min	1440
Motor phase number		three phase communication
Rated working mode		continuity
Drilling speed	mm/min	280
Speed of return	m/min
Borehole diameter	mm	42-80(rock stratum)
Harness range	protodikonov`s scale of hardness	f<10
Maximum drilling depth	m	25(rock stratum)
Weight of drilling rig (excluding runways, drill pipes, drills)	kg	125
Dimension(length *width *height)	mm	950*460*430
