Product Overview
Description
| |||
| Model: S165-04 | |||

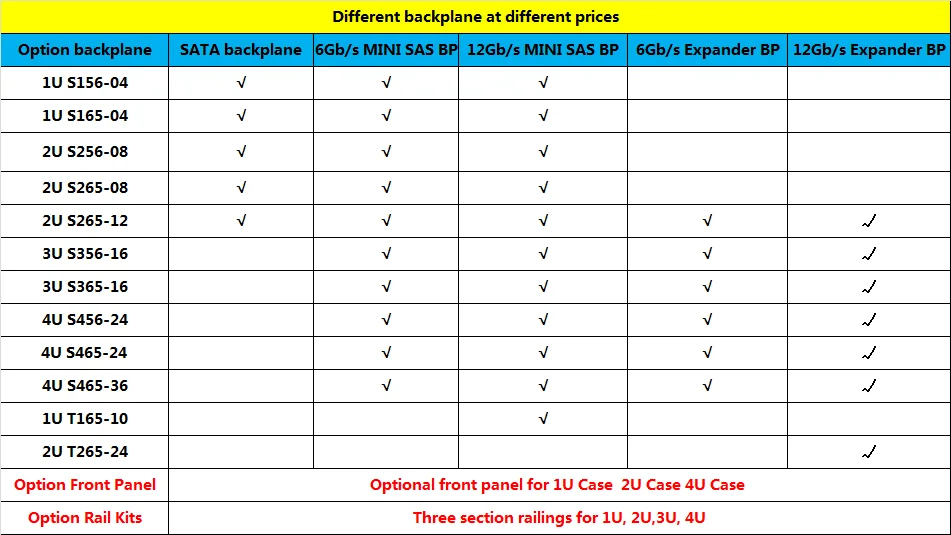

| 6Gb/s SATA / MINI SAS backplane, 12Gb/s MINI SAS backplane | |||
| Application | |||
| Database Server • Near-line Storage Server • CCTV Surveillance DVR •NAS / iSCSI • Digital Content Delivery • Virtual Tape Library •Enterprise Storage Server • Medical Imaging | |||
| Features | |||
| *4 x hot-swappable SATA / SAS drive bays *650mm depth, support MAX 12" x 13" motherboard *Optional 6pcs 40mm(4028/4056) high speed ball fans(Free Screws) *Support 1U standard power suppy(MAX D300mm*W100mm*H40mm) *Quality fine 6Gb/s SATA / MINI SAS backplane, 12Gb/s MINI SAS backplane *One slim DVD bay, two USB2.0 ports on front | |||

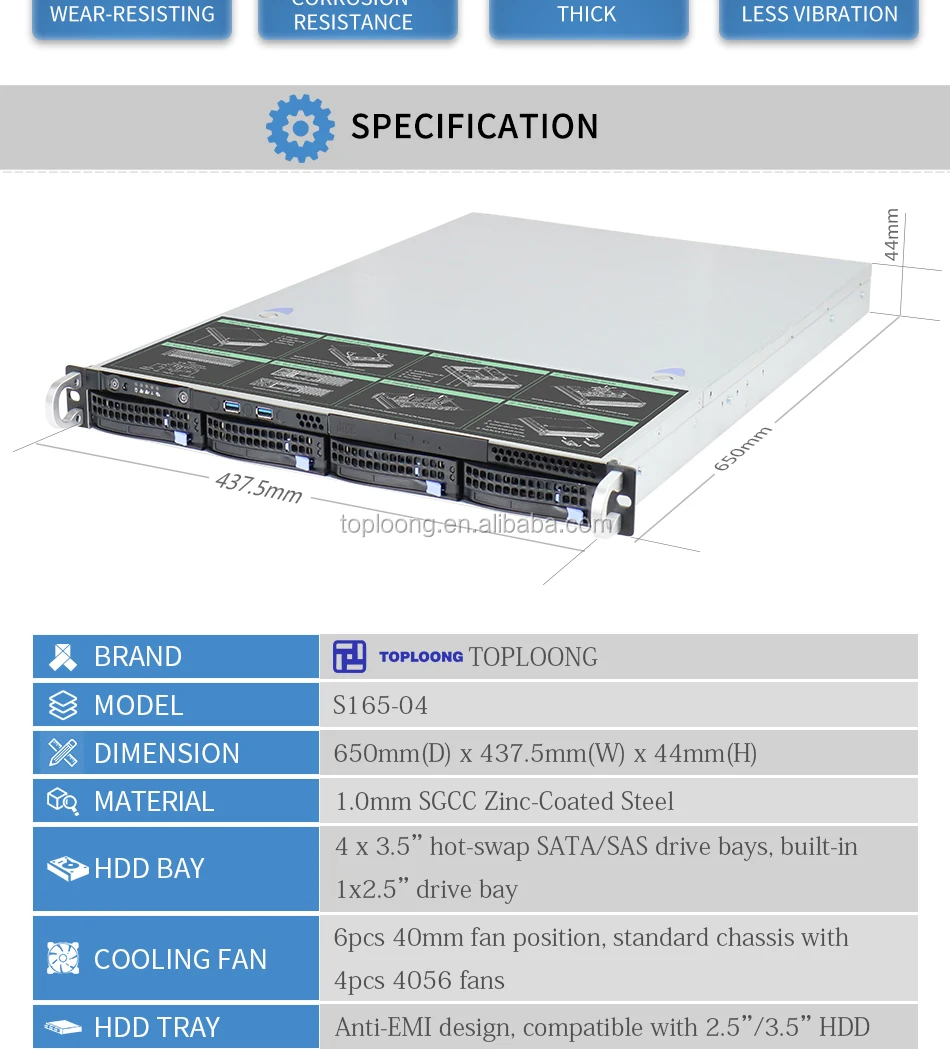

| Specification | |||
| Model Name | S165-04 | ||
| Dimensions ( W x D x H ) | 437mm x 650mm x 44mm | ||

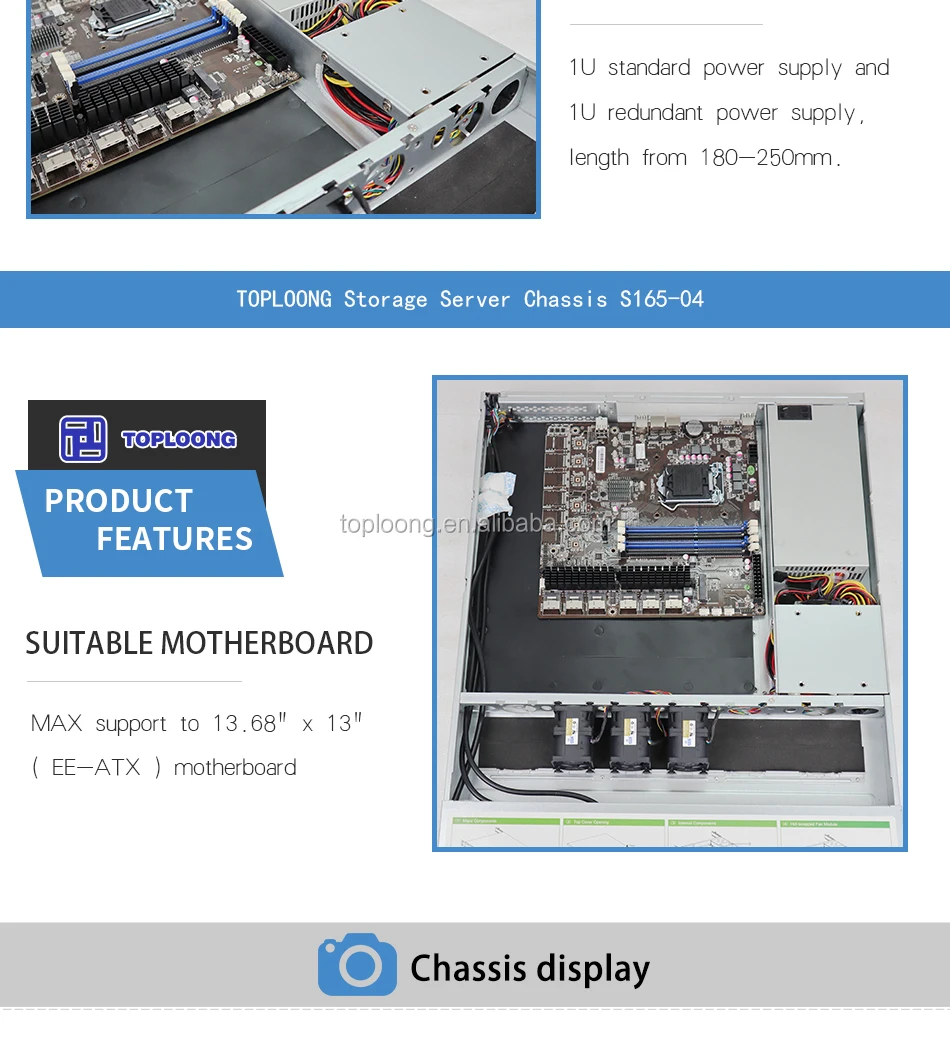

| M/B Form Factor | Support MAX 12" x 13" motherboard | ||
| HDD Backplane | 6Gb/s SATA / MINI SAS backplane, 12Gb/s MINI SAS backplane | ||
| Drive Configuration | 4 x hot-swappable SATA / SAS 6Gb/s drive bays One slim DVD bay | ||
| Power Supply Form Factor | 1U standard power suppy | ||
| Built in system cooling fan | Optional 6pcs 40mm(4028/4056) high speed ball fans | ||
| Expansion slot | One horizontal slot | ||
| Front panel control | Power ON/OFF x 1, System reset x 1, ID Switch x 1, USB2.0 x 2 | ||
| Indicator | Power ON/OFF x 1, HDD x 1, NIC x 2, LED x 1, Power Alarm x 1, Temperature Alarm x 1 | ||
| Materials | Main structure parts with SGCC 1.0mm | ||
| Packaging | Double strenthen carton with EPE foam | ||
| Carton size | 840*575*180mm | ||
| Volume(CBM) | 0.1CBM | ||
| Net Weight | 16KG | ||
| Gross Weight | 9.3KG | ||
Questions:
Q1: Can you put my brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
