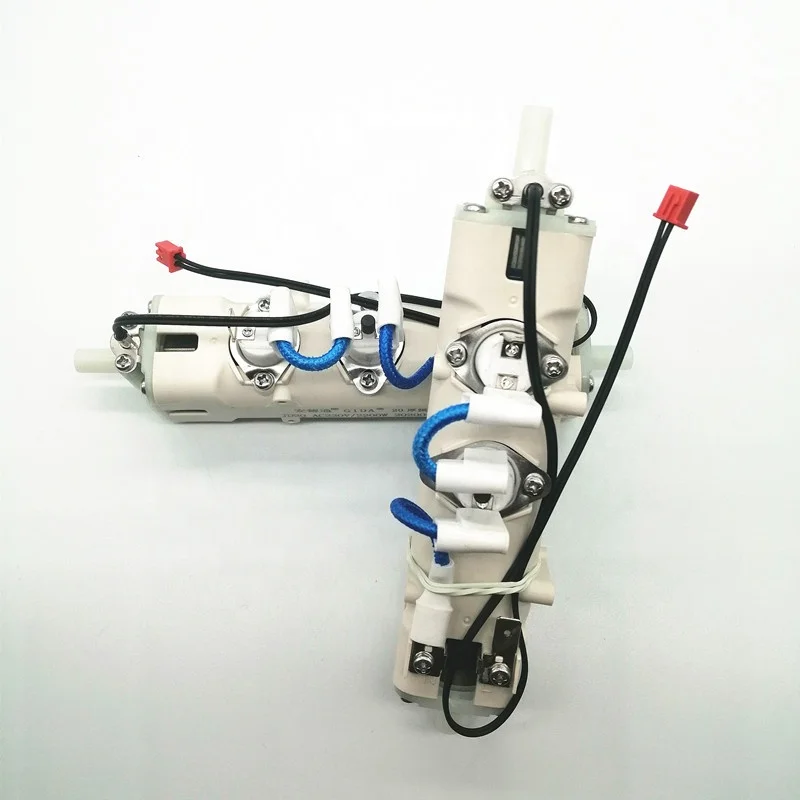

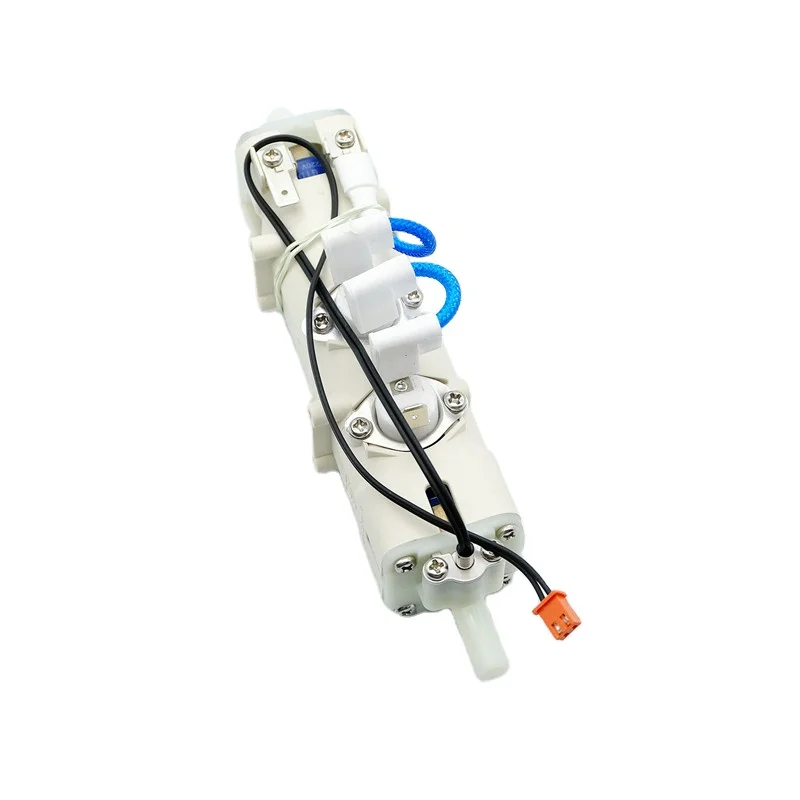

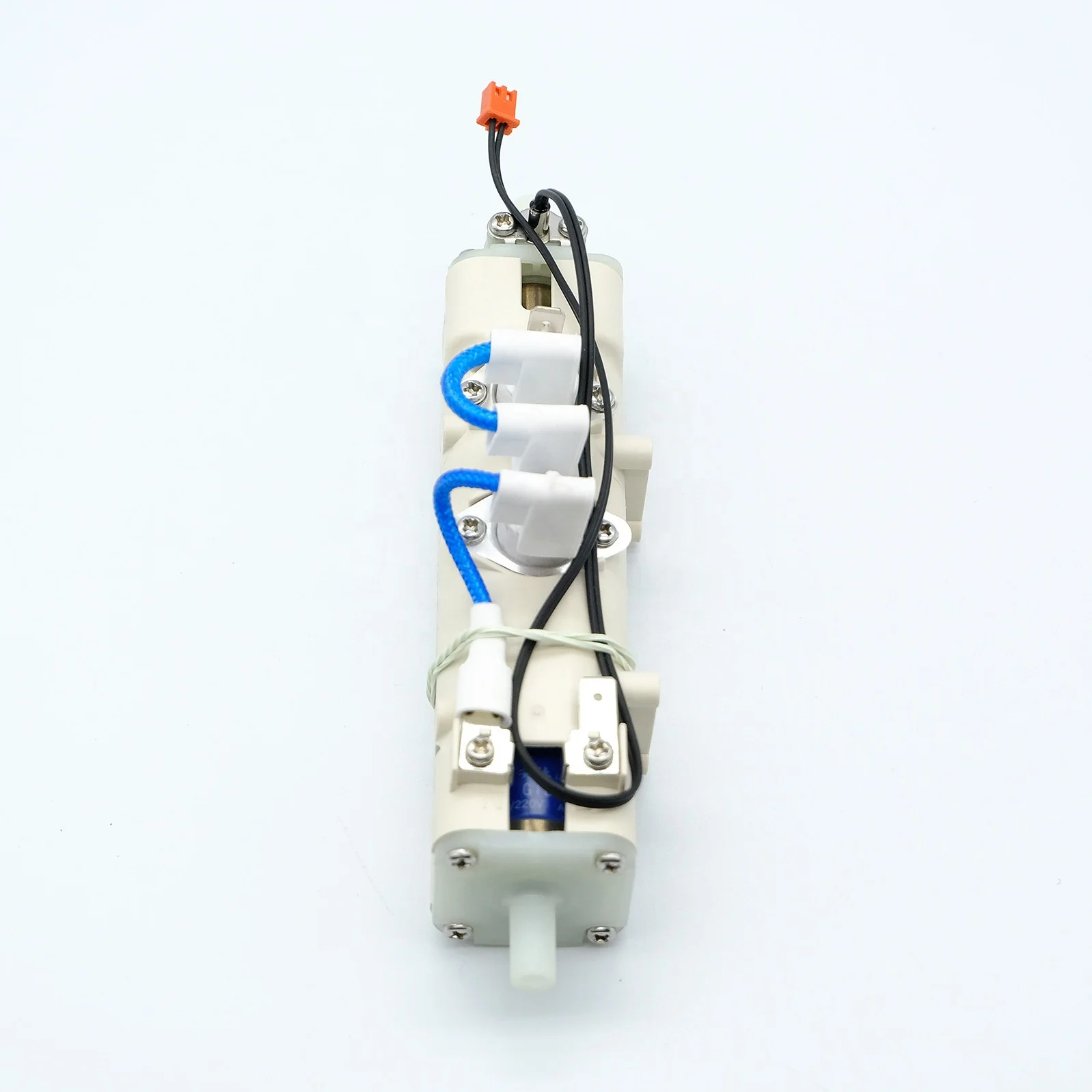

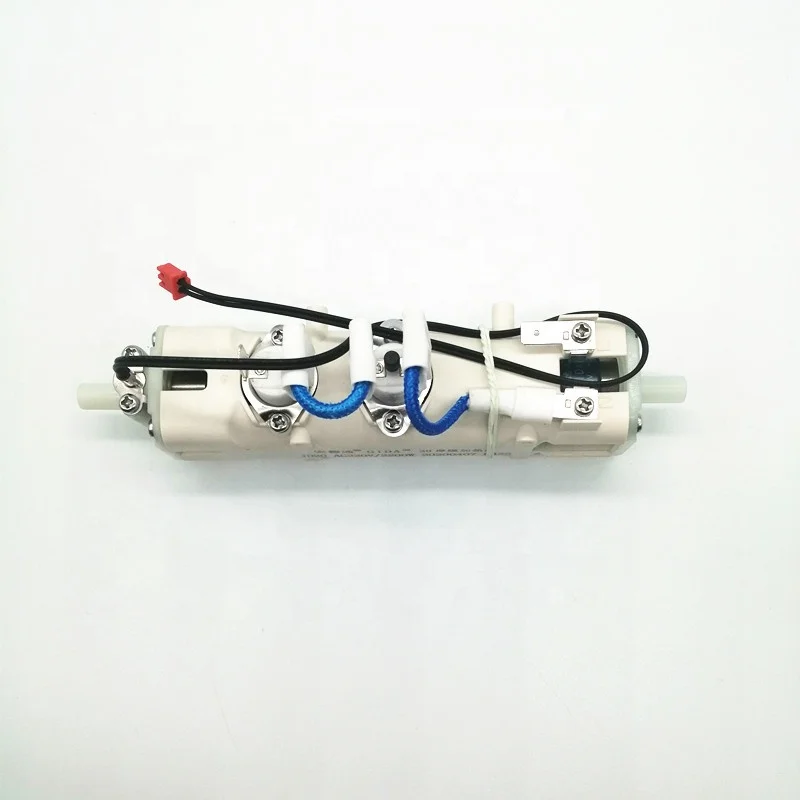

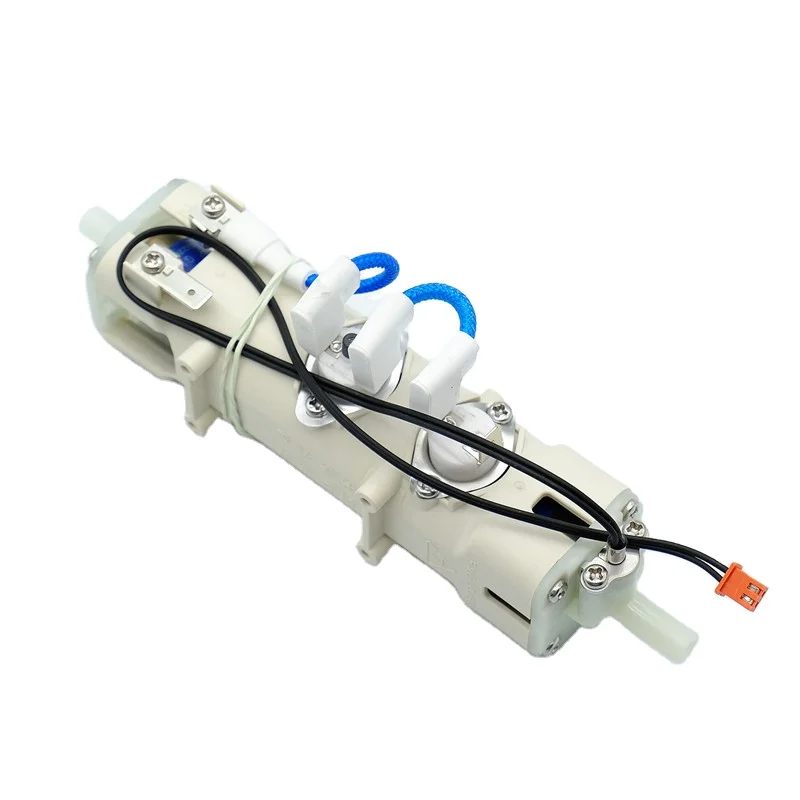

                                  Flow through water heating element for coffee maker

In order to satisfy our customer's need, we have updated our standard and best selling products 20 thick film heating elements. The major difference between the new and old one is one the following two espects,1) we changed the connecting method of the wire, using  socket to instead of welding wire, it would be more safety and not easy to drop at high temperatures working conditions. 2) adjust the direction of inlet and outlet to save more space inside the home appliance, the small electric heater will bring your application more pretty and small.
The advantage of thick film heating element

Power Density is up to 60W/cm2.
Temperature ramp-up between 80℃~150℃/S.
Electric Heating Circuit printed on tube surface's insulation layers, and covered by another insulation layer. Water and Electric is insulated totally.
Long work life( > 10000H )
Environment and Health friendly: Non-electromagnetic radiation and heavy metal ions
Simple Structure & Compact Profile brings more possibility for new products R&D.

All in all,  electric heating element can successfully replace Traditional Electric Heating Tubes/Elements, change their structures and performance completely, which can reduce energy consumption, increase energy utilization and save space.


Detail information of 20 thick film heating element for coffee maker

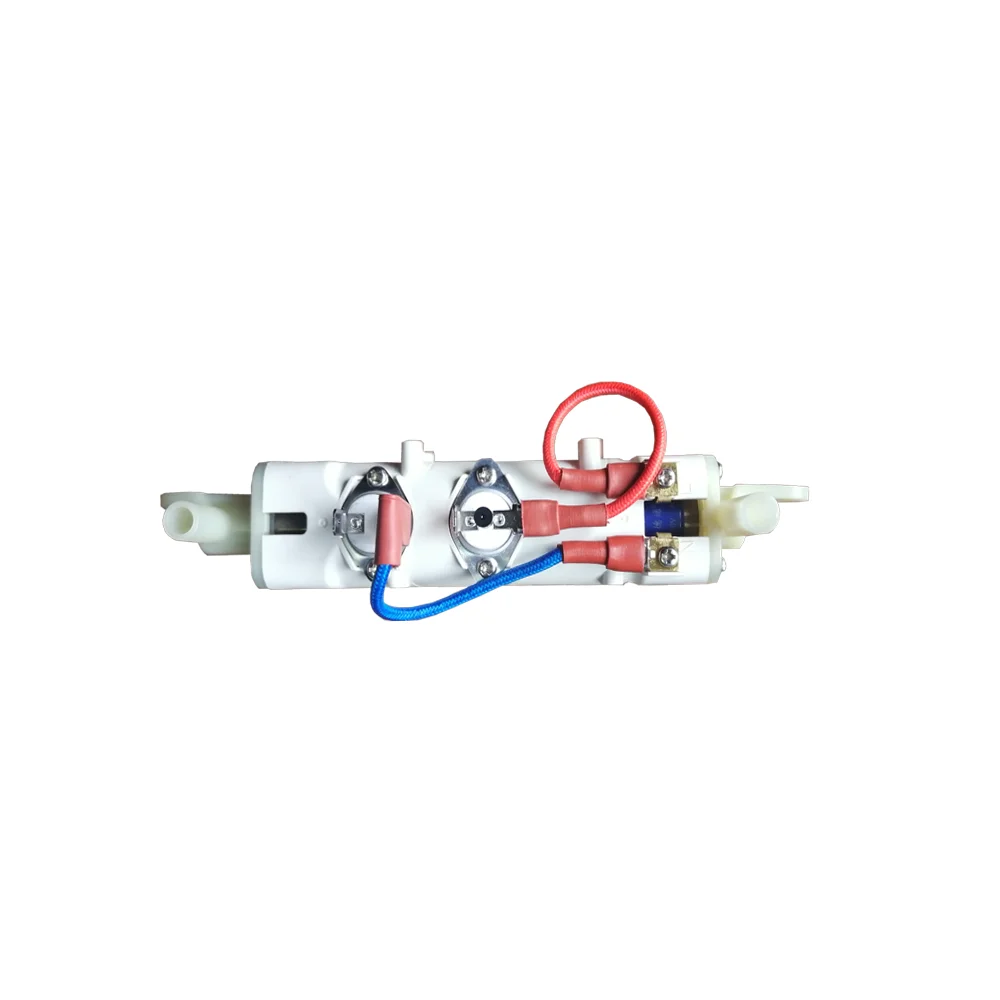

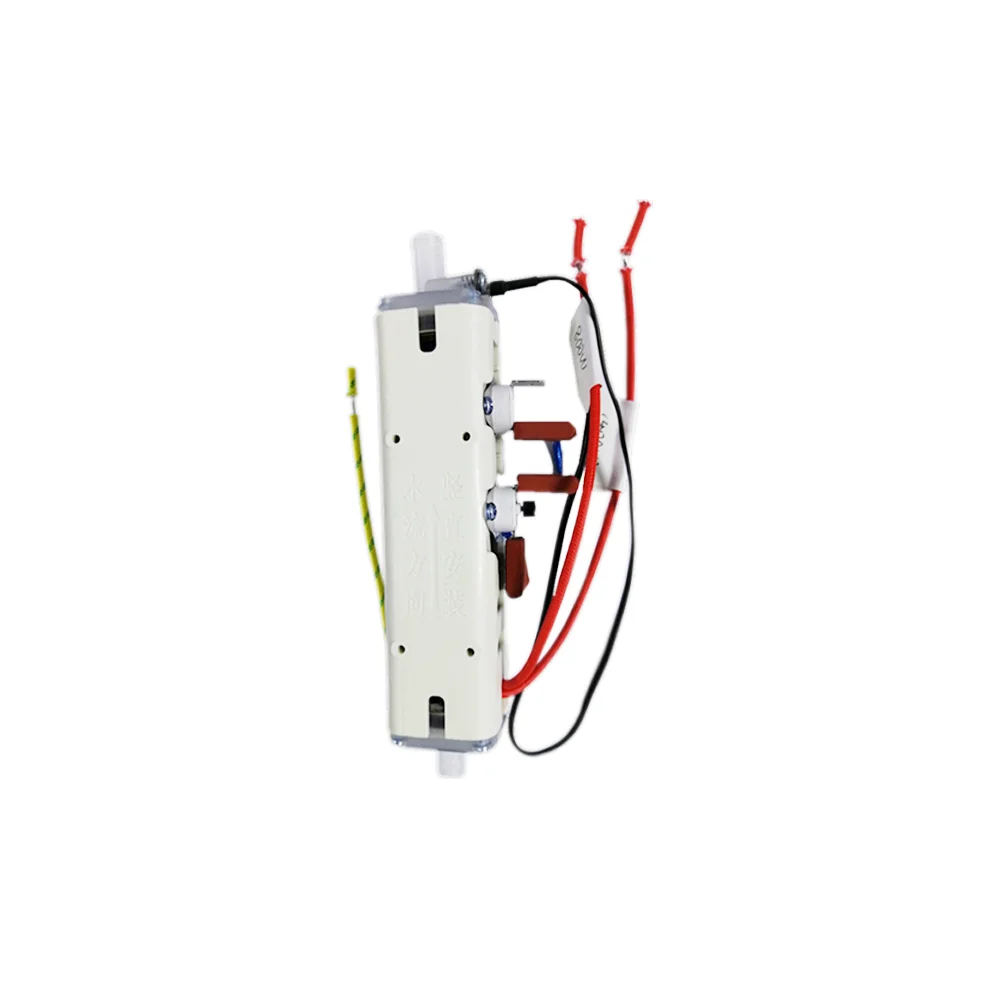

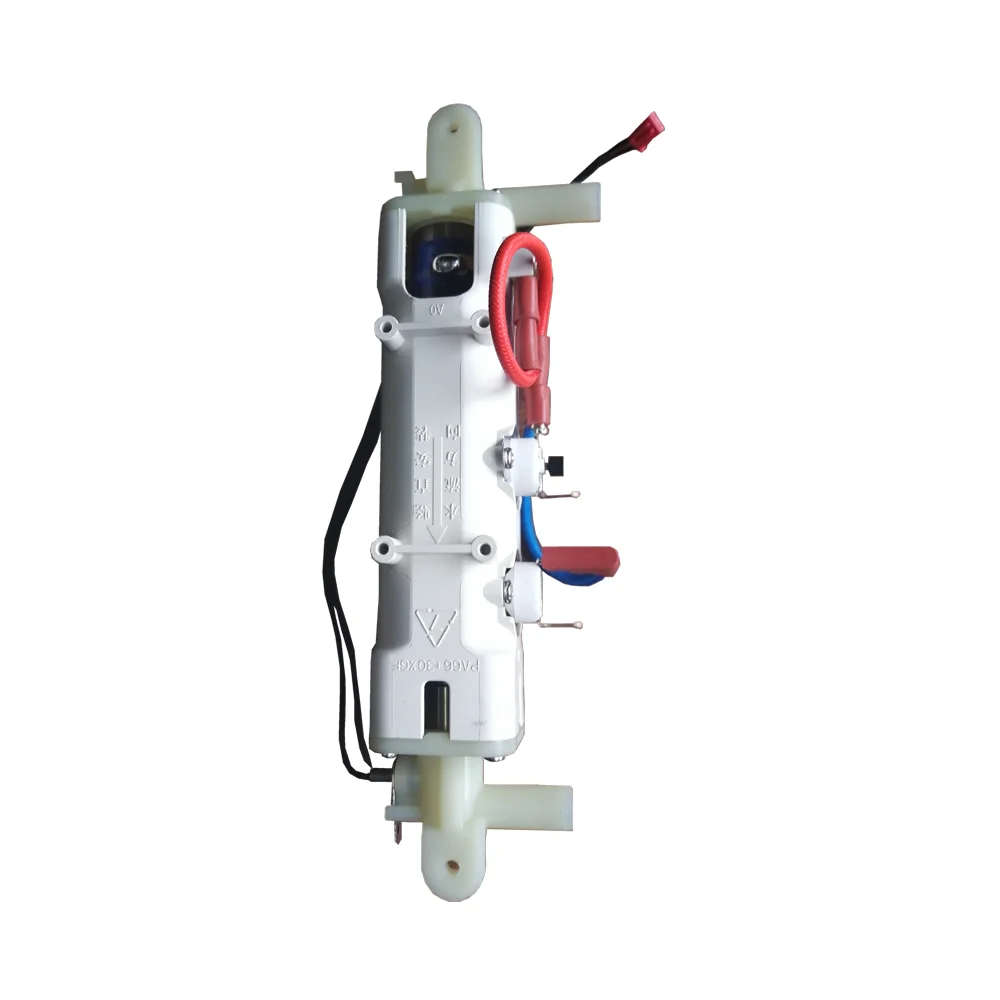

Thick Film Heating Element Assemble is made up by Stainless Steel Tube Thick Film Heater, plastic shield, interface connectors, thermostats, NTC Sensor, wire leads etc.

Thick Film Heater Elements are widely applied in instant hot water dispenser, instant boiling water heaters, sous vide circulate cooker, coffee maker, electric heating water faucet, instant water flow heater under sink, formula dispenser, vending machine, etc.

Specification of 20 instant electric heater
\t
Grounding Type
\t
Spot-Weld
\t
\t
Heat Density
\t
>60W/cm²
\t
Ramp-Up Rate
\t
80℃/s
\t
\t
Thermal Efficiency
\t
>98%
\t
Heating Power
\t
1000w
\t
\t
Service Life
\t
>10,000 hours
\t
Rated Voltage
\t
110v
\t
\t
Certificate
\t
CQC, RoHS
\t
Dielectric Strength
\t
1,500V/5mA/60s
\t
\t
Power Deviation
\t
-10% - +5%
\t
Leakage Current
\t
≤0.25mA
\t
\t
Insulation Resistance
\t
≥50MΩ
\t
Thermistor Type
\t
PTC
\t
\t
Dimension
\t
161mm*56mm*33mm
Main Features
1.\tElectric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2.\tLarge heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3.\tFast temperature response, power density is as high as 60W/cm² and heating circuit's temperature raising rate exceeds 80℃/s.
4.\tSimple structure, compact profile, various applications

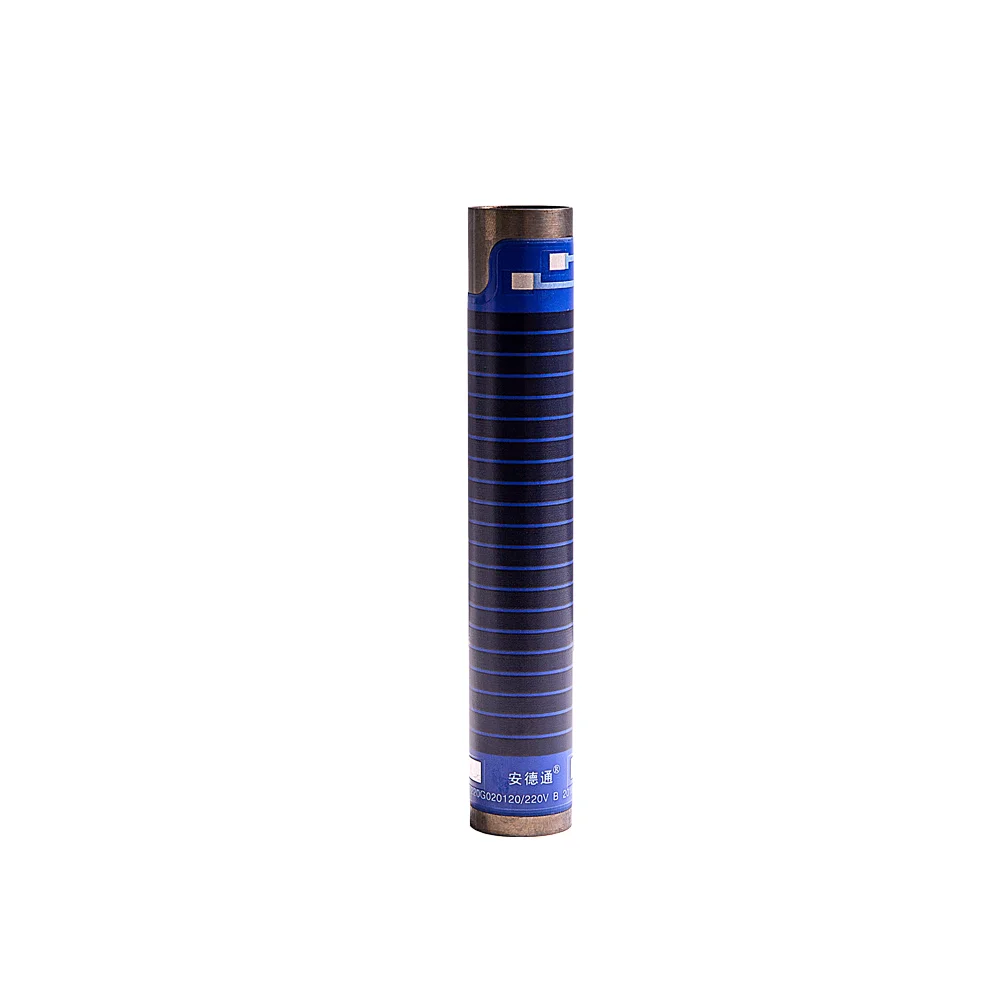

Tube Structure

First Layer: Anti-oxidation layer (insulation, anti-rust)
Second-Sixth Layers: 5 isolation layers with high quality materials, and sintered 5 times.
Seventh Layer: Palladium-silver heating film (Quickly Heating, High Heat Utilization, Saving Power)
Eighth Layer: Silver conductor
Ninth Layer: Coating high quality isolation glazes in high temperature (protect surface and isolation)
8 times sintering in high temperature

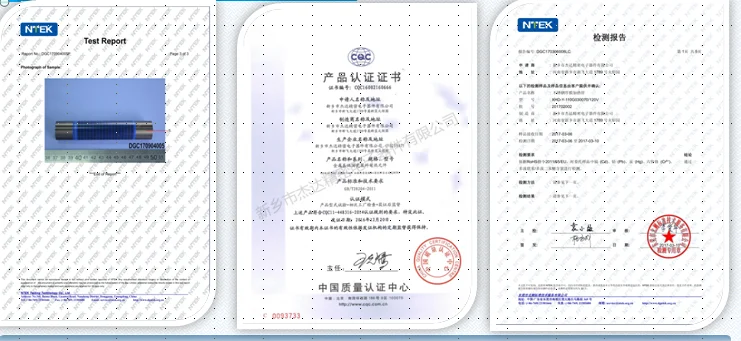

Certifications
Customize Service

1. Substrate: SUS 430, 316
2. Tube diameter, Tube length, Power, Thermostat, Control Board, etc are available for customer design.

Packing & Delivery
\t
Packaging
\t
Size (m)
\t
1.2 (L) * 1 (W) * 1.2 (D)
\t
Weight
\t
0.5 T
\t



Packaging Details
\t
The normal package is carton box, placed on wooden tray.
Related Products

2200w dual power water heater with TF heating tube


1500w Electric Automatic Tubular dishwasher Heater Element


CustomerApplications

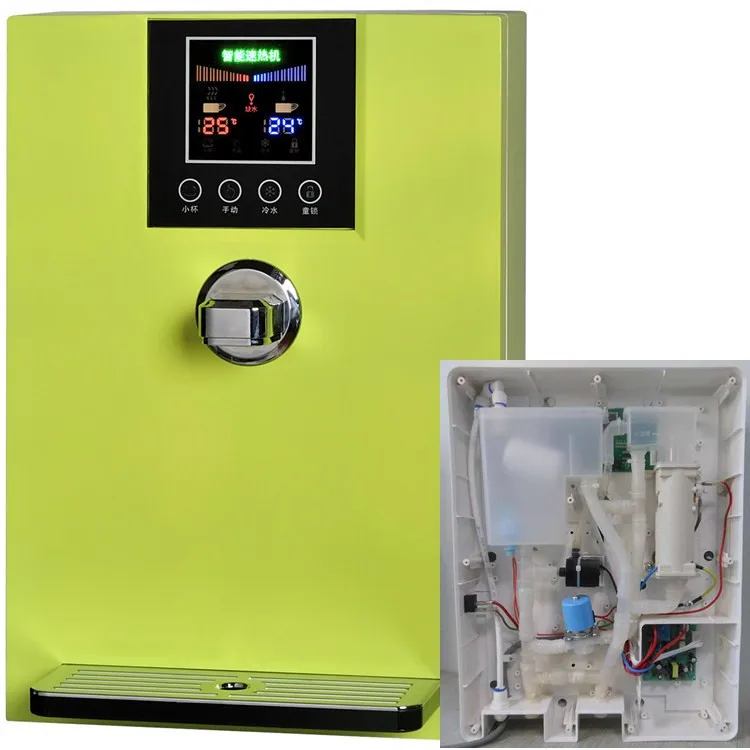

The most compact instant type heating element is the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.


Some of our Thick Film Electric Heating Tubes are individual customer solutions which are designed to match our customers' individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
