Handheld PDA Android 11 IP68 Barcode Scanner Inventory Machine PDA 1D/2D/QR Scanner Date Collector 4G WiFi Blue tooth NFC PDAs
- Category: PDAs >>>
- Supplier: Guangzhou,Hongma,Electronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
2022 New Arrival and Unique Android 11 IP68 8-Core 2.0GHz PDA, Fast Buy Earily Get!!!!
OEM&ODM is Welcomed for your Special Requirement and Application scenarios!!!
Highlights:
1. Newland Scanning Head,More Accurate and Faster,Not Afraid of Shabby Code & Smudge Code
OEM&ODM is Welcomed for your Special Requirement and Application scenarios!!!
Highlights:
1. Newland Scanning Head,More Accurate and Faster,Not Afraid of Shabby Code & Smudge Code
2. Octa-core 2.0GHz High-end Chip,Android 11 OS, High-performance Configuration for Ultimate Productivity, Easy to Run Complex Applications
3. IP68,Led the Industry,1.8 Meters Anti-drop at Any Angle,1.5m Water Depth,Soak for More Than 30 Minutes
4. Enterprise Keyboard Layout,Standard QWETY Keyboard, Follows Computer Habitual Layout,Easy to USE

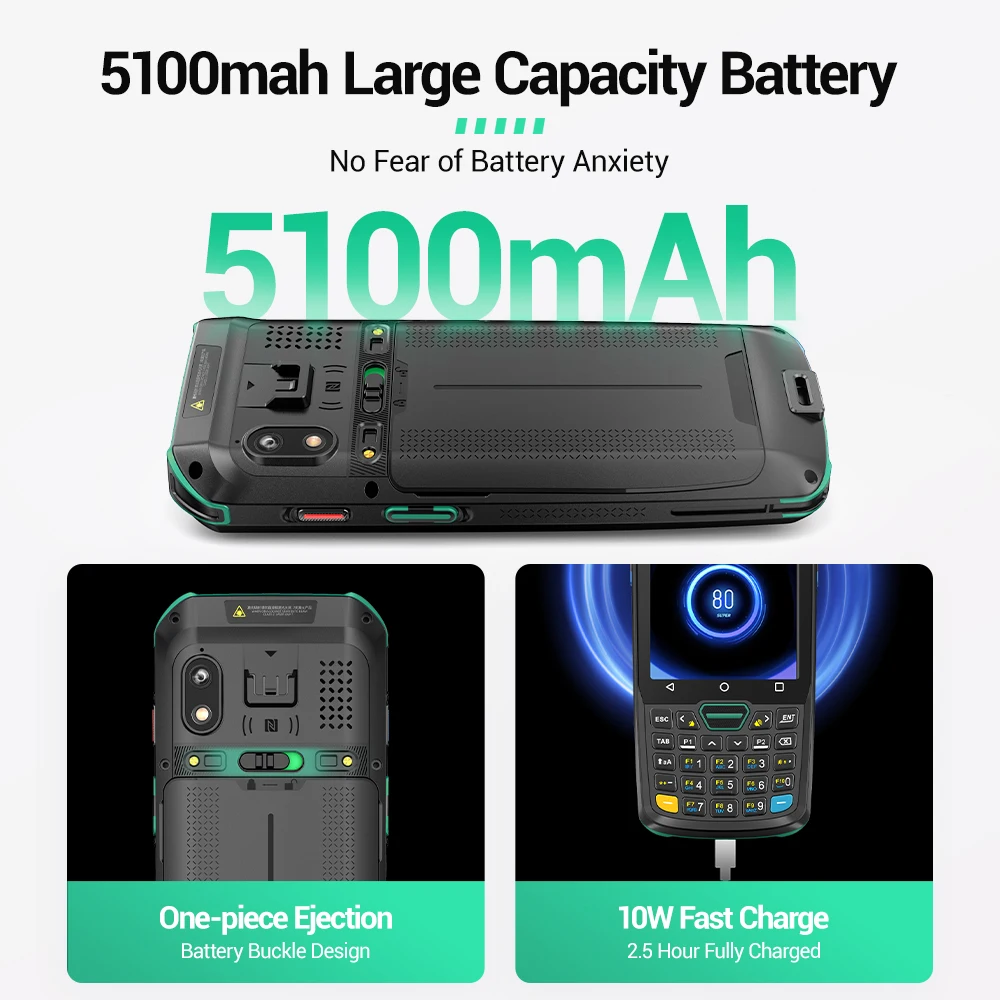

5. 5100mah Large Capacity Battery,One-piece Ejection - Battery Buckle Design;10W Fast Charge - 2.5 Hour Fully Charged

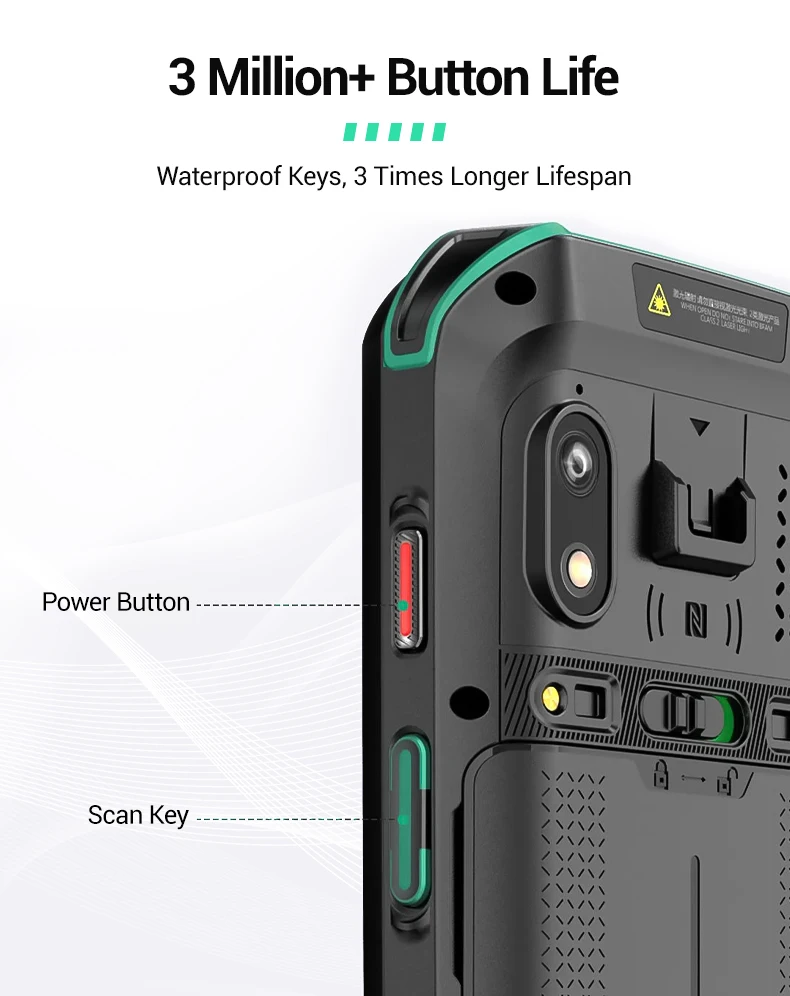

6. 3 Million+ Button Life,Waterproof Keys, 3 Times Longer Lifespan

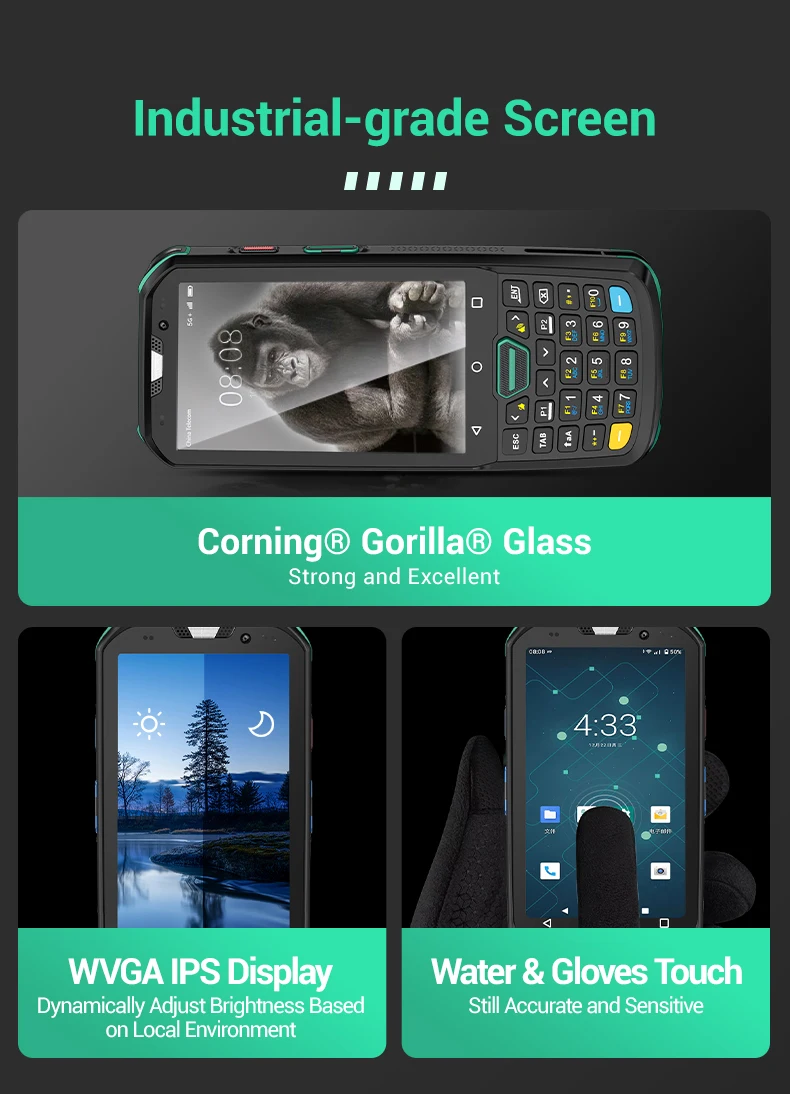

7. Corning®Gorilla® Glass,WVGA IPS Display Dynamically Adjust Brightness Based on Local Environment,Support Water & Gloves Touch Mode
8. 1.5W HIFI,Innovative Superlinear Speaker,Loudness and Wide Range,Box Sound Chamber,Smart PA Stereo Amplifier System

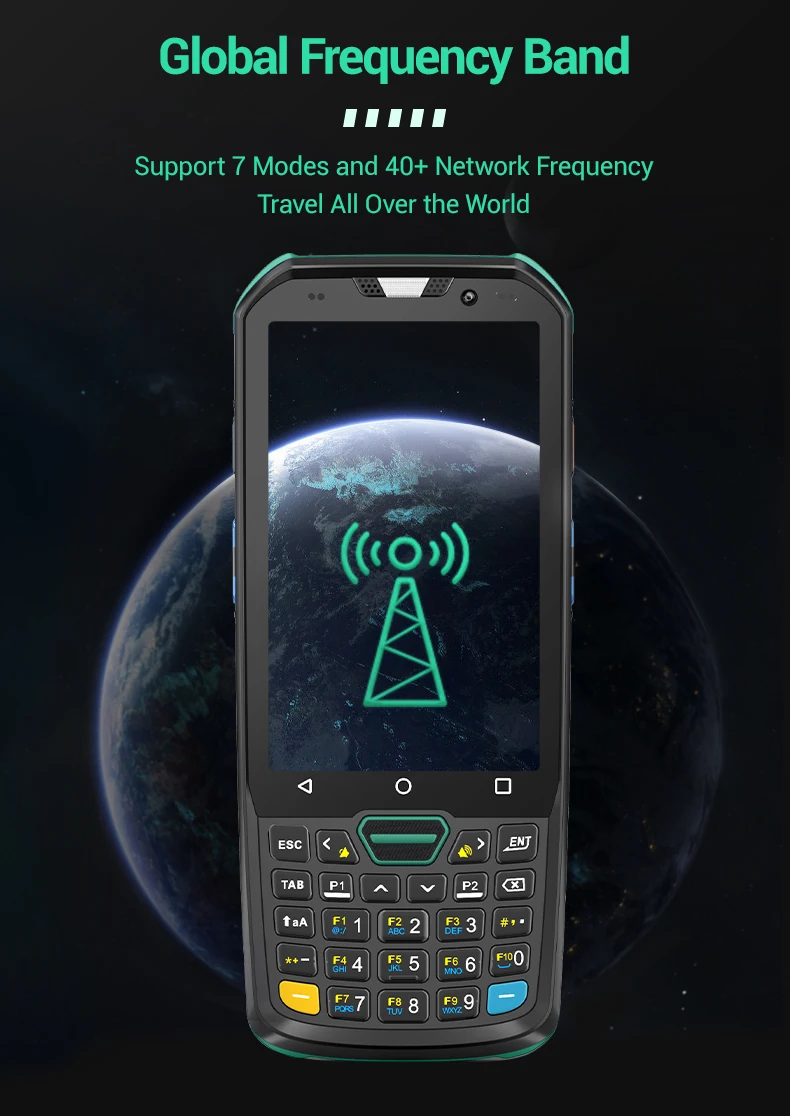

9. Support 7 Modes and 40+ Network Frequency, Travel All Over the World

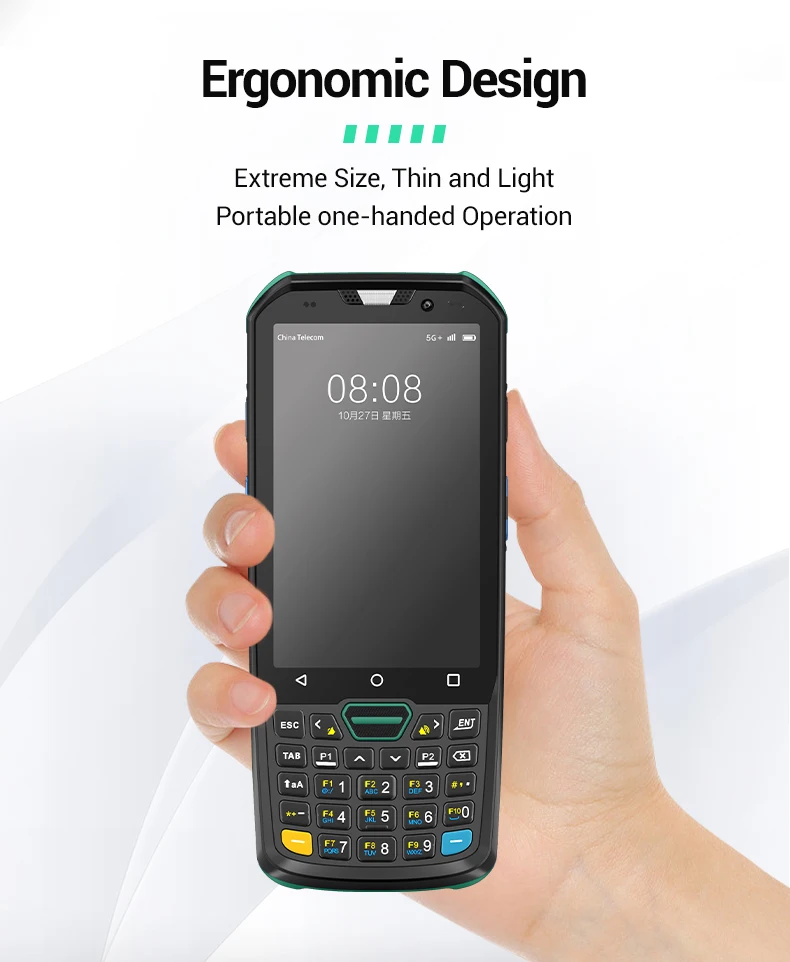

10. Ergonomic Design,Extreme Size, Thin and Light, Portable one-handed Operation

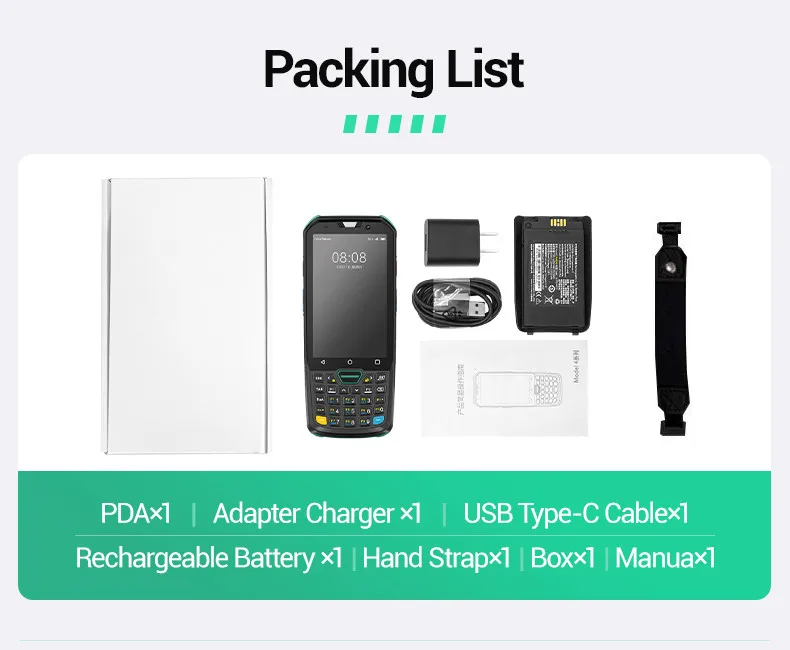

Packing List:
PDA×1
Packing List:
PDA×1
Adapter Charger ×1
USB Type-C cable ×1
Rechargeable Battery ×1
Hand Strap×1

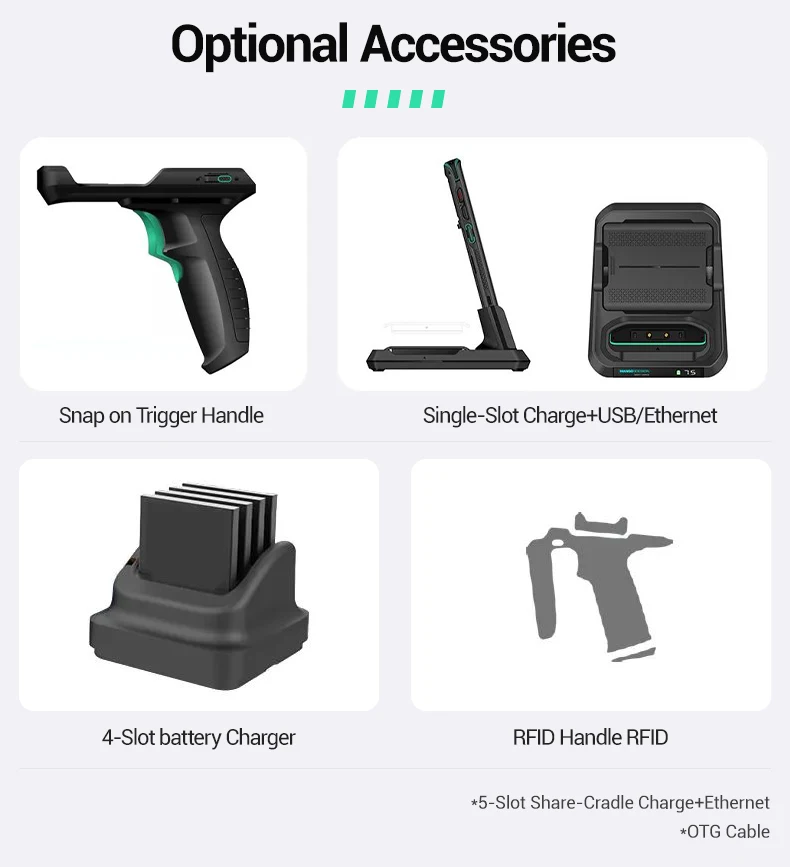

Optional Accessories:
Single-Slot Charge+USB/Ethernet
Optional Accessories:
Single-Slot Charge+USB/Ethernet
4-Slot battery Charger
RFID Handle
5-Slot Share-Cradle Charge+Ethernet
OTG Cable
Dimensions | 160.5(H)×67(W)×17(T)mm 6.3(H)×2.6(W)×0.67(T)inch |
Weight | 8.57 oz./243 g（Batteries required） |
Display | 4.0 in. 800(H)×480(W) WVGA industrial-grade IPS display |
Imager Window | Corning® Gorilla® Glass |
Touch Panel | Corning® Gorilla® Glass Capacitive touch panel,Support Water&Gloves Touch Mode |
Backlight | 450 NITS, LED |
Power | Removable & Rechargeable 3.85V 5100mAh Li-ion batter |
Expansion Slot | Micro SD Card slot, 256GB |
Expansion Ports | 2 Pin Rear connection：Trigger key signal 4 Pin Bottom connection：Charging port 5V/3A,Support USB communication and OTG mode |
SIM Slots | 2x Nano SIM |
Notifications | Audible tone; Multi-color LEDs; Vibration |
Network Connections | WWAN,Wi-Fi, Ethernet cradle |
Voice and Audio | 1.5W Speaker, Receiver,Dual Mic |
Keypad | 26 key Numeric with FN keys, Supports on-screen keypad |
Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C) |
CPU | Octa-core, 2.0GHz |
Operating System | Android 11.0 |
RAM | Standard 2G Optional 3/4GB LPDDR3 |
Flash | Standard 16G Optional 32/64GB eMMC 5.1 |
Sensor | Proximity Sensor、Light Sensor、Accelerometer、 Magnetometer、Gyroscope |
Scanning | Newland CM60 |
Camera | Rear 5 MP auto focus; f/2.2 aperture; Flash LED,Support torch mode |

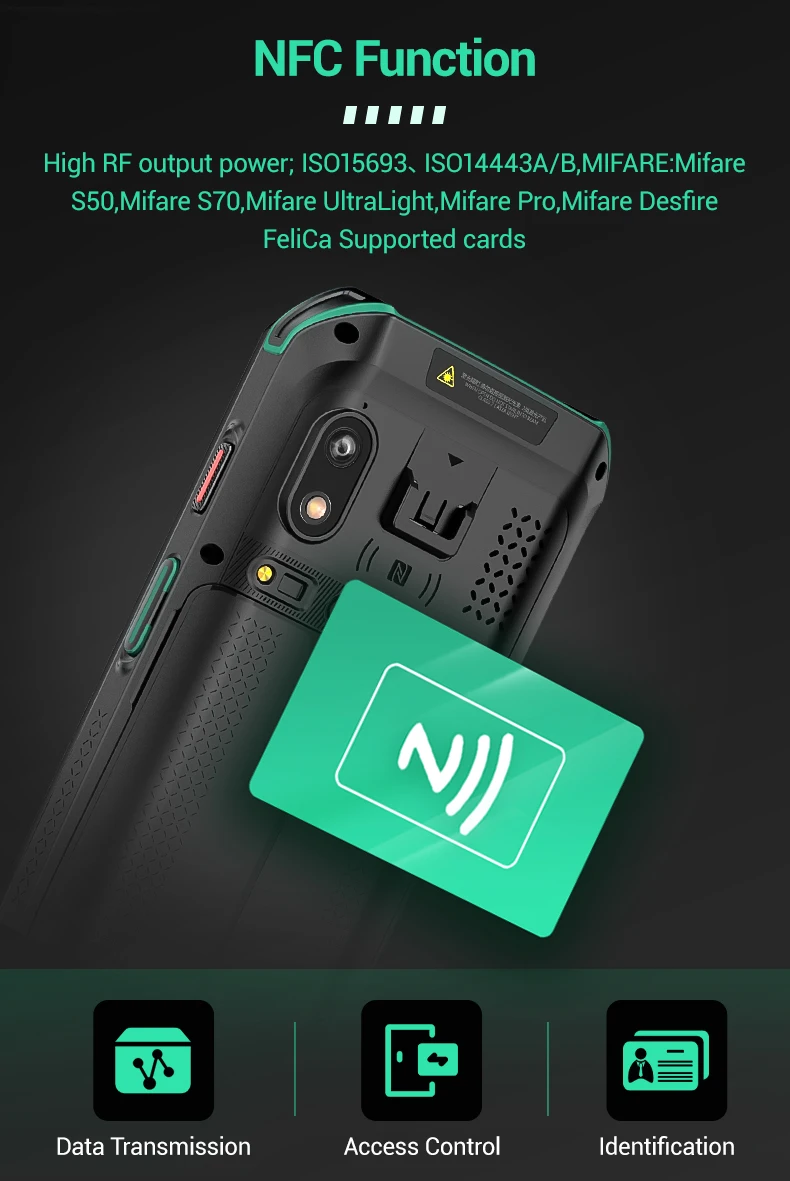

NFC | High RF output power; ISO15693、ISO14443A/B、MIFARE：Mifare S50,Mifare S70,Mifare UltraLight,Mifare Pro,Mifare Desfire 、 FeliCa Supported cards |
WAN Radio Frequency | TDD-LTE(B34/B38/B39/B40/B41) FDD-LTE(B1/B2/B3/B4/B5/ B7/B8/B12/B13/B17/B19/B20/B25/B26/B28A/B28B/B30 /B66) WCDMA(B1/B2/B4/B5/B6/B8/B19) TD-SCDMA(B34/B39) CDMA2000 1x EV-DO Rev.A BC0 (800MHz) CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900) |
Data Rate | GPRS：DL / UL171.2kbps EDGE：DL / UL384 kbps CDMA1x: DL 153.6kbps/ UL 153.6kbps EVDO: DL 3.1 Mbps / UL 1.8 Mbps DC-HSPA+: DL 42.2Mbps / UL 11.5 Mbps LTE：DL 150 Mbps (CAT4) / UL 75 Mbps（CAT5) |
Positioning System | GPS L1 with A-GPS: Glonass; BeiDou; Galileo |
Radio | IEEE 802.11 ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G Dual band WIFI） |
Data Rates | 5 GHz: 802.11a/n/ac — up to 433 Mbps 2.4 GHz: 802.11b/g/n — up to 200 Mbps |
Operating Channels | CH1-CH13,CH36-CH165 |
Security and Encryption | WEP,WPA/WPA2-PSK,WAPI,WAPI-PSK EAP: EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,PEAP-TLS, PEAP-GTC,PWD,SIM,AKA |
Fast Roam | Supports 802.11r Fast Roam |
BT | BT 4.1 ,BT Low Energy (BLE);secondary BT BLE beacon for finding lost (powered off) devices |
Communication Distance | >10m |
Operating Temp | -20℃ to +60℃ |
Humidity | 5% to 95% non-condensing |
Sealing | IP68 |
Drop Specification | 1.8m(Concrete Surface) |
Tumble Specification | 500 round 1.0 meter tumbles（1000 times impact） |
Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge |
Standard Accessories | Adapter Charger ×1、USB Type-C cable ×1、 Rechargeable Battery ×1、Hand Strap×1 |
Optional Accessories | 4-Slot battery Charger、Single-Slot Charge+USB/Ethernet、 5-Slot Share-Cradle Charge+Ethernet、Snap on Trigger Handle、 OTG Cable |
