Оборудование для изготовления и нагревания, вакуумный гомогенизатор, эмульгатор, косметическая машина для смешивания крема
- Category: Cosmetics Production Equipment >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (62229196807):
Product Overview
Description
Product Description

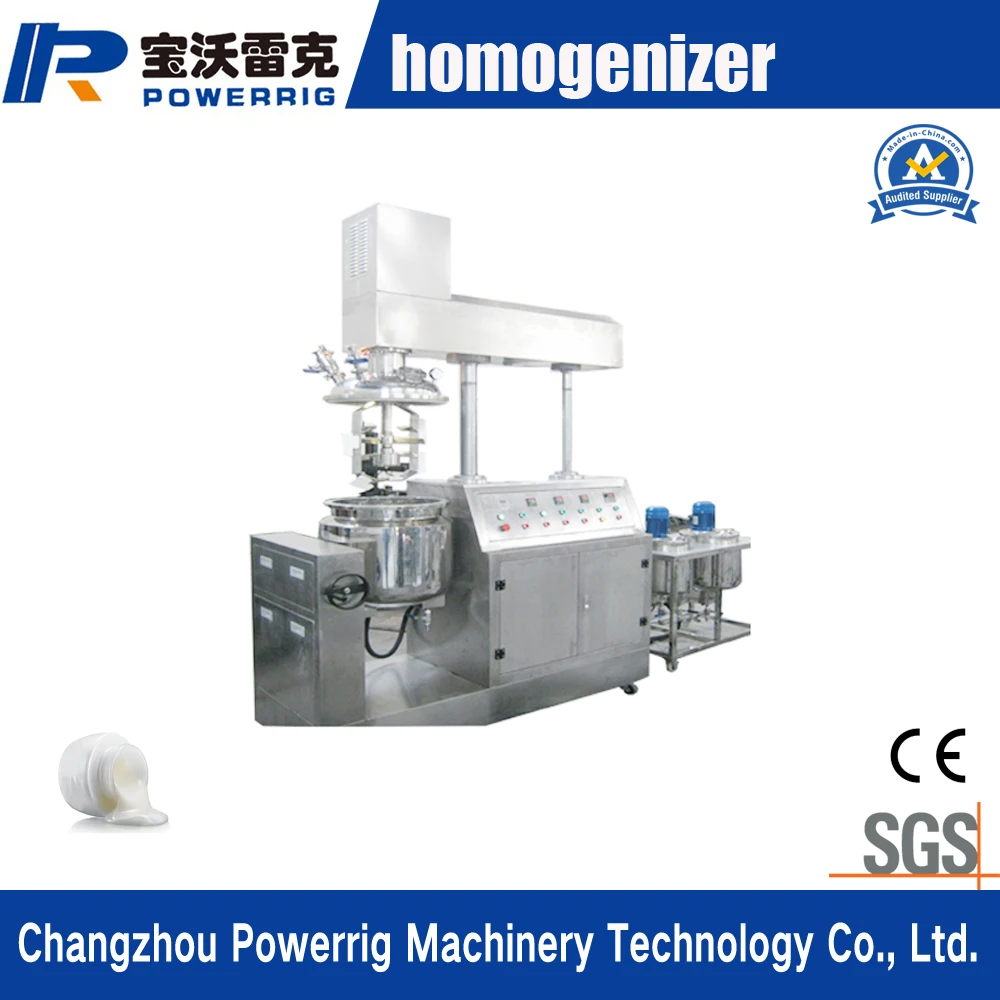

High shear lifting vacuum homogenizer emulsifier cosmetic cream mixer making machine
This MIC machine 100L vacuum emulsifying homogenizer and mixer for cosmetic is widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry and also it is applicable for filling liquid, especially for high viscosity material and foamy liquid, such as: Cream, Sauce, Wax, Hair dye, Jelly, Hair remover, Ketchup, Honey, Cheese, Shampoo, Facial lotion, Lubricant oil, Ink, dairy. etc.It is the most suitable equipment to produce high-grade skin care creams and other products.
100Lemulsifier homogenizer consists of
· homogeneous emulsifying machine
· heating system (electric or steam)
· mixing system
· vacuum system
· lifting system (electric or hydraulic)
· operation control cabinet
· piping system
· oil tank and water tank
· Siemens touch screen optional
Body Material
Inner walll: stainless steel 316
Outlayer: stainless steel 304
Both inner and outer are polished and handled by special light treatment.
Pot Capacity:100L
Main Features
1) Heating system: steam heating device attaching at the bottom. Heating with temperature display, easy to control.
2) Electric lifting: (voltage 220V, power 120W) Lifting is easy to operate, so the material can be effectively emulsified in a closed condition.
3) Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together, clear at a glance.
4) Homogenizing system: (voltage 380V, power 15KW, 2800r/min)
5) Mixing system: (voltage 380V, power 5.5KW, 10-120 r / min) Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.
Parameter | ||||||
Weight | 800kg | Dimension | 1650*600*1700-2300mm | |||
Power | 0.75KW(110v) | Motor Speed | 2800R/Min | |||
Particle size | 0.2-0.6um | Uncapping | Electric/Hydraulic lifting | |||
Heating | Electric Heating | Discharge | Tilt Pot &Bottom Valve Discharge | |||
Working Pressure | -0.09Mpa | Stirring | Fixed Paddle Stirring and PE Blade Scraping | |||
INTRODUCTION
Detailed images
Touch screen control pannel
It is used to control the machine. Adopting the world famous brand Siemens from Japan. Full function for operatng and also the Keyboard of this type of touch screen is concise and sensitive.

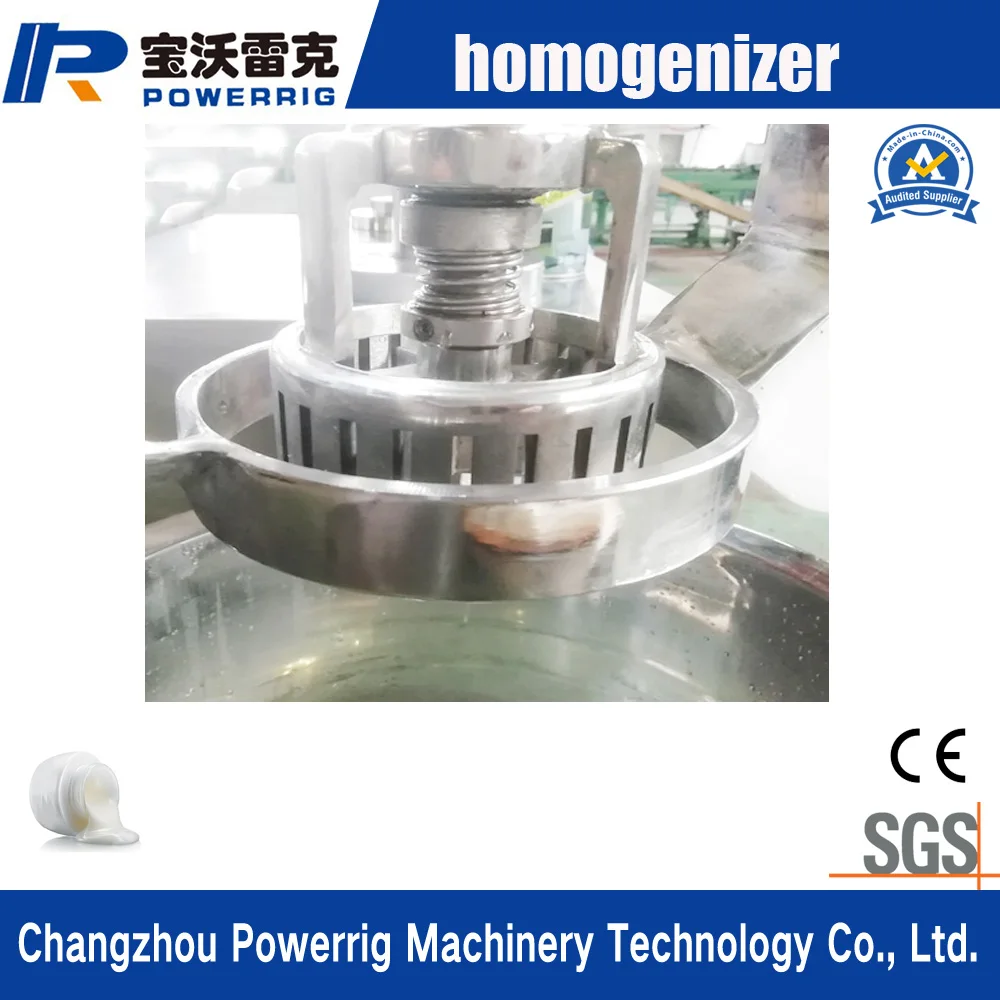

Emulsification Head
The emulsification head rotates at high speed to emulsify the material. So the material will become more small and exquisite.

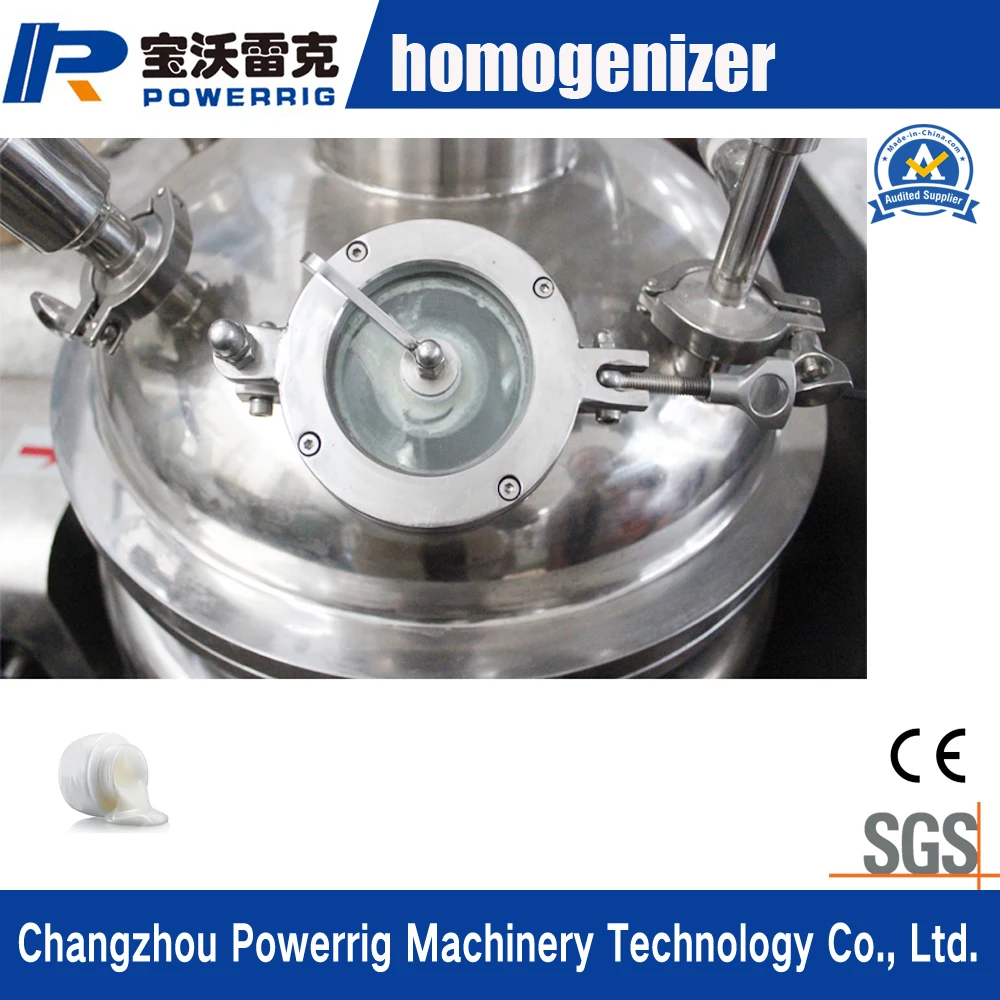

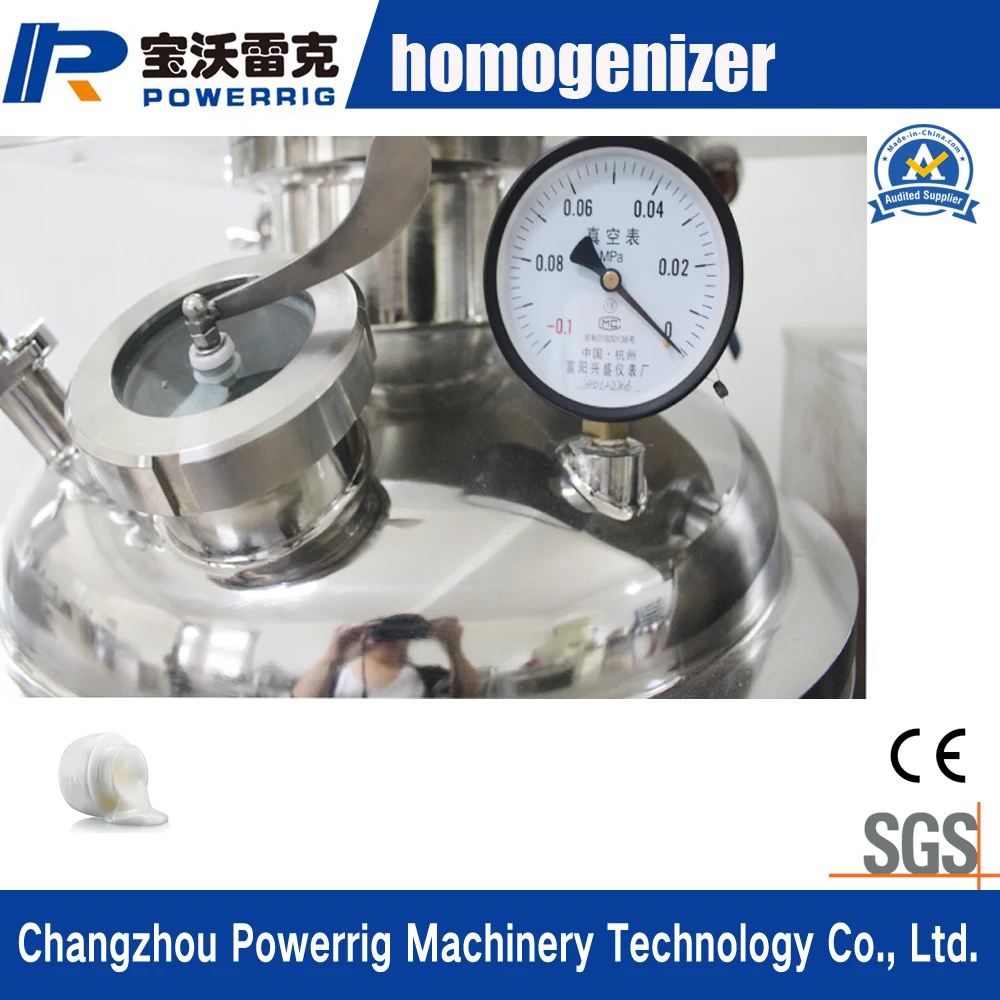

Vacuum Gauge and Material Checking Hole
see and check the material effect through the glass.
Vacuum gauge is used for measuring and controllig the vacuum degree of vacuum system
Stirring Paddle
Materila: SUS316 stirring paddle
Feature: With large range of stirring and also with high efficiency, stirring and scrapping is even so will not have the phenomenon of contaminated wall.
Our Service
Pre-sale service
2. Sample testing support
3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running
3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running
After-sales Service
1. Sample service
2. Installation of service
2. Engineers available to service machinery overseas
3.Show you the video of the running machine.
4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
5. One year warrant.
Our company
Changzhou Powerrig Machinery Technology Co., Ltd. is a professional manufacturer of filling and sealing machine, vacuum emulsifying machine, planetary mixer and a series of well-known professional facturers.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including soft tube filling sealing machine, aluminum tube filling sealing machine, homogenizer mixer, dryers, water chiller, bottle filling and capping machine and so on.Due to our good credit and service, we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines.
In Powerrig machinery you can get your desired goods with the best price and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
Packaging and shipping
1. Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2. After inspection, our machines are wrapped by plastic film and then carefully packed in wooden cases.
3. Sea transportation can be provided by us.
FAQ
Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.
Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold, we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:Payment
A:T/T,30% deposit and 70% balance before delivery
