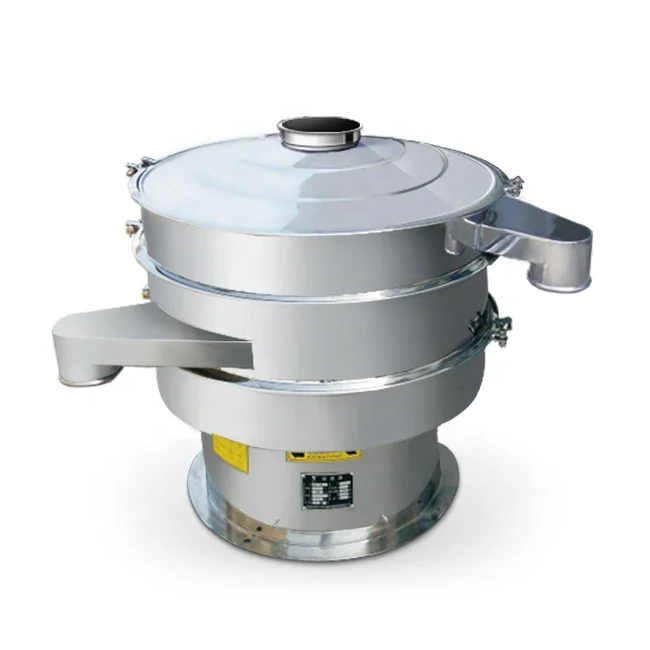

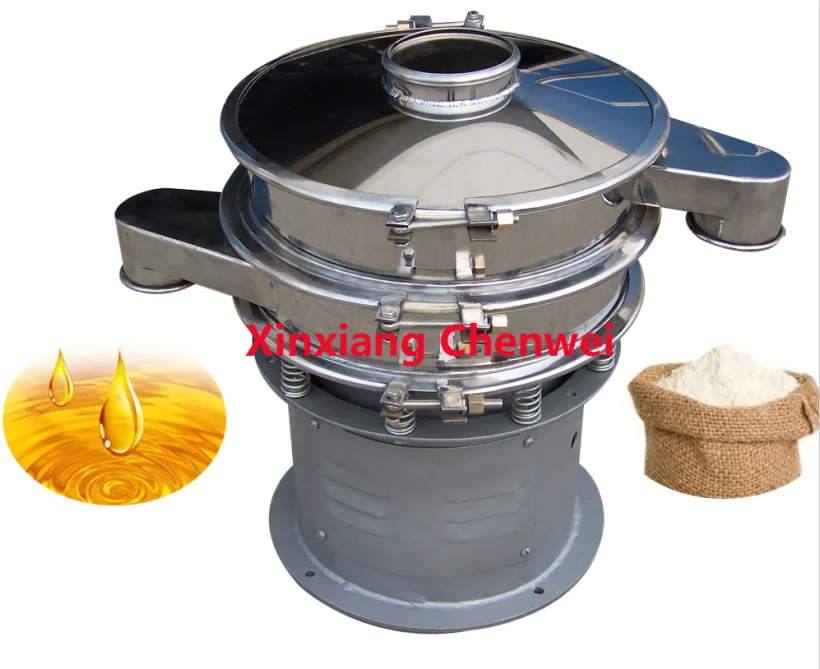

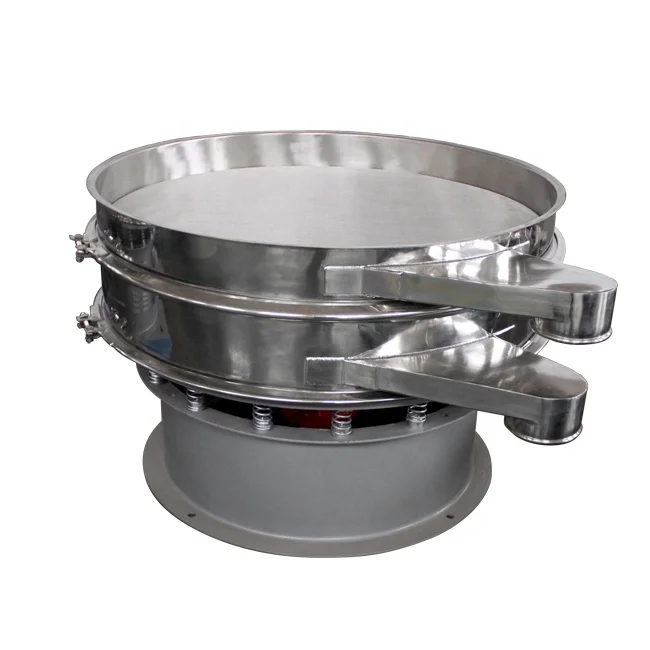

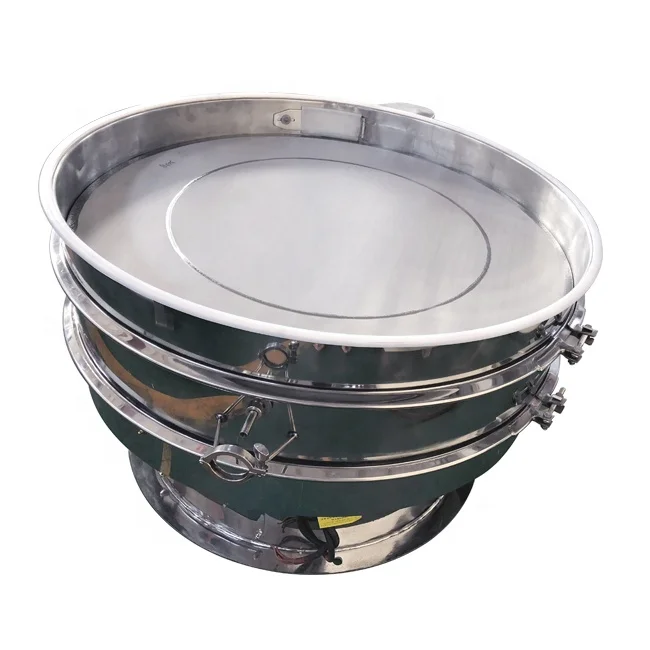

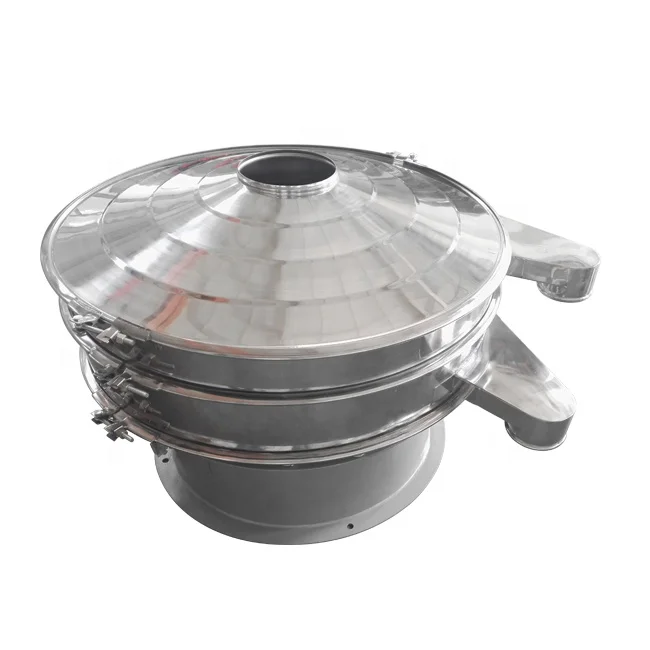

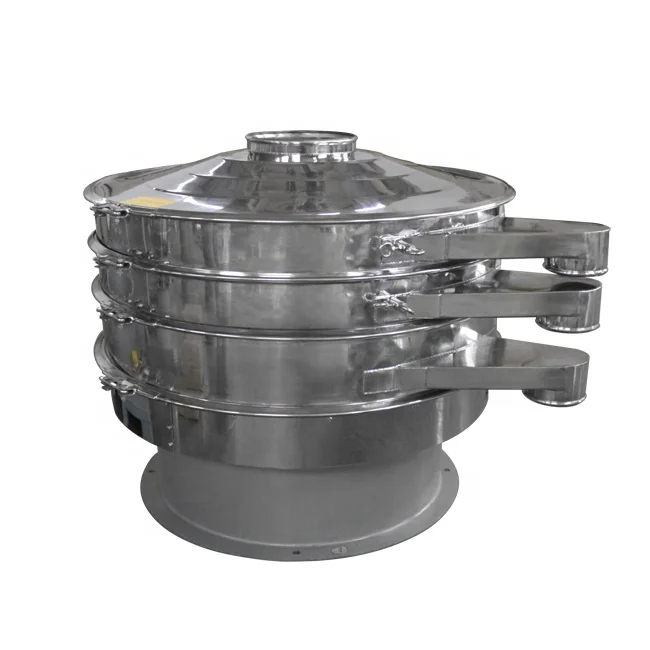

China xinxiang Widely Used Vibro Sieving Machine/vibro Sifter/vibrating Screen For Pharmaceutical Industry

S49 -B Vibrating Sifter is a kind of mature technology,general and tend to be standardized classic inertia screening equipment.It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation.High screening efficiency,it adopts whole sealing structure design which can avoid polluting effectively.The direction of outlet port can be changed within 360 degrees.

working principle

 When the machine begins running,the operation of the vibrating motor generates exciting force,then under the power of exciting force,the machine body do compound movement,last,the materials on the sieve mesh do jumping movement with the machine body.

Technical Parameter

Model	Diameter(mm)	Deck	Mesh size (mesh)	Max particle size(mm)	Power(kw)
S494-B	∅400	1-4	∅380	3-500	0.25
S496-B	∅600	1-4	∅600	3-500	0.6
S498-B	∅800	1-4	∅750	3-500	0.6
S4910-B	∅1000	1-5	∅900	3-500	0.8
S4912-B	∅1200	1-5	∅1100	3-500	1.5
S4915-B	∅1500	1-4	∅1450	3-500	2.2
S4918-B	∅1800	1-3	∅1750	3-500	2.5
S4920-B	∅2000	1-3	∅1950	3-500	2.5

Advantage characteristics

1.High efficiency,Design is exquisite and durable .
2.Easy to replace the net . Easy yo operate and easy cleaning it .
3.Mesh will not blocking , it can screening to 500 mesh or0.028mm.
4.Impurities coarse waste can put out automatically . Can continuous working .
5.Change mesh just need 3-5 mins .
6.Small volume and easy to operate .

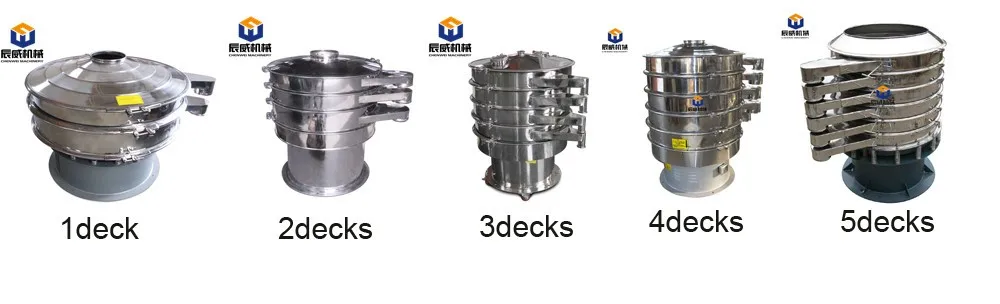

7.Sieve machine up to five layers, recommend the use of three layers.

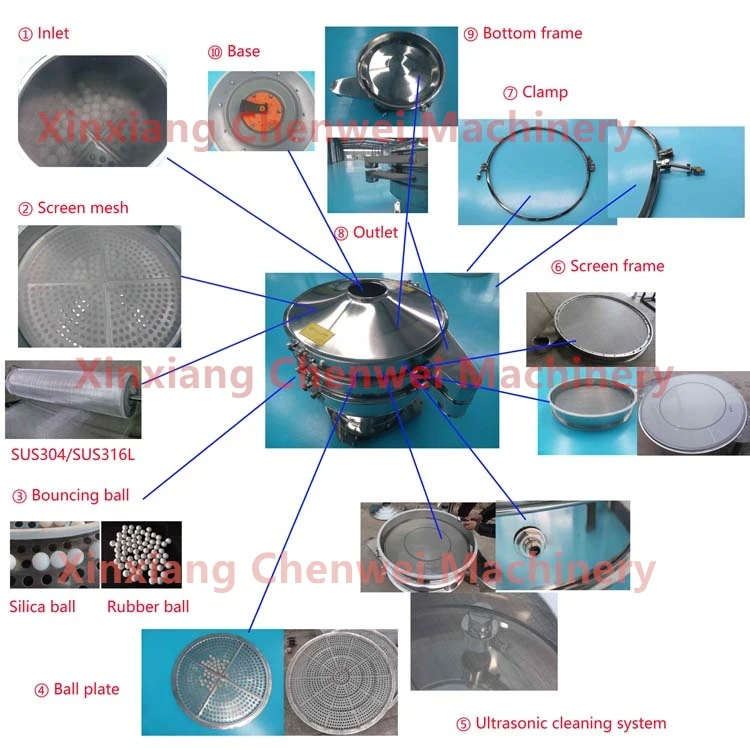

Detailed Images

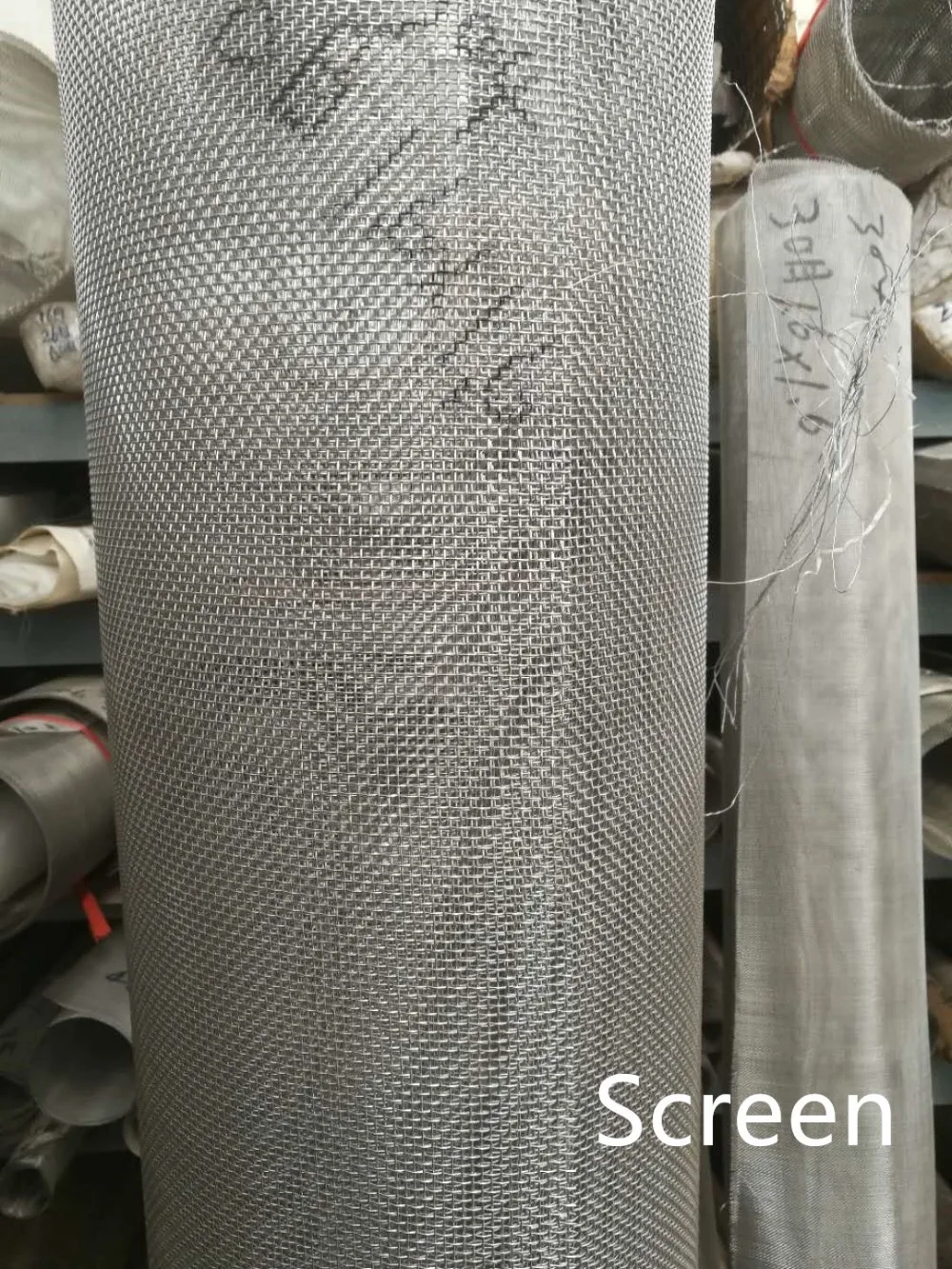

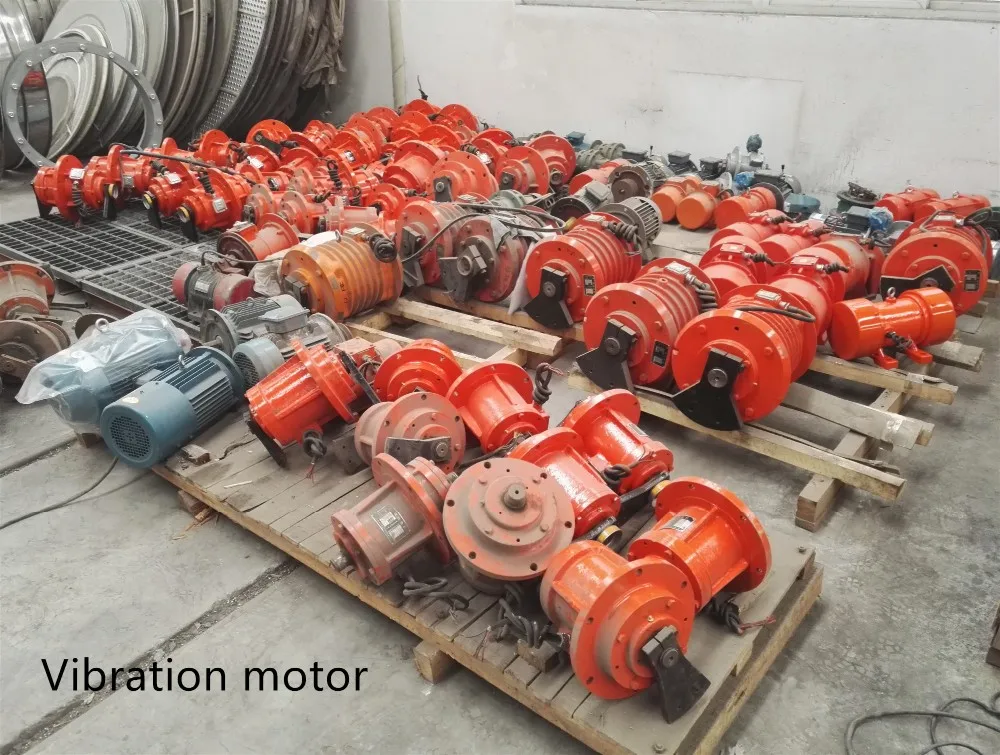

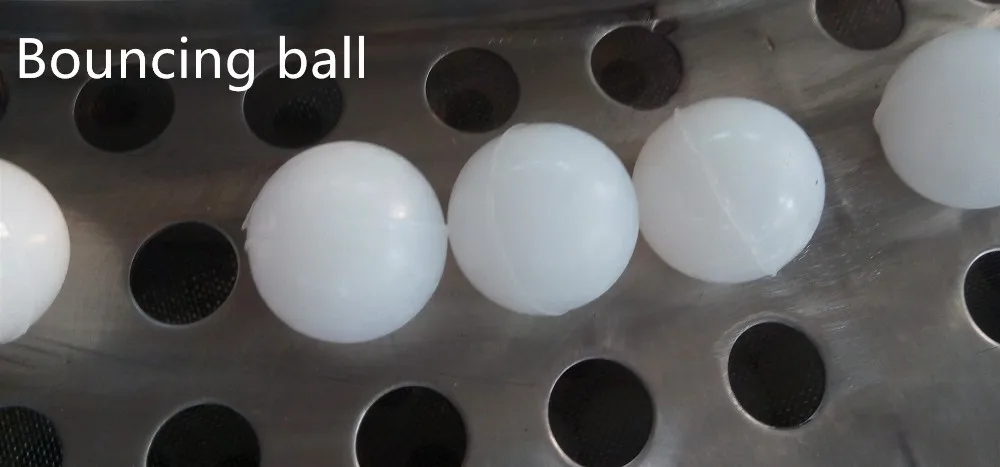

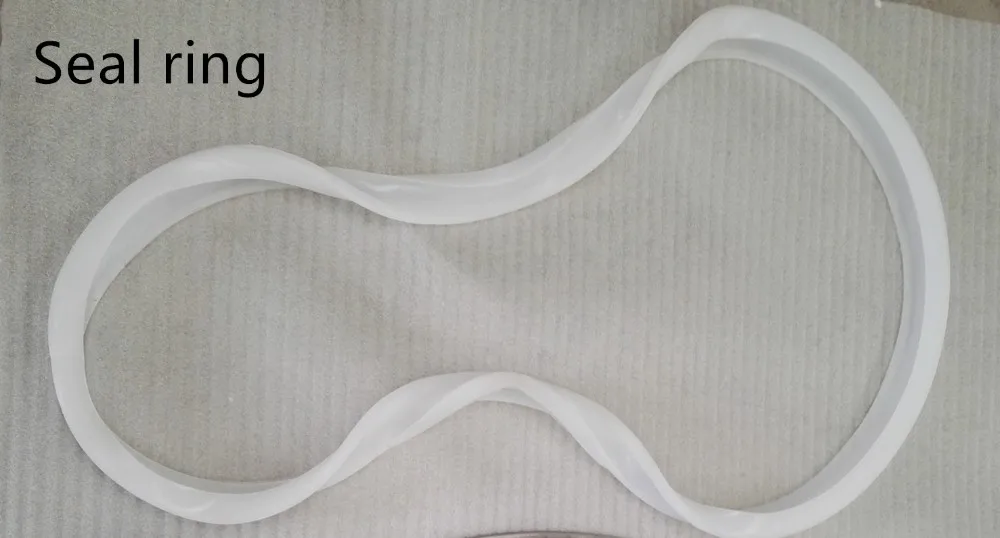

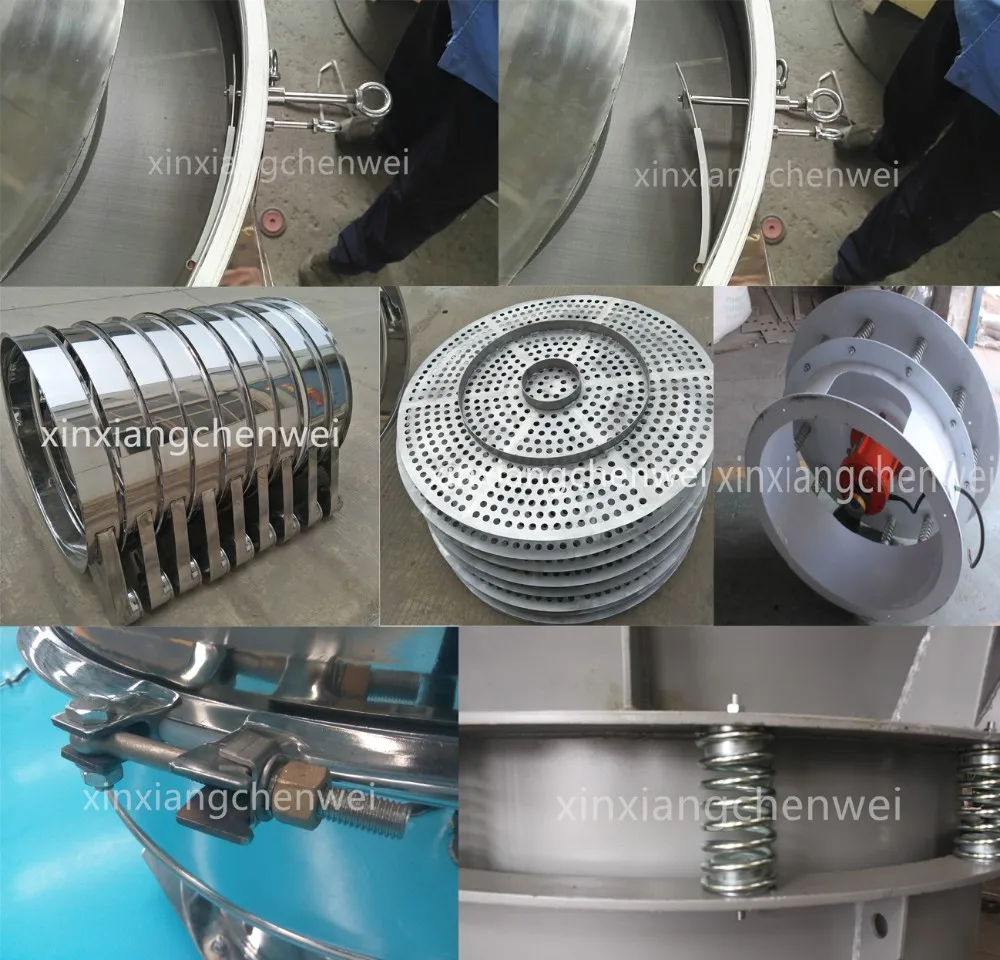

Spare parts

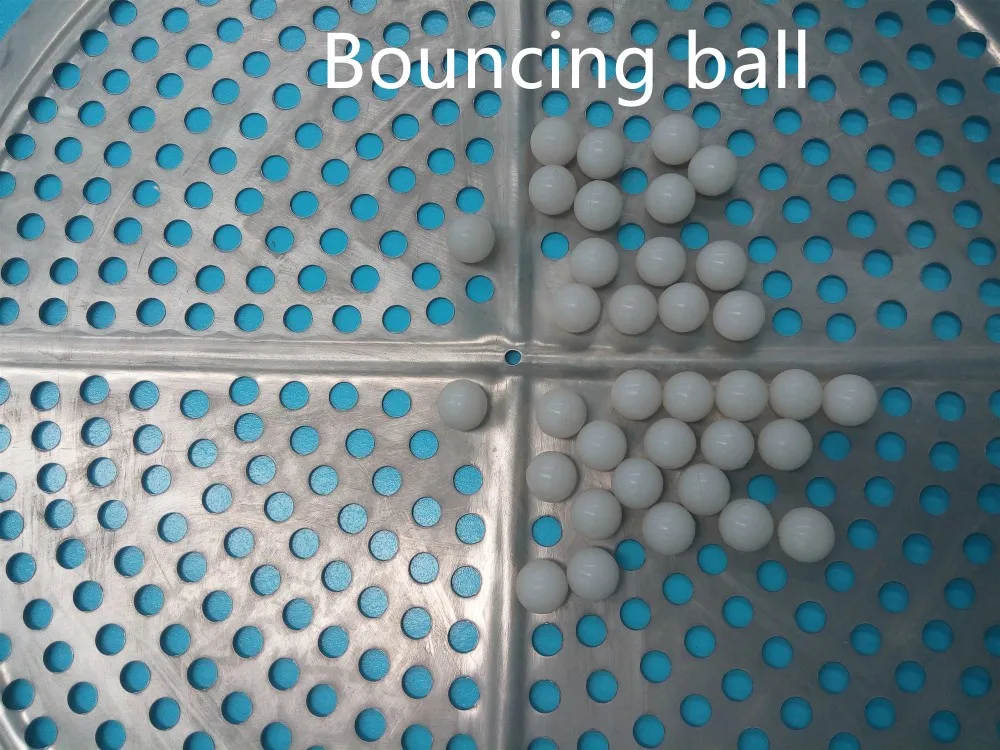

Cleaning device

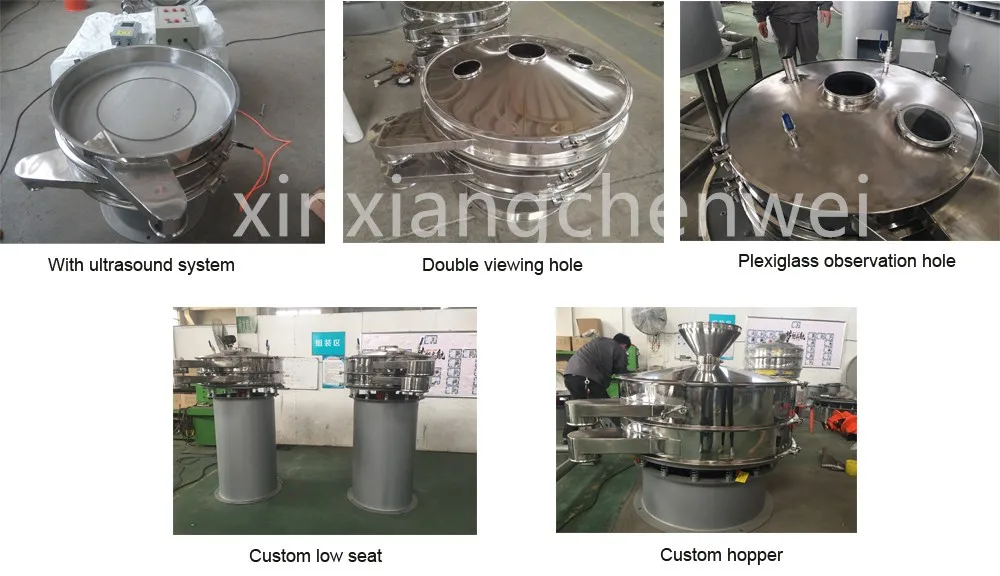

Customized design

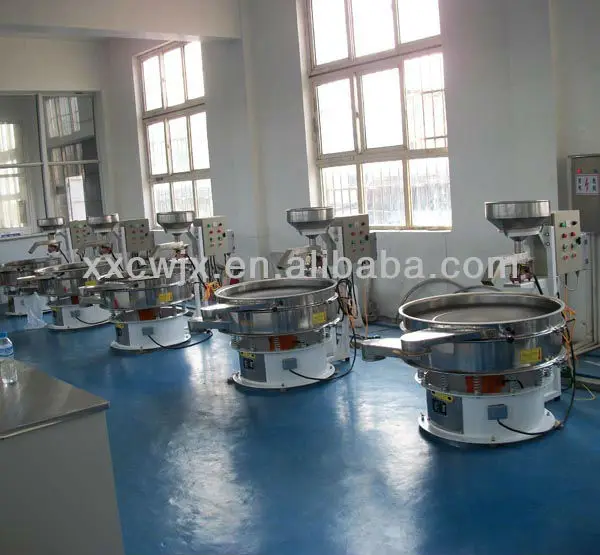

Production Flow

Our Company

Feedback

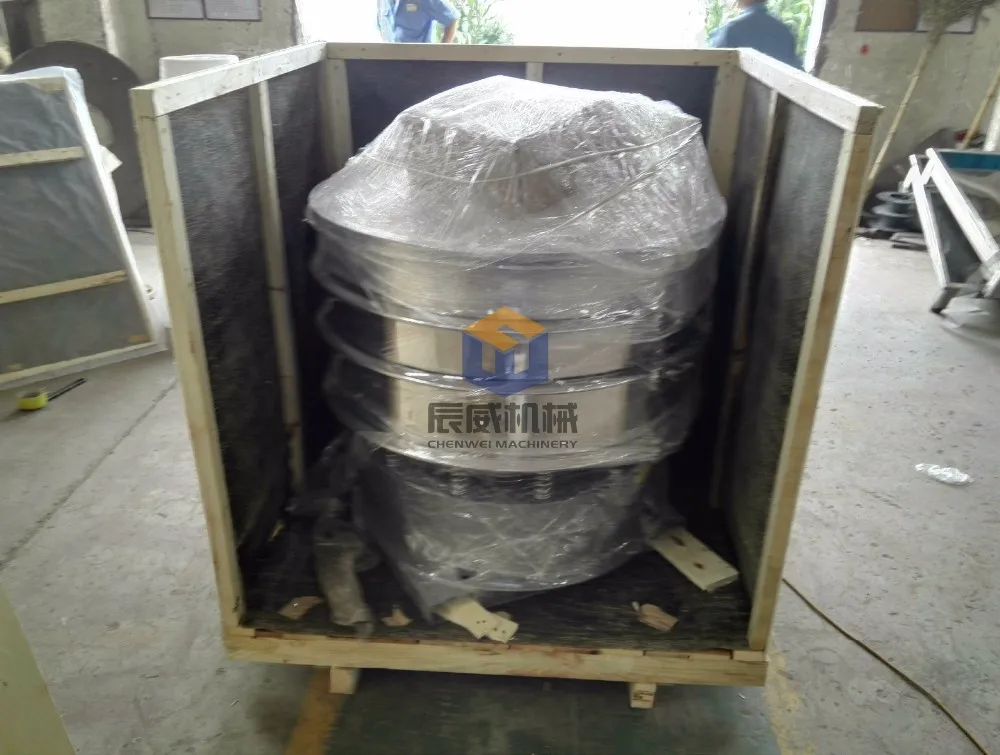

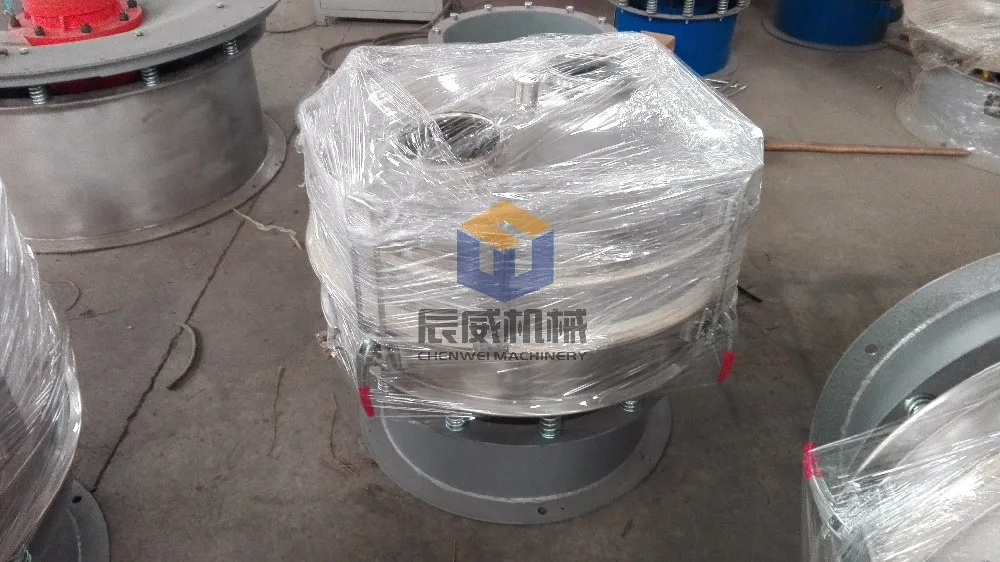

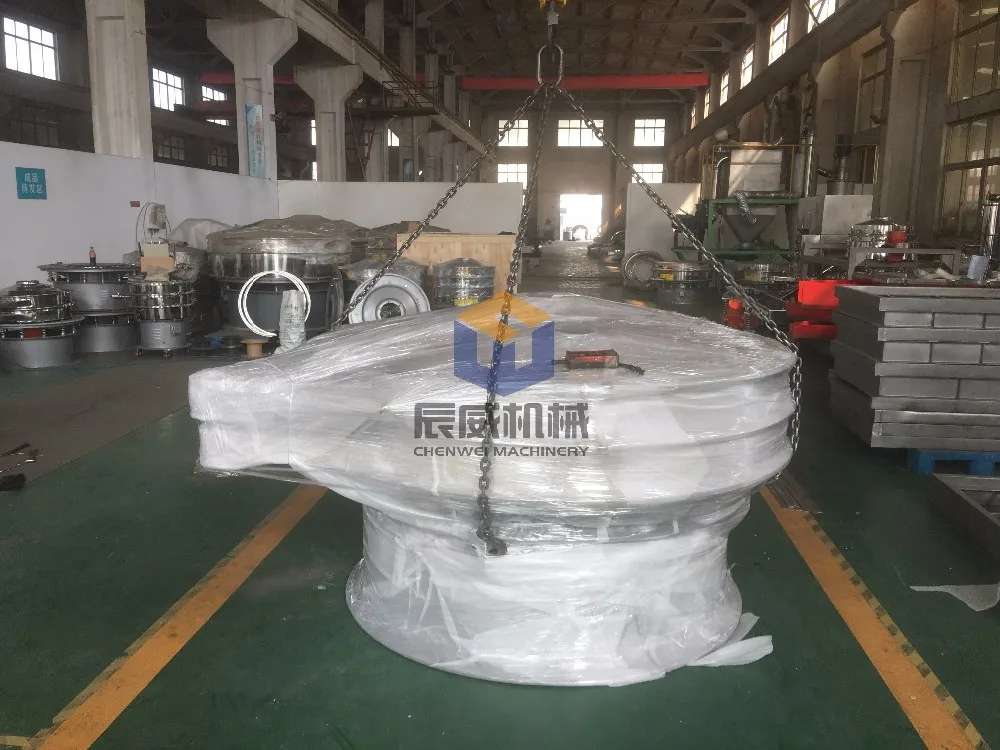

Packing & Delivery

Related Products

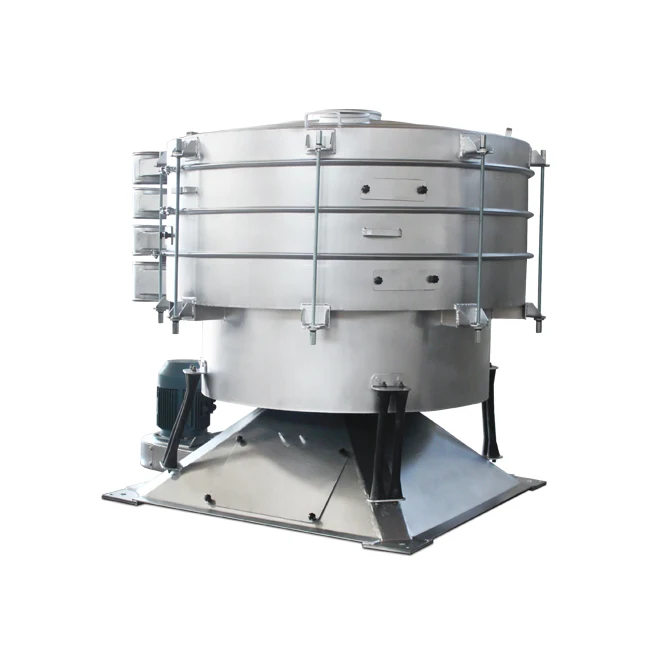

High screening accuracy food seasoning tumbler easy to change screen

Low noise centrifugal sifter have large capacity

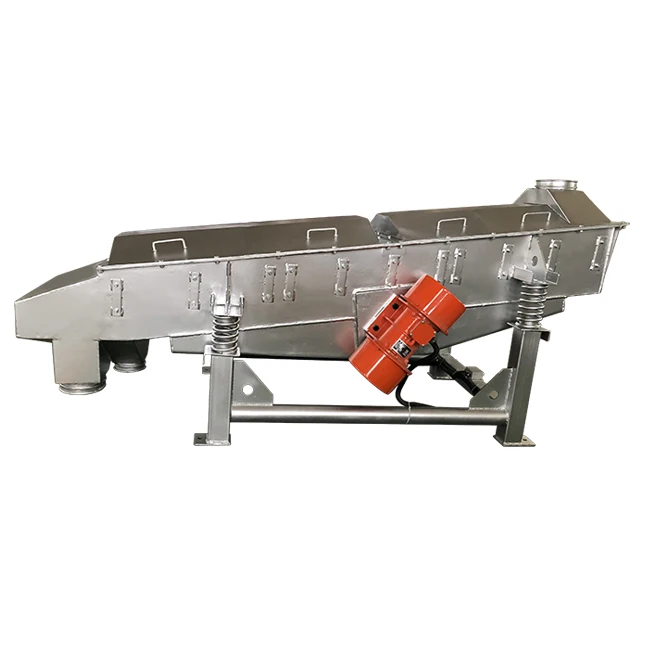

Customized according to the venue linear vibrating screen screener
