Handheld laser methane gas detector

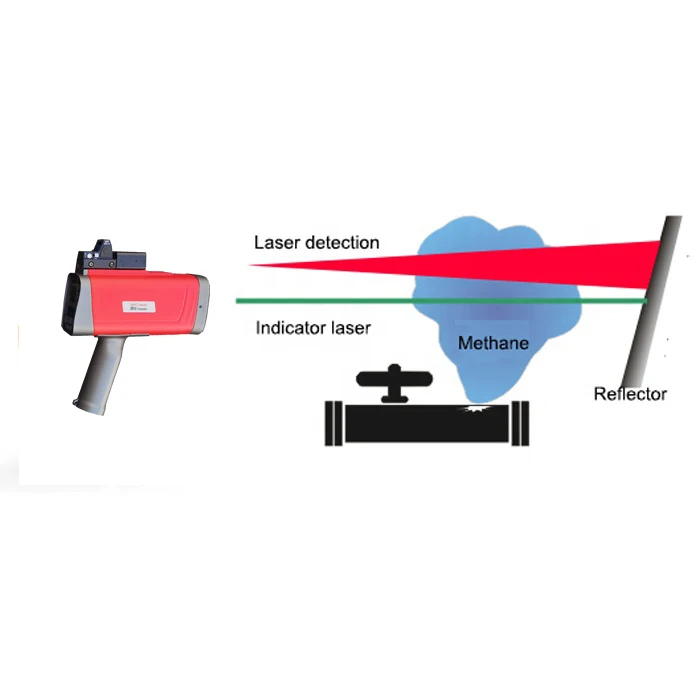

ARD3000 Handheld laser methane gas detector uses international advanced tunable diode laser absorption spectroscopy technology (TDLAS), which can detect methane gas within a certain distance. At the same time, through optimization design and independent research and development, the measurement distance and accuracy of the detector are greatly improved, which is the most powerful safety guarantee for gas inspection and leak detection. Unlike traditional portable detectors, this Remote Methane Leak Detector does not need to place the probe in a gas-filled environment. Instead, the device emits a laser beam. The laser passes through the pipe or the space above the facility and hits the object at the other end. Reflected back to the receiver, and then converted into electrical signals, these signals are used to analyze the concentration of methane, the unit is ppm.m. By using WMS technology, the ARD2000 Remote Methane Leak Detector can achieve extremely high detection accuracy. The light at this wavelength is only absorbed by methane, so it only reacts to methane and is not affected by other gases, which greatly improves the accuracy of detection. Using the Remote Methane Leak Detector, the operator does not need to be in a dangerous environment, which not only protects the safety of the inspector, but also can inspect the overhead pipeline from a long distance, which improves the inspection efficiency.
It has the characteristics of 200-meter detecting distance, high sensitivity, and long battery life. It can adapt to various gas leak detection occasions, especially the residents' kitchens, long-distance upright pipe detection, underground piping, compressor stations, offshore platforms and more.
It is a lightweight, compact, and portable device. By optimizing the optical design, both the volume and weight of the product and the detection distance are taken into consideration.
It is a lightweight, compact, and portable device. By optimizing the optical design, both the volume and weight of the product and the detection distance are taken into consideration.

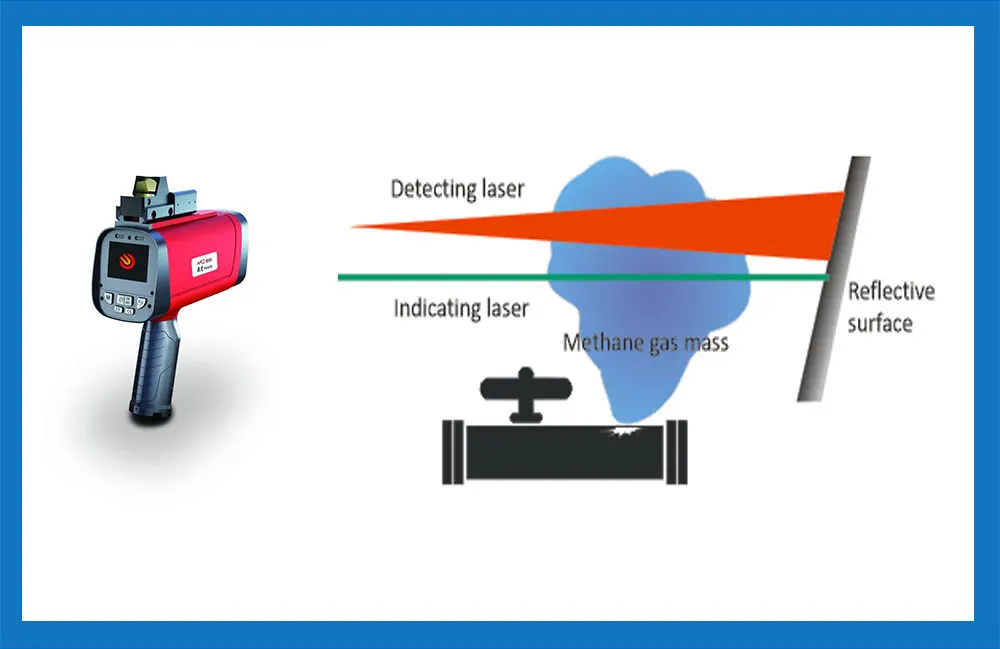

Working Principle
Unlike traditional portable detectors, this Handheld laser methane gas detector does not need to place the probe in a gas-filled environment. Instead, the device emits a laser beam. The laser passes through the pipe or the space above the facility and hits the object at the other end. Reflected back to the receiver, and then converted into electrical signals, these signals are used to analyze the concentration of methane, the unit is ppm﹒m. By using WMS technology, the ARD2000 Remote Methane Leak Detector can achieve extremely high detection accuracy. The light at this wavelength is only absorbed by methane, so it only reacts to methane and is not affected by other gases, which greatly improves the accuracy of detection. Using the Remote Methane Leak Detector, the operator does not need to be in a dangerous environment, which not only protects the safety of the inspector, but also can inspect the overhead pipeline from a long distance, which improves the inspection efficiency. The detection reading is the product of the concentration of the laser passing through the methane gas mass and the thickness of the gas mass in ppm﹒m.
Specification
Product Name | Handheld laser methane gas detector |
Detection Method: | Tunable Diode Laser Absorption Spectroscopy (TDLAS) |
Detection Gas: | Methane |
Measurement Method: | Laser Reflection |
Measurement Range: | 0 to 10000 ppm-m |
Detection Distance: | 200m |
Sensitivity: | 2.5 ppm.m |
Measurement Accuracy: | ±10% |
Response Time: | 0.05s |
Detector Laser: | Class I |
Spotter Laser: | Class III R |
Display Screen: | 2.3-inch high brightness LCD |
Aiming Method | Green spotter laser+ sight lens |
Battery | Rechargeable Lithium battery |
Battery Operating Life: | ＞12 hours |
Operating Temperature | -20° to +50° C |
Ranging Mode | Laser Real-time Ranging |
Protection Class | IP66 |
Weight: | 0.75kg |
Size: | 201mm×248mm×76mm |
Explosion Proof Classification | Exib IIA T4 Gb |
Inspection Software | IOS and Android, PC client end |
Application
1. What to do if there are too many pipelines and there are not enough inspection staff?
Efficient remote detecting, no need to go everywhere.
2. What should I do if the user is not at home and I cannot enter the house for security check?
Measuring height up to 30th floor.
3. What if the distance is too far to detect?
150 meters actual detection distance.
4. What to do if a small leak is difficult to detect with similar equipment?
2.5ppm·m minimum air mass concentration detection.
