Price:$12,300.00 - $13,200.00

Quantity:


Product Overview

Description


Product Description

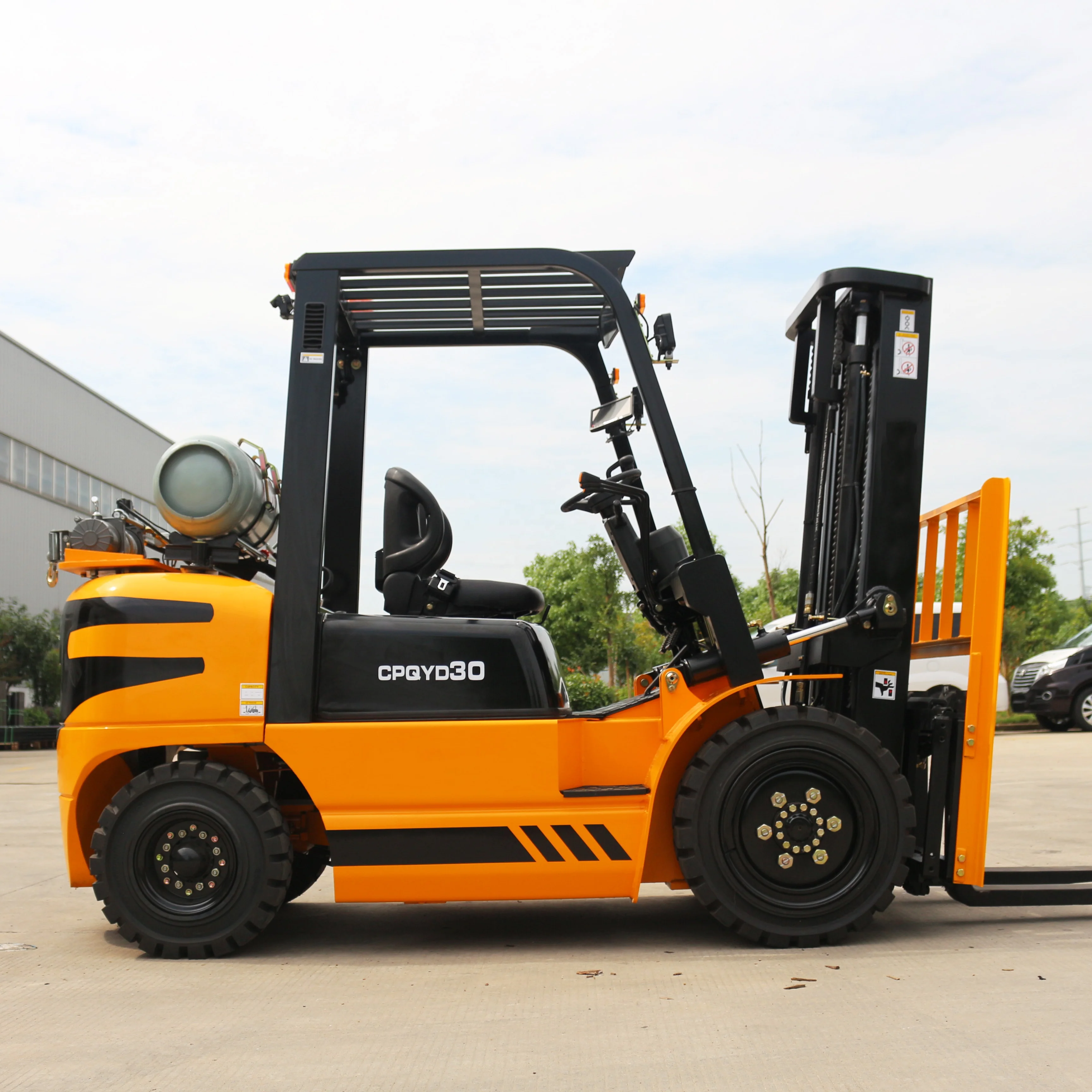

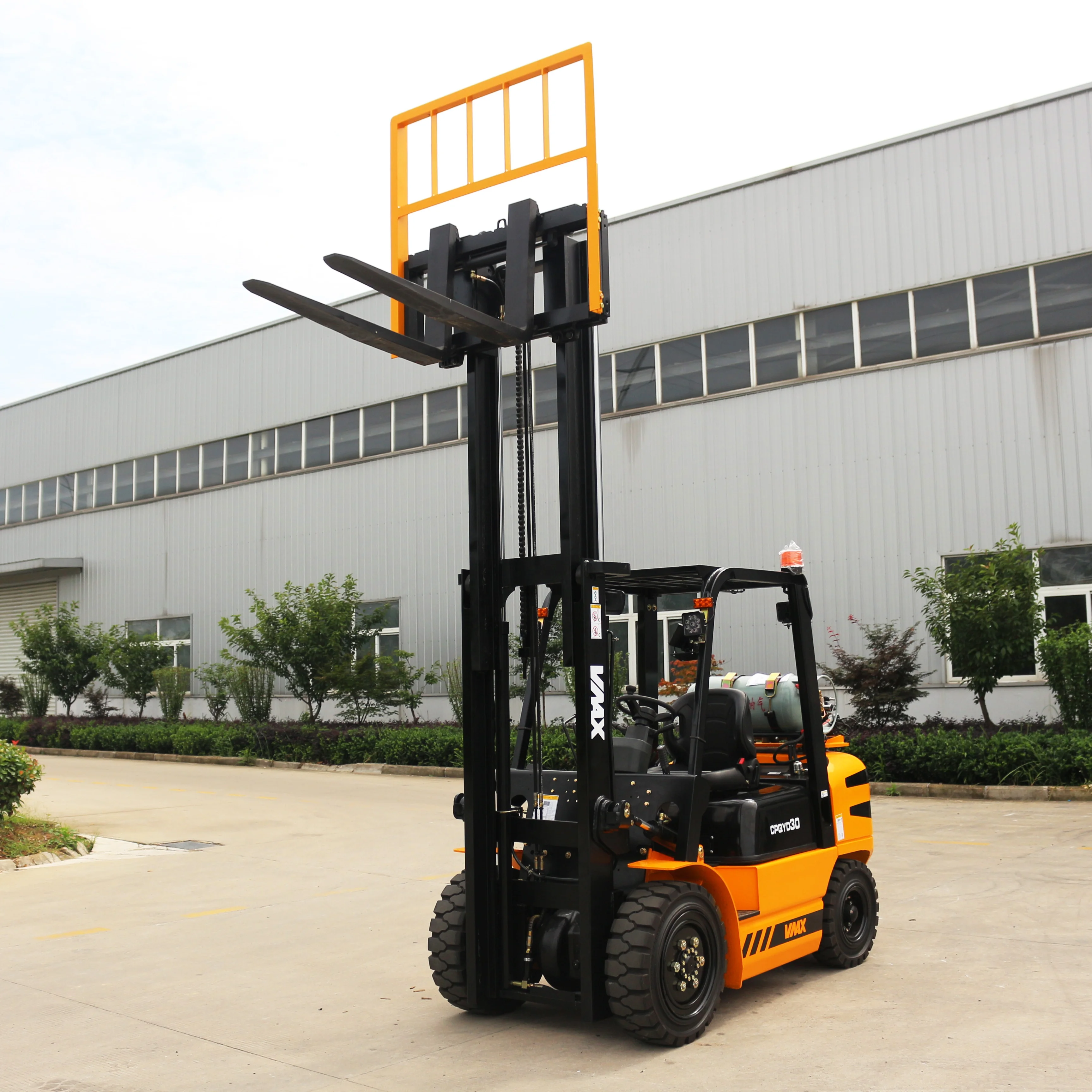

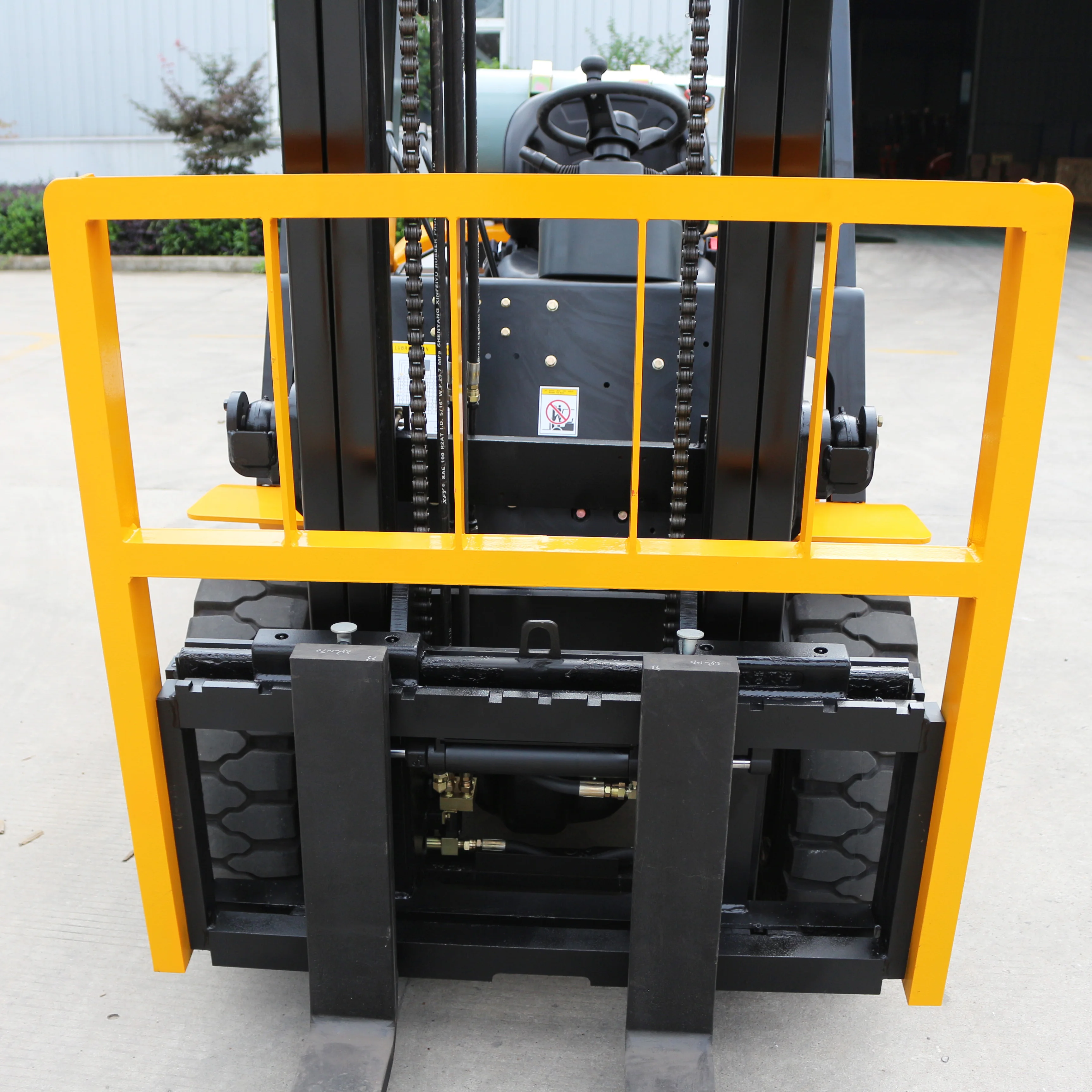

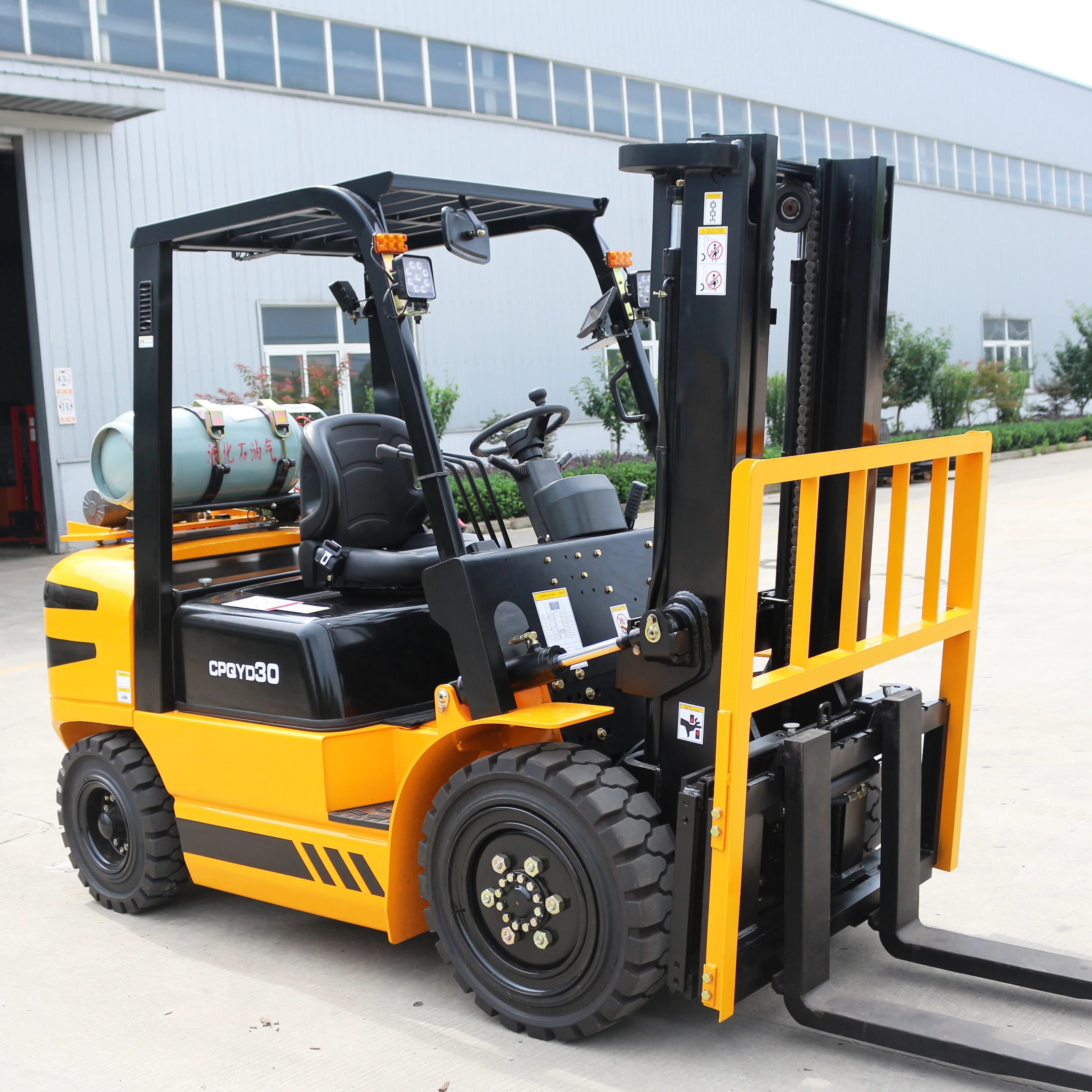

3ton LPG CNG Forklift Truck 3000kg RC Container Cargo Pallet Gas Fork Lift CPQYD30

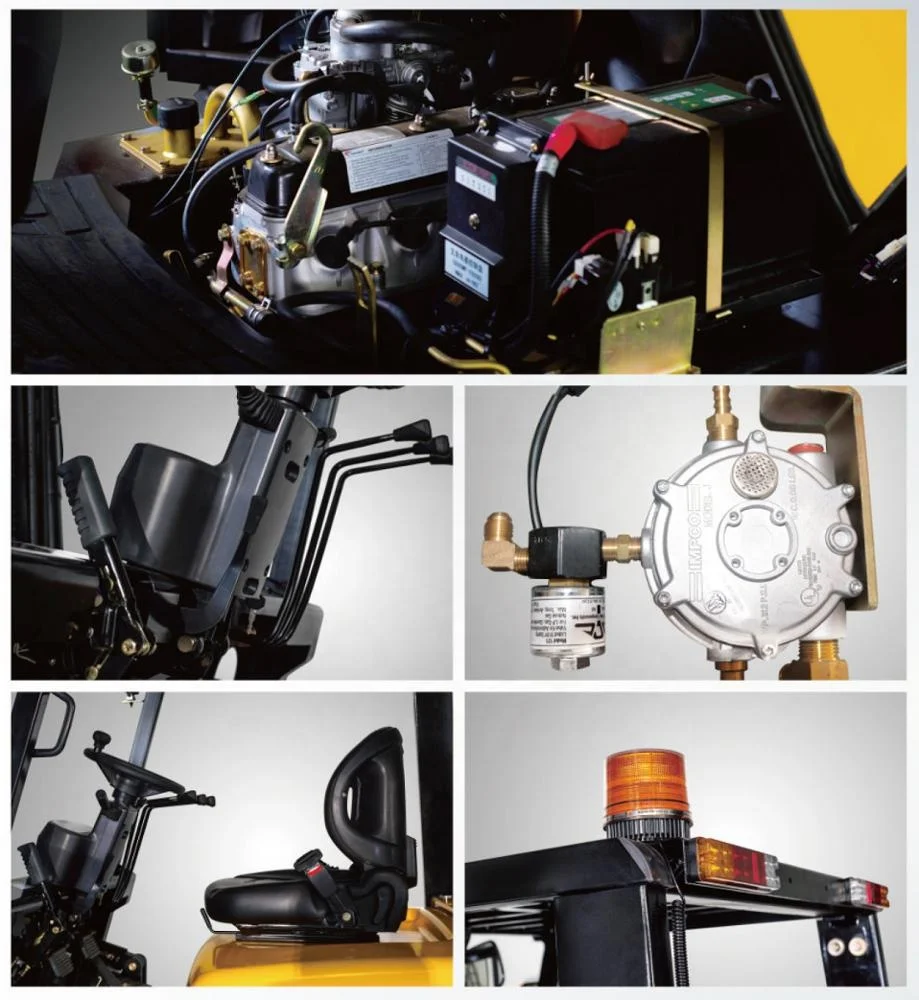

*Power system: Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Nissan and GM engines are optional. Using American IMPCO gas system which is more reliabel.


*Security system: Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from sides.


*Lighting system: Equipped with full set of LED lamps, which are brighter and energy saving.


\t
SPECIFICATIONS FOR 3TON LPG CNG GASOLINE FORKLIFT TRUCK
\t
BASIC PARAMETER
\t
Model
\t
-
\t
CPQYD30
\t
Power type
\t
-
\t
LPG/CNG
\t
Rated capacity
\t
kg
\t
3000
\t
Load center
\t
mm
\t
500
\t
Operator type
\t
-
\t
Drive in seat
\t
SIZE
\t
Max. lift height of mast with load-backrest
\t
mm
\t
4262
\t
Max. lift height of fork(standard)
\t
mm
\t
3000
\t
Height of mast(standard)
\t
mm
\t
2065
\t
Free lift height(standard)
\t
mm
\t
160
\t
Height of load-backrest
\t
mm
\t
1240
\t
Distance from seat to overhead guard
\t
mm
\t
1000
\t
Front wheel overhead
\t
mm
\t
2090
\t
Overall length without fork
\t
mm
\t
2682
\t
Front overhang
\t
mm
\t
479
\t
Rear overhang
\t
mm
\t
495
\t
Wheel base
\t
mm
\t
1700
\t
Height of traction pin
\t
mm
\t
310
\t
Min. ground clearance
\t
mm
\t
135
\t
Overall width
\t
mm
\t
1225
\t
Distance between forks
\t
mm
\t
1060/250
\t
Tread(front/rear)
\t
mm
\t
1000/970
\t
Min. turning radius(outside)
\t
mm
\t
2400
\t
Min. turning radius(inside)
\t
mm
\t
200
\t
Min. intersecting aisle
\t
mm
\t
2380
\t
Mast tilt angle
\t
deg
\t
6/12
\t
Fork size
\t
mm
\t
1070x125x45
\t
PERFORMANCE
\t
Max. drive speed(with/without load)
\t
km/h
\t
18/19
\t
Lifting speed(with/without load)
\t
mm/s
\t
440/480
\t
Lowering speed(with/without load)
\t
mm/s
\t
450/550
\t
Max.tractive force(with/without load)
\t
KN
\t
20/16
\t
Max. grade ability(with/without full load)
\t
%
\t
20/20
\t
WEIGHT
\t
Total weight
\t
kg
\t
4270
\t
Weight distribution full load(front/rear)
\t
kg
\t
6543/727
\t
Weight distribution zero load(front/rear)
\t
kg
\t
1708/2562
\t
WHEELS AND TYRES
\t
Quantity of wheels
\t
-
\t
2X/2
\t
Type of tyres
\t
-
\t
Pneumatic tires
\t
Front tyres
\t
-
\t
28x9-15-12PR
\t
Rear tyres
\t
-
\t
6.50-10-10PR
\t
Driving brake
\t
-
\t
Hydraumatic pedal
\t
Parking brake
\t
-
\t
Mechanical manual
\t
CONTROL DEVICE FOR DRIVING AND TRANSMITTING
\t
Battery
\t
V/AH
\t
12/80
\t
Engine model
\t
-
\t
GQ-4Y
\t
Rated power
\t
kw/rpm
\t
37/2800
\t
Rated torque
\t
N.m/rpm
\t
154/1800
\t
No. of cylinder
\t
-
\t
4-91X86
\t
Displacement
\t
L
\t
2.237
\t
Fuel tank capacity
\t
L
\t
60
\t
Transmission
\t
-
\t
Manual pallet transmission / Power pallet transmission
Detailed Images

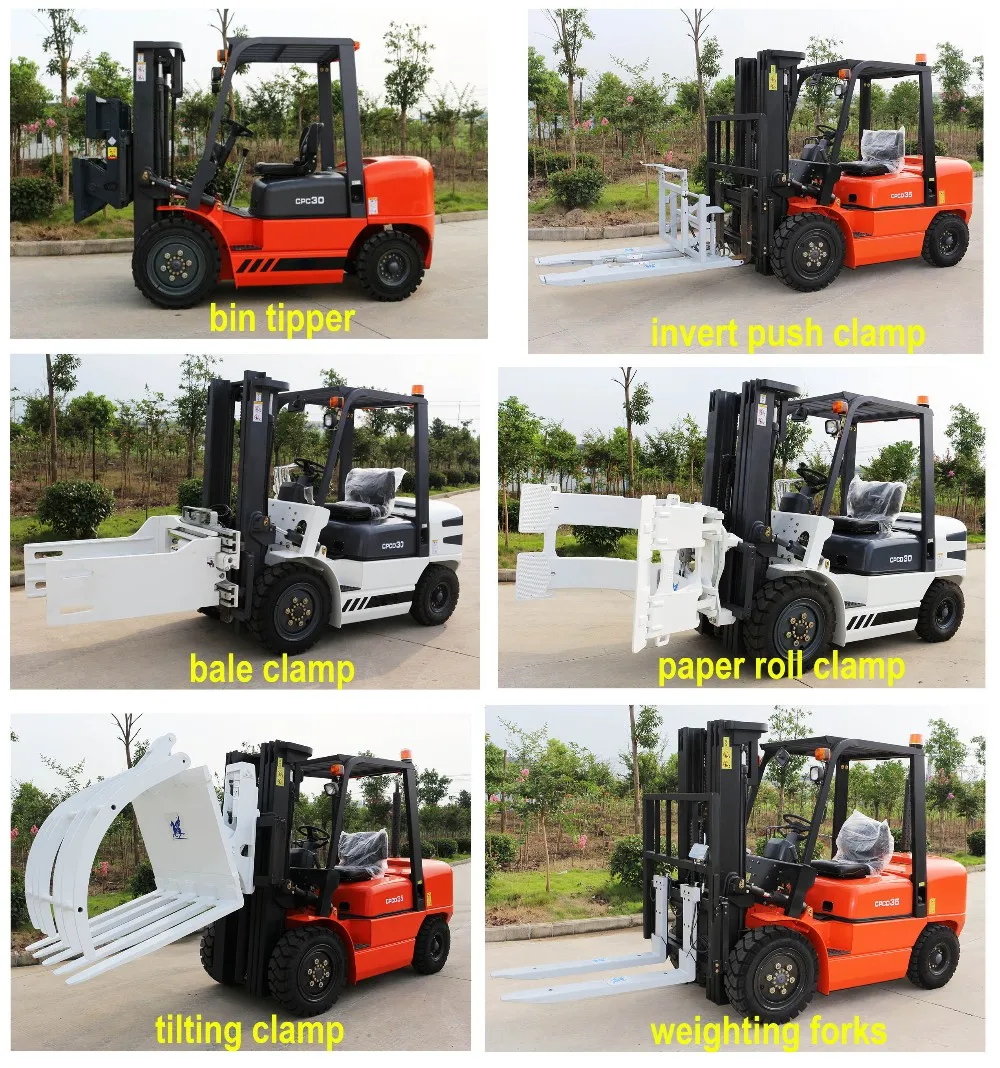

Attachments
