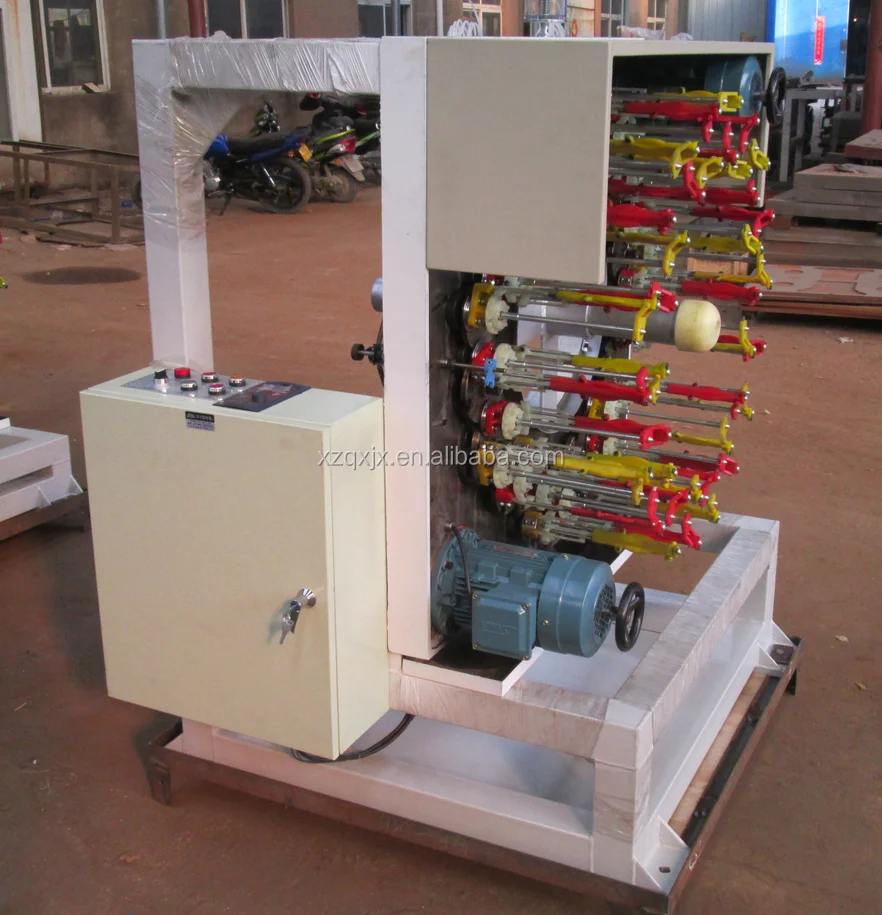

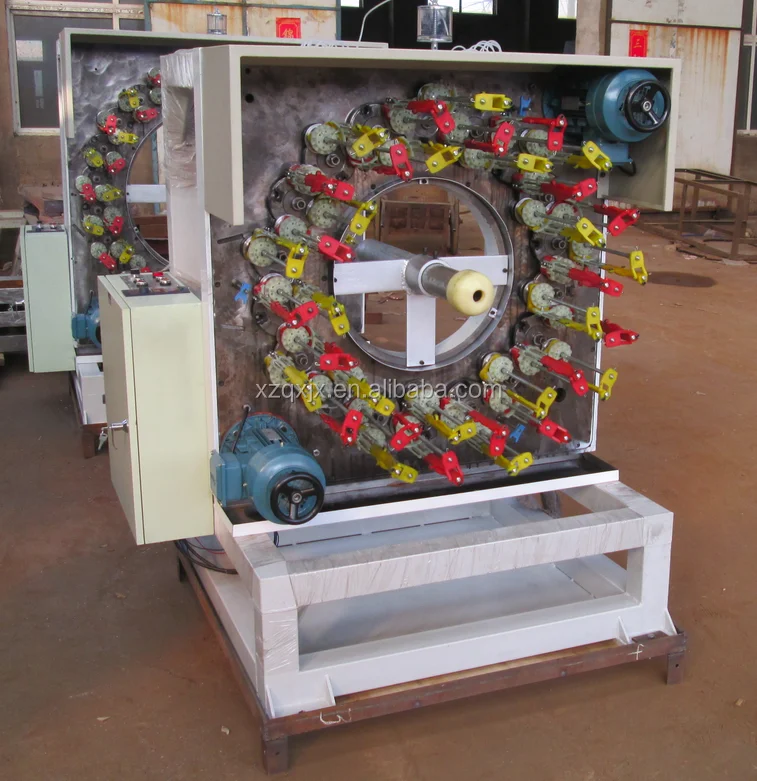

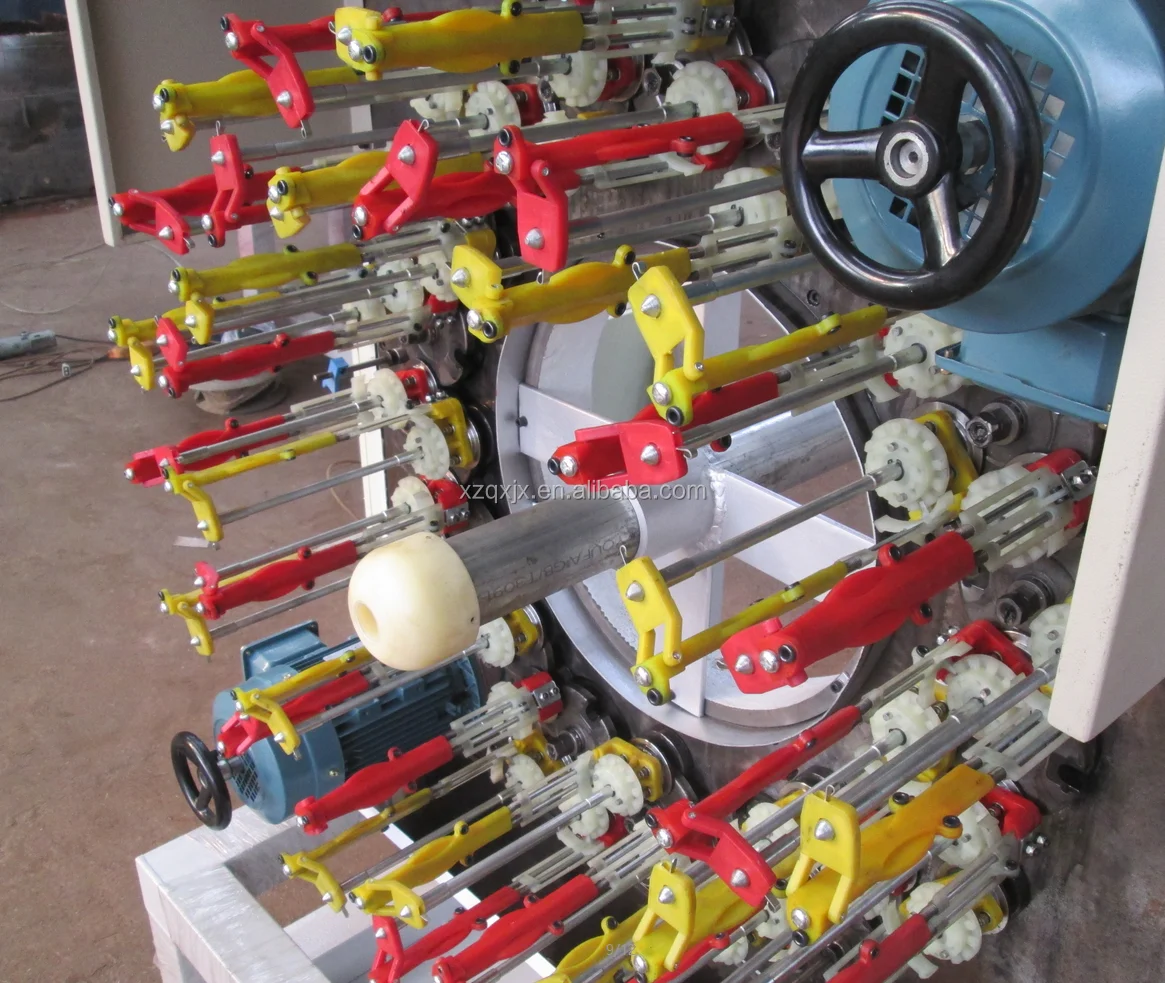

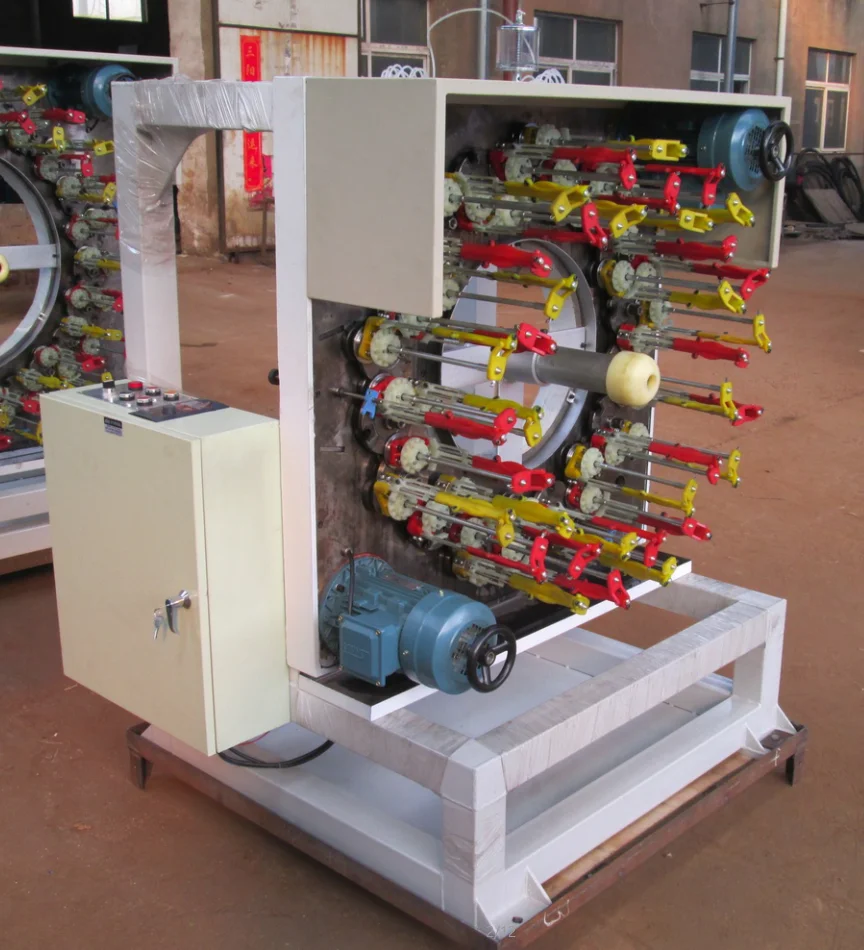

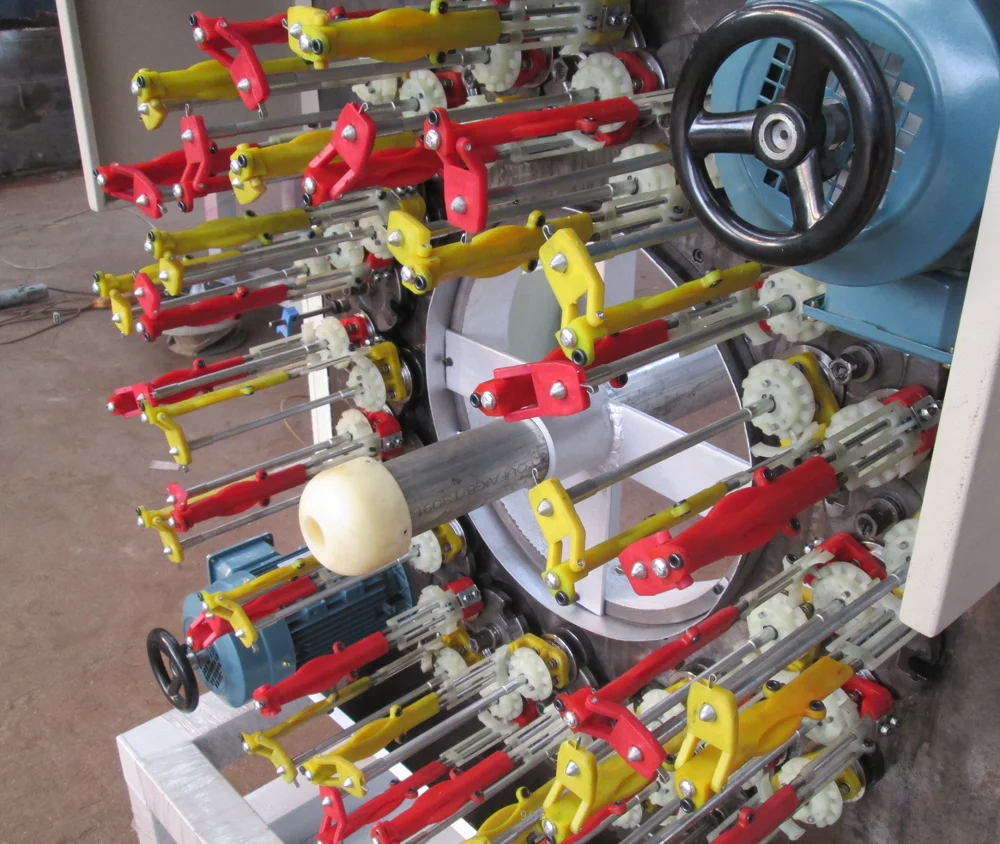

QX130 36 1 high speed horizontal braiding machine
- Category: Braiding Machines >>>
- Supplier: Xuzhou Qixing Machinery Co. Ltd.
Share on (62229994131):
Product Overview
Description
Model | QX130-36-1 horizontal |
Horn gear size | 130mm |
Heads number | 1 |
Spindle number | 36 |
Bobbin number | 72 |
Bobbin size | Ø70*210mm |
Braiding range | Ø10-35mm for reference |
Motor power | 0.75KW*1; 380V/220V |
Max speed | 180RPM |
Yarn break auto stop | Included |
Speed adjuster | Included |
Machine size | 800*800*1600mm |
Machine weight | 400KG |
Delivery time | 30 days |
Packing | Plywood case |
