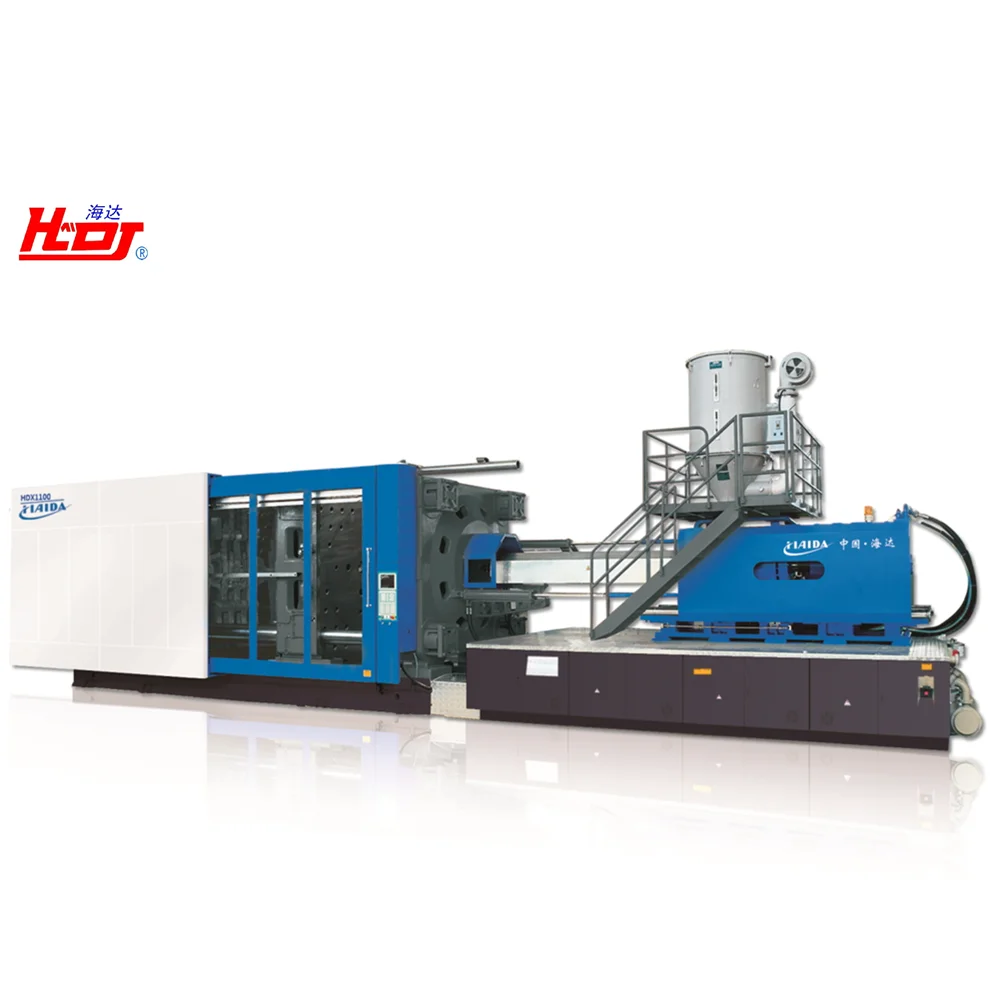

  • China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price

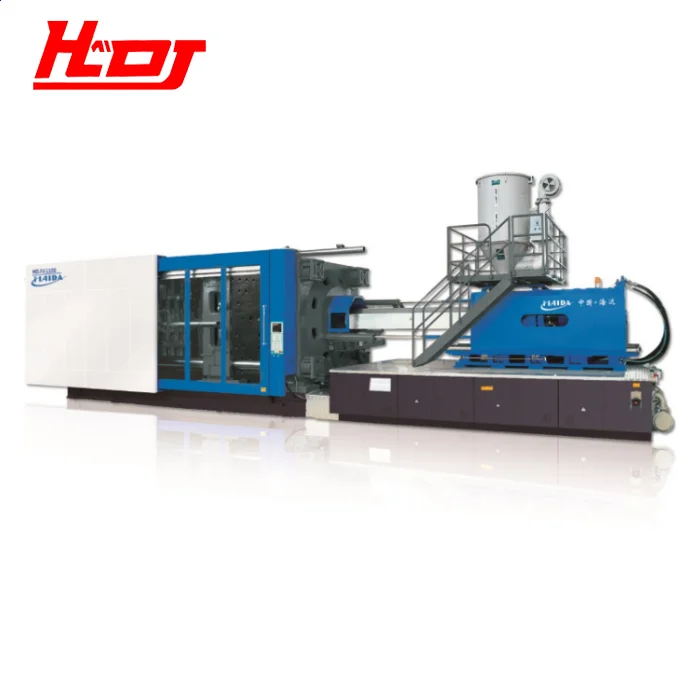

China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price
China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price
China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price
China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price
China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price

China Haida Hot sale 1100 ton plastic chair bucket table injection moulding molding table injection machine 1000ton price

Share on (62230188477):


Price:

Quantity:


Product Overview

Description


Product Description
\t
MODEL
\t
    HDJS1100
\t
ITEM
\t
UNIT
\t
DATE
\t



INJECTION UNIT
\t
Screw Diameter
\t
mm
\t
110
\t
120
\t
130
\t
Screw L/D Ratio
\t
L/D
\t
22
\t
20.2
\t
18.6
\t
Injection Volume
\t
cm3
\t
4942
\t
5881
\t
6902
\t
Shot Weight
\t
g
\t
4497
\t
5350
\t
6280
\t
Injection Pressure
\t
Mpa
\t
184
\t
155
\t
132
\t




CLAMPING UNIT
\t
Clamping Force
\t
KN
\t
11000
\t
Opening Stroke
\t
mm
\t
1220
\t
Mould Thickness(Min-Max)
\t
mm
\t
500-1250
\t
Space Between Tie-Bars
\t
mm
\t
1160*1160
\t
Ejector Stroke
\t
mm
\t
282.6
\t
Ejector Force
\t
KN
\t
325
\t





   GENERAL
\t
Motor Power
\t
KW
\t
45*2
\t
Heater
\t
KW
\t
58
\t
Machine Dimension
\t
m
\t
12.7*2.8*2.8
\t
Machine Weight
\t
t
\t
56
\t
Mould Orientation Ring Diameter
\t
mm
\t
Φ250
\t
System Pressure
\t
MPa
\t
16
\t
Nozzle Radius
\t
mm
\t
SR20
Packing & Delivery
Related Products
About Us

HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection moulding machinery manufacturer. During the past 27 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection moulding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
