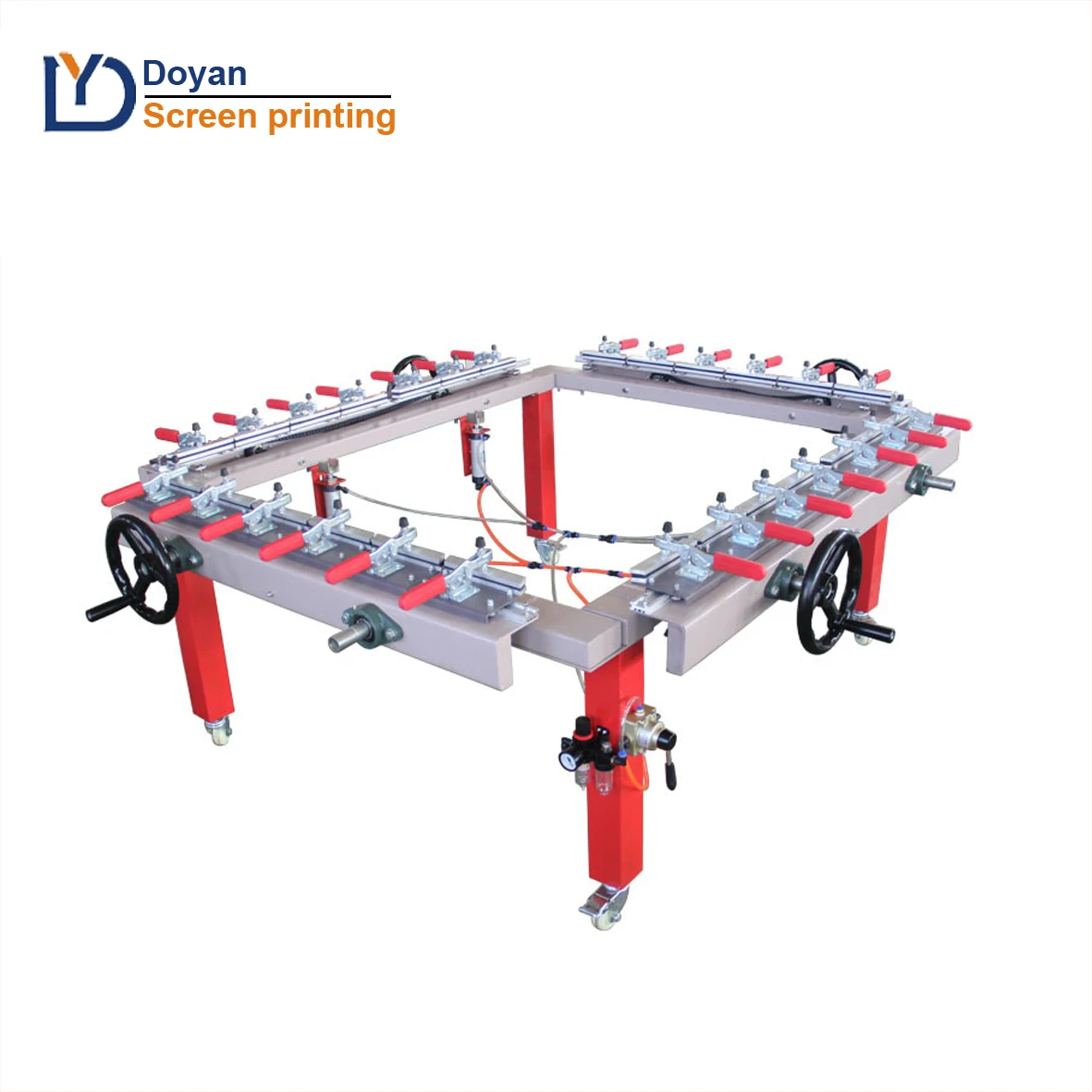

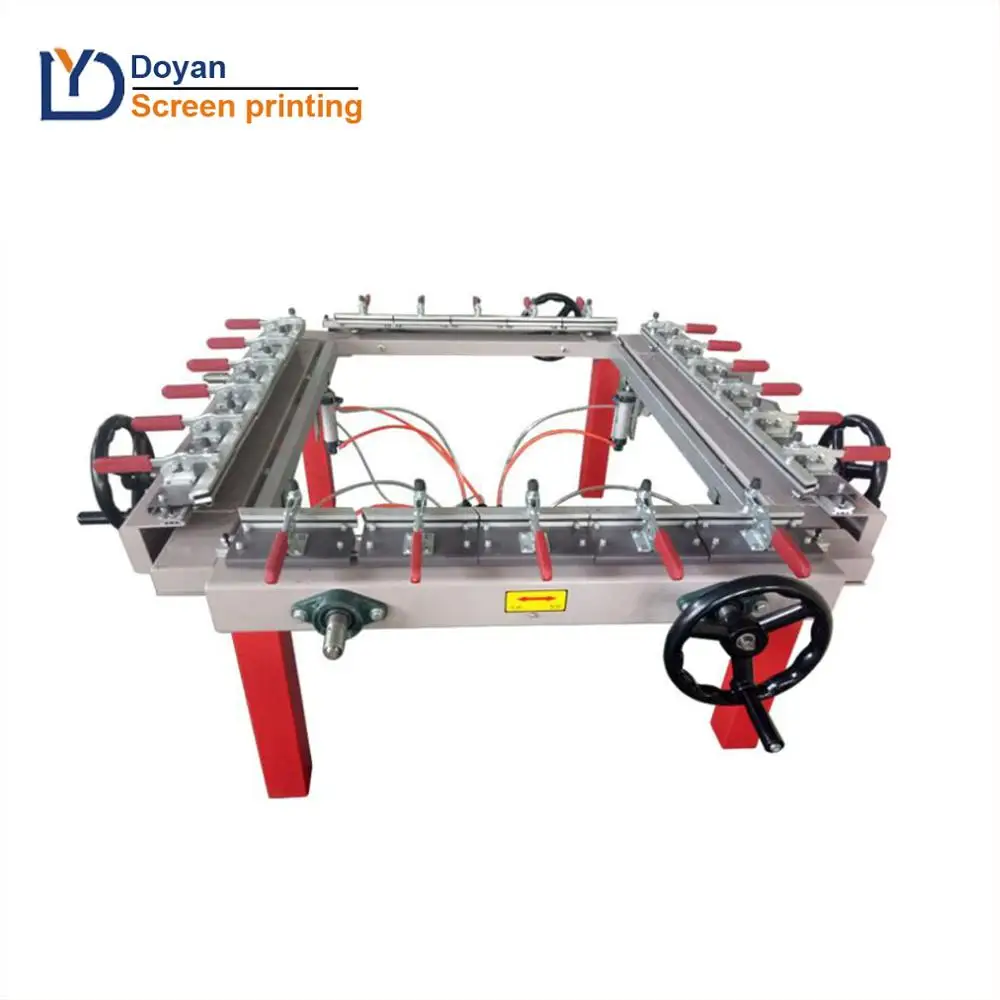

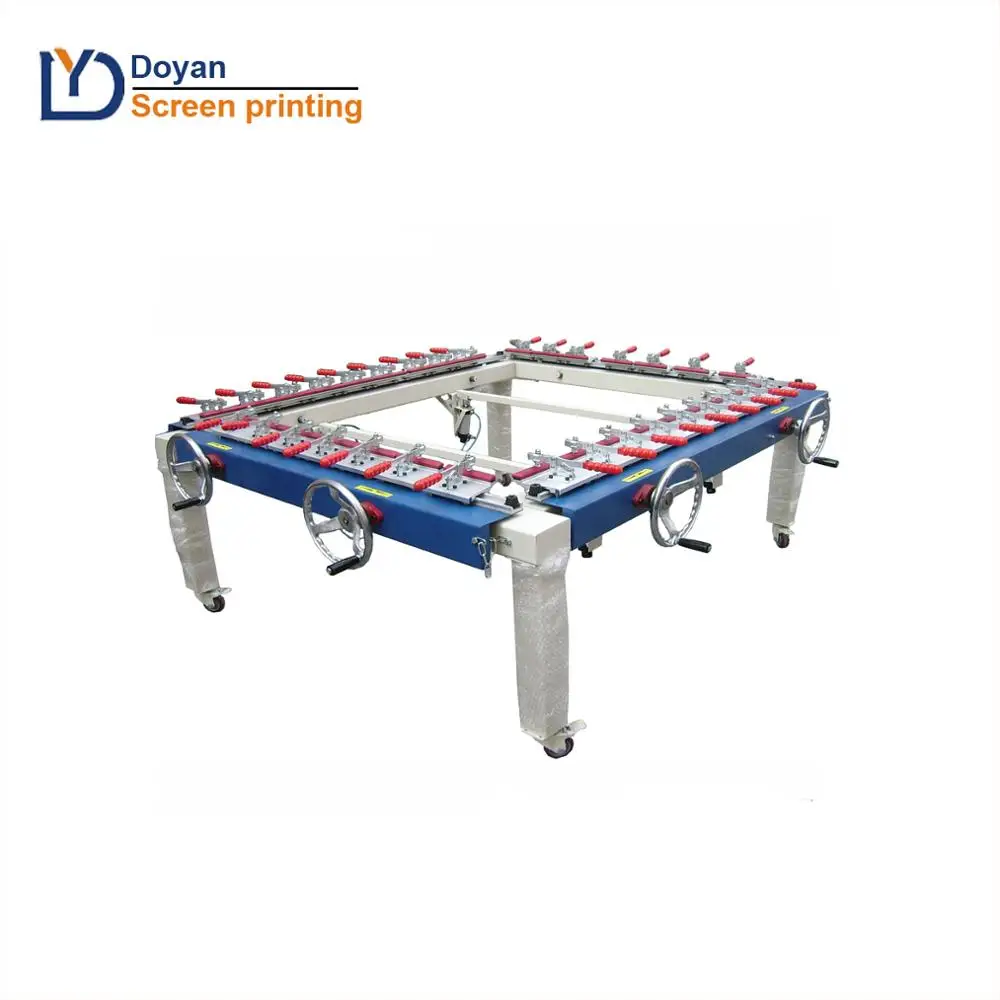

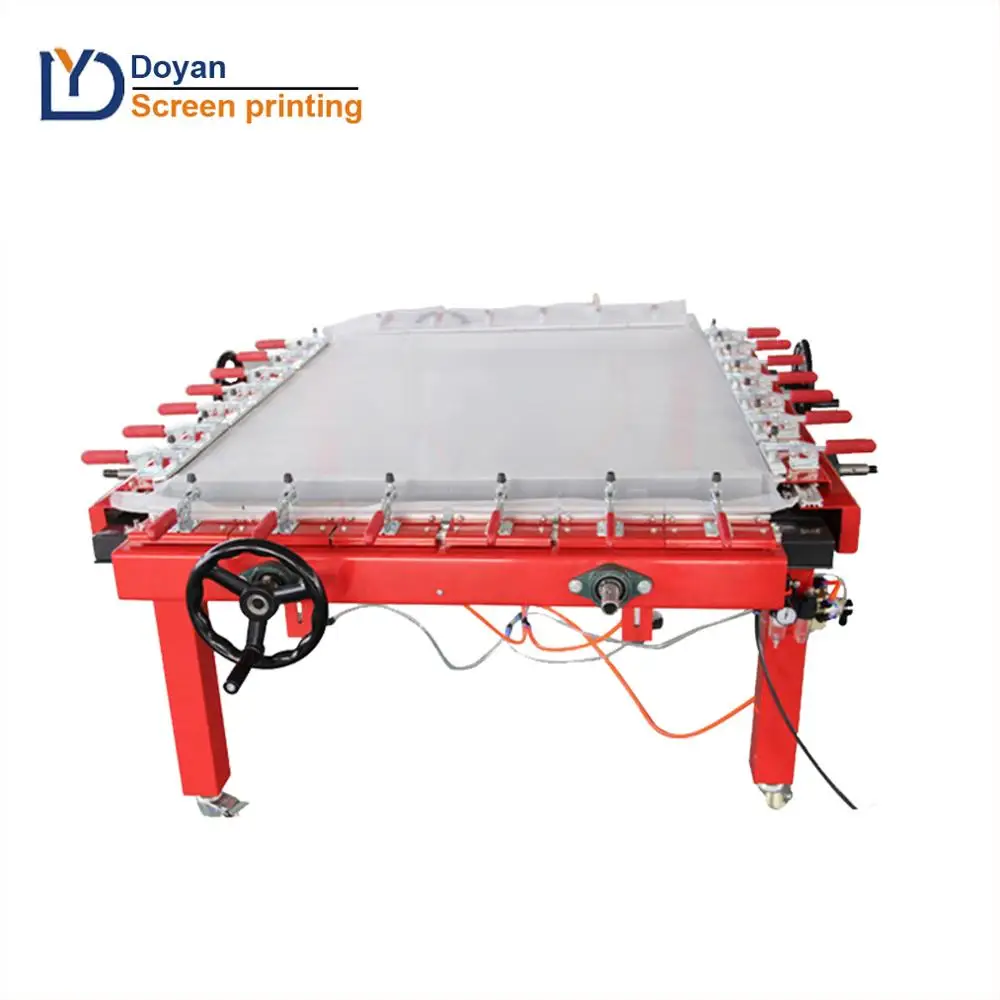

Doyan Single Clamp Silk Screen Mesh Stretch Machine

Mesh stretching machine

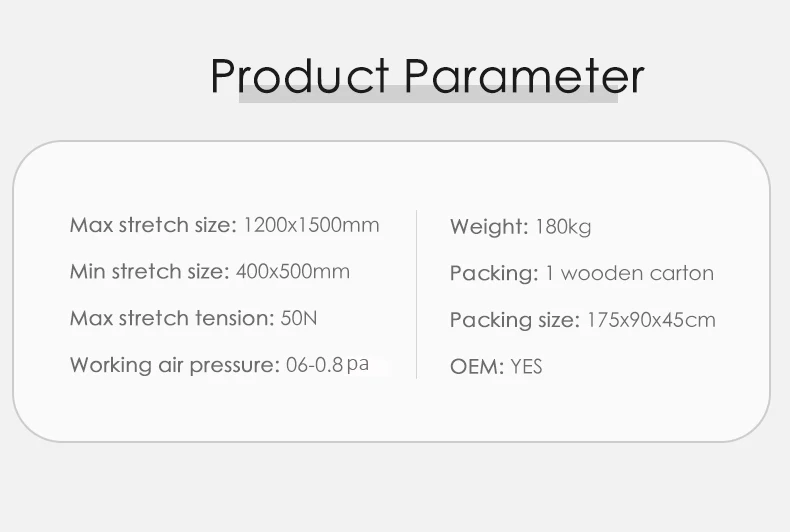

Specification

Model No.:LD120*150

Max stretch size:1200x1500mm

Min stretch size:400x500mm

Max stretch tension:50N

Working air pressure:06-0.8Mpa

Weight:180kg

Packing:1 wooden carton

Packing size:175x90x45cm

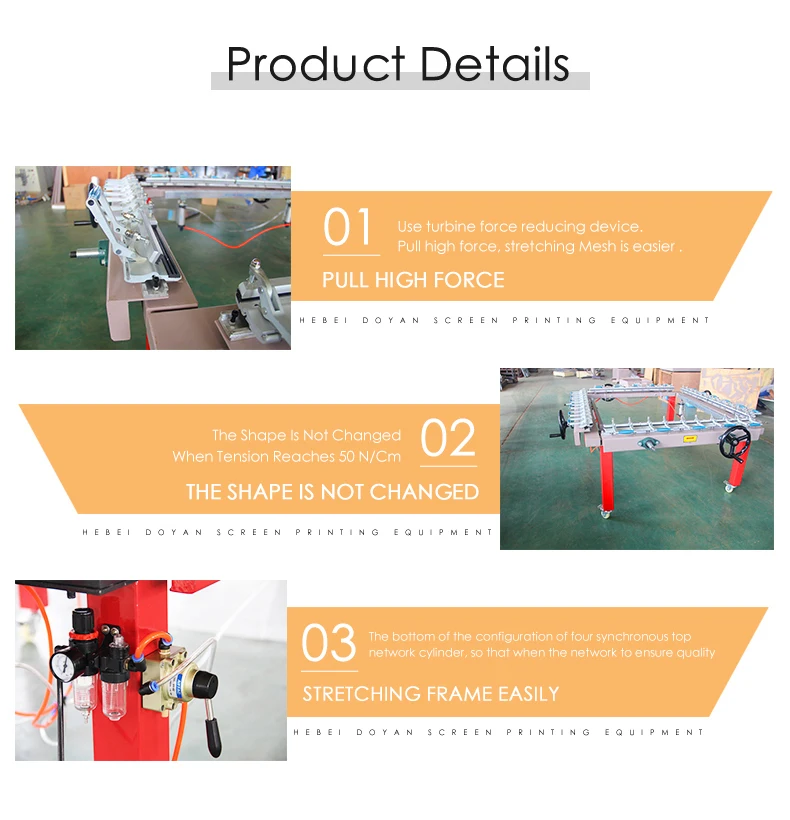

Features:

1. Use turbine force reducing device. Pull high force, stretching Mesh is easier .

2. The shape is not changed when tension reach 50 N / cm.

3. It can move and adjust screen size freely.

4. Suitable for all kinds of screen, efficient and quickly.

5. Special specifications can be customized.

Application:

The first step is tightened silk mesh on to screen frame;Air controlling to hold metal shelf ensure contact compactly with mesh surface;Hand wheel operated to make precision tension;Several pcs frame can be stretched meantime ensure same tension and correct overprint.
