Горячая Распродажа! Смарт интерактивная доска Promethean TS Series 92, 104, 110, 120, 145 дюймов
- Category: Boards >>>
- Supplier: Kozoni Education Technology (Shenzhen) Co. Ltd.
Share on (62230545692):
Product Overview
Description
Product Description

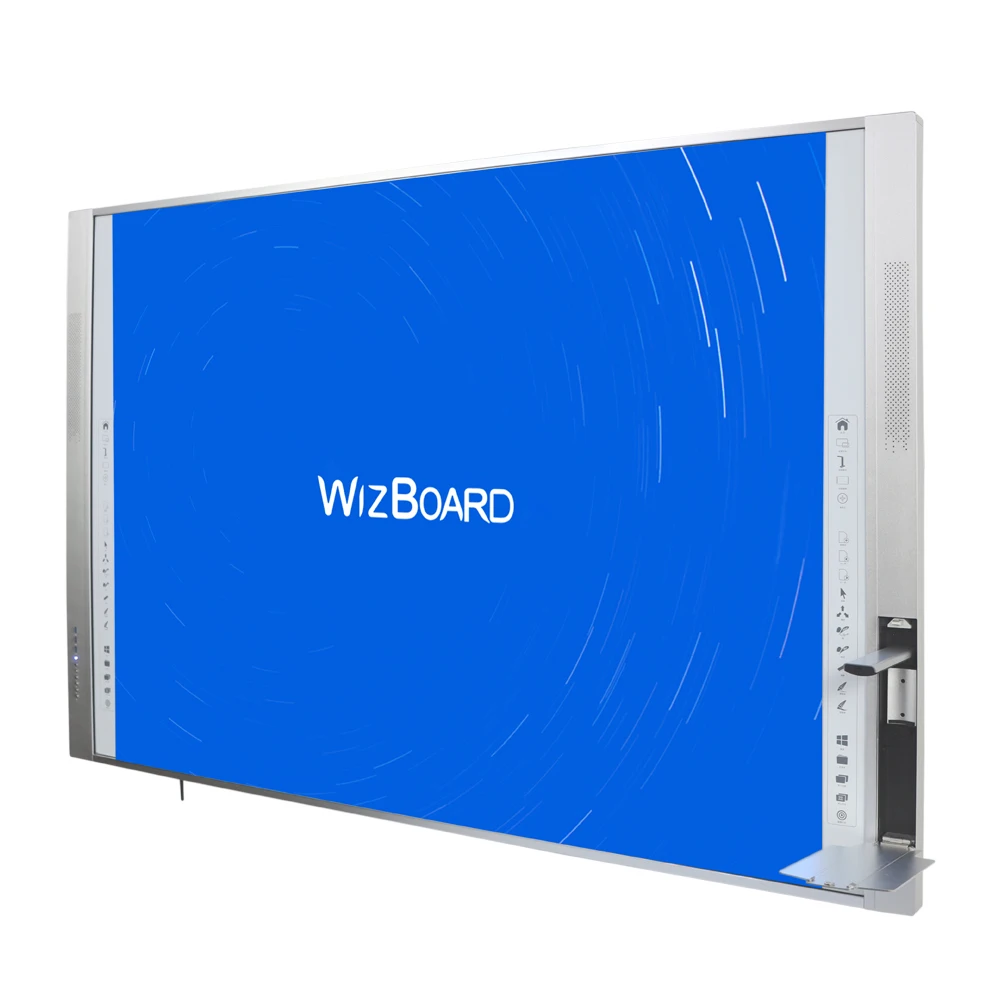

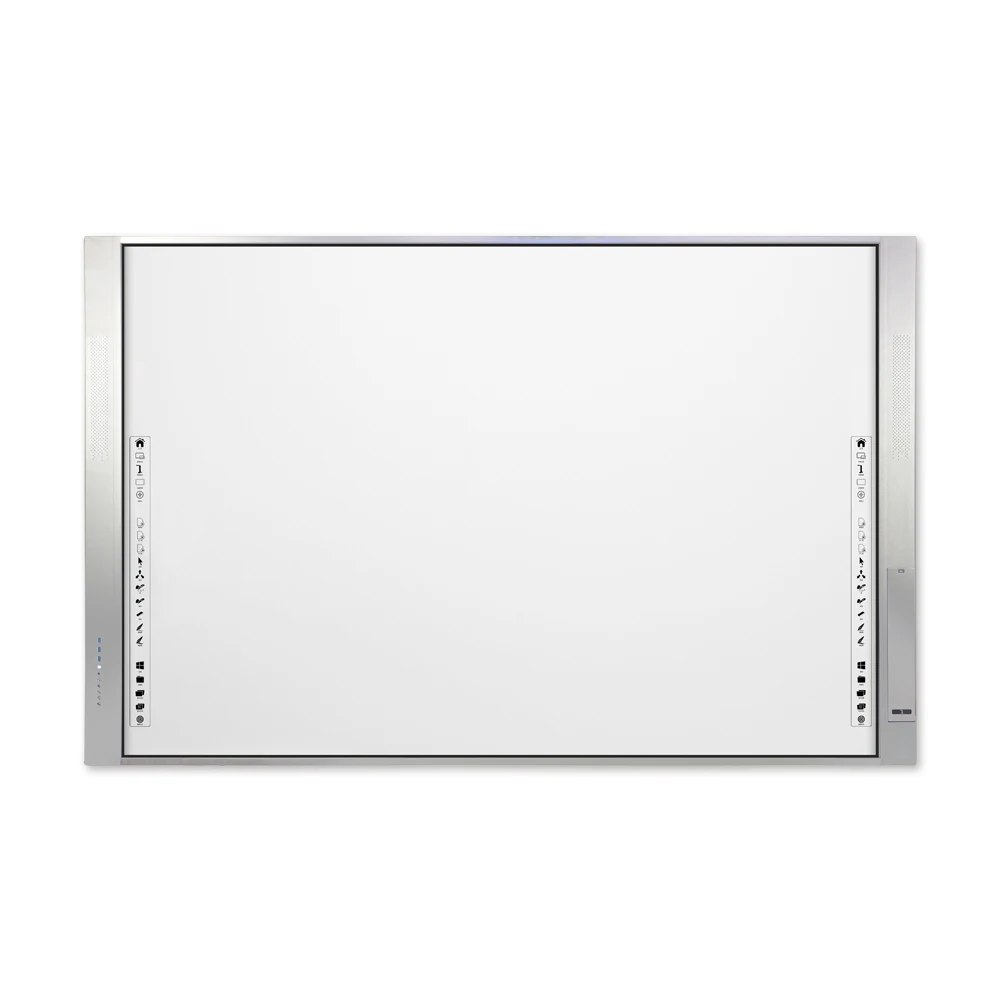

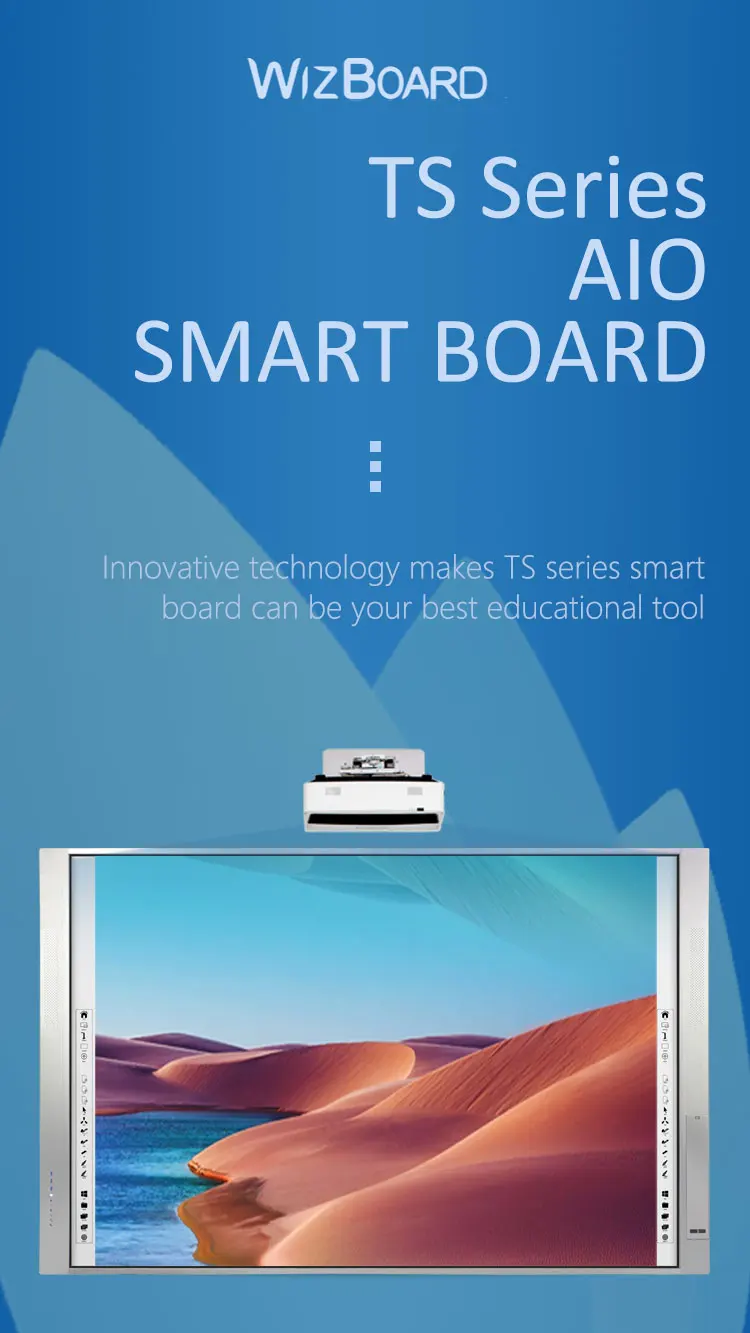

TS Series All In One Smart Board

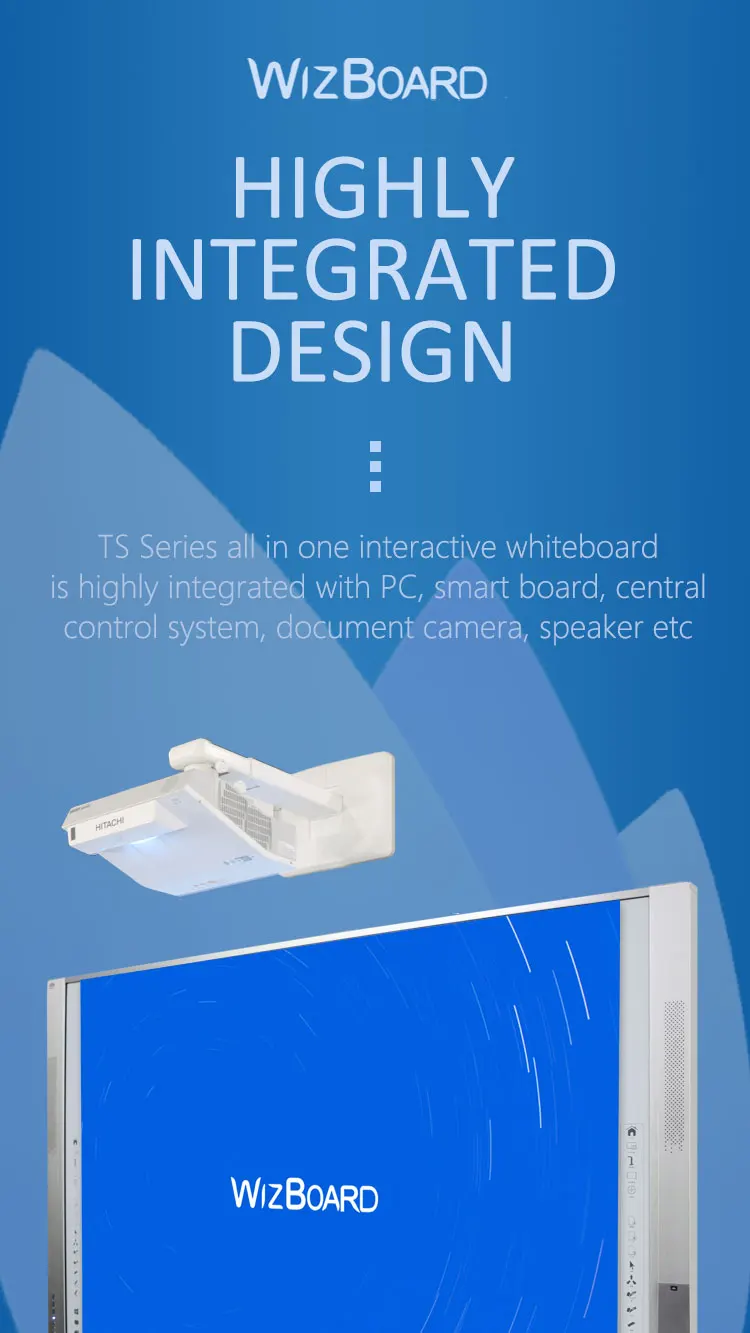

TS series Infrared All in one Smart Board use the world leading infrared multi-touch technology, with the perfect 10 touch and central control technology. it's highly intergrated with PC, multimedia central control system, speaker,visualizer, wireless audio system and wireless demostration system.
More details please don't hesitate to contact us. We are always ready to serve you.
Specification
More Details
Place of Origin | Guangdong,China | ||||||
Brand Name | Kozoni | ||||||
Physical Parameter | Model Number | IWB-92TS | IWB-104TS | IWB-110TS | |||
Physical Size | 92" | 104" | 110" | ||||
Effective Size | 86" | 96" | 104" | ||||
Display Ratio | 4:3 | 16:10 | 16:9 | ||||
Physical Dimension(mm) | 1974*1280*90 | 2302*1280*90 | 2520*1280*90 | ||||
Packing Size(mm) | 2054*1360*150 | 2380*1360*150 | 2600*1360*150 | ||||
NW(Kg) | 25 | 30 | 35 | ||||
GW(Kg) | 30 | 35 | 40 | ||||
Model Number | IWB-120TS | IWB-145TS | |||||
Physical Size | 120" | 150" | |||||
Effective Size | 115" | 144" | |||||
Display Ratio | 16:10 | 16:6 | |||||
Physical Dimension(mm) | 2702*1530*90 | 3614*1280*90 | |||||
Packing Size(mm) | 2782*1610*150 | 3694*1360*150 | |||||
NW(Kg) | 40 | 45 | |||||
GW(Kg) | 45 | 50 | |||||
Interactive Parameter | Induction Technology | Infrared | |||||
Induction Object | Untransparent object | ||||||
Resolution | 32768*32768 | ||||||
Calibration Deviation | <2mm | ||||||
Tracking Speed | >200inch/sec | ||||||
Cursor Speed | Max 300dots/sec | ||||||
Effective Touch Object | ≥ Ø3mm | ||||||
Mouse Function | single click, double click, right click | ||||||
Responding Speed | 15ms | ||||||
Consequent RS | 8ms | ||||||
Lifetime | 100,000Hours | ||||||
Voltage | DC 5.0V ±5% | ||||||
Power Supply | USB | ||||||
Power Consumption | ≤1W (200mA DC 5V) | ||||||
Electronic Parameter | Power Input | 100-240V | |||||
Consumption | ≤ 5W | ||||||
PC Voltage | 4.1~5.5V | ||||||
PC & Document Camera | CPU | I5 | |||||
RAM | 8G | ||||||
Hard Disc | 256G SSD ( * Higher configuration can be customized.) | ||||||
Wireless Mic | 2.4G | ||||||

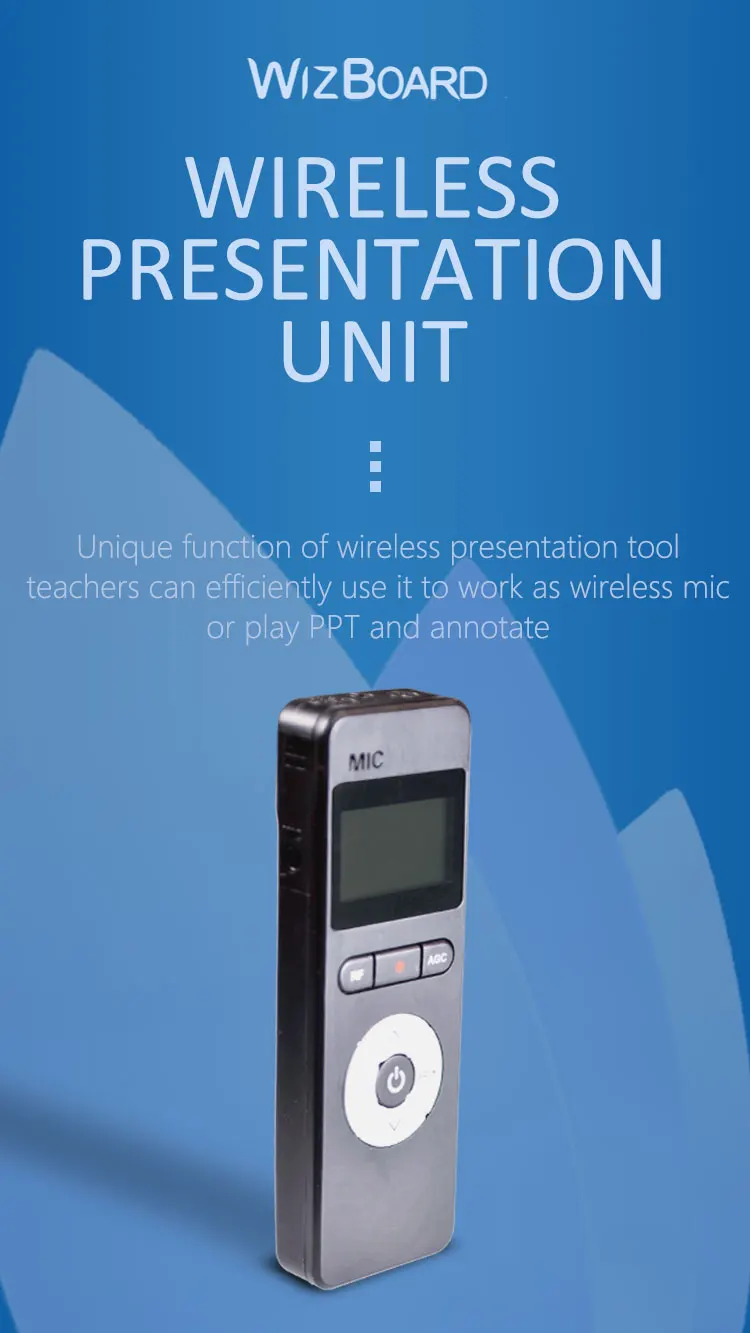

Mic Functions | Laser Pointer,VOL,PPT | ||||||
Speaker | 2*15W | ||||||

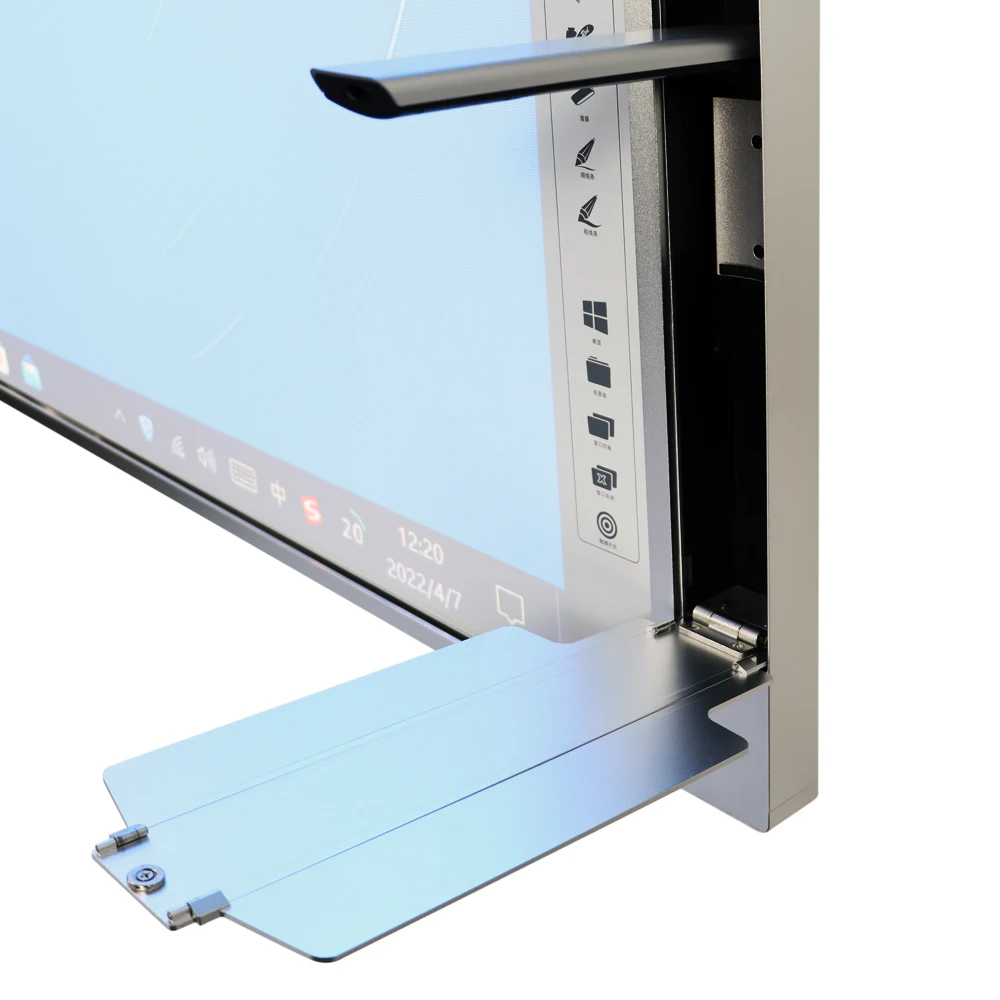

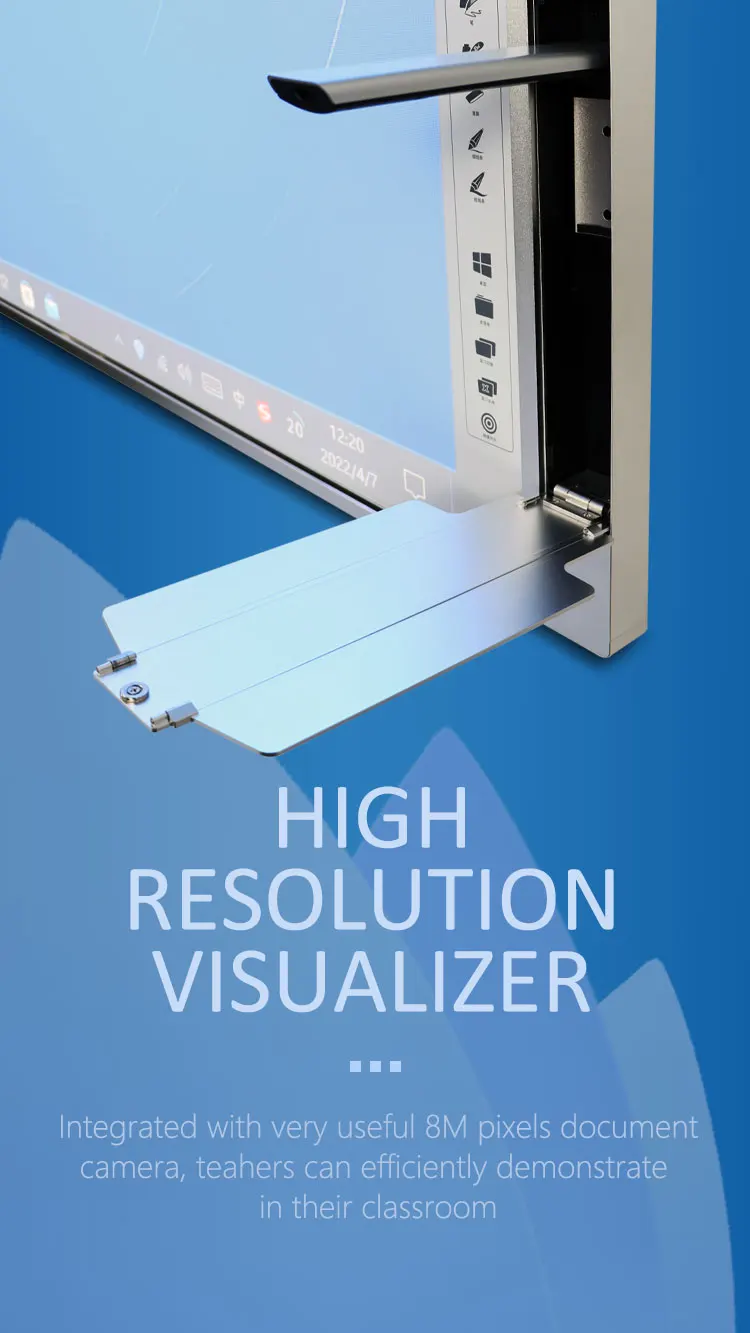

Visualizer | 5M | ||||||
Scan Size | A4 | ||||||
Power | 100-240V | ||||||
Control System | Control Mode | One Key Control | |||||
Control Code | 99units integrated | ||||||
Data Display | Digital Screen | ||||||
System Boot | ID Card Control | ||||||
Hot Key | Set card control, freeze time, Control code and system lock. | ||||||
Control Panel | Mute*1, Digital locker*1, Reboot*1, VOL*2, Signal Switch*1, Power *1 | ||||||

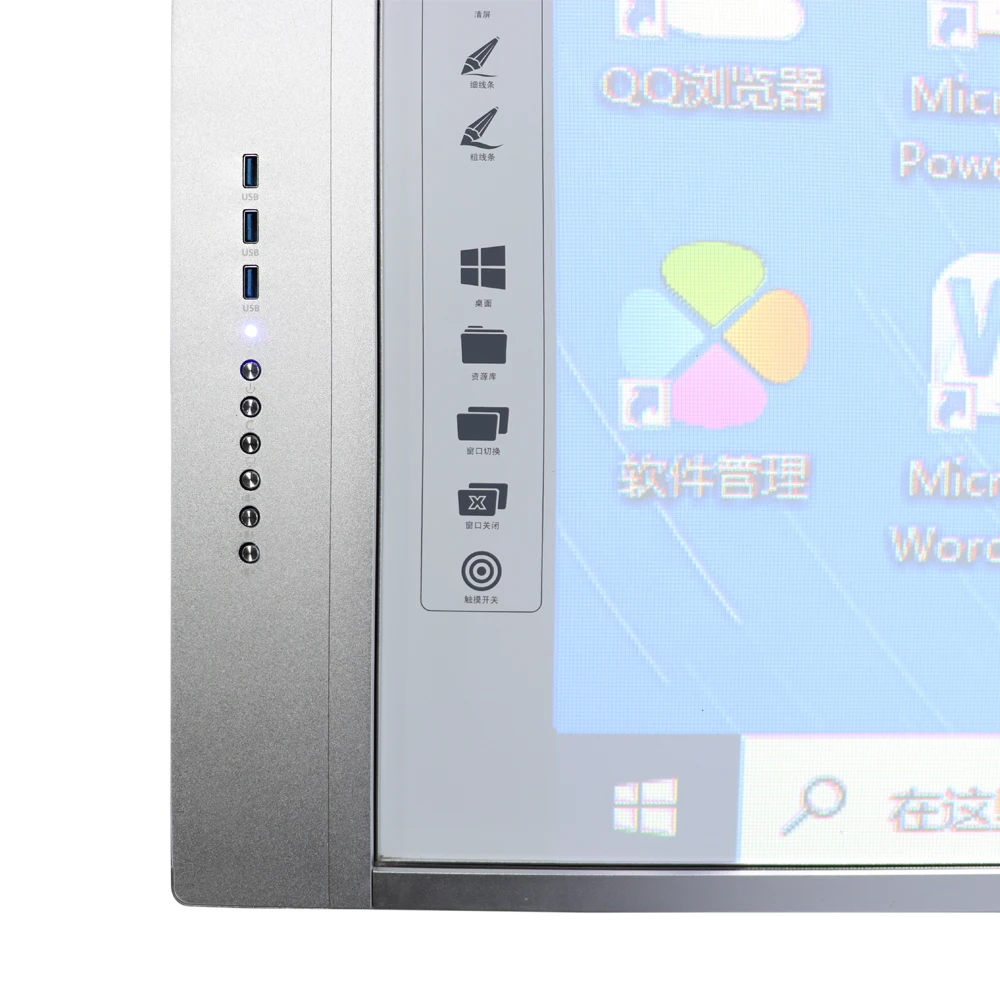

Connection Ports | USB*6, HDMI OUT*1, MIC*1, AC IN*1, RJ45*1, RS-232*1, AUDIO IN*1, AUDIO OUT*1, HDMI*1 | ||||||
Enviromental Parameter | CPU | Pentium 800 (1G Hz (X86) CPU or above ) | |||||
Memory | 1GB or above | ||||||
Hard Disc | ≥ 800MB | ||||||
Operation System | Windows, Linux, Mac, Android | ||||||
Working Temperature | 30°C~60°C | ||||||
Working Humidity | 0%~95% | ||||||
Working Environment | Indoor/Outdoor | ||||||
Packing Details | All in one Smart Board*1 | ||||||
Software Disc*1 | |||||||
Whiteboard PEN*2 | |||||||
User Manual*1 | |||||||
Warranty Card*1 | |||||||
5m USB*1 | |||||||
Wall-mount Suit*1 | |||||||
Certifications
Company Profile
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Mid East(15.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
interactive whiteboard,interactive led display,all in one smart podium,visualizer
4. why should you buy from us not from other suppliers?
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
We are based in Guangdong, China, start from 2016,sell to Domestic Market(40.00%),Southeast Asia(15.00%),Mid East(15.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
interactive whiteboard,interactive led display,all in one smart podium,visualizer
4. why should you buy from us not from other suppliers?
One of most influential manufacturer in the field of interactive led display, all in one teaching system and interactive whiteboards, vying for innovative interactive teaching solution, stable quality and cost-effective educational equipment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic
