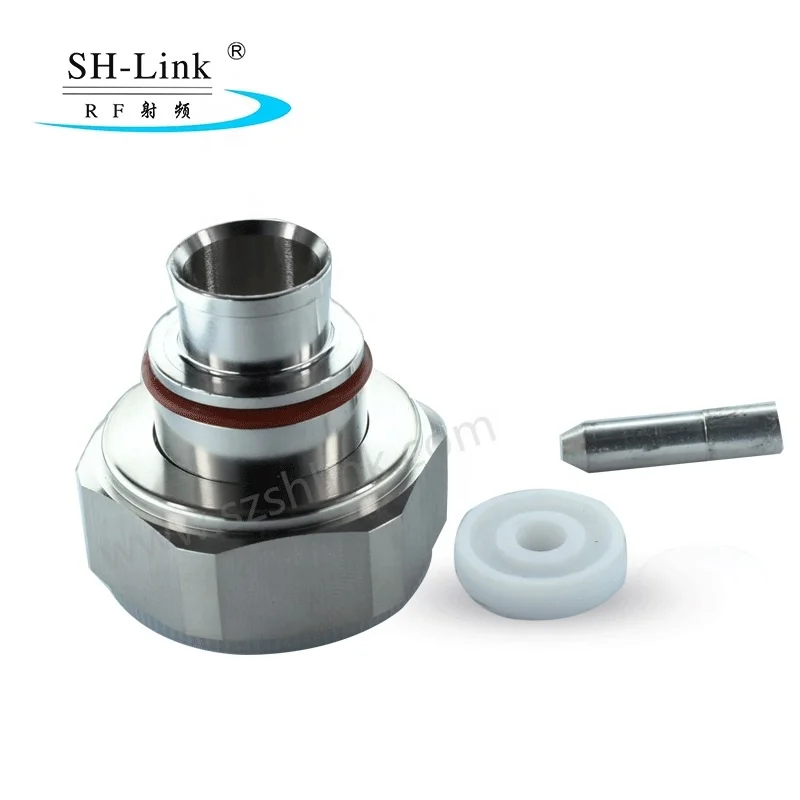

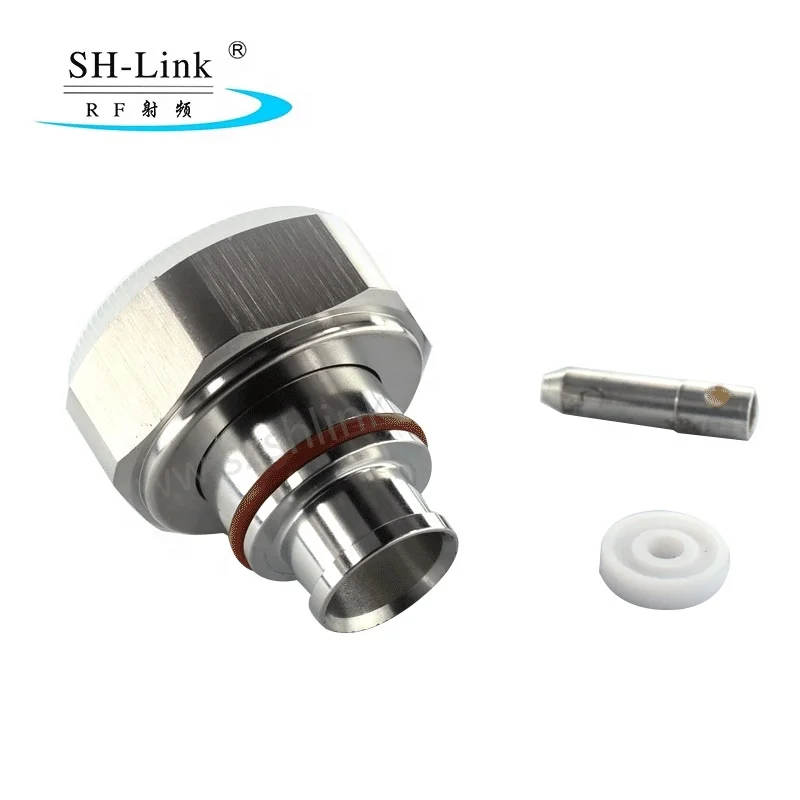

DIN 7/16 straight connector male for RF coaxial cable
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (62230764183):
Product Overview
Description
DIN 7/16 straight connector male for RF coaxial cable
| MAJOR TECHNICAL CHARACTERISTICS |
| Temperature range | -55—+155℃(PE Cable-40-+85℃) | |
| Vibration | 100m/s²(10-500Hz) | |
| Impedance | 50Ω | |
| Frequency range | DC-7.5GHz | |
| Working voltage | 2700V r.m.s at sea level | |
| Withstanding voltage | 4000V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤0.4 mΩ | |
| Outer contact | ≤1.5 mΩ | |
| Average power | 3kw max | |
| Insulation resistance | ≥10000MΩ | |
| Center conductor retention force | ≥6N | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.20/6GHz | |
| Right angle | ≤1.35/6GHz | |
| Durability(mating) | ≥500(Cycles) | |
