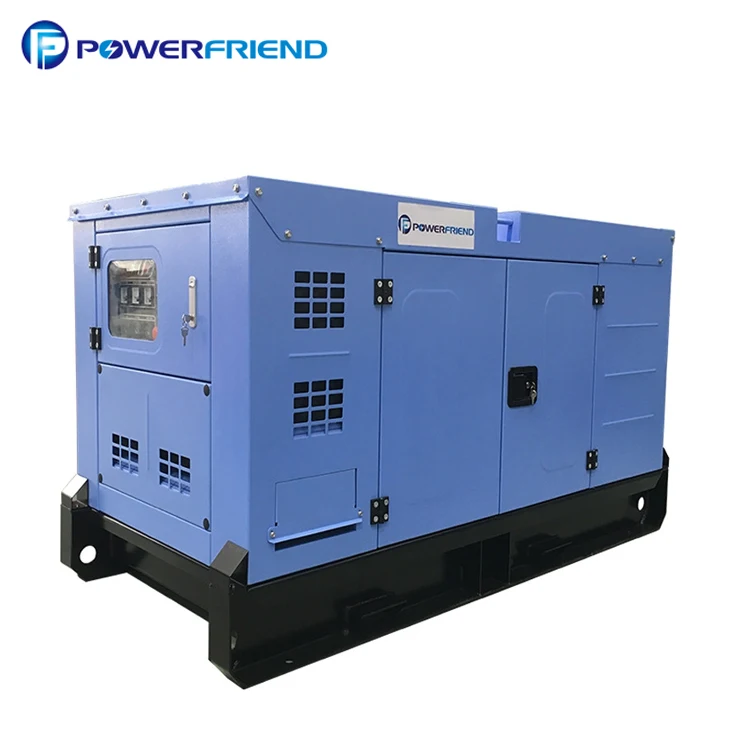

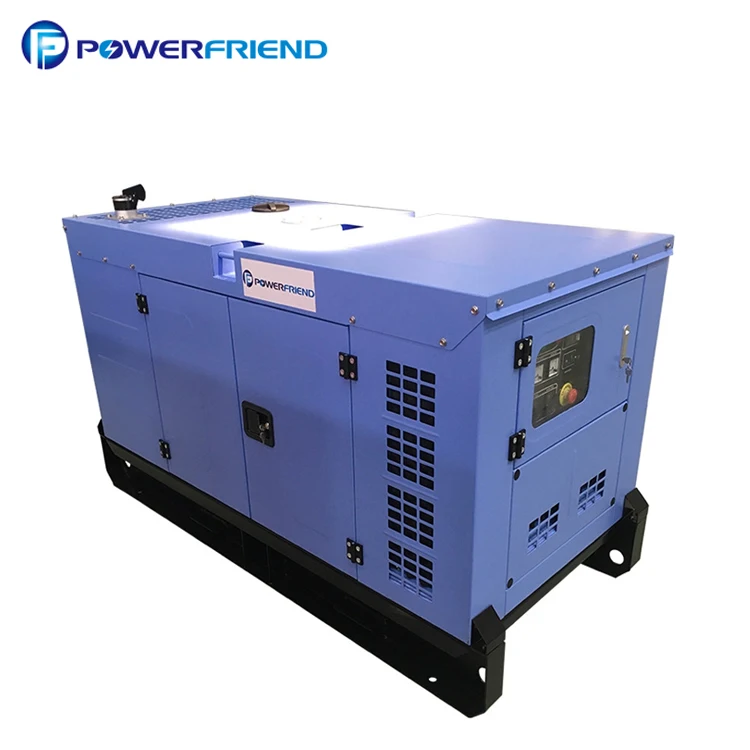

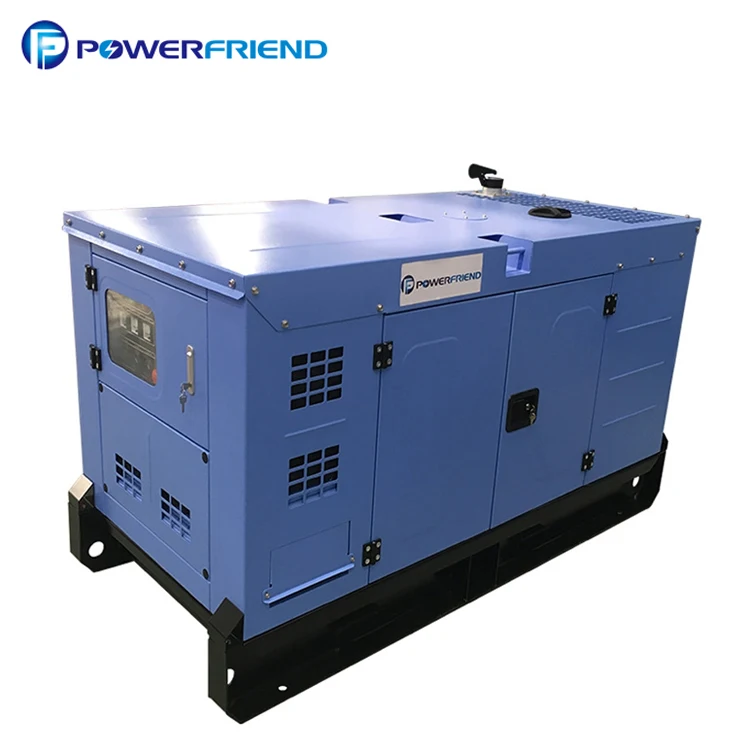

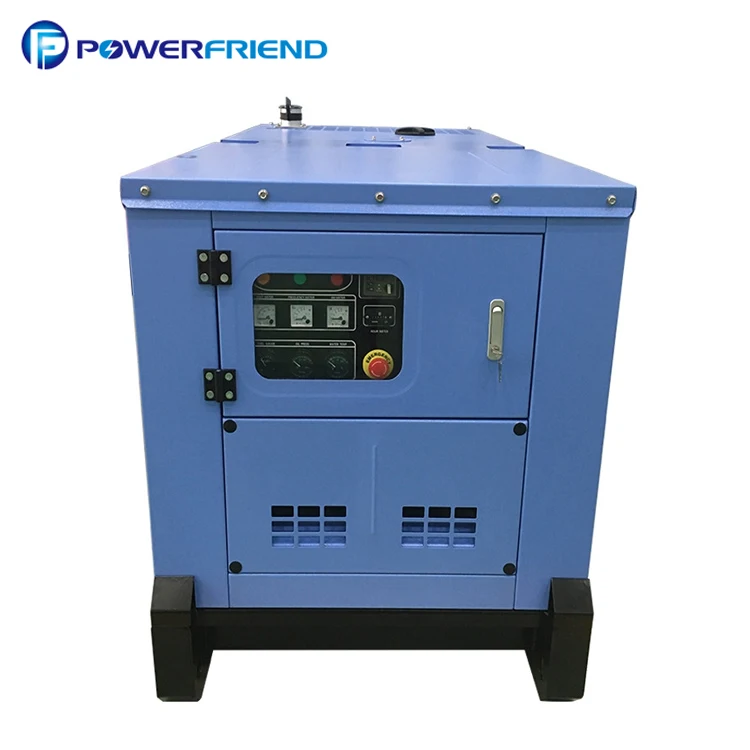

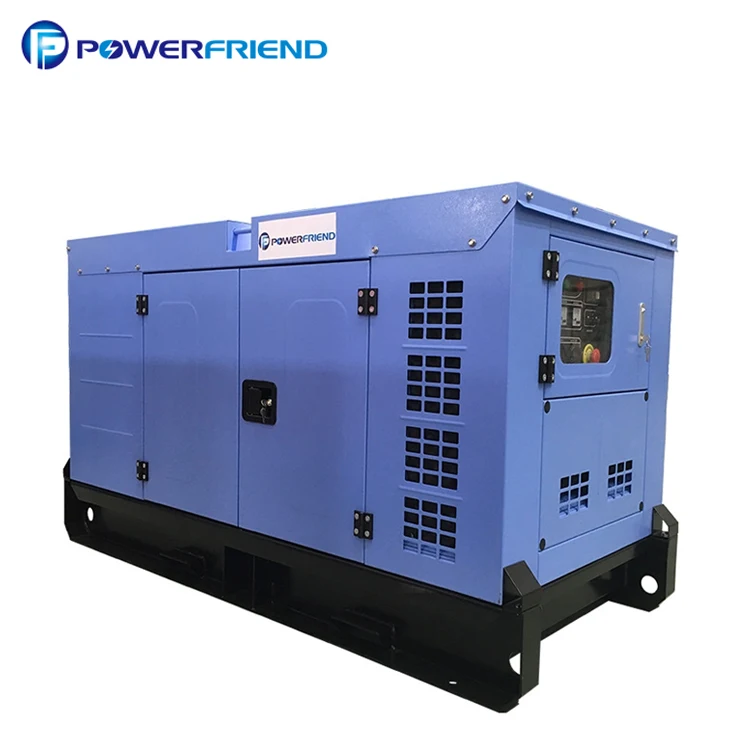

China 10kw 15kw 20kw 30kw silent electric power diesel generador de price
- Category: >>>
- Supplier: Jiangsu United Power Friend Technology Co. Ltd.
Share on (62230795352):
Product Overview
Description
China 10kw 15kw 20kw 30kw silent electric power diesel generador de price
Product Description
| 1. SPECIFICATIONS OF GEN-SET | ||
| 1.1 | Set Model | PF-FW22 |
| 1.2 | Prime at 50HZ, 40℃ ambient | 15KW 20KVA |
| 1.3 | Standby at 50HZ, 40℃ ambient | 17KW 22KVA |
| 1.4 | Rated Gen-set output | 400/230V 50Hz/60HZ |
| 1.5 | Rated Relative humidity | ≤ 60 % |
| 1.6 | Dimension (L×W×H) | Open: 1750*800*1100, Silent: 2300*1120*1200 |
| 1.7 | Weight | Open: 800kg, Silent: 1200kg |
| 1.8 | Fuel consumption 100% prime load | 7 |
| 1.9 | Structure of Gen-set | The Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set. |
| 2 | Control system (Optional) | Basic control panel or Advanced control panel with automatically start-up function and other function. |
| 2. SPECIFICATIONS OF ENGINE | ||
| 2.1 | Engine Brand | FAWDE/Xichai |
| 2.2 | Engine Model | 4DW91-29D |
| 2.3 | Governor/Class | Mechanical or Electronic |
| 2.4 | Cylinder NO. | 4 |
| 2.5 | Engine build | Line |
| 2.6 | Emission compliant | Stage II |
| 2.7 | start-up method | 24V, electric |
| 2.8 | Air intake type | Natural |
| 2.9 | Cooling mode | Water Cooling |
| 2.10 | Bore and stroke | 102×118 mm |
| 2.11 | Compression ratio | 17:01 |
| 2.12 | Displacement | 3.86 |
| 2.13 | Engine Prime Power at 1500rpm | 20KWm |
| 2.14 | Engine Standby Power at 1500rpm | 22KWm |
| 2.15 | Lubrication oil capacity | 12.5L |
| 2.16 | Oil consumption | 0.06 |
| 2.17 | Dry weight of base | 350Kg |
| 2.18 | Dry weight of Gen Pac | 375Kg |
| 2.19 | Overall dimension(G.P) | 1155×680×835(mm) |
| 2.2 | Overall dimension(base) | 810×680×800(mm) |
| 2.21 | 27℃ air consumption ( m³/ min) | 2.6 |
| 2.22 | Fuel type | #0 Diesel (Natural temperature) |
| 2.23 | Filter system | Adopt whole changeable lubricating oil, fuel filter and air filter |
| 2.24 | Exhaust system | Adopt industrial high efficiency muffler and ripple pipe |
| 3. SPECIFICATIONS OF ALTERNATOR | ||
| 3.1 | Alternator Model | UP184E |
| 3.2 | Alternator Type | A.C. Synchronous |
| 3.3 | Rated Voltage | 230/400V |
| 3.4 | Rated Frequency | 50HZ |
| 3.5 | Rated speed | 1500 RPM |
| 3.6 | Voltage regulation mode | Auto |
| 3.7 | Alternator voltage regulation | ±0.5% |
| 3.8 | Exciting mode | Brushless self exciting |
| 3.9 | Power factor | 0.8 (lagging) |
| 3.10 | Phase & wires | 3 phase 12 wires |
| 3.11 | Rated currency | 45.1A |
| 3.12 | Efficiency | 0.862 |
| 3.13 | Insulation class | H |
| 3.14 | Protection class | IP23 |
| 3.15 | Single load step to NFPA110 | 100% |
| 3.16 | Standards | IEC34-1,NEMA1 |
| 3.17 | Max. Ambient Temperature | 40℃ |
| 3.18 | Min. Ambient Temperature | - 20℃ |
| 3.19 | Max. altitude | 1000m |
| 3.20 | Weight | 156KG |

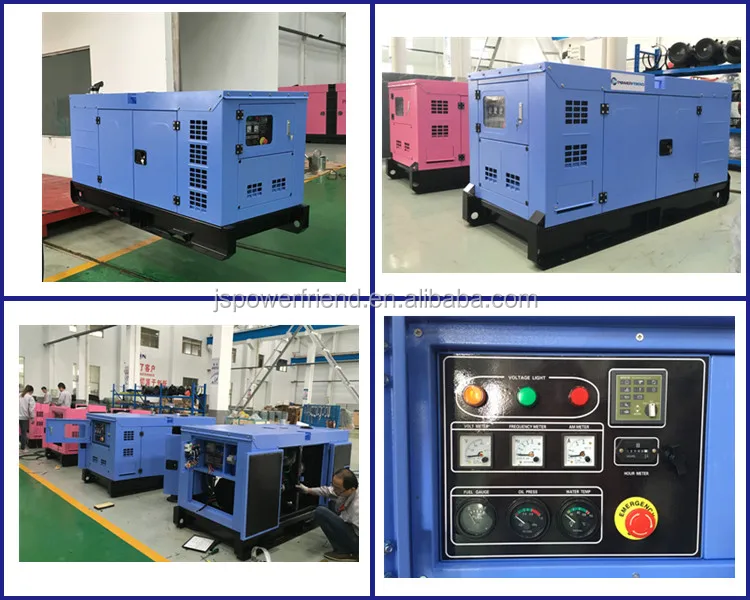

Production Flow
Digital Punching & cutting | Powder Painting | Genset Assembling | Wiring |
|---|---|---|---|
| Shipping | Packing | Tidy & Clean | Test |
| Quality Inspection Process |
|---|
|
|
|
Clean the genset, and packed, then transport |
ATS
Features of ATS
|
Features of Paralleling System
|
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
Packaging & Shipping
Delivery Time: 30 days after deposit, By Sea
Package: nude packing or plywooden case
FAQ
1. What is your warranty period?
Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
2. Does your generator have global warranty?
Yes. Gensets powered by global brand engine which with the global warranty service. And the alterntors Stamford, Leroy somer, Meccalte, Marathon also have the global warranty service.
3. What is your payment terms?
T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
4. What is your delivery time?
Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
5. Can the generators be customized?
Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
