10 ton per hour poultry feed manufacturing machine poultry feed production line animal feed making line
- Category: >>>
- Supplier: Shandong Double Crane Machinery Manufacture Co. Ltd.
Share on (62230814728):
Product Overview
Description
Product Description
10 TPH chicken feed pellet processing equipment for feed mill
www.feedpelletmachinery.com
If you are looking for the animal feed pellet production line, poultry feed production line,fish feed production line,
you have to stop and browse our company because we are a 12-year professional manufacturer to design and
install feed pellet production line for different customer demand. Our 3/5/10T/H feed pellet line and 2/5T/h
fish feed production line was been exported to Senegal,Oman,Tajikistan,Greece,Bangladesh and so on.
Our engineers and installation technology team are backbone in the feed line making line industry with

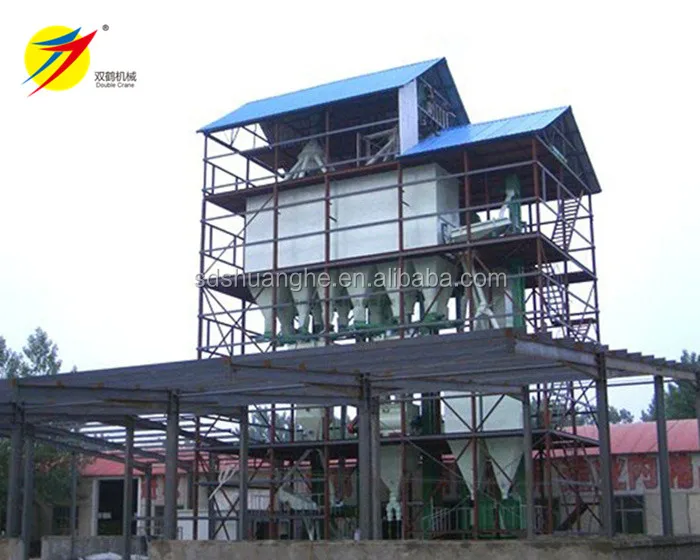

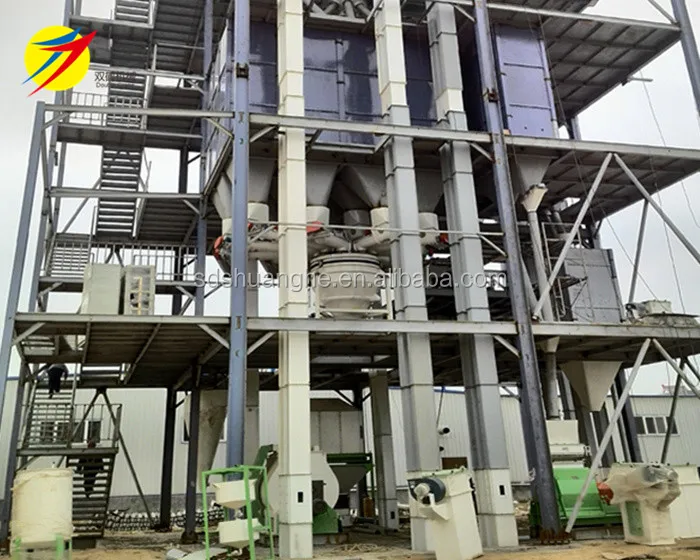

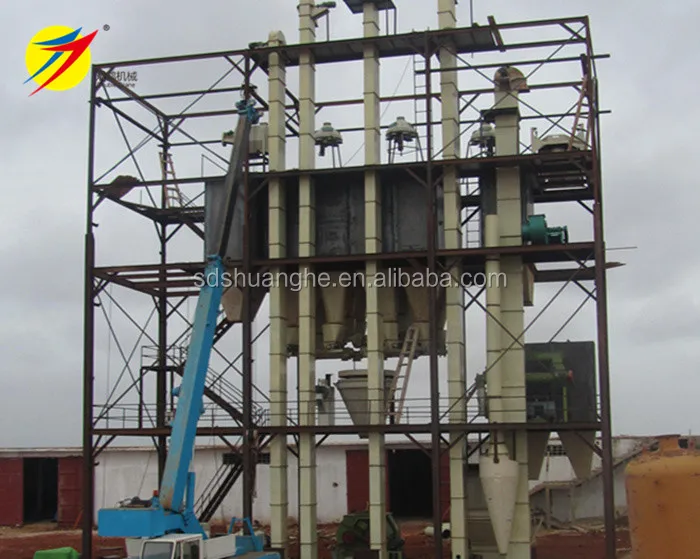

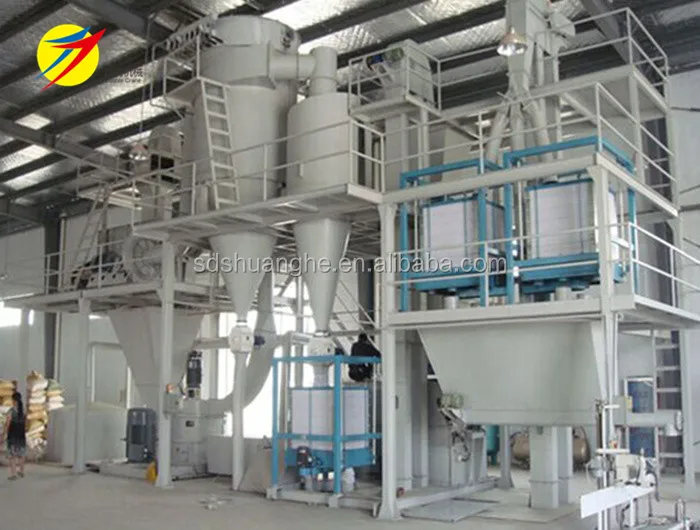

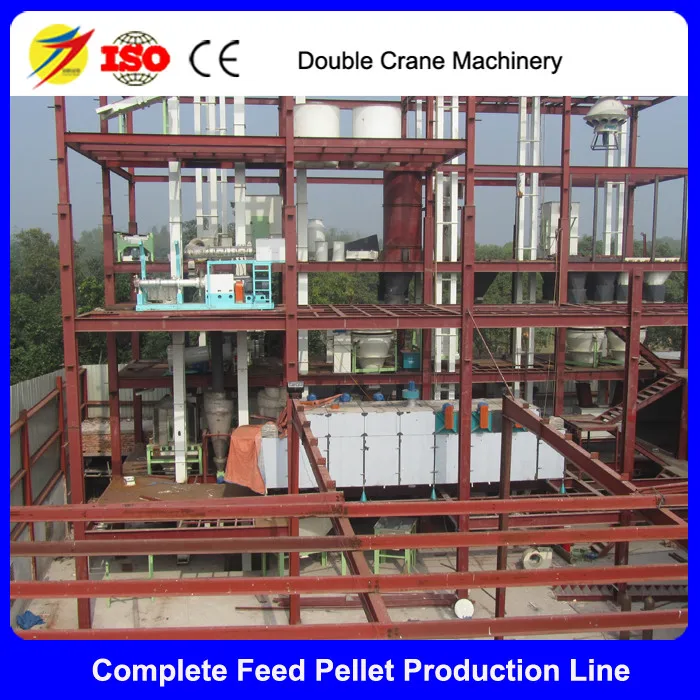

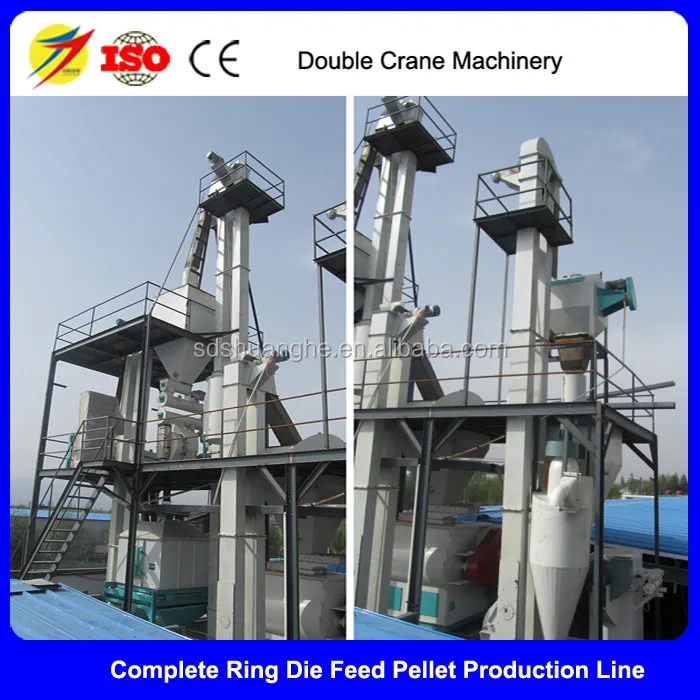

abundant practical experience. Here are the pictures of the actual feed pellet manufacturing line.

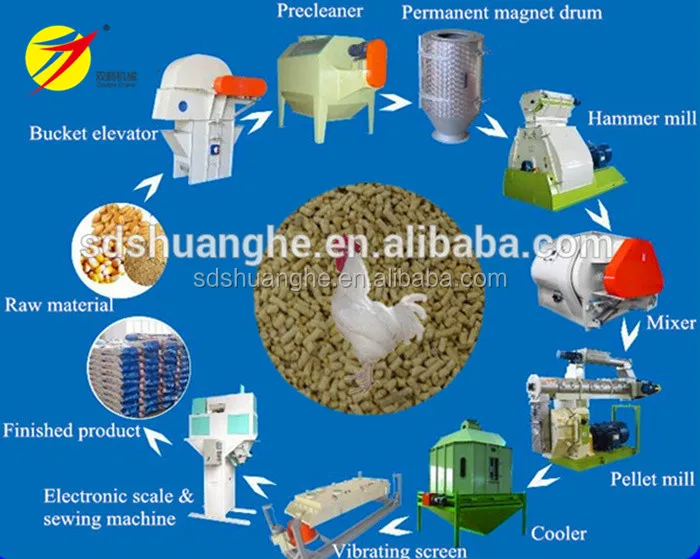

8-10T/H feed pellet processing equipment line has manual ingredients-batching as follows:
The steps: manual ingredients-batching poultry feed pellet production line demand that you weigh all the raw
material feedstock before production.
1.Weigh up solid raw materials such as corn and soybean,wheat and additive in proportion and percentage for
crushing and mixing.
2.put a batch of solid raw material into feed hammer mill for crushing by dust removal and pre-cleaning and
iron removal to avoid machines damage.
3.After crushing, a bucket elevator can transport the crushed particles by bin into feed mixer, at the same, the
additive are lifted into feed mixer by bucket elevator. In the mixing section, all the particle and powder are mixed
homogeneously, you also can add the liquid, oil and molasses to improve the feed taste.

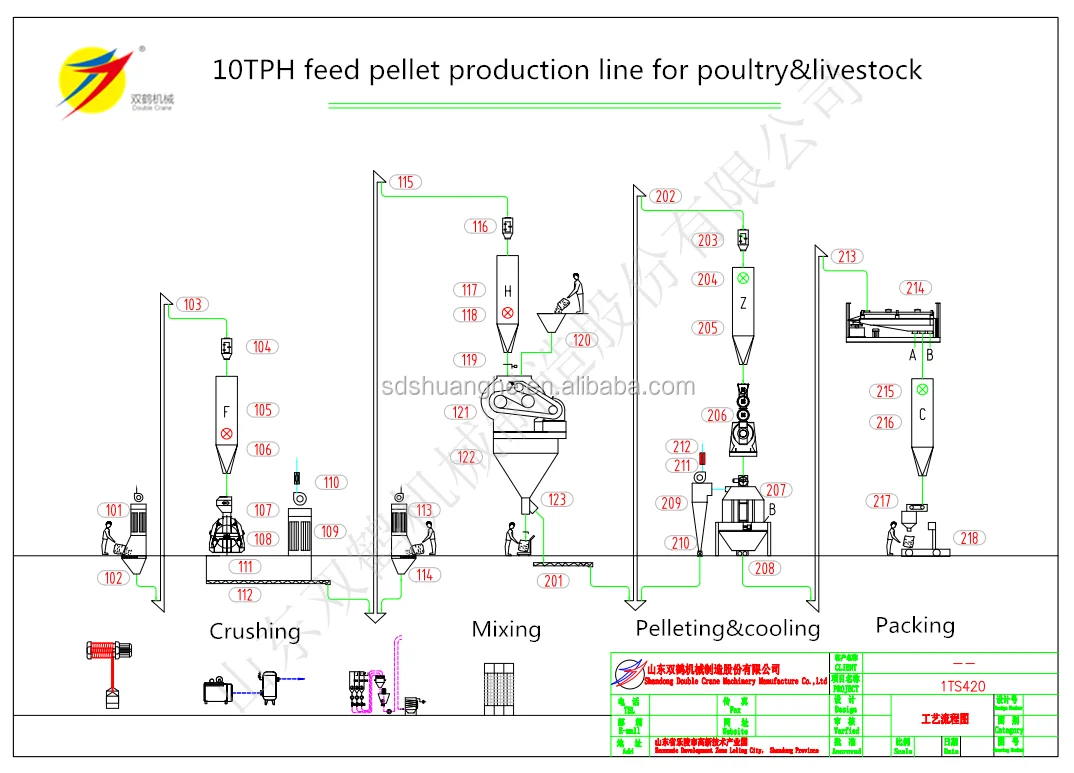

4.The next step is to pelletize after mixing, but if you need some feed mash, a pneumatic Tee can shunt the feed
mash into packing machine as show 207 in flow chart. Others are shunted by bin into feed pellet making machine.
For pelletizing section, it needs to add a boiler to supply the steam for conditioning to improve feed quality and
feed pellet shaping and sterilize.
5.The feed pellet produced are about 60-80 degrees centigrade , the cooling machine is necessary to cool down 3-5
degrees centigrade with counterflow cooling principle to avoid feed pellet surface crack with good cooling effect.
The cooling time is controlled by double level indicators: high and low level indicator, when the feed pellet is up
to high level indicator to discharge, if the feed is reach to low level indicator to stop discharging.
6.The vibrating screen are used to sieve the similar feed pellet for next packing.
7.Automatic packing scale can realize bag clipping,packing ration and bag seaming and feed pellet package
conveying.

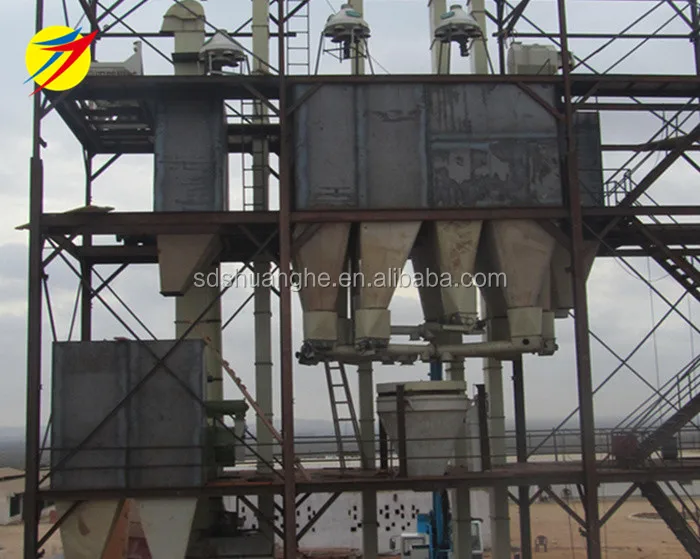

The computer-controlled ingredients-batching poultry feed making line adds a batching system compared
to the manual ingredients-batching. This part is before mixing,such batching system contains batching bins
and batching scale. There is a few bins to store corn/soybean/wheat,/sorghum particles and additive separately,
the batching scale can store all ingredients particles and additive for surging and weigh them up for next
mixing section instead of manual weighing.
Main Features
1.Multi-layer design and compact structure to save space.
2.The complete poultry feed line has no redundant machine,only select the machines which are necessary
for make the whole poultry feed pellet line normal running.
3.Each the machine capacity of poultry feed making line hourly is correlative to guarantee the whole line output.
4.Scientific machines arrangements can warranty the yield to save energy and raw material consumption and cost
5.With a high degree of automation,mechanization and flexibility.
2.The complete poultry feed line has no redundant machine,only select the machines which are necessary
for make the whole poultry feed pellet line normal running.
3.Each the machine capacity of poultry feed making line hourly is correlative to guarantee the whole line output.
4.Scientific machines arrangements can warranty the yield to save energy and raw material consumption and cost
5.With a high degree of automation,mechanization and flexibility.
Certifications
Detailed Images

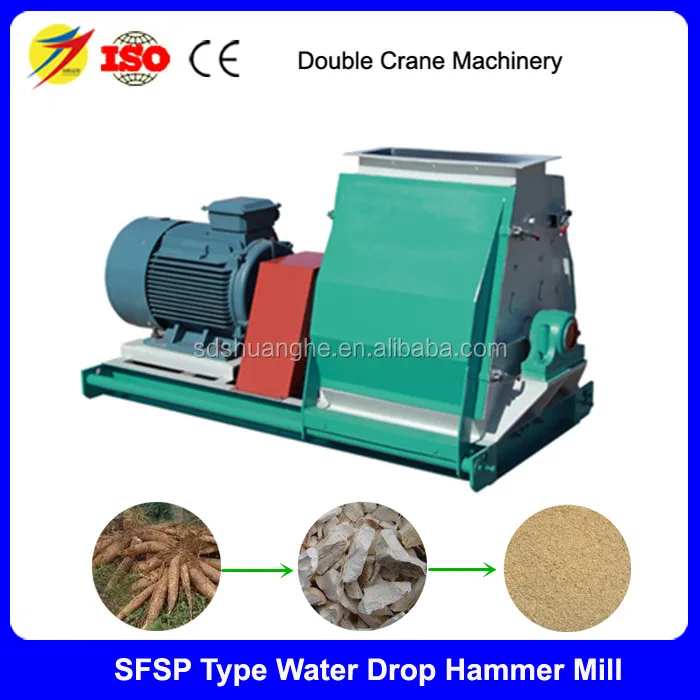

Hammer mill
Model: SFSP66x80
1.Capacity:8-10t/h
2.Rotor dia:660mm,crushing chamber width:800mm
3.Hammers:tungsten carbide 180×50×5mm
4.Wall plate is made of 5mm/Q235 steel plate
5.Drive by motor
6.Motor:china brand
7.Rotor balance is tested with reverse operation, door is equipped with safety interlock device , hammers are arranged symmetry.
1.Capacity:8-10t/h
2.Rotor dia:660mm,crushing chamber width:800mm
3.Hammers:tungsten carbide 180×50×5mm
4.Wall plate is made of 5mm/Q235 steel plate
5.Drive by motor
6.Motor:china brand
7.Rotor balance is tested with reverse operation, door is equipped with safety interlock device , hammers are arranged symmetry.

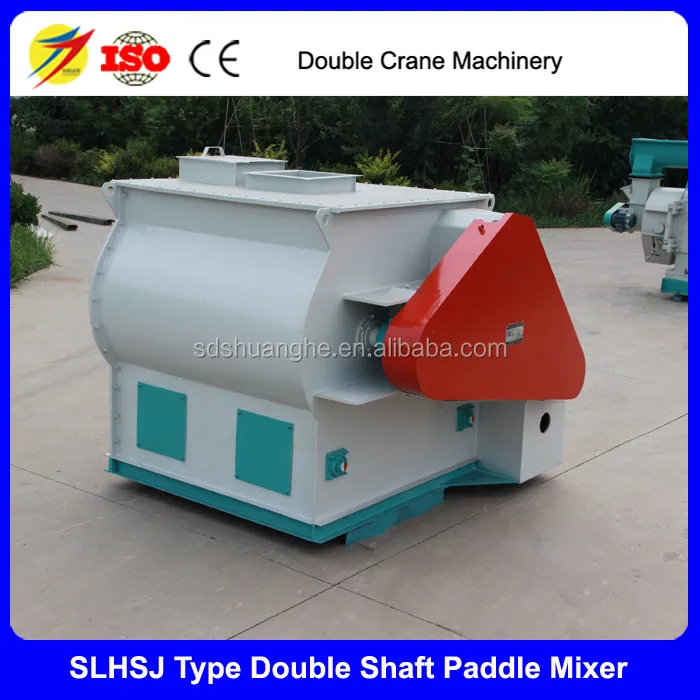

Double shaft feed mixer
Model:SLHSJ2.0
1.Size:2.32×2.59×1.8m
2.Mixing time:3-6min,1T/batch
3.Raw nmaterial is go forward along the axial and radial motion pusehd by double shafts paddle,then form a convective circulation to make the material well in a short time
4.Driven by chain
5.Motor:china brand
6.Penumaticl gate valve to discharging

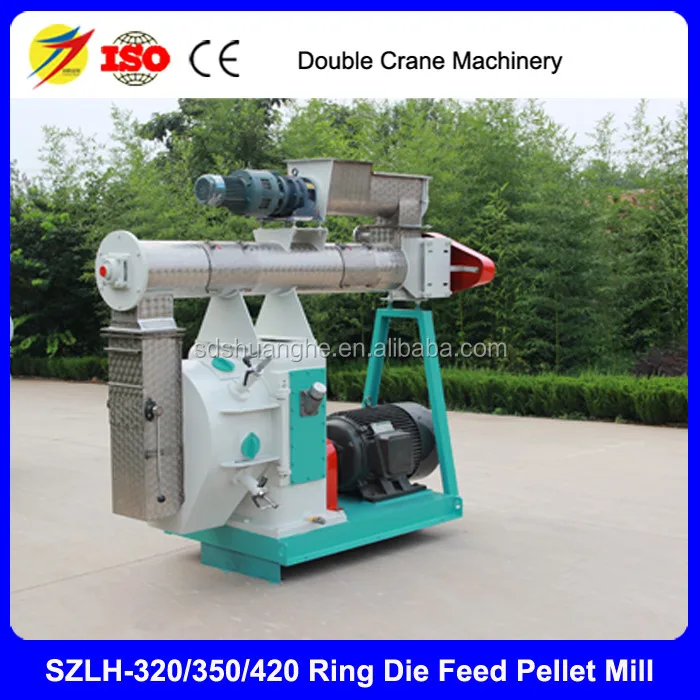

Feed pellet machine
Model:SZLH420
1.Capacity:8-10T/H, feed diameter:2-8 mm
2.feed mash moisture is not more than 15%, temperature is aobut 64~85℃ and humidity is about 14~16% throgh the conditioner.
3.Motor: china brand, drived by motor
4.Roller is made of carbon steel, ring die is made of alloy steel 5.Size:2.07×0.85×1.8m,weight:1335kg
5.feed speeder is adjustable with variable pitch to prevent anti-arch caking..Variable pitch blades,not blocking raw material, discharging mouth with double helix.
6.Single shaft paddle type to use the steam to sterilize and gelatinization for improve the feed quality .

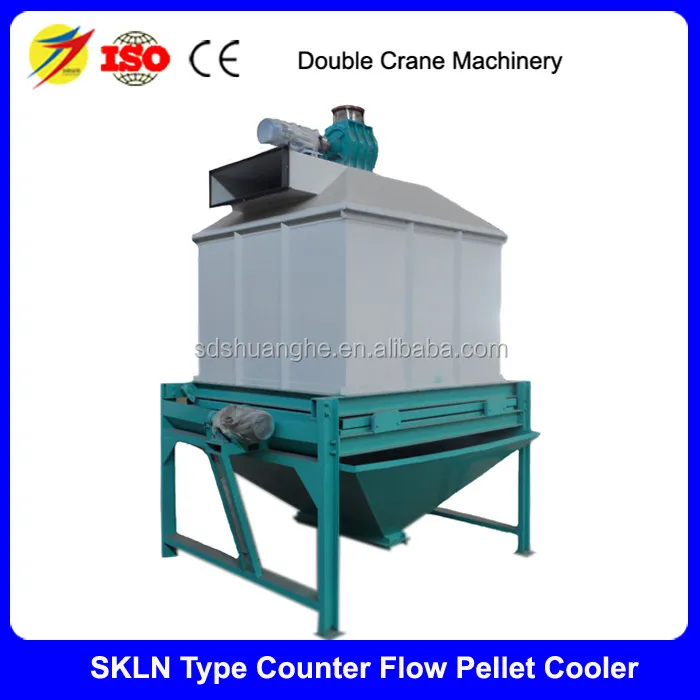

Cooling machine
Model:SKLN6
1.Motor:china brand
2.capacity:10-20t/h
3.Body is made of 2 mm thick Q235 steel, rack is made of 8# channel steel
4.driven: Eccentric connection, slide valve type structure
5.Cooling time:6-15 min,cooling down to room temperature: +3-5℃
6.Size 3.67x2.8x3.5m,weight:2430kg
Our Service
Pre-Sales Service
* Inquiry and consulting support.
*Solution for customer demand.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
| \t | |
| \t | \t |
| \t | \t |
| \t | \t |
Related Products
1T/H feed pellet production line
91.8% Response Rate
3T/H feed pellet making line
91.8% Response Rate
1-5T/H floating fish feed line
91.8% Response Rate
Our Company
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological development zone,Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.
Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been
always focused on designing and manufacturing feed pellet machines since the foundation in 2005.We had cooperated with domestic famous universities like Shandong University, Jinan University and Shandong Agricultural University in feed pellet production line since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60 different kinds of machines.
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design, automatic control and user experience and became the professional pellet mill manufacturer in China.
We have strong competitive advantages in feed production line with the capacity of 1-30 tph . Until now,we had installed more than 1200 setsof machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation, in-depth automatic and integrative technology development.These investments have greatly promoted the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to become your partner with our high price-performance products,excellent quality and perfect after-sales service.
FAQ
1.Are you manufacturer or trading company?
R:Our company is manufacturer and public company,we have been specialized in this field more than ten years.
our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.Located in Dezhou city,Shandong Province.
R:Our company is manufacturer and public company,we have been specialized in this field more than ten years.
our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.Located in Dezhou city,Shandong Province.
2.How can we promise the equipment quality?
R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System Certification, Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member, Well-known Trademarks In China.We have professional R&D and production team can promise all equipment is qualifyed befor
deliver to customer.
3.If we want to establish a feed production line,can you help us?
R:Yes,our company can provide service of free design,training,guidance,onsite installation,and debugging.
Only need customer tell us which type animal feed do you want to produce,production capacity demand,
we will recommend you the best
design and offer.
