Product Overview

Description

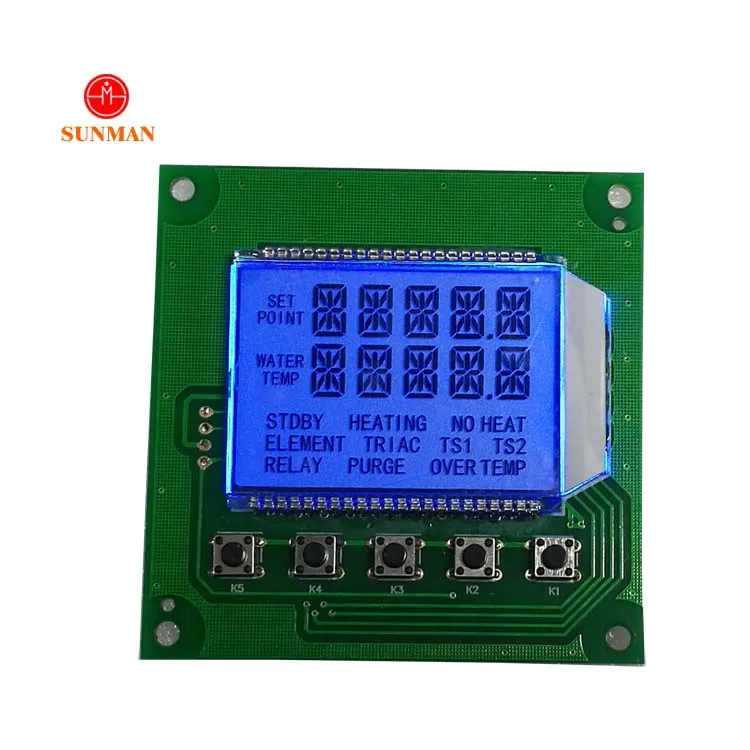

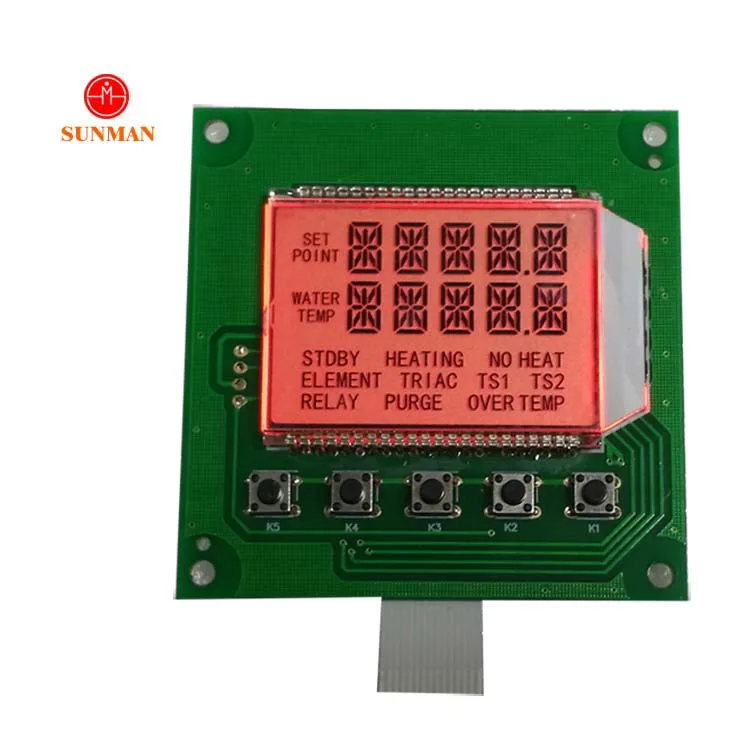

Custom low price 14 segment lcd i2c display with rgb led backlight

.jpg

Product Description

Product Description

Applicaion

14 segment lcd i2c display

ConstuctionLcd +cob+FFC
Display modetn Positive transflective
Driving method1/3 bias 1/4 duty
Viewing angle6H
InterfaceI2C

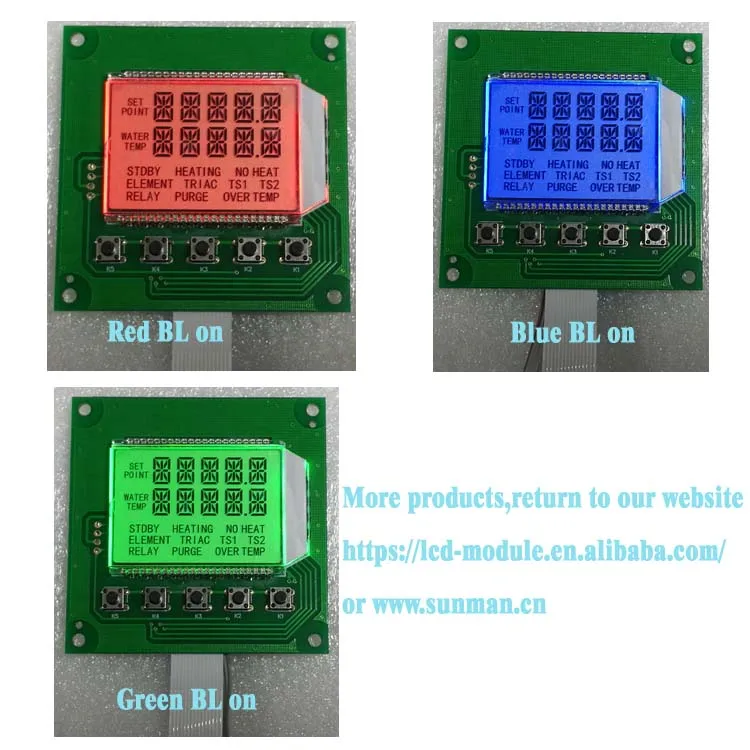

Backlight colorRGB three color backlight
OEM/ODMAccecpted
System designLcd module related system software and hardware design accepted

Warranty

12 moths free, payed warranty lifttime

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton
carton size

41.5x36x50cm

Sample lead time

3-7 working days

Customize lead time15-30 working days
Production Lead time7 days for available designs,Customized: 35~40 days
CetificationISO,SGS

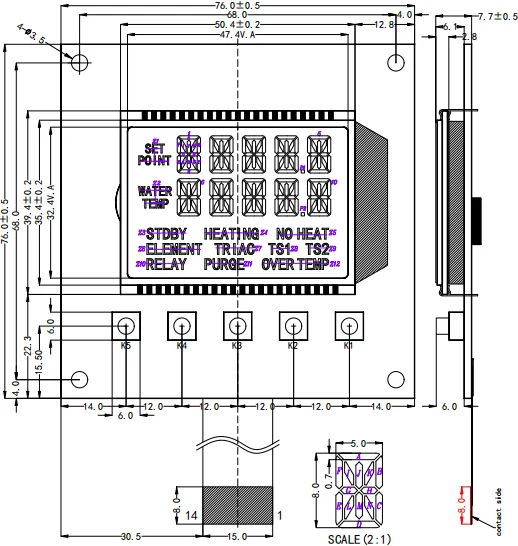

Mechanical Demesion

How're the metal pins assignment ?

Pin nameDescripionPin nameDescription
1.VssPower ground2.VddPower supply anode
3.SDAI2c data input/output4.SCLI2C clock input
5.k1key 1 input6.k2key 2 input
7.k3key 3 input8.k4key 4 input
9.k5key 5 input10.vssPower Ground
11.BKL A+Backlight anode(5.0V)12.BKL KR-Backlight cathode(Red)
13.BKL KG-Backlight cathode(Green)14.BKL KB-Backlight cathode(blue)





Product show




Any quesiton,please contact us!

Releated  Product

SML20113

Would you need more product?

Haven't you found the right products?

Let's recommend veryfied products for you !

Product Application


Our advantages

finial1 _0.jpg



INSPECTION PROCESS

Inspection display_f.jpg

CUSTOMIZATION

CUSTOMIZATION


Standard Set
Displaysegement,graphic,character monochrome lcd module&TFT accectpted
Display modeTN,STN,FSTN,HTN,transflective,reflective,transmissive,yellow green,blue,gray optional
Display typeCOB,COG,TAB
Lcd thikness(cm) 0.11,0.14
backlight thickness(cm) 2.8,3.0,3.3
InterfaceParallel(8bit,4bit,16 bit,80mode,68mode),serial(i2c,spi,uart,usb)
ControllerOptional
ICDie or packaged optional
Hardware or softwareAll accepted
Information given All idear,sample,photo,drawing,use manual and so on are OK



customg

Contact us for free designing!

Packaging&Shipping

PackagingPlastic bag +foam+cartom
Carton Size41.5cm*36.0cm*50cm  or customized,100-300PCS/ carton
Gross weight15.0 -20KGS
MOQ5 PCS for low price 14 segment lcd i2c display with rgb led backlight
Specitional packagingnegotiated

1 finial.jpg



Factory Show

FACTORY SHOW





Inspection display2.jpg

CERTIFICATION

CERTIFICATION


Buys' feedback

paste-pic-dp_uuid_a47yc

More details of buys' feedback,click here!

   FAQ

What is the MOQ ?
A for trail order, any quantity is acceptable


Q Can I get samples?
A Yes,just give us sample orders,and free samples for custom


Q  How to customize an lcd module?
A  Give us messages to design lcd modules and comfirm the drawings


Q Can mould cost been returened ?
A Yes, if quantity satisfied.


Q Can I get a lower price if I order large quantities?
A Yes, cheaper prices with more bigger size orders.



Q  When you ship my order?
A  Normally 25 days after receiving your payment, but it can be negotiated based on order qty and production schedule.


Q  How about the quality guarantee period?
A  One year!


Q  How can you guarantee the production quality ?

A  Our production quality follow ISO9000 standard system, stable design team22 years experience of QC team and strictly quality control system guarantee the production quality. accept third part inspection,we have mechanical checking,display checking,high&low temperature storage&operating test during high humidity condition,EMC test(optional) for every design.
