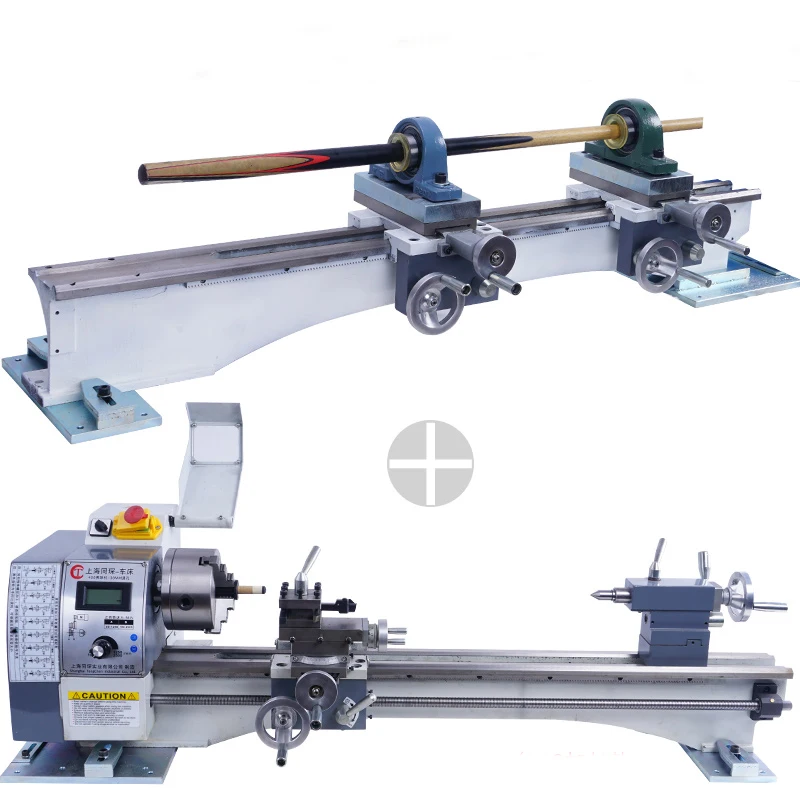

China Hight Quality Conventional Lathe Machine Price
US $3850-$4520

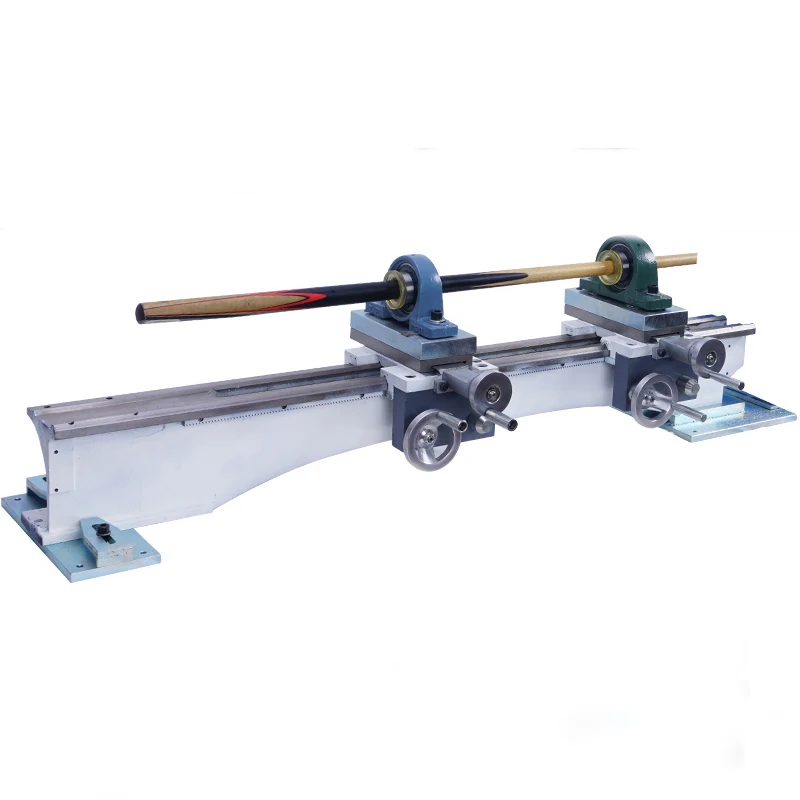

Литейный корпус держатель серии extended, универсальный деревообрабатывающий станок и бильярдным кием с общей топливной магистралью для деревообработки
- Category: Manual Lathe >>>
- Supplier: Shanghai Tongchen Industrial Co. Ltd.
Share on (62231218239):
Product Overview
Description
Product Description

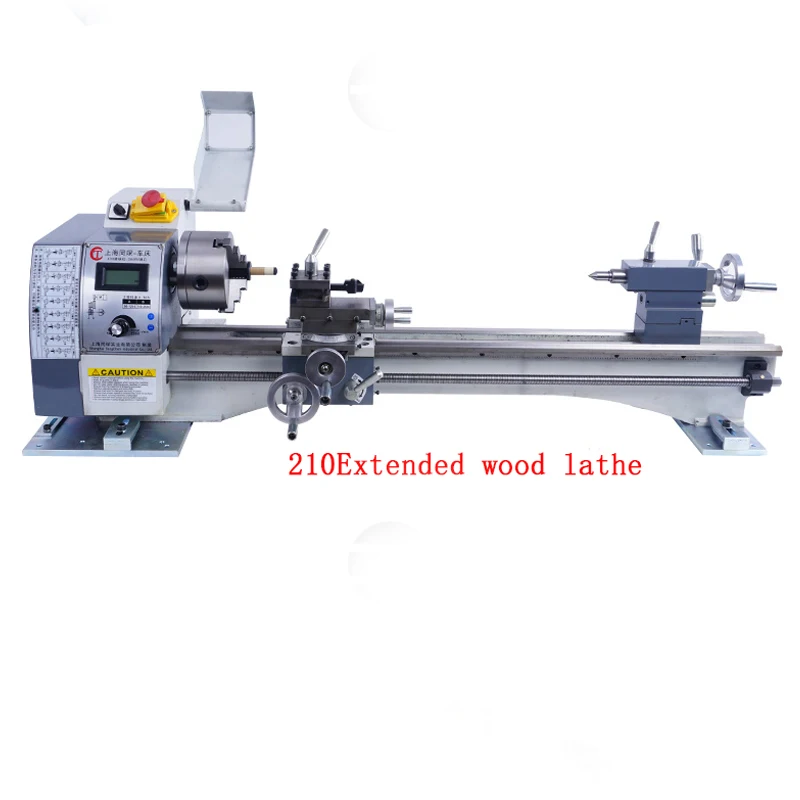

Name | 210 Conventional version | 210 extension version | 210 Extended double front | 400Model Beads lathe |
voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
power | 750W | 750W | 750W | 750W |
| 38mm | 38mm | 38mm | 38mm |
Spindle speed | 50-2500 rev/min | 50-2500 rev/min | 50-2500 rev/min | 50-2500 rev/min |
Shift level | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed | Infinitely variable speed |
Machine accuracy range | <10s | <10s | <10s | <10s |
Tool holder swing diameter | 100mm | 100mm | 100mm | 100mm |
Bed turning diameter | 180mm | 180mm | 180mm | 180mm |
Two tip distance | 400mm | 400mm | 400mm | 400mm |
Spindle bore taper | Mohs 3 | Mohs 3 | Mohs 3 | Mohs 3 |
Tailstock shaft taper | Mohs 2 | Mohs 2 | Mohs 2 | Mohs 2 |
Chuck maximum clamping | 120mm 125 chuck | 120mm 125 chuck | 120mm 125 chuck | 120mm 125 chuck |
Tool holder station | 4 stations | 4 stations | 4 stations | 4 stations |
Tool holder maximum stroke | 55mm | 55mm | 55mm | 55mm |
Middle tray travel | 75mm | 75mm | 75mm | 75mm |
Large tray travel | 276mm | 276mm | 276mm | 276mm |
Tailstock sleeve stroke | 60mm | 60mm | 60mm | 60mm |
Automatic feed range | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm | 0.1-0.2mm |
Lathe length | 800mm | 1200mm | 1300mm | 800mm |
Lathe width | 390mm | 390mm | 390mm | 390mm |
Lathe height | 370mm | 370mm | 370mm | 370mm |
Lathe gross weight | 75kg | 82kg | 90kg | 75kg |
Product information
Our Services
1. Our company has professional 1080P super clear video teaching U disk (video, Buddha bead, handball bodhi, bowl plate, pen container, wine glass, metal processing) and other video!
2. We have a professional engineer after-sales team to guarantee your after-sales worry-free and assured purchase!
3. We welcome buddhist bead lovers from all walks of life to observe and learn from us!
4, we have more than 10 years of production management experience!Have business license, can inquire.
5, all of our buddhist bead machine life guarantee!
