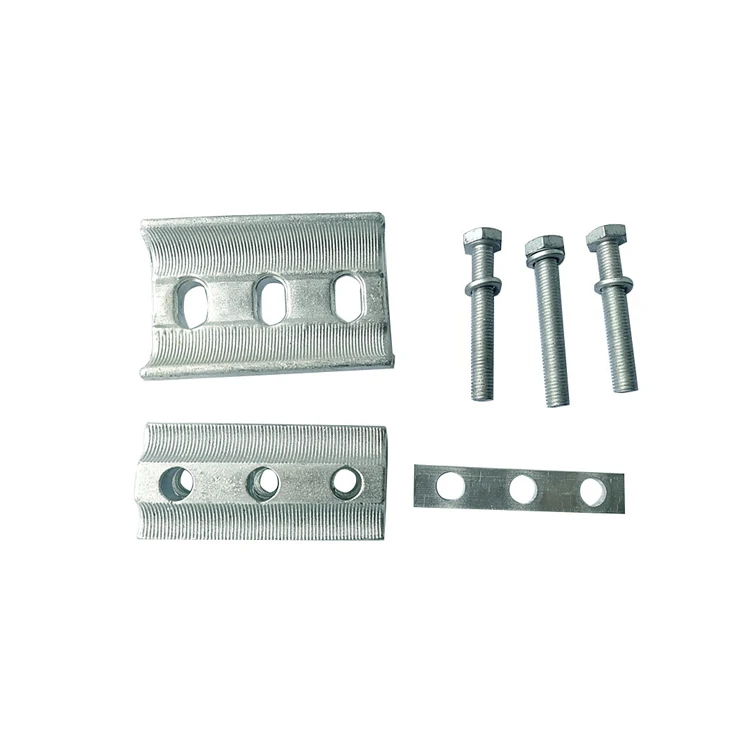

APG C4 Adjustable Bolt Type Aluminum Parallel Groove PG Clamp
- Category: Clamps >>>
- Supplier: Ningbo Jecsany Electrical Equipment Co. Ltd.
Share on (62231374243):
Product Overview
Description
Description | APG-C4 Type Aluminium Bolts Bimetallic PG Clamp |
Feature | Pressure pad ensures pressure along the clamp evenly, Parallel groove clamp has high mechanical pullout strength and good electrical contact. |
Material | Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5 |
Type and Size | General type and size or according to customer's drawing or sample |
Application | Suitable to connect two parallel bare conductors. Conductors can be aluminum alloy or aluminum steel reinforced and copper conductor. |
Type | Conductor Range | No. x Bolts |
APG-A1 | Al 16-70 mm² | 1 x M8 |
APG-A2 | AL 16-150 mm² | 1 x M8 |
APG-B2 | Al 16-70 mm² | 2 x M8 |
APG-B3 | AL 16-150 mm² | 2 x M8 |
APG-B4 | AL 25-240 mm² | 2 x M10 |
APG-C1 | AL 16-70 mm² | 3 x M8 |
APG-C2 | AL 16-150 mm² | 3 x M8 |
APG-C3 | AL 25-240 mm² | 3 x M10 |
APG-C4 | AL 35-300 mm² | 3 x M10 |
Q: Can we get a sample for reference?
A: Yes, as long as the goods are conventional type, and you will be charged sample cost plus related shipping cost. Once you place an order to us, we can return or deduct the sample cost to you.
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 25-35days upon the receipt of advance payment.
Q: What is your terms of payment ?
A: We accept West Union, T/T, irrevocable L/C at sight. Prefer T/T 30% deposit before production, the balance against copy of B/L.
Q: Can you print our brand on the product?
A: Yes, of course, we also do OEM to print client’s brand on the product.
