Ce Approved Brand New Top Quality Digital Hospital Medical X Ray Unit Mammography Machine Diagnostic Equipment

Share on:

Price:RUB 460,828.02 - RUB 1,471,676.58
Price in USD:Details


Product Overview

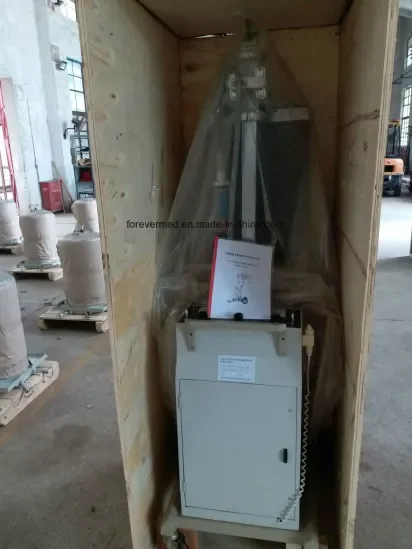

Packing Details:

ItemLength * Width *height/mmWeight/kg
Host machine (without packing)2000 *560 *940150
Operation platform (without packing)905 *560 *35046
Host machine (packing)2160 *690 *1150210
Operation platform (packing)1050 *700 *60060


A mammogram is a special, low-dose X-ray technique used to take a picture of the breast, detecting and diagnosing any abnormal lumps or masses in breast tissue. It is one of the best tools for the early identification of breast cancer. With early identification, breast cancer can be cured while in the first stage, and recovery is more likely.

X-ray GeneratorGenerator Type: High Frequency Inverter 80kHz
Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs
                    Small Focal Point 20-35kV/10-100mAs
Power Rating: 6kVA
Self-developed and world advanced  all-solid-state high frequency high voltage x-ray generator
X-ray Tube
Focal Spot Size: Dual Focus 0.1 / 0.3mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
High-speed anode drive: 2800 /10000rpm
Target angle:10°/16°
Anode Heat Storage: 300kHU
Anode Cooling: Air cooling
Filtration: Mo(0.03mm)Al(0.5mm)
Model: IAE C339V
Radiographic StandC-ARM Vertical Movement: 590mm
Center of electric rotating C-arm, automatic return function by one key
Rotations Degree: +90°~-90°
Automatically released after the exposure pressure settings display. Compression flexible stepless speed.
Max. pressure: 200N
Max. travel: 150mm
SID: 650mm
Cassette Image ReceptorBucky Device: 18×24cm Bucky drive mechanism
Grid Ratio: 5:1, 30 Line/cm
24x30cm for optional
OthersLine Voltage
220V ac±10%  25A, Single phase
110V for optional


1X-ray Tube1
2X-ray Generator1
3Radiographic Stand1
5Cassette Image Receptor1
6Compression devices1
7Comfortable Compression1
8Paddle switch2
9Control console1
10Exposal switch and connected line1
11Power wire1
12Grounded wire1
14Operation manual1
15Maintenance Reference Manual1

1. Unique adopt all-solid-state high frequency high voltage generator. This technology has got the PATENT IN THE USA.
2. The safest mammography at high voltage. There is a built-in X-ray ignition coil in host machine, high-voltage power lines less then 25cm.
3. Electric Isocentric rotating C-arm with a unique automatic back to center function.
4. Optional the third generation imported moving grid.
5. Optional auto/semi-auto/manual, three kind exposure modes.
6. Optional image output device: digital film printer.
7. A total of 3 pieces of large size full color LCD screen display, operation table 8 inch LCD screen is a touch key.
8. Comfortable Compression
When some degree of pressure is required for radiography, it allows you to presser the appropriate pressure(up to a maximum of 20kg)and is equipped with MICOM Control's Soft-touch system which is designed to minimize the discomfort of the examine with in the pressure range.
Tissue Compression: Manual and Motorized (Max 20kg)
 Compression Force and Thickness Data Display
Micro Control's Compression
Automatic Release
9. Intelligent Automatic Exposure Control(AEC)
With the Automatic Exposure Control system, it is possible to produce images with reliable intensity suitable for and film, screen, or method of radiography.
Furthermore, it greatly enhances the convenience of radiography by embedding the Full-AEC function which is capable of utilizing the Auto kV
Type: Solid-State Detector

 Microprocessor Control
AEC Mode: Full AEC(Auto kV)
Semi AEC (kV Select)
Manual (kV,mAs Select)
Density Adjustment: 16 density steps
10. X-ray Tube
Model: China Hangzhou LR01
Focal Spot Size: Dual Focus 0.2 / 0.4mm
Target Material: Molybdenum (Mo)
Port Material: Beryllium (Be)
High-speed anode drive: 2800 /1000rpm
Target angle:12°/12°
Anode Heat Storage: 100KJ(150KHU)
Anode Cooling: Air cooling
Filtration: Mo(0.03mm)Al(0.5mm)
