1.5 inch LCD 128*128 dots TFT module

Share on (62231710026):


Price:RUB 154.13

Quantity:


Product Overview

Description

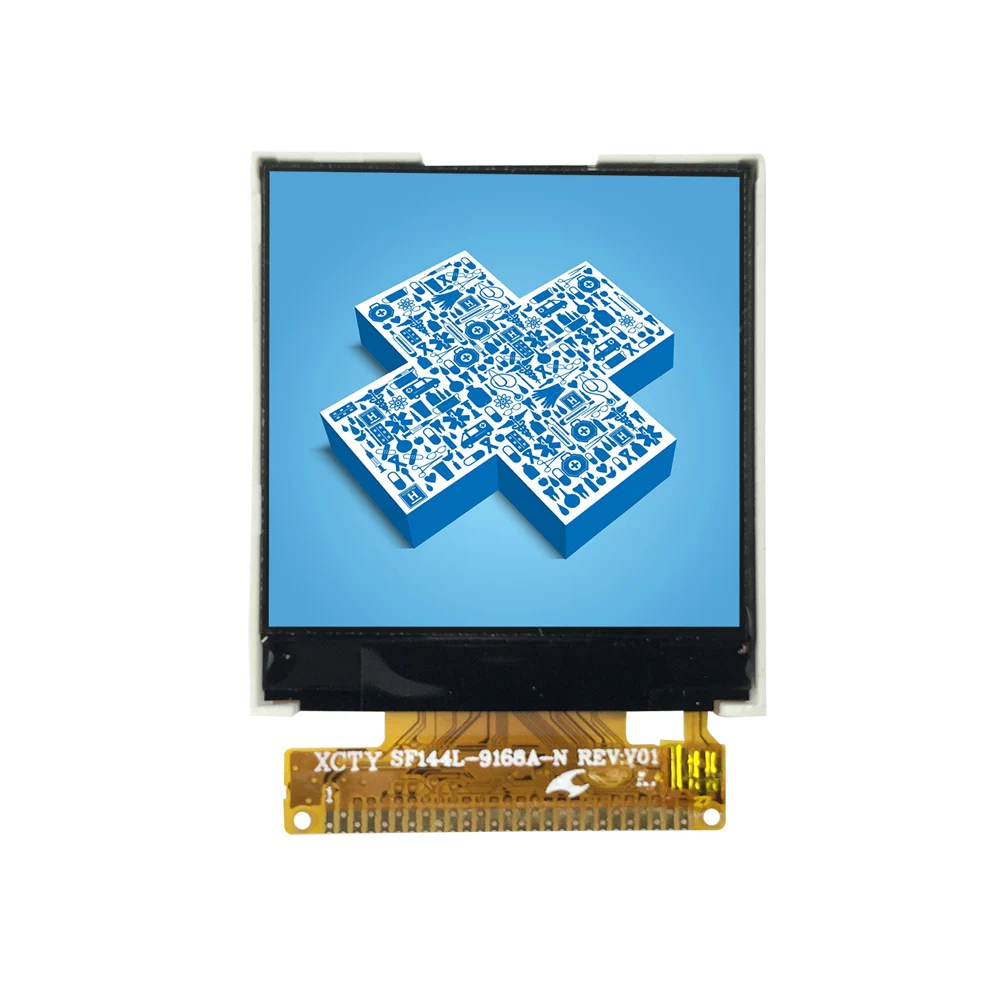

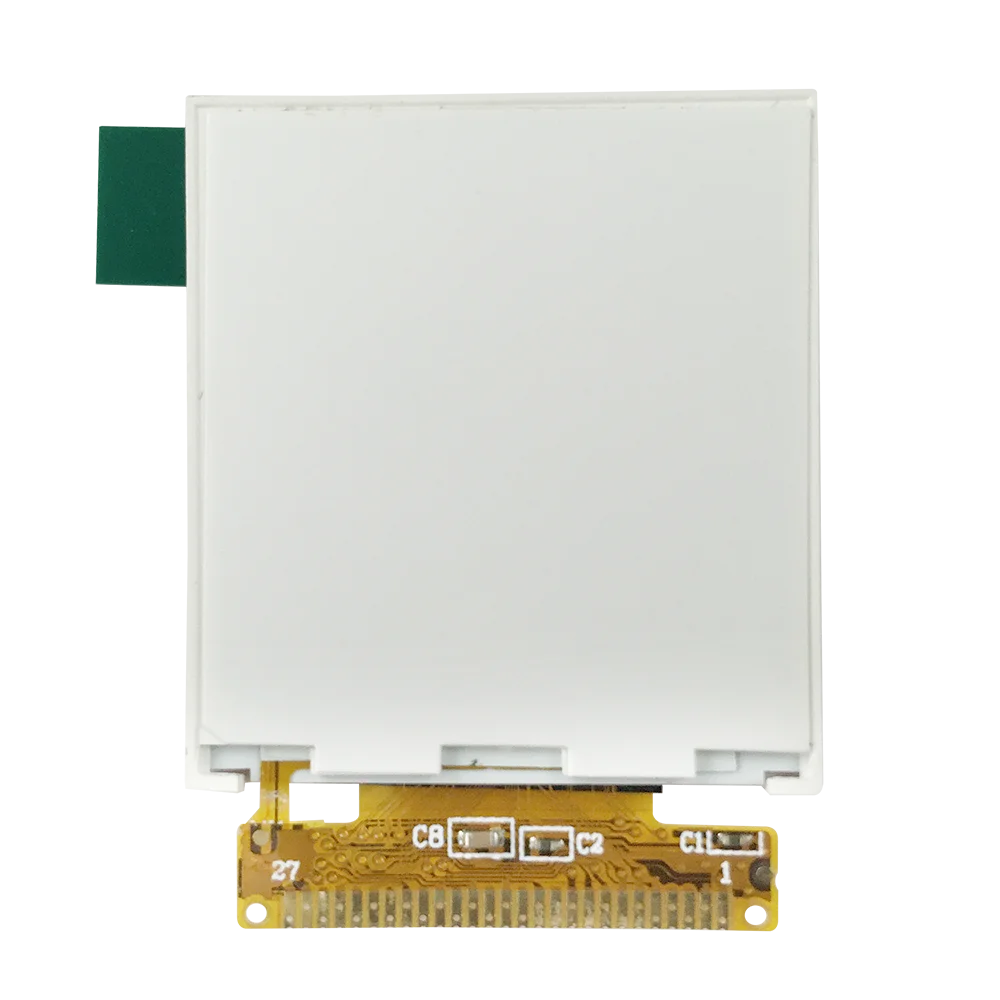

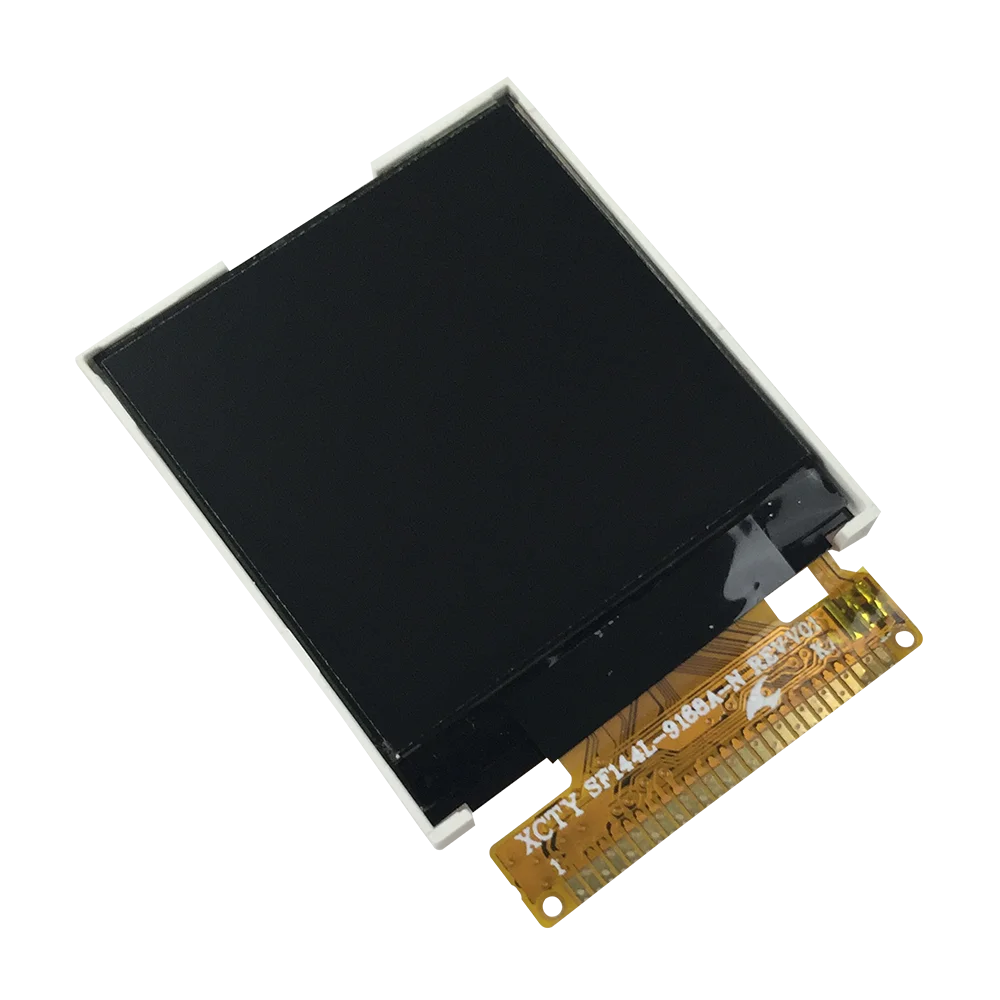

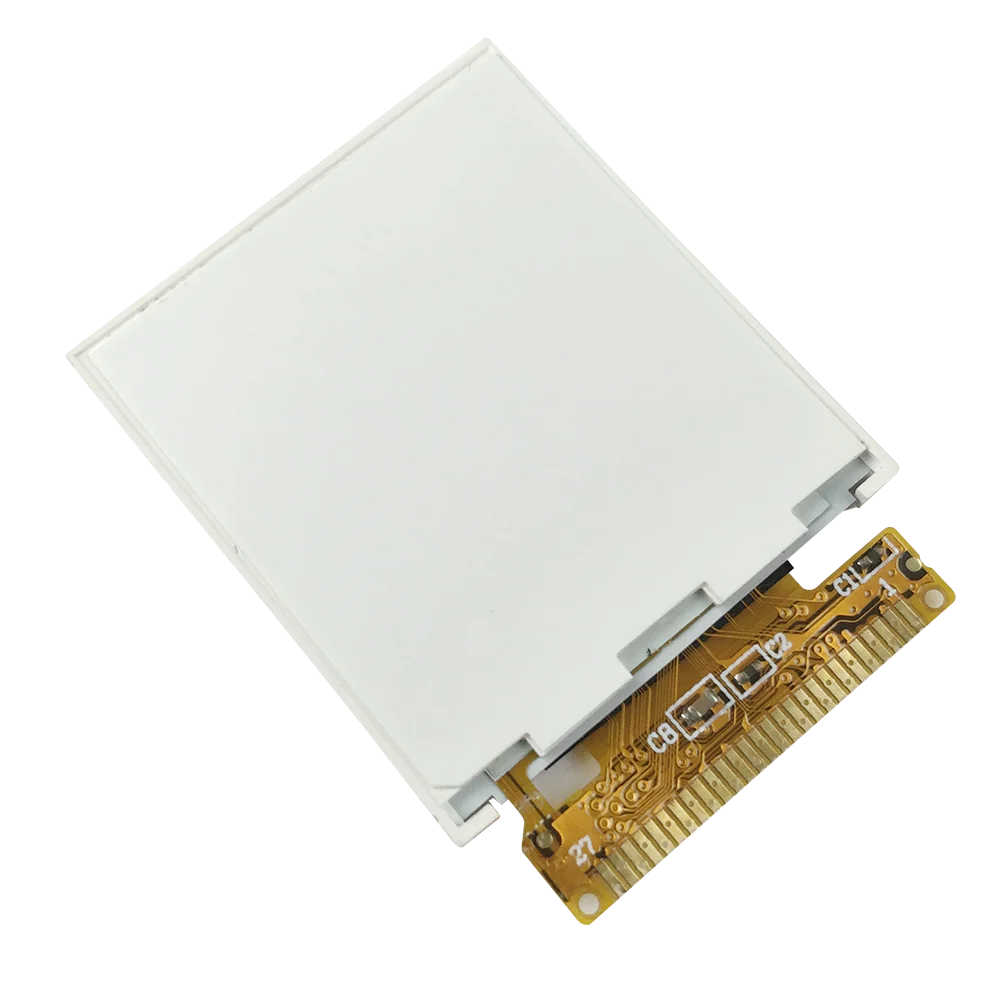

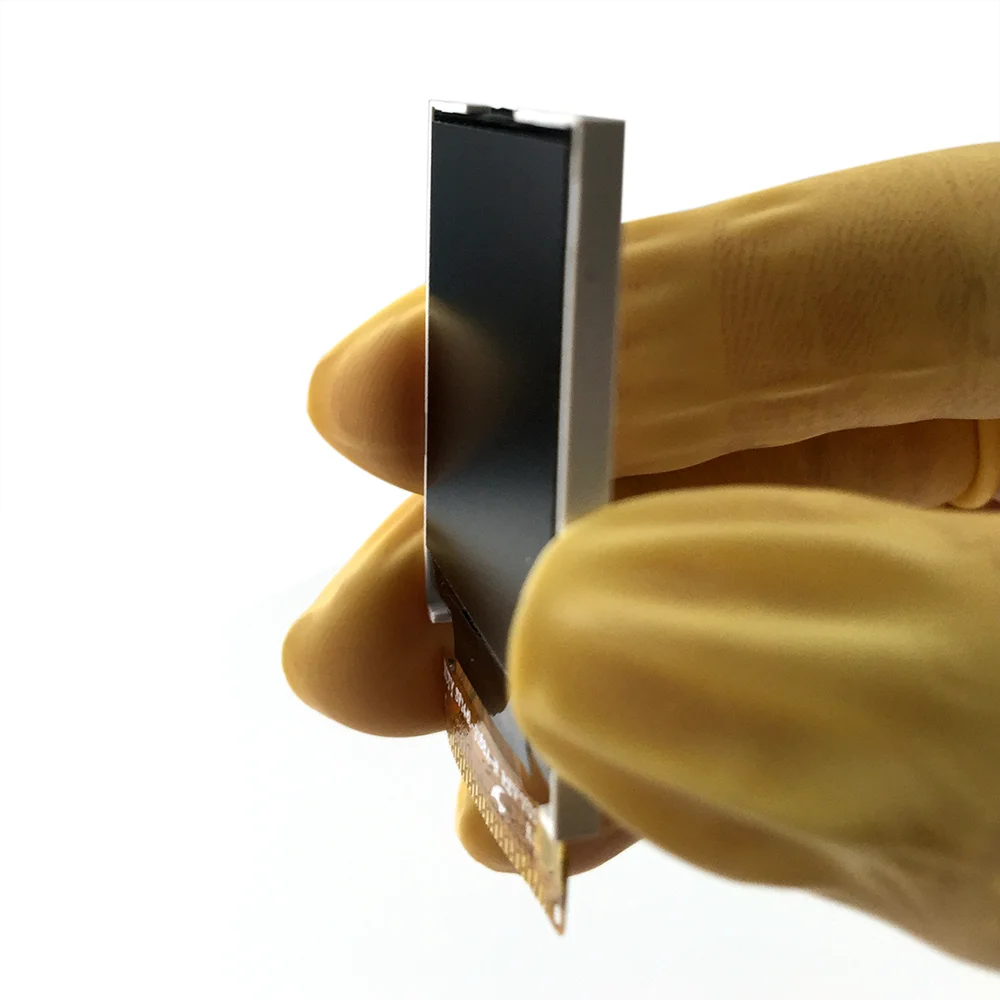

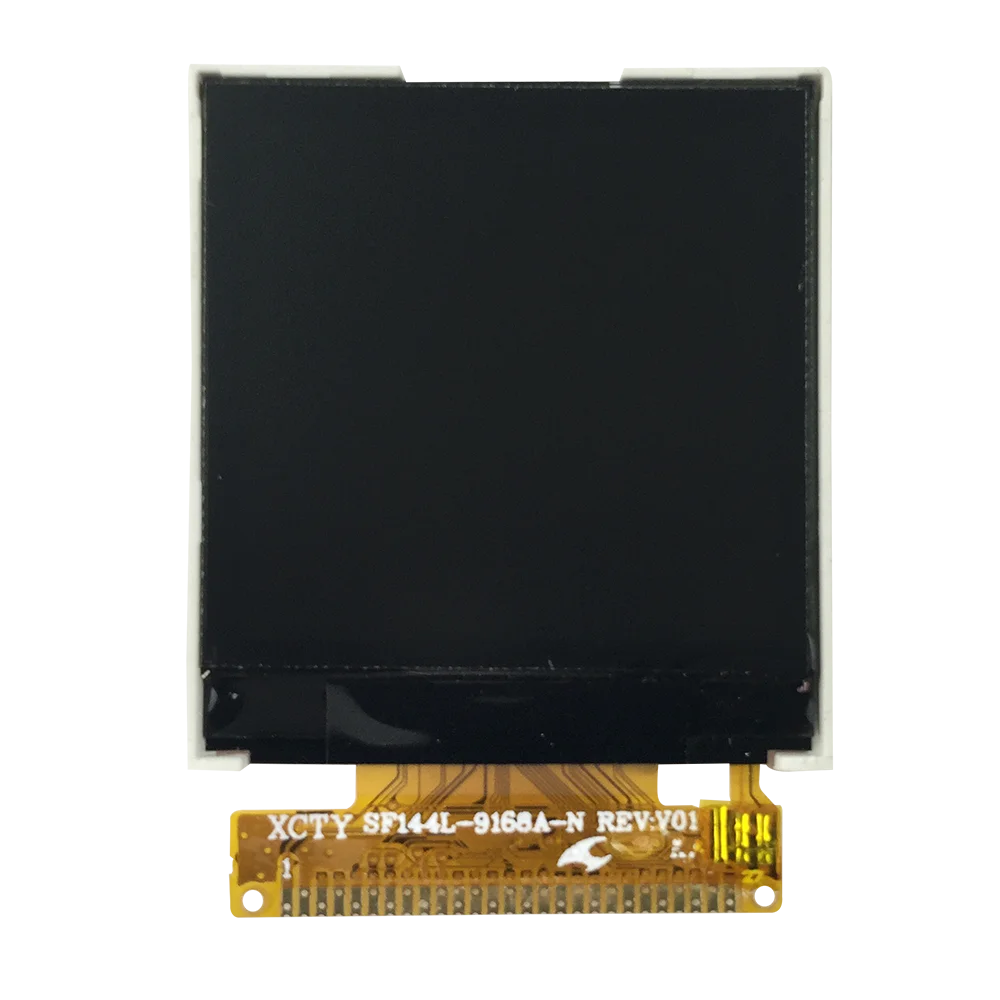

1.5 inch LCD 128*128 dots TFT module


1. Display Type:

1.5 inch tft lcd display

2. DRIVER IC:

ILI9163C

3. Resolution:

128*(RGB)*128,TFT-Panel

4. Pin NO# :

27pins

5. Outline Dimensions:

30.05*33.82*2.3mm

6.Luminous Intensity for LCM

100cd/m2

7. Interface Type:

MPU-8

8. Backlight:

White LED

9. Operating voltage:

+2.6V~3.3V

10. Viewing Angle:

 12 O’clock

11. Operating Temp:

-20°C~+70°C

12. Storage Temp:

-30 ~ +80°C






 SF-TC144L-9168A-N.jpgSF-TC144L-9168A-N-03.pngSF-TC144L-9168A-N-04.pngSF-TC144L-9168A-N-05.png










1. ISO9001 certificated, Factory Direct Supplied

2.RoHS Compliant, Lead Free, Reach Compliant

3.Competitive Price and Short Lead-time

4.Professional Team with Rich Experiences in Design/Mfg/Quality Control

5.Small MOQ Support & Fast Response to Customers

6.Long Product Life Time
