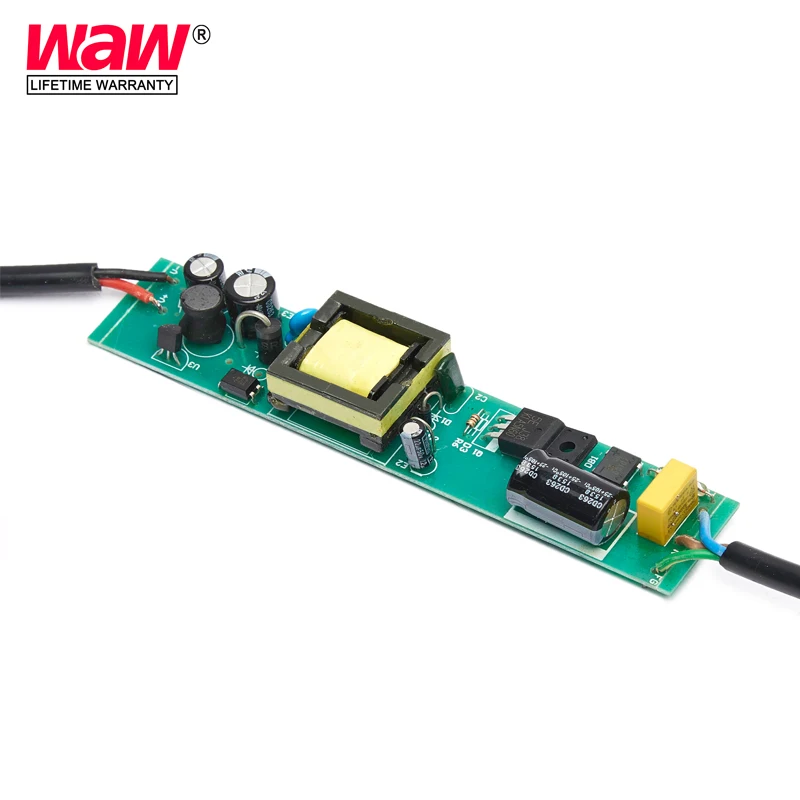

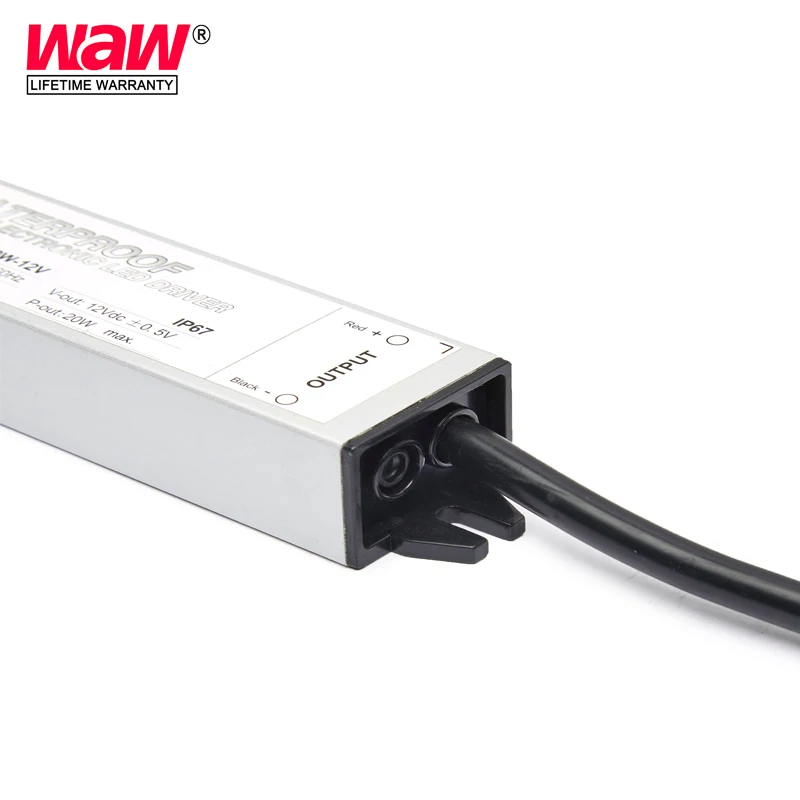

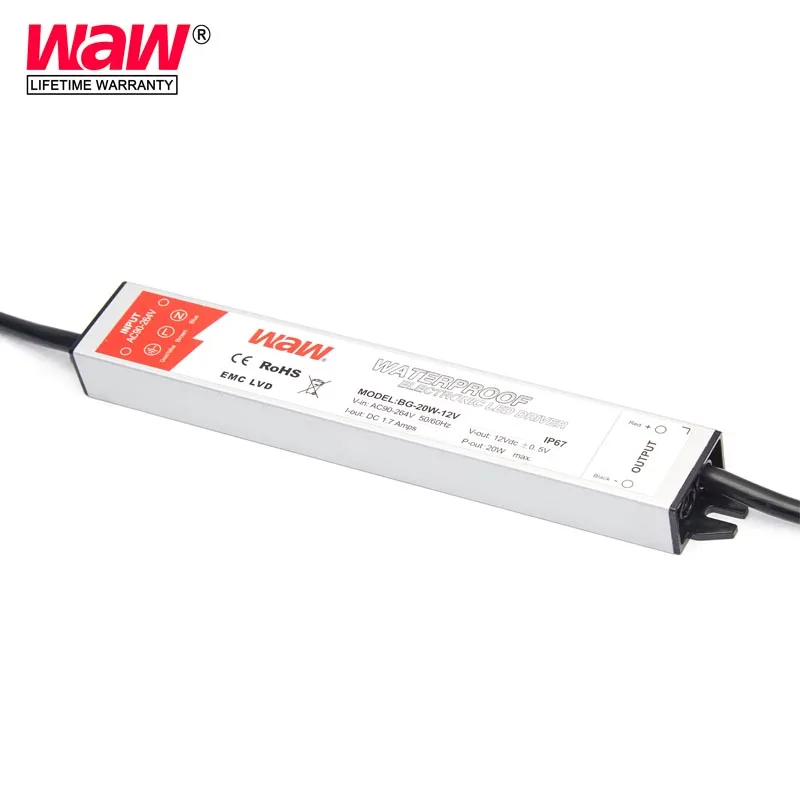

12v 20w constant voltage waterproof IP67 LED driver LED power supply for LED strips with CE,ROHS approved
- Category: >>>
- Supplier: Yueqing Wode Electrical Co. Ltd.
Share on (62231875613):
Product Overview
Description
Product Description
12v 20w constant voltage waterproof IP67 LED driver LED power supply for LED strips with CE,ROHS approved
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications

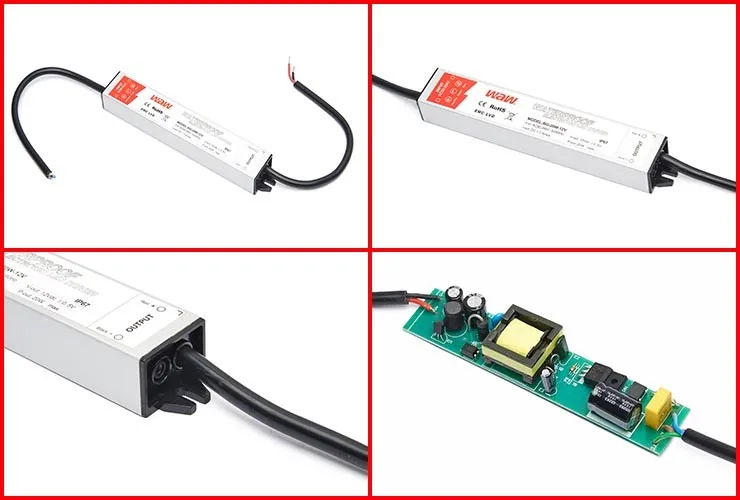

| Model | BG-20-5 | BG-20-12 | BG-20-24 | BG-20-36 | BG-20-48 | |
| OUTPUT | DC output voltage | 5V | 12V | 24V | 36V | 48V |
| Rated output current | 4A | 1.67A | 0.83A | 0.55A | 0.42A | |
| Wave and noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Intet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±1% | ±1% | ±0.5% | ±1% | ±0.5% | |
| Efficiency | 80% | 81% | 83% | 83% | 83% | |
| INPUT | AC voltage range | 90~264VAC 47~63Hz; 250~370VDC | ||||
| AC inrush current | Cold-start current 30A/250V | |||||
| PROTECTION | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | ||||
| Over voltage | 121%~142% Rated output voltage | |||||
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | Setup rise hold up time | 100ms 60ms/230VAC at full load | ||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Working temperature and humidity | -10~+50°C | |||||
| Store temperature and humidity | -20~+85°C, 10~95%RH | |||||
| OTHER | Overall dimension | 182×29×20mm 100PCS/CARTON | ||||
| Weight | 0.22KG | |||||
| CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
| EMC CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | |||||
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 | ||||||
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | |||||
| EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 | ||||||
Company Information
Packaging & Shipping
Our Services
We are the only supplier in Alibaba can provide LIFETIME WARRANTY power supply,please don't be hesitate to check with our Ali web://wodecn.en.alibaba.com/ and contact us by TradeManager or Skype for more details(our TM ID is wodecn and Skype ID is wode.smps).
