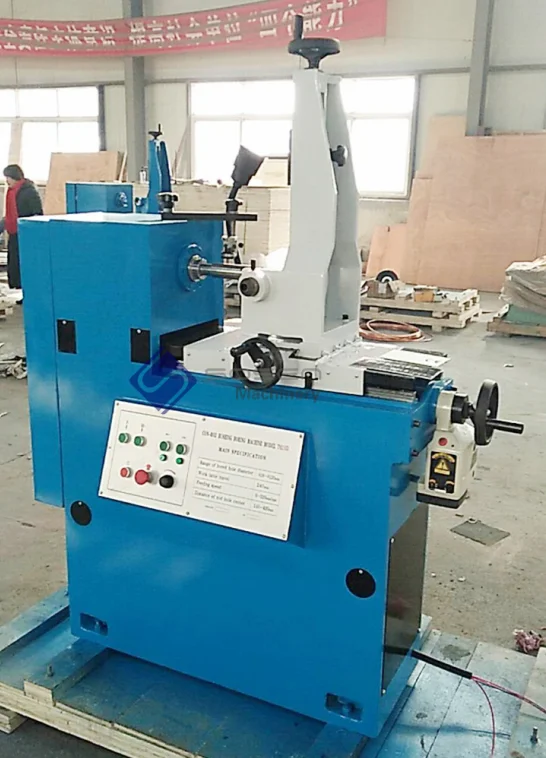

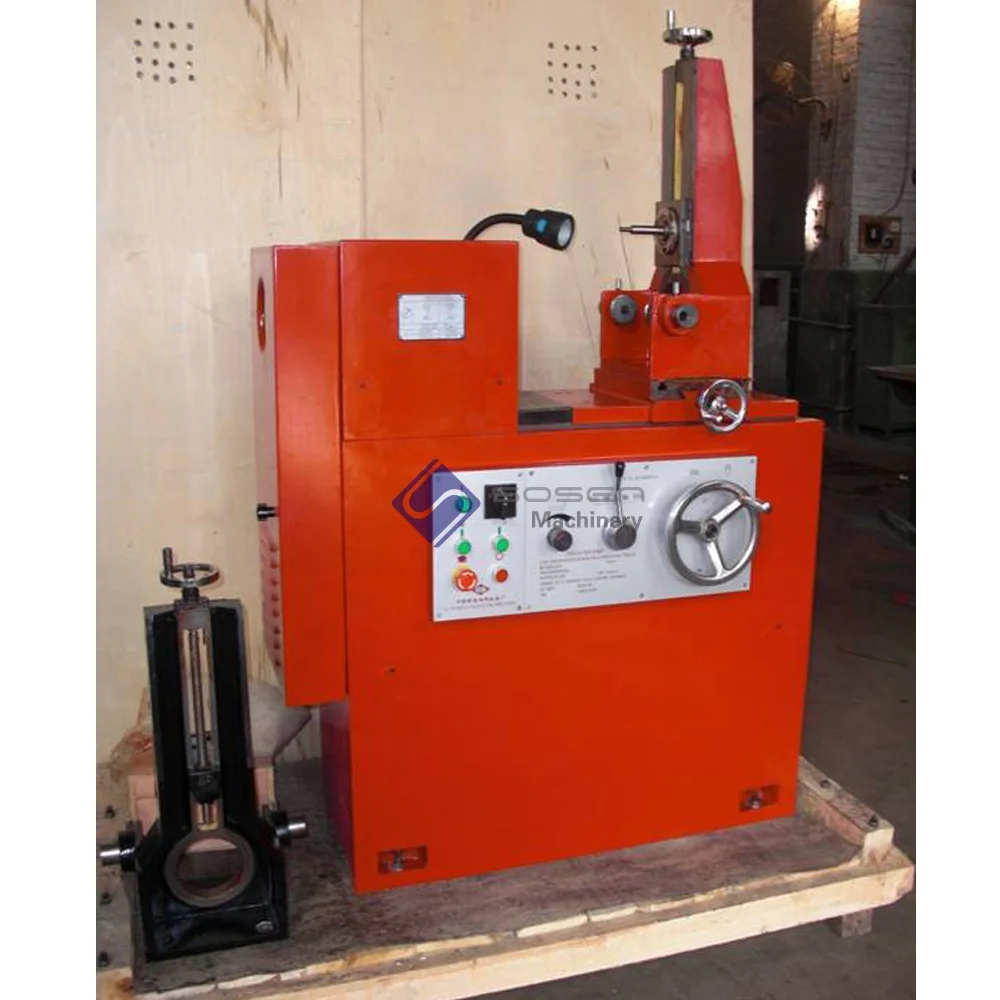

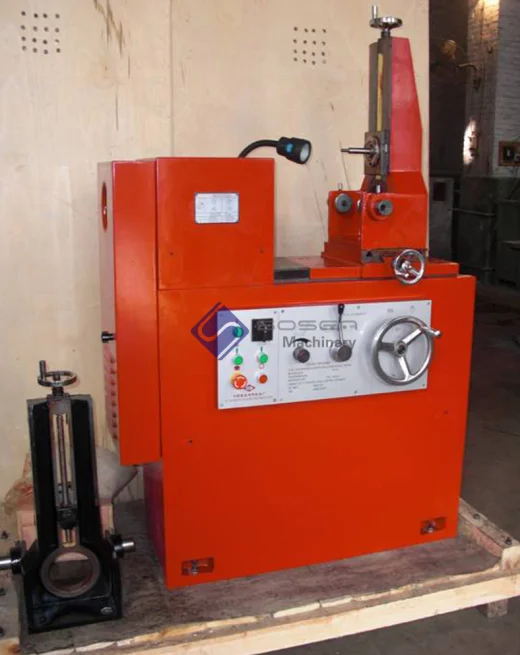

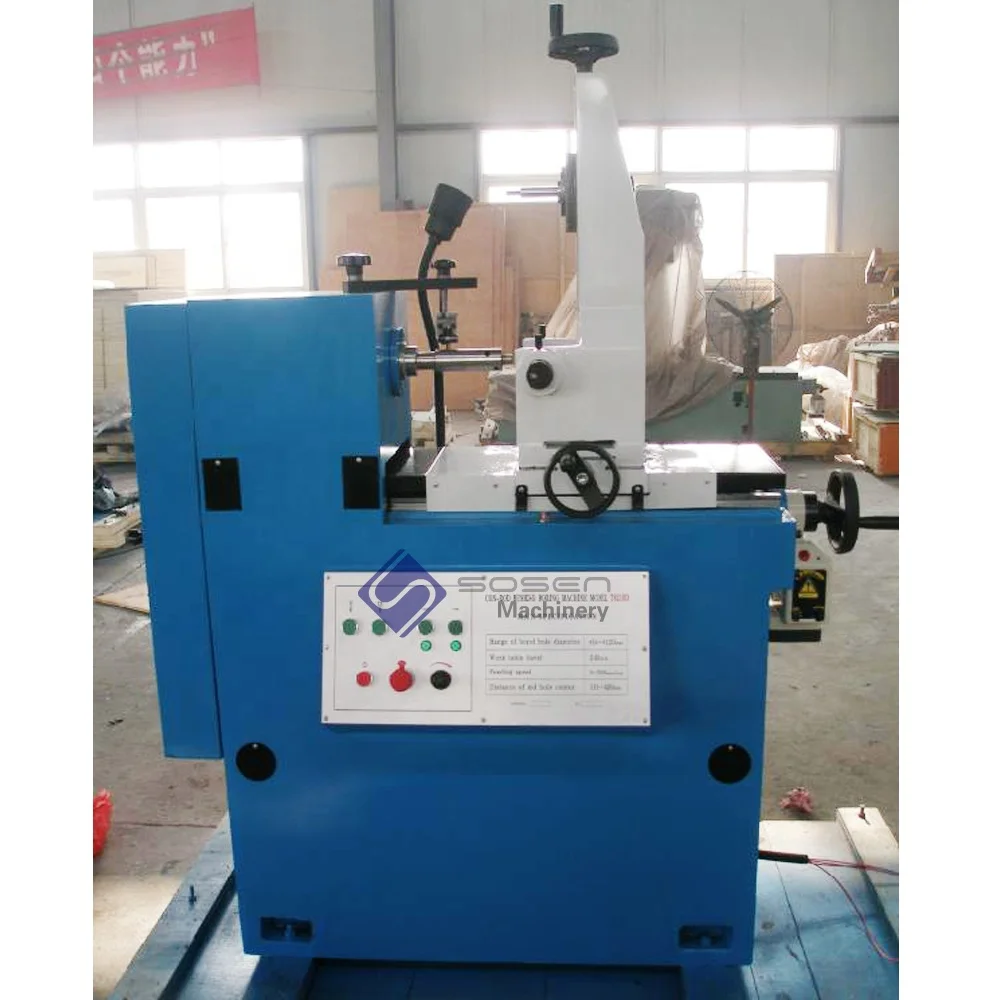

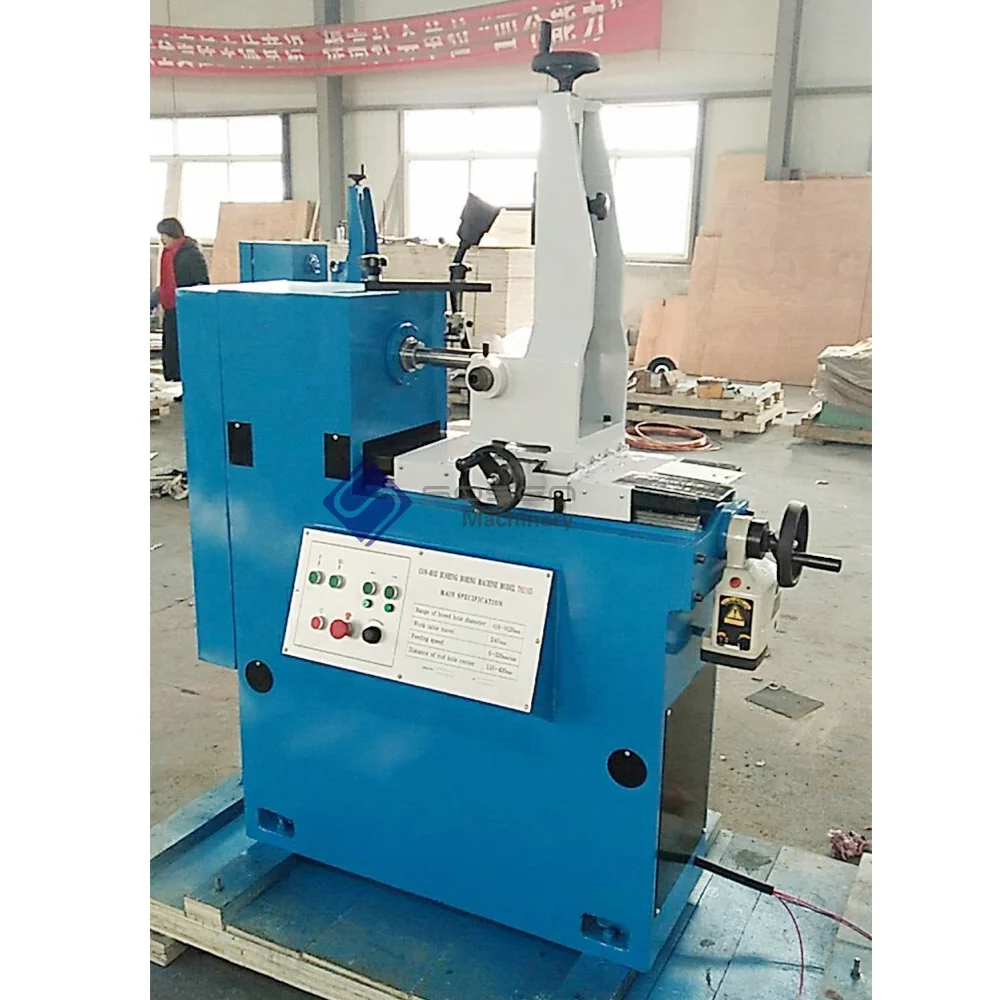

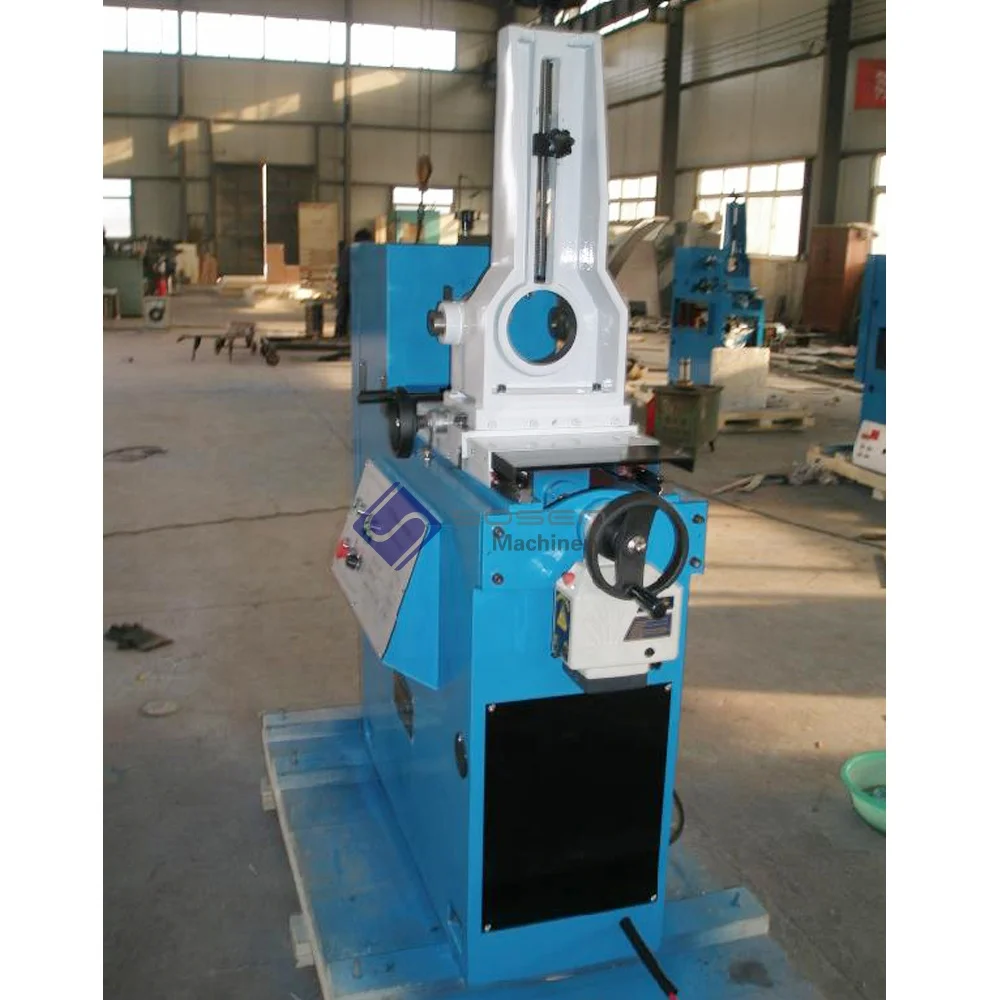

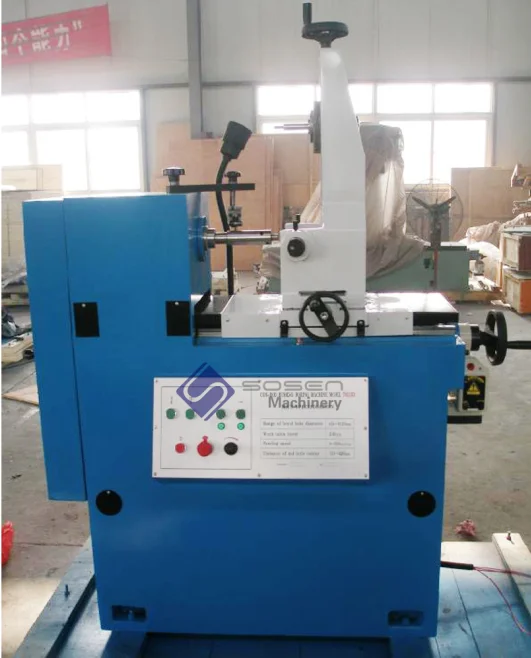

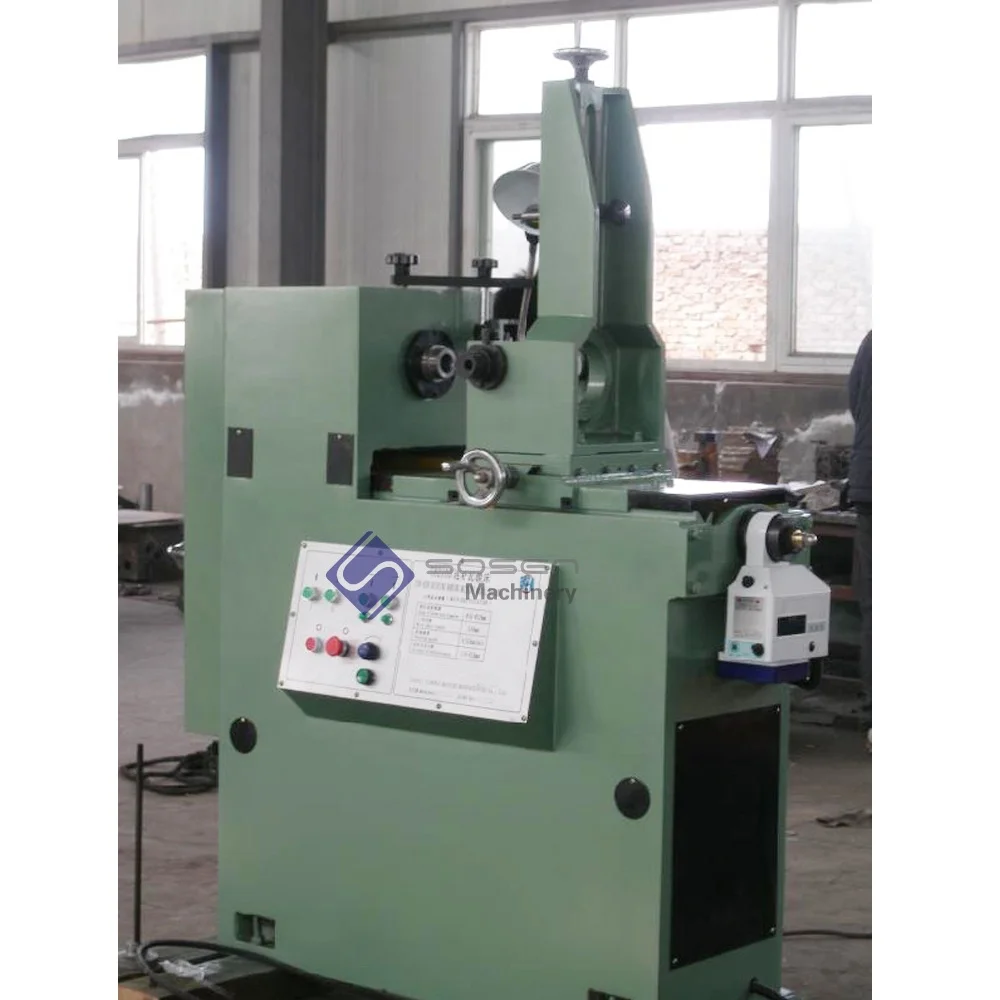

T8216 Engine connecting rod bushing boring machine

Share on (62231913768):


Price:

Quantity:


Product Overview

Description


T8216 Engine connecting rod bushing boring machine

Product Description

T8216 Engine connecting rod bushing boring machine.jpg

T8216 Engine connecting rod bushing boring machine.jpg

Features:

This T8216 Engine connecting rod bushing boring machine has good performance, better structure easy operation and high accuracy. The machine is mainly used in boring rod bushing hole (rod bushing and copper bush) of diesel and gasoline engine of automobiles and tractors. In case of necessity, rod bushing seat hole can be fine bored. The rough and fine boring processing for the holes on other parts can be also completed after changing the corresponding clamps. Besides, it has the accessories for centering sectifying tool, boring tool and boring micro-adjustment etc.



Specification:

Model

T8210D

T8216

Bored hole diameter

Φ16 – Φ100 mm

Φ15 – Φ150 mm

Distance of rod 2 hole centers

100-425mm

85-600mm

Work table travel

220mm

320mm

Main shaft speed

350, 530, 780, 1180rpm

140,215,355,550,785,1200rpm

Boring rod diameter

14, 16, 24, 40mm

14,29,38,59mm

Main motor power

0.65 / 0.85KW

0.85/1.1KW

Dimensions

1150x570x1710mm

1300x860x1760mm

Net Weight

800kg

920kg



 T8216 Engine connecting rod bushing boring machine.jpgT8216 Engine connecting rod bushing boring machine.jpg

T8216 Engine connecting rod bushing boring machine.jpgT8216 Engine connecting rod bushing boring machine.jpg



Company Information
FAQ

T8216 Engine connecting rod bushing boring machine.jpg

Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.

Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.

Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.

Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.

Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.

Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
